SC&T SP001VPD Manuale utente
Smart Cabling & Transmission Corp.
V1.0
Surge Protector
User Manual
Model : SP001VPD
HD-TVI/AHD/HDCVI/CVBS & Power & Data Surge Protector
Introduction
1
User Manual
SP001VPD
SP001VPD is a surge protector designed to provide protection for not only video signals but power and
data signal from high voltage surges, with up to DC40 to 56V for power input..
Features
Resolution up to 8MP (4K)
Supports power input up to AC40V/ DC56V.
Response time less than 1 ns..

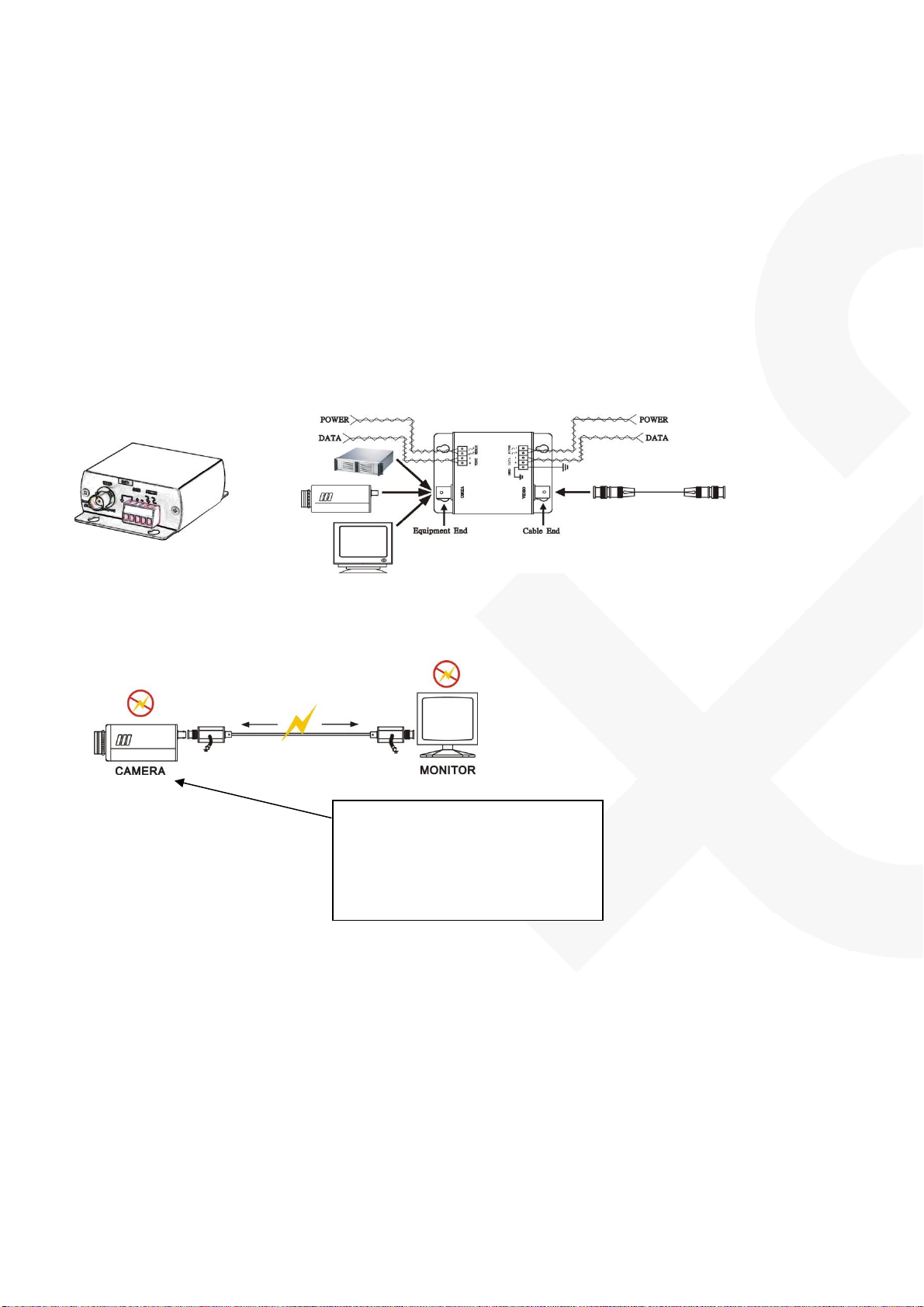

Installation View
Application
CATV System
Antenna of Television
Video Cassette Recorders
FM receivers
Video Cameras and monitors
Multiplexers and Quad Processor
Note
For ensuring the unit can
protect equipments, the cable
must be connected to ground.
2
User Manual
SP001VPD
Specification
ITEM NO.
SP001VPD
Support
Max. Power Input
AC 40V, DC56V
Max. Surge Voltage
4 KV
Response Time
Less than 1 ns
Surge Life
300 Times/ 100A Surge
Normal Resistance Across Coax
10,000 MΩ
Surge Resistance
Approx, 0Ω
Band Pass
0 to 1 GHz
Power Passing Capability
AC/ DC 130V, 65 Vrms@10 A
Insertion Loss
Less than 0.2 dB
Return Loss (75 Ω)
16dB
Ports & Interfaces
Equipment End
1 x BNC Female, 1 x 4-pin Terminal Block
Cable End
1 x BNC Female, 1 x 5-pin Terminal Block
Ambient Temperature
Operation
-10 to 85℃
Storage
-40 to 105℃
Humidity
95%
Physical Characteristics
Dimensions
67 x 87 x 27mm
Weight
145g
