SC&T SP004 Manuale utente
Smart Cabling & Transmission Corp.
V1.0
Surge Protector
User Manual
Model : SP004
UTP Data Surge Protector Terminal Connector
1
User Manual
SP004
Introduction
SP004 is a surge protector designed to protect data signal from high voltage surges..
Features
Resolution up to 4K.
Response time less than 1 ns..
SP004 UTP Data Surge protection Device Terminal Connector
Terminal connector to terminal connector.
Perfect for video or data signal protection

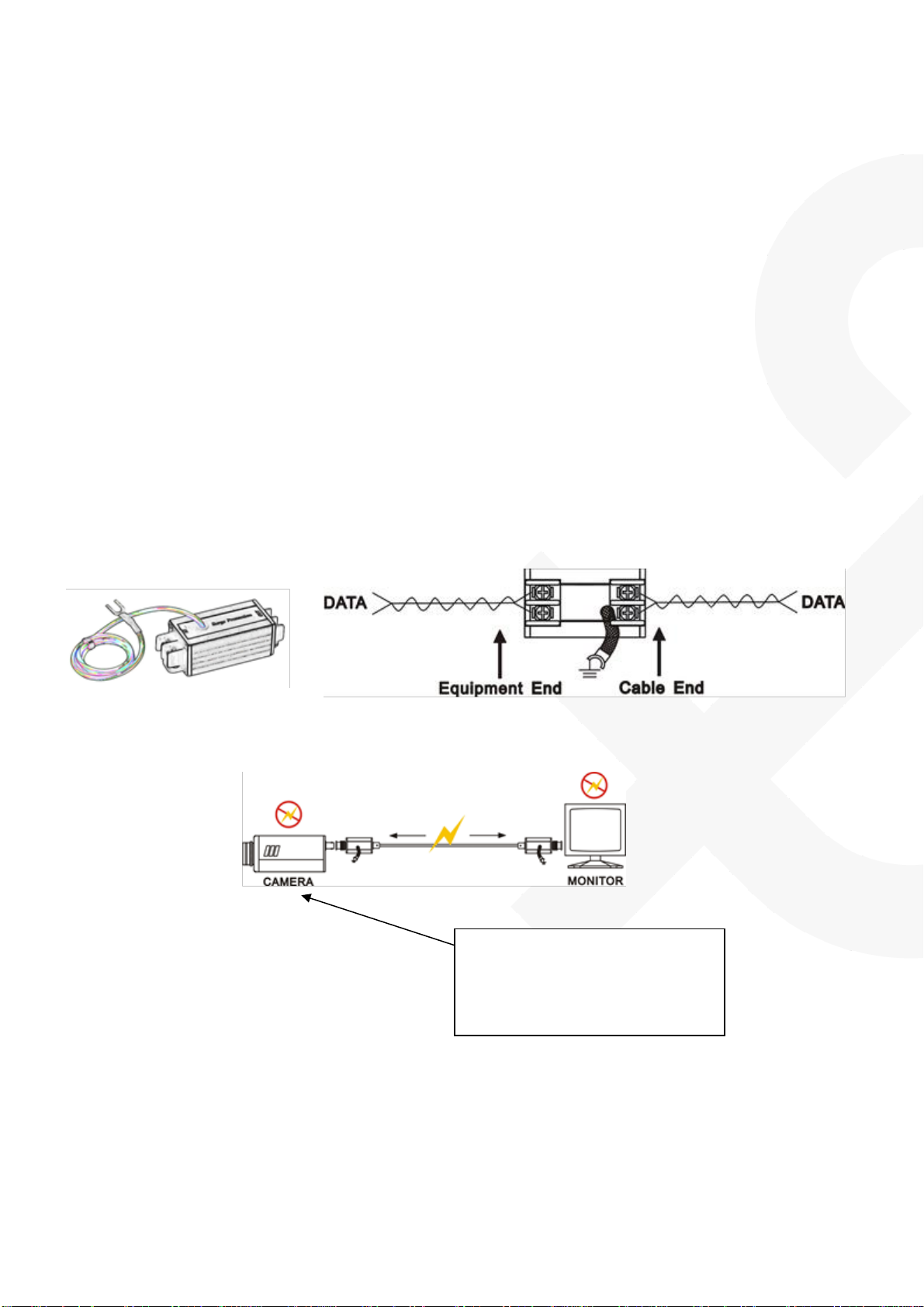

Installation View
Application
CATV System
Antenna of Television
Video Cassette Recorders
FM receivers
Video Cameras and monitors
Multiplexers and Quad Processor
Note
For ensuring the unit can
protect equipments, the cable
must be connected to ground.
2
User Manual
SP004
Specification
ITEM NO.
SP004
Support
Response Time
Less than 1ns
Max. Surge Voltage
4 KV
Surge Life
300 times (100A per surge)
Normal Resistance Across Coax
Approx, 0Ω
Band Pass
0 to 1 GHz
Power Passing Capability
AC/ DC 130V, 65 Vrms@10 A
Insertion Loss
Less than 0.2 dB
Return Loss (75Ω)
16dB
Ports & Interfaces
Equipment End
1 x 2-pin Terminal Block
Cable End
1 x 2-pin Terminal Block
Ambient Temperature
Operation
-10 to 75℃
Storage
-40 to 90℃
Humidity
95%
Physical Characteristics
Dimensions
82.5 x 25.4 x 25.4mm
Weight
60g
