Seada MS-HV51B Manuale utente
4K 5x1 Multi-format
Presentation Switcher
MS-HV51B
VER 1.0
SEADA
Thank you for purchasing this product
Surge protection device recommended
Table of Contents
For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
Use of surge protection systems is highly recommended in order to protect
and extend the life of your equipment.
1. Introduction.......................................................................................... 1
2. Features................................................................................................ 1
3. Package Contents................................................................................ 2
4. Specications....................................................................................... 2
5. Operation Controls and Functions..................................................... 4
5.1 Transmitter Panel............................................................................... 4
5.2 Receiver Panel................................................................................. 5
5.3 OSD MENU.......................................................................................... 6
5.4 Remote Control................................................................................ 10
5.5 Auto-Switching Fuction................................................................... 11
5.6 VGA/YPbPr/CVBS Input................................................................... 12
5.7 Operations of RS-232 Control......................................................... 12
6. Connection Diagram.......................................................................... 14
7. API Control Command....................................................................... 15
1. Introduction
2. Features
MS-MV51B is 4K Multi inputs & Multi formats presentation switcher with
scaler built-in. It supports 5 inputs of 4×HDMI and 1×VGA (YPbPr, CVBS)
and 1 HDMI output. The input source is capable of switching and scaling
to adopt resolution then transmit over HDMI output. The HDTV resolution
is achievable. The system could be controlled and congure easily by the
panel button, IR remote and RS-232. This switcher is a suitable solution
for presentation purpose in the classroom or conference room.
☆ Compliant with HDMI 2.0/1.4b, HDCP 2.2/1.4
☆ Support multi inputs: 4×HDMI, 1×VGA(YPbPr, CVBS)
☆ Support HDMI inputresolutions up to 4K UHD 4:4:4 @50/60
☆ Support output resolutions up to 4K UHD 4:4:4 @60
☆ Support two input switching modes: auto or manual
☆ Support EDID management
☆ Support pass-through of PCM 2CH
☆ Device could be controlled via panel button, IR remote and RS-232
☆ Support USB online software upgrading
3. Package Contents
4. Specications
① 1 × MS-MV51B Switcher
② 2 × Mounting Ears
③ 1 × Remote Control
④ 1 × IR Receiver Cable
⑤ 1 × 12V/1APower Adapter
⑥ 1 × 3RCA (Female) to D-SUB (Male) Cable
⑦ 1 × 3.5m Jack (Male) to 2RCA (Female) Cable
⑧ 1 × User Manual
Technical
HDMI Compliance HDMI 2.0/1.4b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Input
Resolutions
HDMI: up to 4K2K@50/60Hz (4:4:4)
C-Video: PAL/NTSC3.58/NTSC4.43/SECAM/PAL M/PAL N
YPBPR: 480i to1080p
VGA: 640×480 to1920×1200
HDMI Output
Resolutions
4K2K60, 4K2K30, 1920×1080p/50, 1920×1080p/60,
1280×720p/50, 1280×720p/60, 1024×768/60, 1280×800/60,
1360×768/60, 1400×1050/60, 1680×1050/60, 1920×1200/60
Audio Formats LPCM 2.0CH
ESD Protection Human-body Model:
±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connection
Input
4×HDMI Type A [19-pin female]
1×VGA [female]
1×Micro USB [5-pin female], optional for Power Supply
Output 1×HDMI Type A [19-pin female]
1×3.5m Mini Jack
Control
1×IR IN
1×RS-232
1×USB Service (Update)
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 110mm(W)×288mm(D)×32mm(H)
Weight 880g
Power Supply DC 12V/1A Adapter
(US/EU standards, CE/FCC/UL certied)
Power Consumption 9W (Max)
Operating Temperature 0°C~40°C/32°F~104°F
Storage Temperature -20°C~60°C/-4°F~140°F
Relative Humidity 20%~90% RH (non-condensing)
5. Operation Controls and Functions
5.1 Front Panel
Power button and indicator
Output Resolution buttons
Input Source & Auto buttons
IR Window
Switch between standby and working mode. Switch to the standby
mode, and the indicator turns red. Switch to the working mode, and the
indicator turns blue.
Press these buttons to select output resolutions: 4K60, 4K30, 1080P60,
720P60. For more resolution options, please use the remote control or
RS-232 control tools.
Press these buttons to select input sources. The corresponding
indicator will be on when the source device is selected. AUTO button
is used to switch the auto switching mode (the indicator is in blue) and
manual switching mode (the indicator is o) for input sources.
Receive IR signal from remote control which come with this device.
1
2
3
4

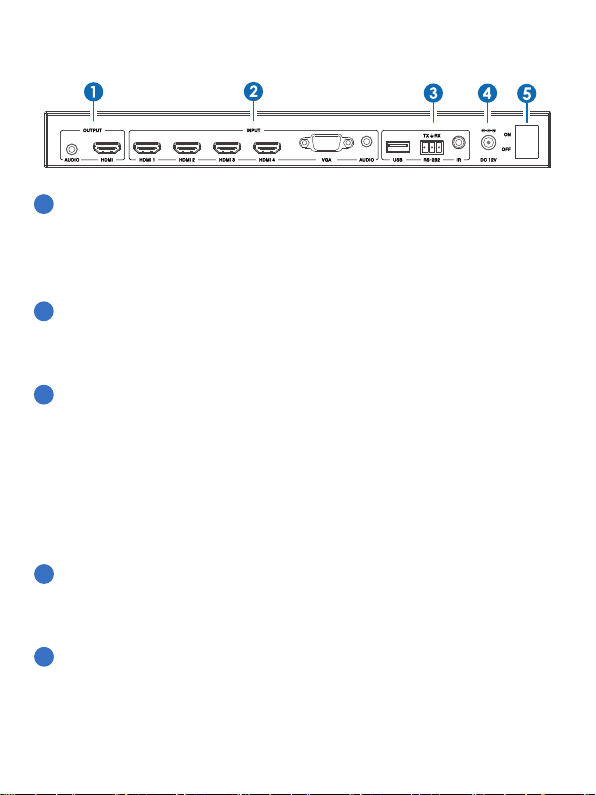

5.2 Rear Panel
Output
Power
ON/OFF
Control
Input
Connect to an HDMI display device through the HDMI OUTPUT port to
output video. Connect to an AV Receiver through the AUDIO OUTPUT
port to output audio.
Plug the 12V DC power supply into the unit and connect the adaptor
to an AC outlet.
Power ON/OFF switch.
USB: Used to update the system rmware.
RS-232: Serial control port (3-pin Phoenix connector). Connects to a
control device to control this device, with the remote control or RS-232
control tools.
IR: Connect with the IR receiver cable to receive IR signals sent by the
IR remote or remote controller of other devices.
4 HDMI and 1 VGA input ports. The VGA port supports YPbPr, C-video
and VGA input format.
1
2
3
4
5
5.3 OSD MENU
5.3.1 Main MENU
5.3.2 Picture
This switcher provides a powerful OSD operation menu. Press MENU
button on the IR remote to enter the OSD menu. You can change the
settings through the OSD menu.
The Main MENU includes Picture, Aspect Ratio, Screen, EDID Switch and
Software Update options.
You can adjust picture contrast (default: 50), brightness (default: 50), color
(default: 30), sharpness (default: 10), etc.
5.3.3 Aspect Ratio
5.3.4 Screen
You can adjust a picture's output aspect ratio between 4:3 and 16:9.
The screen MENU is for VGA input adjustment only. You can adjust
horizontal, vertical position, size and phase in this section.
5.3.5 EDID
5.3.6 Software Update
EDID 1.4 corresponds to the HDMI 1.4 standard, EDID 2.0 corresponds to
the HDMI 2.0 standard, and EDID AUTO indicates copying the EDID mode
of the connected display device.
This switcher supports software update via USB ash disk. The procedure
is as follows:
1) Copy the le “MERGE.bin” to the root directory of a USB ash disk. (Make
sure the le is copied to the root directory. The “MERGE.bin” le is provided/
authorized by our engineer or from our website)
2) Plug the USB ash disk into the switcher's USB port on the rear panel.
3) Click "MENU -->software update-->YES" to start updating. The OSD will
display the update process.
