Select.live User Manual OI0009 Version: 01

Select.

live

SP PRO Remote Monitoring

User Manual

EN -English

Selectronic Australia Legal and Safety Information

2 OI0009 Revision 01 Select.live User Manual

Legal and Safety Information

Thank you for purchasing Selectronic Select.live remote monitoring device for the SP PRO

series I and II inverters.

This document, copyright of Selectronic Australia is intended to be used for the installation

and operation of Select.live. Select.live comes with a warranty. Neither Selectronic Australia

nor its distributors or dealers shall be liable for a warranty claim for any indirect, incidental

or consequential damages under any circumstances.

Selectronic Australia reserve the right to make changes to this document. This document

can be downloaded from www.selectronic.com.au. While every attempt has been made to

ensure this document is self-explanatory, clear as possible and up-to-date, the

specifications are subject to change without notice.

Selectronic Australia Pty Ltd.

Suite 5, 20 Fletcher Road,

Chirnside Park, VIC

3116 Australia

Table of Contents Selectronic Australia

OI0009 Revision 01 Select.live User Manual 3
Table of Contents

Legal and Safety Information....................................................................... 2
Table of Contents.......................................................................................... 3
1Introduction......................................................................................... 5
 Information ........................................................................................................ 5
1.1.1 Validation ...................................................................................................................................... 5
1.1.2 Glossary of Terms........................................................................................................................... 5
1.1.3 Formatting..................................................................................................................................... 6
 Select.live........................................................................................................... 6
2Package Contents ................................................................................ 7
 Select.live Package.............................................................................................. 7
 Select.live Adaptor Kit Package............................................................................. 7
3Select.live Overview ............................................................................ 8
 Select.live........................................................................................................... 8
 Device Label ....................................................................................................... 9
 Connection and LED indicators ............................................................................10
4Installation and Commissioning ........................................................ 11
 Mounting...........................................................................................................12
 Connection to the SP PRO...................................................................................13
4.2.1 Connection to the SP PRO Series II ................................................................................................ 13
4.2.2 Connection to the SP PRO Series I ................................................................................................. 14
 Login to Select.live .............................................................................................15
 Setup Wizard of Select.live..................................................................................15
4.4.1 Configuring Select.live for the SP PRO ............................................................................................ 16
4.4.2 Configuring Select.live for the Internet via Wi-Fi.............................................................................. 17
4.4.3 Configuring Select.live to the Internet via Ethernet .......................................................................... 18
4.4.4 Connection to the Ethernet cable ................................................................................................... 19
4.4.5 Completing the Setup Wizard......................................................................................................... 20
 Registration to Select.live Portal ..........................................................................21
 Link Select.live to the Portal ................................................................................22
 Monitoring of the system ....................................................................................24
5Select.live Display Operation............................................................. 25
 Before Setup Wizard...........................................................................................25
 After the Setup Wizard .......................................................................................25
 After Adding the device to the Portal....................................................................27
 During Events ....................................................................................................28

Selectronic Australia Table of Contents
4 OI0009 Revision 01 Select.live User Manual
6Login to Select.live............................................................................. 29
 Login via Wi-Fi normal mode or Ethernet..............................................................29
7Select.live Operation.......................................................................... 30
 User Interface....................................................................................................30
 Viewing Setup Wizard Page.................................................................................31
 Viewing Advanced Settings page .........................................................................32
 Viewing SP PRO detail ........................................................................................34
 Deleting the connected SP PRO ...........................................................................34
 Adding new SP PRO ...........................................................................................35
 Editing Wi-Fi Connection.....................................................................................36
 Editing Ethernet Connection ................................................................................38
 Updating new Firmware......................................................................................40
 Factory Reset of the device .................................................................................41
 Login to the Portal..............................................................................................42
 Reset the login password ....................................................................................43
8Select.live Portal Operation ............................................................... 44
 Viewing Systems page ........................................................................................44
8.1.1 Status icon representation ............................................................................................................. 45
 User Interface....................................................................................................45
 Viewing Dashboard Page ....................................................................................46
8.3.1 Power Flow .................................................................................................................................. 47
8.3.2 Load Powered By.......................................................................................................................... 50
8.3.3 INFO ........................................................................................................................................... 50
8.3.4 Connection Status ........................................................................................................................ 51
8.3.5 ECO ............................................................................................................................................ 51
8.3.6 Energy Chart................................................................................................................................ 52
 Viewing Events Page ..........................................................................................54
 Changing System Settings...................................................................................55
8.5.1 Delete the system from Portal ....................................................................................................... 56
 Changing my Profile ...........................................................................................56
8.6.1 Changing My Details ..................................................................................................................... 57
8.6.2 Changing Password ...................................................................................................................... 57
9Maintenance and Service................................................................... 58
10 Troubleshooting................................................................................. 59
11 Specifications..................................................................................... 61
 Select.live..........................................................................................................61
12 Contact............................................................................................... 62


Introduction Selectronic Australia

OI0009 Revision 01 Select.live User Manual 5

1Introduction

Information

This document will explain the installation, operation and troubleshooting of Select.live

(Order code 005283) for SP PRO series II and for the SP PRO Series I. When installing

Select.live with SP PRO series I, the Adaptor Kit (Order code 005290) is also required.

This document doesn’t provide any detailed information about the SP PRO. For detailed

information on the SP PRO, download relevant documents from www.selectronic.com.au.

1.1.1 Validation

This document is only valid for a Select.live with hardware version 2.0 and firmware version

3.6.3 and greater. Select.live supports the SP PRO Series I in a single-phase configuration

only, or SP PRO Series II in either a single phase or Advanced Multiphase (three phase or

split phase) configuration. Select.live supports both On-grid and Off-grid systems, including

On-grid with Generator backup.

1.1.2 Glossary of Terms

Terms

Description

Select.live

Remote monitoring device connected to SP PRO System. This

is also referred as “the device”in this document

Select.live Portal

Remote monitoring Web site for SP PRO system. This is also

referred as “the portal”and “the web app”in this document

Device Web Interface

Select.live local web interface for configuration

SP PRO System

Battery inverters from Selectronic Australia with battery, Grid,

Generator (optional) and solar PV (optional)

Off-grid

SP PRO System with no Grid; with battery, generator and solar

PV (optional)

On-grid

SP PRO System with Battery, Grid and solar PV (optional).

On-grid with

Generator backup

SP PRO System with Battery, Grid solar PV (optional) and

Generator (optional –requires additional Grid Fail, Generator

backup kit).

Solar PV

A Solar PV array with a solar inverter

Watt; The unit of Power

kWh

KiloWatt hours; the unit of Energy

SoC

State of Charge in the battery (amount of charge in the

battery) expressed as a % of the battery capacity

Selectronic Australia Introduction

6 OI0009 Revision 01 Select.live User Manual

1.1.3 Formatting

This document uses special formatting for the representation of buttons, links etc. which

are follows

Formatting

Description

Input field of the form

[Save]

Buttons or link

‘Menu1’

Menu item

‘Menu1’→[button]

Menu followed by button path in order of the right arrow

Example

Example in italics

Select.live

Select.live is a remote communication system for the SP PRO that enables users to view

data remotely using internet connected PC, laptop and mobile devices. Select.live consists

of two modules, Select.live and Select.live portal

Select.live communicates with the SP PRO system via its communication port and sends the

data to the remote server (Select.live Portal) via the internet. Select.live Portal stores all this

data ready to display to the user via web charts and animated flow tools.

SP PRO Series II

SP PRO Series I

Select.live

Device Web Interface

Internet

Select.live Portal

Package Contents Selectronic Australia

OI0009 Revision 01 Select.live User Manual 7

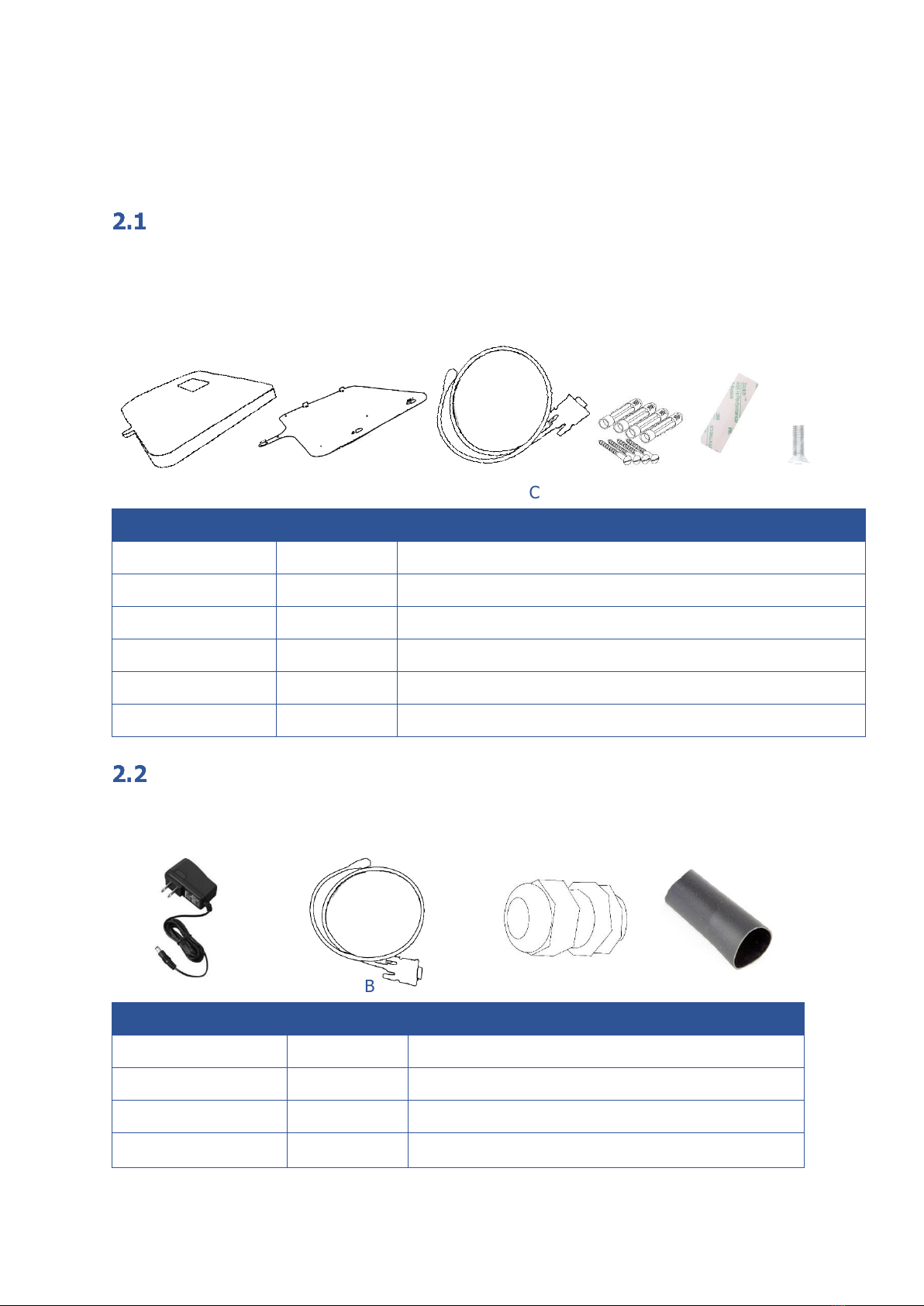

2Package Contents

Check the delivery for completeness and for any external damage. Contact your dealer if

the delivery is incomplete or damaged.

Select.live Package

This package contains Select.live and accessories for the connection to SP PRO Series II

inverters only.

Order Code: 005283

A B C D E F

Position

Quantity

Description

Select.live

Wall Mount Plate

Communication Cable

Wall Mount Screws with wall anchors

Double Side Mounting Strip

Small Screw

Select.live Adaptor Kit Package

This extra package is required when connecting Select.live to the SP PRO Series I inverter.

Order Code: 005290

A B C D

Position

Quantity

Description

12V DC power adaptor

Power Console cable

25mm Gland

70mm long Wire Sleeve

Selectronic Australia Select.live Overview

8 OI0009 Revision 01 Select.live User Manual

3Select.live Overview

Select.live

Position

Description

Wi-Fi antenna area of Select.live

LCD display of Select.live

Position for the small screw to secure Select.live to the wall mount

plate

Select.live Overview Selectronic Australia

OI0009 Revision 01 Select.live User Manual 9

Device Label

The device label is found on the back of Select.live. The label has following details

Position

Label

Description

WLAN MAC

MAC address of the Wi-Fi.

ETH MAC

MAC address of the Ethernet.

S/N

Serial Number.

Stock Code

Stoke code and hardware version.

Rated

The power rating.

Selectronic Australia Select.live Overview

10 OI0009 Revision 01 Select.live User Manual

Connection and LED indicators

The connection area is on the back of Select.live facing downwards. The label for the

connectors is on the back.

Position

Name

Status

Description

Power LED

Solid Red

Select.live has a power supply

Off

Select.live has no power supply

Ethernet LED

Blinking green

Ethernet is transferring data

Off

Ethernet is not transferring data

Wi-Fi LED

Blinking green

Wi-Fi is transferring data

Off

Wi-Fi is not transferring data

Reset Button

Push button to reboot and factory reset

Ethernet Port

Ethernet connection

USB A Port

USB A connection host (no function)

Serial Port

The Serial connection to the SP PRO

DC Power Port

2.5 DC jack for power supply (Only used with

Series I SP PRO)

A B C D E F G H

Altri manuali per Select.live

Indice

Altri manuali Selectronic Strumento di misura

Selectronic

Selectronic Select.live Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
