Seltron ST Manuale utente
Room Thermostat ST+
Raumthermostat ST+
ST+
Anleitungen
D
GB
Instructions
GR
DGR GB
3
D Bedienungsanleitungen ............................23
Betriebsanleitungen..................................28
Montageanleitungen .................................34
Technische Daten, Stellungsnahme.........38
User manual..............................................4
Setting manual..........................................10
Installation manual....................................16
Technical data, statements.......................20
GB
......................................40
...........53
GR
GB
USER MANUAL
4
ST+ is a powerful and modern designed room thermostat. Heating opera-
tion can be managed manually (day or night temperature mode) or by a
weekly time program. ST+ also allows d. h. w. warming control, which is set
independently from room heating.
LEGEND
Room Thermostat ST+
Hold key while pressing other keys.
Hold key until you hear a beep sound.
Press and release key.
Press key to increase or decrease value.
USER MANUAL
GB
USER MANUAL 5
Thermostat description
Display:
Day of the week (1-7)
Program timer activated
Day temperature mode
Night temperature mode
Frost protection
Heating is active
D. h. w. warming is active
Operating mode manual change
Measured room temperature display
Day temperature setting
D. h. w. warming ON/OFF
Night temperature or d. h. w.
warming duration setting Operating mode selection:
- Day temperature
- Night temperature
- Frost protection
3
Hold key for 15 seconds. Release the key after you hear a beep. Symbol
indicates locked thermostat. To unlock the ST, again hold key
for 15 seconds.
Thermostat locking
GB
USER MANUAL
6
Day
Hold both keys and , then press
key or to set the day. The days
are marked from 1 to 7. Monday is
marked as 1and Sunday as 7.
i If the ST, by battery exchange, isn’t functional for a while, is the
time set to Monday, 20:00.
Hours: Hold key
and press key or . Minutes: Hold key
and press key or .
Setting the accurate time and day
GB
USER MANUAL 7
By pressing you can change the operating mode.
- comfort mode (day temperature),
display shows
- economic mode (night temperature),
display shows
- operating by selected time program,
display shows and or , depends on active
mode (day/night) set in the program
- frost protection (OFF) display shows .
Night temperature
Night temperature is set by pressing the keys or .
If the room temperature doesn't suit your needs or expectations, you can
simply change the setted temperature:
Day temperature
To set the day temperature rotate the knob to the
requested value between 10 and 30 °C.
i Default operating mode after inserting or change of batteries is the
»Day temperature« mode and the d. h. w. is deactivated.
Operating mode selection
Setting the temperatures
GB
USER MANUAL
8
A flashing symbol on the display means, that the requested room
temperature is shown. 10 seconds after the last change of the re-
quested temperature the flashing stops and the display is showing the
measured room temperature.
i
By pressing the button , the d. h. w. warming is activated. The symbol
»on« or time between 1 and 12 hours is flashing. Now by the pressing the
key or you can change the setting, but if you don't do anything, then
you keep the displayed setting. The setting »on« means that the d. h. w.
warming will be activated until the key is pressed again.
If you have chosen the d. h. w. warming with timer function, then it will be
deactivated automatic, when the setted time runs out.
When the d. h. w. warming with timer function is chosen,
then the symbol flashes.
To deactivate the d. h. w. warming, press the key .
If a time program is active, you can manually change the operating mode
from day temperature to night temperature mode and vice versa. Simply
bol .
Domestic hot water warming
Ogrevanje sanitarne vode
Operating mode (time program) - manual change
GB
USER MANUAL 9
Empty batteries are indicated with the low
contrast display. We suggest the battery re-
placement every 2 years. ST is supplied with
two alkaline batteries 1.5 V type AAA. Bat-
tery socket is inside the ST. To remove ther-
mostat from the wall plate, do the following.
Hold thermostat in height of keys and pull it
towards yourself (look at the picture). After
battery exchange, put ST back on the wall
plate, by doing the following. Hook ST on top
and push it with bottom towards the wall
plate.
Battery exchange should be done within 20 seconds.
In other case you will have to set the accurate time again.
ODPRI
ZAPRI
Batterie exchange
OPEN
CLOSE
GB
SETTING MANUAL
10

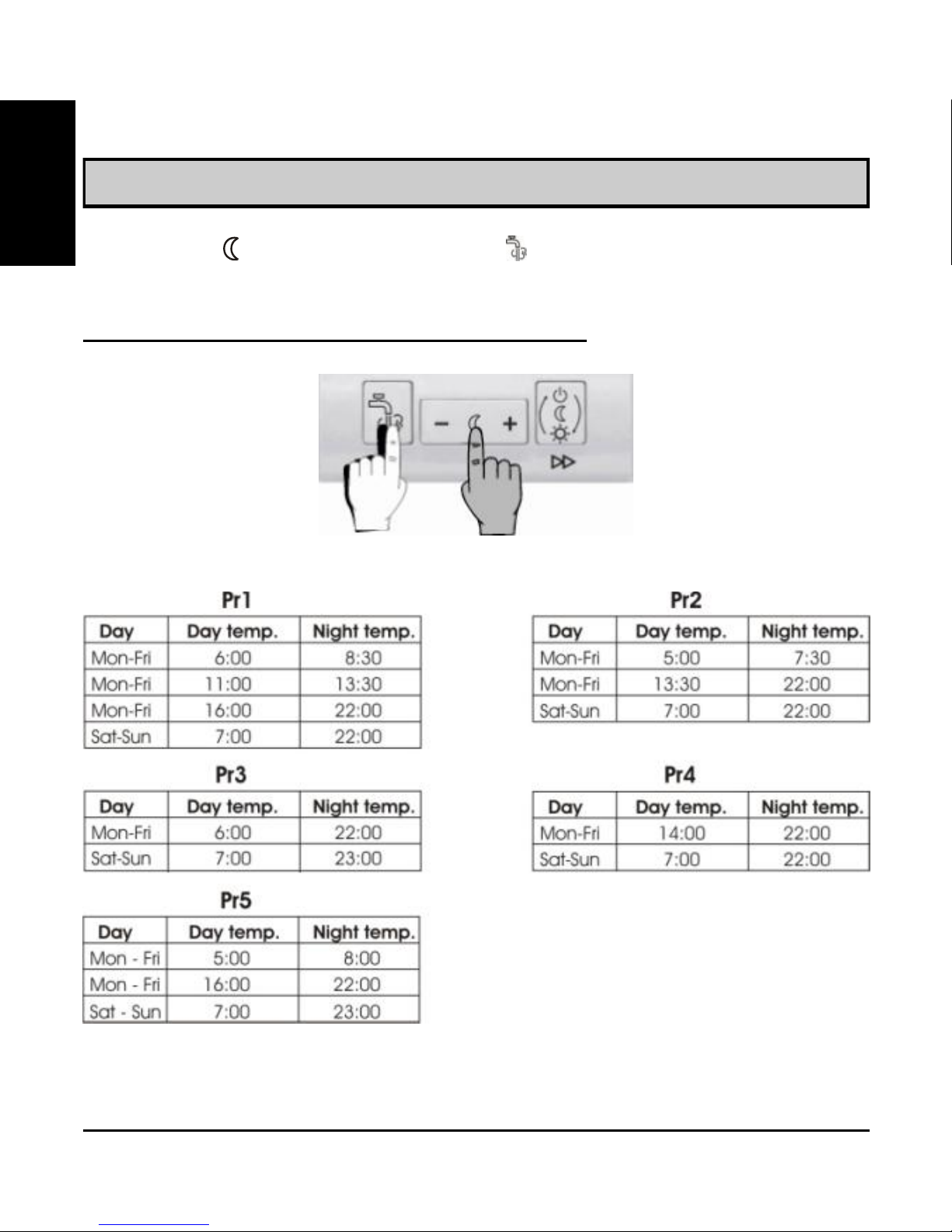

Pre- setted time program tables.
Program selection
Hold the key and by pressing the key select the wanted program. You
can choose between Pr1, Pr2, Pr3, Pr4, Pr5, Pr6 and - - -.
Selected time program always replaces the active program.
Pre- setted time programs
