Sena SPIDER RT1 Manuale utente

MOTORCYCLE MESH COMMUNICATION SYSTEM

USER’S GUIDE

ENGLISH

SENA

Version 1.1.0

TABLE OF CONTENTS

1. ABOUT THE SPIDER RT1 5

1.1 Product Features 5

1.2 Product Details 6

1.3 Package Contents 7

2. INSTALLING THE HEADSET ON YOUR HELMET 8

2.1 Installing the Main Unit 8

2.1.1 Using the Hook and Loop Fasteners for Main Unit 8

2.1.2 Using the Double Sided Adhesive Tapes for Main

Unit 9

2.1.3 Using the Clamp for Main Unit 9

2.2 Installing the Speakers 10

2.3 Installing the Microphones 11

2.3.1 Using the Wired Boom Microphone 11

2.3.2 Using the Wired Microphone 13

2.4 External Mesh Intercom Antenna 13

3. GETTING STARTED 14

3.1 Downloadable Sena Software 14

3.1.1 SENA MOTORCYCLES App 14

3.1.2 Sena Device Manager 14

3.1.3 Firmware Upgrades 14

3.2 Charging 15

3.3 Legend 15

3.4 Powering On and Off 15

3.5 Volume Adjustment 16

3.6 Checking the Battery Level 16

TABLE OF CONTENTS CONTINUED

4. PAIRING THE HEADSET WITH OTHER

BLUETOOTH DEVICES 17

4.1 Phone Pairing 17

4.1.1 Initially Pairing the SPIDER RT1 17

4.1.2 Pairing When the SPIDER RT1 is Turned Off 18

4.1.3 Pairing When the SPIDER RT1 is Turned On 18

4.2 Second Mobile Phone Pairing - Second Mobile

Phone, GPS, and SR10 19

4.3 GPS Pairing 19

5. MOBILE PHONE USAGE 20

5.1 Making and Answering Calls 20

5.2 Speed Dialing 20

5.2.1 Assigning Speed Dial Presets 20

5.2.2 Using Speed Dial Presets 20

6. STEREO MUSIC 22

6.1 Playing Music with Bluetooth Devices 22

6.2 Music Sharing 22

7. MESH INTERCOM 23

7.1 What is Mesh Intercom? 23

7.1.1 Open Mesh 24

7.1.2 Group Mesh 24

7.2 Starting Mesh Intercom 25

7.3 Using the Mesh in Open Mesh 25

7.3.1 Channel Setting (Default: channel 1) 25

7.4 Using Mesh in Group Mesh 26

7.4.1 Creating a Group Mesh 26

7.4.2 Joining an Existing Group Mesh 27

TABLE OF CONTENTS CONTINUED

7.5 Enable/Disable Mic (Default: Enable) 28

7.6 Toggling Open Mesh/Group Mesh 28

7.7 Reset Mesh 28

8. MESH AUDIO MULTITASKING (ALWAYS ON) 29

9. FUNCTION PRIORITY 30

10. CONFIGURATION SETTING 31

10.1 Headset Conﬁguration Menu 31

10.2 Software Conﬁguration Setting 31

10.2.1 Audio Equalizer (Default: Off) 32

10.2.2 VOX Phone (Default: Enable) 32

10.2.3 VOX Sensitivity (Default: 3) 32

10.2.4 Intercom-Audio Overlay Sensitivity (Default: 3) 32

10.2.5 Audio Overlay Volume Management

(Default: Disable) 33

10.2.6 HD Voice (Default: Enable) 33

10.2.7 Voice Prompt (Default: Enable) 33

11. TROUBLESHOOTING 34

11.1 Fault Reset 34

11.2 Factory Reset 34

SPIDER RT1 Motorcycle Mesh Communication System | 5

1. ABOUT THE SPIDER RT1

1.1 Product Features

Bluetooth®5.1

Mesh Intercom up to 2 km (1.2 mi)*

Audio Multitasking™

Music Sharing

* in open terrain

CHAPTER

SPIDER RT1 Motorcycle Mesh Communication System | 6

1 ABOUT THE SPIDER RT1

1.2 Product Details

Mesh Intercom

Antenna

Status LED

Speaker

Connectors

Microphone

Connector

Mesh Intercom

Button

Center Button

(+) Button

(-) Button

DC Power

Charging &

Firmware

Upgrade Port

SPIDER RT1 Motorcycle Mesh Communication System | 7

1 ABOUT THE SPIDER RT1

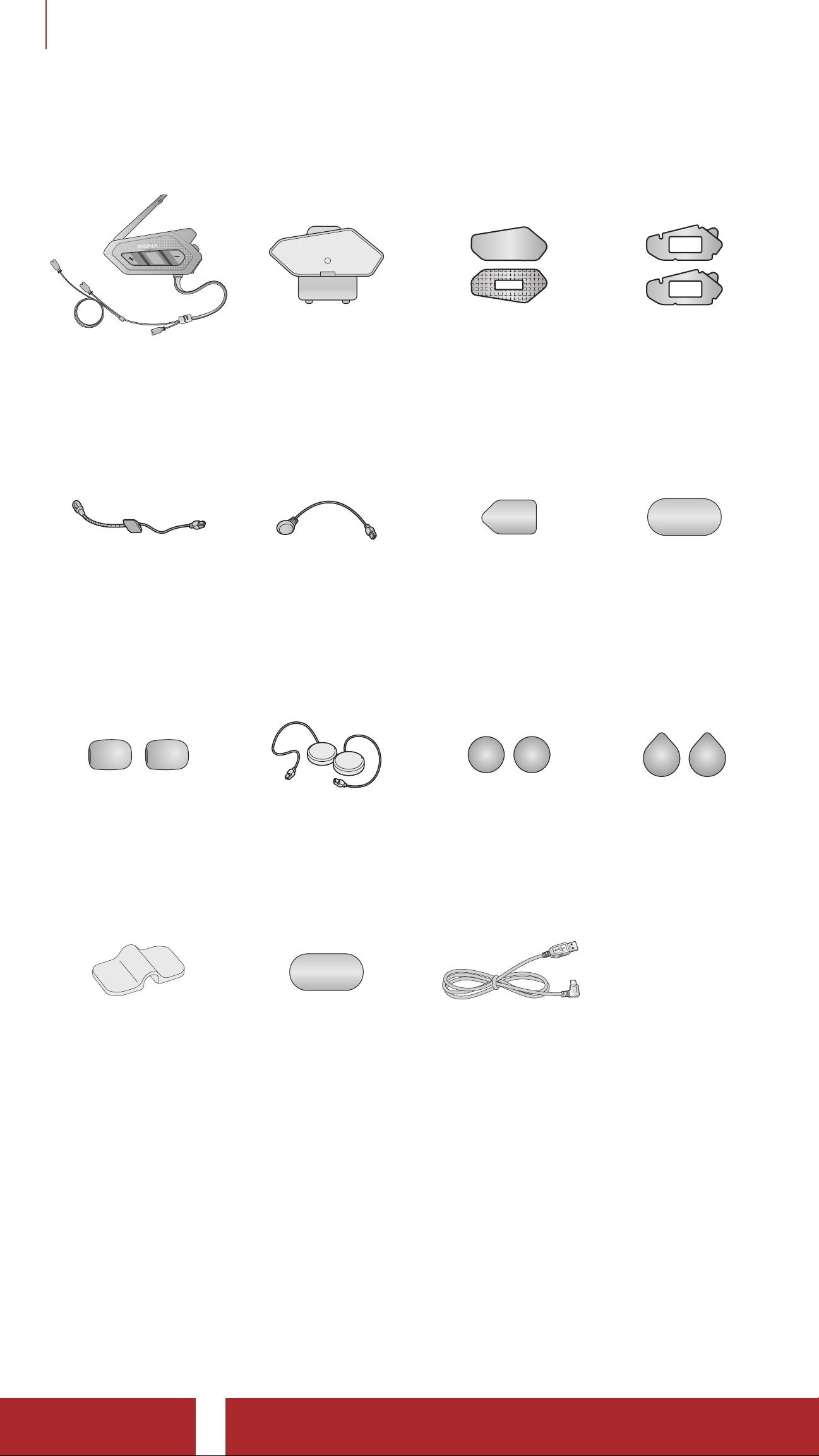

1.3 Package Contents

Headset

Main Unit Clamp

Hook and Loop

Fasteners for

Main Unit

Double Sided

Adhesive Tapes

for Main Unit

Wired Boom

Microphone

Wired

Microphone

Hook and Loop

Fastener for

Boom

Microphone

Hook and

Loop Fastener

for Wired

Microphone

Sponges Speakers Speaker Pads

Hook and Loop

Fasteners for

Speakers

Boom Microphone

Holder

Hook and Loop

Fastener for Holder

USB Power &

Data Cable

(USB-C)

SPIDER RT1 Motorcycle Mesh Communication System | 8

2. INSTALLING THE HEADSET ON YOUR

HELMET

2.1 Installing the Main Unit

2.1.1 Using the Hook and Loop Fasteners for Main Unit

1. Clean the area on the left side of the helmet where you will attach the

hook and loop fasteners for main unit with a moistened towel and dry

thoroughly.

2. Peel off the cover of the adhesive tape of the loop fastener for main

unit and attach it to the helmet.

3. Peel off the cover of the adhesive tape of the hook fastener for main

unit and attach it to the back plate of the main unit.

4. Attach the main unit using the hook and loop fasteners that you

ﬁtted. Make sure that the main unit is ﬁrmly attached to the helmet.

CHAPTER

SPIDER RT1 Motorcycle Mesh Communication System | 9

2 INSTALLING THE HEADSET ON YOUR HELMET

2.1.2 Using the Double Sided Adhesive Tapes for Main Unit

If you cannot attach the hook and loop fasteners to the helmet, you can

use double sided adhesive tape.

1. Clean the area on the left side of the helmet where you will attach

the double sided adhesive tapes with moistened towel and dry

thoroughly.

2. Peel off the cover from one side of the double sided adhesive tapes

for main unit and attach it to the back plate of the main unit.

3. Peel off the cover from the other side of the double sided adhesive

tapes and attach the main unit on the left side of your helmet.

4. Make sure that the main unit sticks on the helmet ﬁrmly. Maximum

adhesion occurs after 24 hours.

Caution: Sena recommends using the hook and loop fasteners

for main unit. The double sided adhesive tape is provided for

convenience, but is not the recommended mounting method. Sena

is not responsible for its use.

2.1.3 Using the Clamp for Main Unit

1. Clean the area on the back plate of clamp where you will attach

the double sided adhesive tapes with moistened towel and dry

thoroughly.

SPIDER RT1 Motorcycle Mesh Communication System | 10

2 INSTALLING THE HEADSET ON YOUR HELMET

2. Peel off the cover from one side of the double sided adhesive tapes

for main unit and attach it to the back plate of the main unit.

3. Insert the back plate of the clamp between the internal padding and

external shell on the left side of the helmet.

2.2 Installing the Speakers

1. Peel off each cover of the hook and loop fasteners for speakers to

expose the adhesive surface. Then, attach the fasteners to the ear

pockets inside the helmet.

2. Attach the speakers to the hook and loop fasteners for speakers

inside the helmet.
