SK 3063-U

Instruction Manual

Contents

Important safety instructions ......................................................... 2

SK 3063-U Mikroport bodypack transmitter ................................. 3

Features ............................................................................................. 3

Delivery includes................................................................................ 4

Product overview............................................................................... 4

Putting the SK 3063-U transmitter into operation ...................... 6

Selecting a microphone................................................................... 6

Attaching and removing the battery pack ................................. 6

Attaching and removing the accupack........................................ 8

Attaching the transmitter to clothing .......................................10

Using the SK 3063-U transmitter.................................................. 11

Switching the transmitter on ......................................................11

Setting the channel or the frequency ........................................11

Adjusting the sensitivity ..............................................................12

Specifications ................................................................................... 13

Accessories ....................................................................................... 15

Manufacturer declarations............................................................. 16

Thank you for choosing Sennheiser!

We have designed this product to give you reliable operation over

many years. Over 60 years of accumulated expertise in the design

and manufacture of high-quality electro-acoustic equipment have

made Sennheiser a world-leading company in this field.

Please take a few moments to read these instructions carefully, as

we want you to enjoy your new Sennheiser products quickly and

to the fullest.

Important safety instructions

• Please read this instruction manual carefully and completely

before using the device.

• Make this instruction manual easily accessible to all users at all

times. Always include these instructions when passing the

device on to third parties.

• Never open the device! If devices are opened by customers in

breach of this instruction, the warranty becomes null and void.

• Water entering the housing of the device can cause a short-

circuit and damage the electronics. Protect the device from

damp and wet. Only use a slightly damp cloth to clean the

device.

Intended use

Intended use of the device includes,

• having read this instruction manual, especially the chapter

“Important safety instructions”,

• using the device within the operating conditions and

limitations described in this instruction manual.

Improper use

“Improper use” means using the products other than as described

in this instruction manual, or under operating conditions which

differ from those described herein.

SK 3063-U Mikroport bodypack transmitter

Together with a connected microphone, the transmitter can be

used as a wireless microphone. Due to its small dimensions and

extremely flat design, the SK 3063-U is especially suitable for all

applications where a very unobtrusive transmitter is required, e.g.

film and TV productions, musicals.

The transmitter is equipped with »HiDynPlus«, the Sennheiser

noise reduction system that reduces possible RF interference and

improves the signal-to-noise ratio. Together with a receiver which is

also equipped with »HiDynPlus« (e.g. EM 3031/32-U, EM 3532-U,

EM 3732, EK 3241, EM 1046), an RF link of excellent operational

reliability and highest transmission quality can be set up.

Features

• Metal diecast casing with power pack

• State-of-the-art PLL technology, 16 switchable channels

•»HiDynPlus« noise reduction system

• Signal-to-noise ratio > 112 dB (A)

• Voltage converter ensures constant output power until the

batteries are completely dischargeds

• Display of operating time with flash warning

• Transmission of battery status information to the receiver

• LED operation and peak indicator (ON/PEAK)

Delivery includes

The packaging contains the following items:

1 SK 3063-U bodypack transmitter with belt clip

1 B 50 battery pack

1 antenna

1 set of colour-coded identification markers

1 instruction manual

Product overview

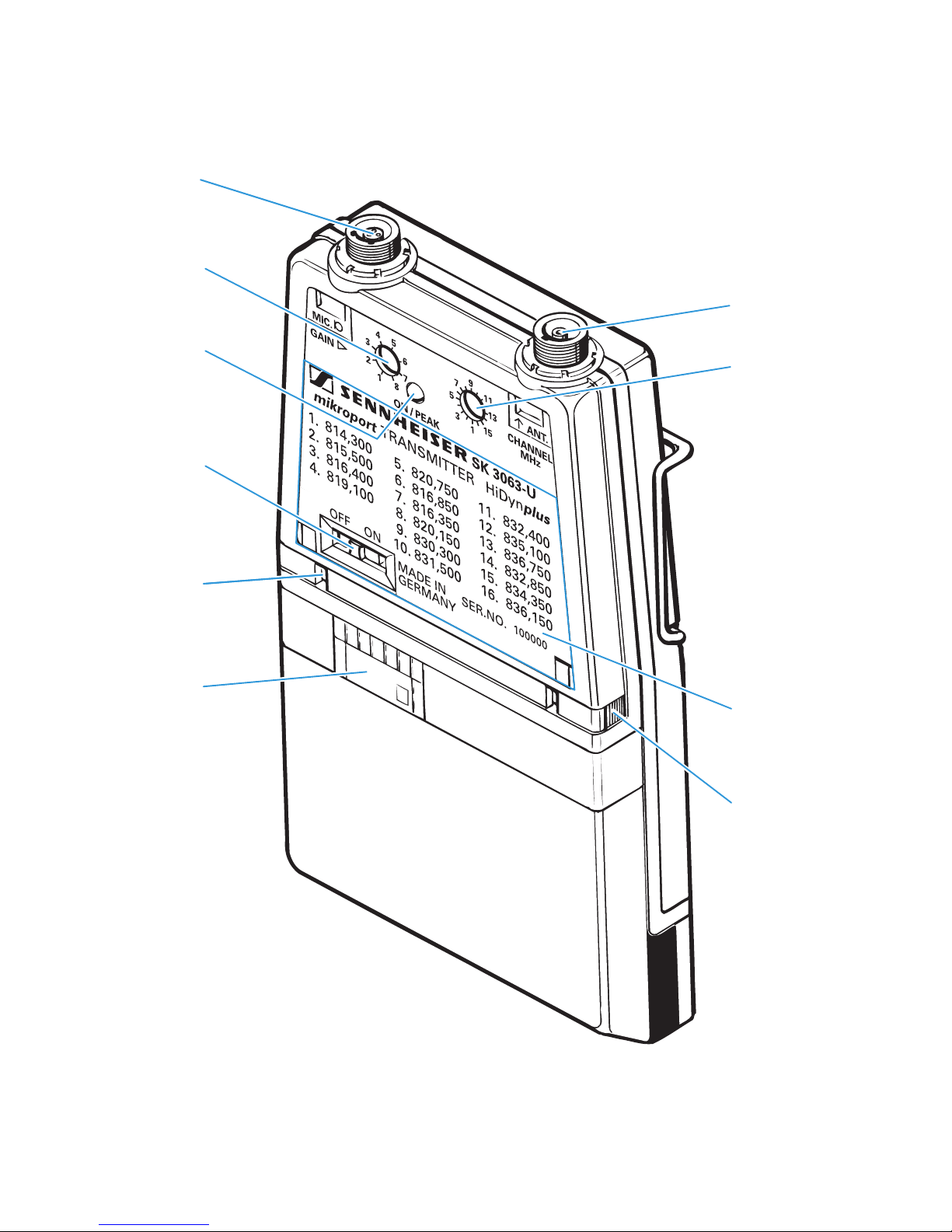

쐃Antenna socket

쐇Channel selector switch

쐋Type plate

쐏Catches

쐄Charge status display (on the power pack)

쐂On/off switch

쐆ON/PEAK LED

쐊Sensitivity switch for microphone input

쐎Microphone input



















Putting the SK 3063-U transmitter into

operation

Selecting a microphone

The SK 3063-U transmitter can be used with the Sennheiser

MKE 2-4, MKE 102-4 (omni-directional) and MKE 40-4, MKE 104-4

(cardioid) clip-on microphones. The power supply of these

microphones is via the microphone input 쐎of the transmitter.

왘Unscrew the coupling ring inorder to unlock the special audio

connector of the microphone.

Attaching and removing the battery pack

For powering the SK 3063-U transmitter, you can either use the

B 50/B 250 battery pack or the rechargeable BA 50/BA 250

accupack.

The display 쐄at the front of

the power pack indicates the

charge status of the batteries/

rechargeable batteries.

The transmitter also transmits

the current battery status

information to the receiver

where it is shown on the display

panel.



To attach the B 50/B 250 battery pack:

왘Using the thumb and index finger of one hand, push the two

catches 쐏on the transmitter as shown in diagram A.

The battery pack can now be removed from the transmitter.

왘Insert the batteries into the battery compartment as shown in

diagram Bor C.

Depending on the battery pack, you have to insert 2 or

3 batteries:

왘Connect the battery pack to the transmitter.

The battery pack locks into place with an audible click.

The B 50/B 250 battery pack

The B 50/B 250 battery pack has the following features:

Attaching and removing the accupack

왘Using the thumb and index finger of one hand, push the two

catches 쐏on the transmitter as shown in diagram Aon

page 6.

The accupack can now be removed from the transmitter.

왘Connect the accupack to the transmitter.

The accupack locks into place with an audible click.

The BA 50/BA 250 accupack

The BA 50/BA 250 accupack has the following features:

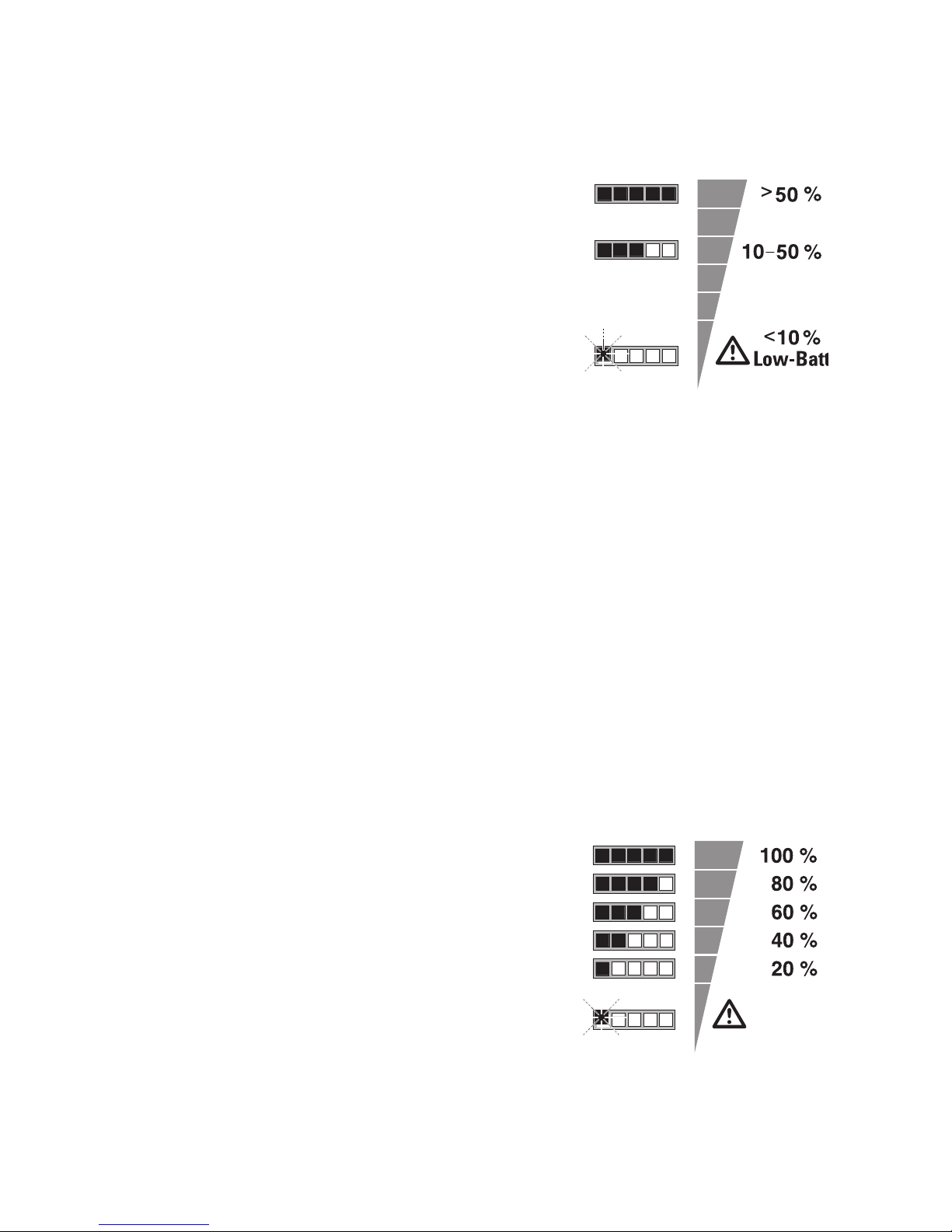

• 3-step LC display for (remaining)

battery capacity

• Reliable Low Batt indication

• Protection against total discharge

• Provision of battery status

information to the receiver

• Protection against total discharge

• Intelligent, 6-step display for

(remaining) accupack capacity

• Processor-controlled electronics

takes self-discharge of rechargeable

battery cells into account

Low-Batt
