SKP 3000

Instructions for use

SKP3000.book Seite 1 Freitag, 16. April 2004 11:03 11

Thank you for choosing Sennheiser!

We have designed this product to give you reliable operation

over many years. Over half a century of accumulated expertise

in the design and manufacture of high-quality electro-acoustic

equipment have made Sennheiser a world-leading company in

this field.

Please take a few moments to read these instructions carefully,

as we want you to enjoy your new Sennheiser product quickly

and to the fullest.

Contents

Safety instructions ........................................................... 36

Delivery includes ............................................................... 36

The SKP 3000 plug-on transmitter ............................... 37

HiDyn

plus

noise reduction ............................................. 38

Operating controls ............................................................ 40

Indications and displays .................................................. 41

Putting the SKP 3000 into operation ........................... 43

The operating menu ......................................................... 46

Working with the operating menu ............................... 48

Operating menu of the plug-on transmitter ............... 50

Adjustment tips for the operating menu .................... 52

Troubleshooting ................................................................ 56

Care and maintenance ..................................................... 58

Specifications .................................................................... 59

Accessories ......................................................................... 61

Safety instructions

Never open an electronic unit! If units are opened by customers

in breach of this instruction, the warranty becomes null and

void.

Use the SKP 3000 plug-on transmitter in dry rooms only.

Delivery includes

!1 SKP 3000 plug-on transmitter

!2 AA size batteries, 1.5 V

!Instructions for use

The SKP 3000 plug-on transmitter

The SKP 3000 transmitter permits wireless transmission with

studio-quality sound. The use of further optimised PLL and

microprocessor technology and the HiDyn

plus

noise reduction

system ensure interference-free transmission.

The transmitter can be supplied in nine frequency ranges within

the UHF band and with a frequency grid of 5 kHz. Please note:

Frequency usage is different for each country. Your Sennheiser

agent will have all the necessary details on the available legal

frequencies for your area.

The plug-on transmitter has two channel banks with up to 20

switchable channels each.

The channels of the channel bank “FIX” (Fixed Bank) are factory-

preset to customer specific transmission frequencies. These

transmission frequencies cannot be changed but have been

preset so that e.g. country-specific regulations on frequency

usage are taken into account.

The channel bank “VAR” (Variable Bank) allows you to store

your selection of transmission frequencies that are freely

selectable within the preset frequency range. Please note,

Range Frequency range Range Frequency range

A 518 to 554 MHz F 556 to 592 MHz

B 626 to 662 MHz G 576 to 612 MHz

C 740 to 776 MHz H 670 to 706 MHz

D 786 to 822 MHz I 696 to 732 MHz

E 830 to 866 MHz

however, that the channel bank “VAR” is factory-preset to the

same frequencies as the channel bank “FIX”.

The transmitter can be combined with the rack-mount and

bodypack receivers of the 3000 and 5000 series (e.g. EM 3252,

EM 3032, EM 3031, EK 3041, EM 1046).

The balanced XLR input allows the connection of

!dynamic microphones,

!condenser microphones with internal power supply and

!condenser microphones that require 48 V phantom powering.

HiDyn plus noise reduction

This transmitter is equipped with HiDyn

plus

the Sennheiser

noise reduction system that reduces RF interference. It increases

the signal-to-noise radio in wireless audio transmission to more

than 114 dB.

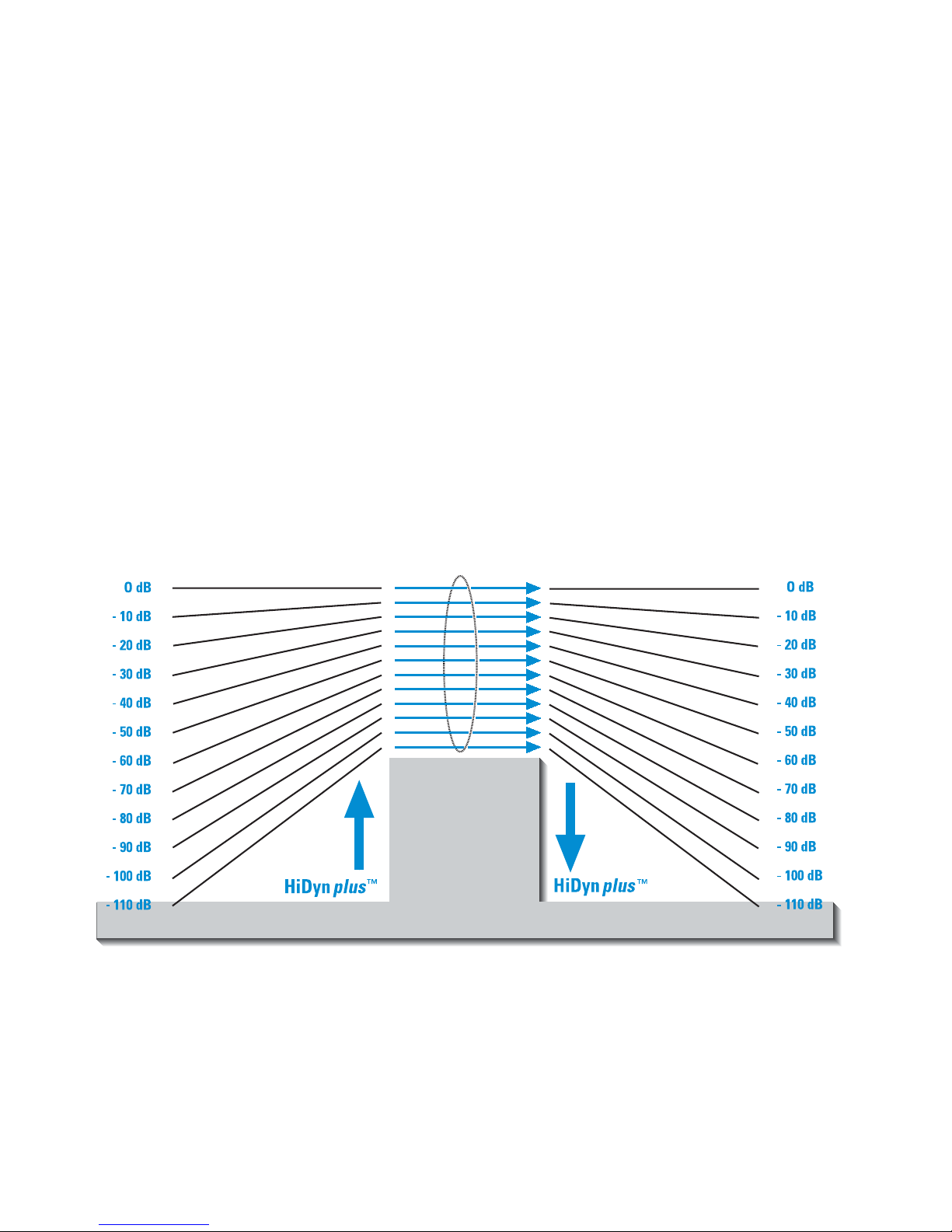

HiDyn

plus

is a wideband compander system which compresses

the audio signal in the transmitter in a ratio of 2:1 (related to

dB). In the receiver the signal is expanded in an identical and

opposite way in a 1:2 ratio to restore the original signal.

HiDyn

plus

has been specially developed for high quality

radiomicrophone systems.

Note:

Only transmitters and receivers that are equipped with

HiDyn

plus

can work correctly with each other. If non

HiDyn

plus

equipment was mixed with HiDyn

plus

, the

dynamic range would be drastically reduced and the

transmission would sound blunt and flat. HiDyn

plus

permanently active and cannot be switched off.

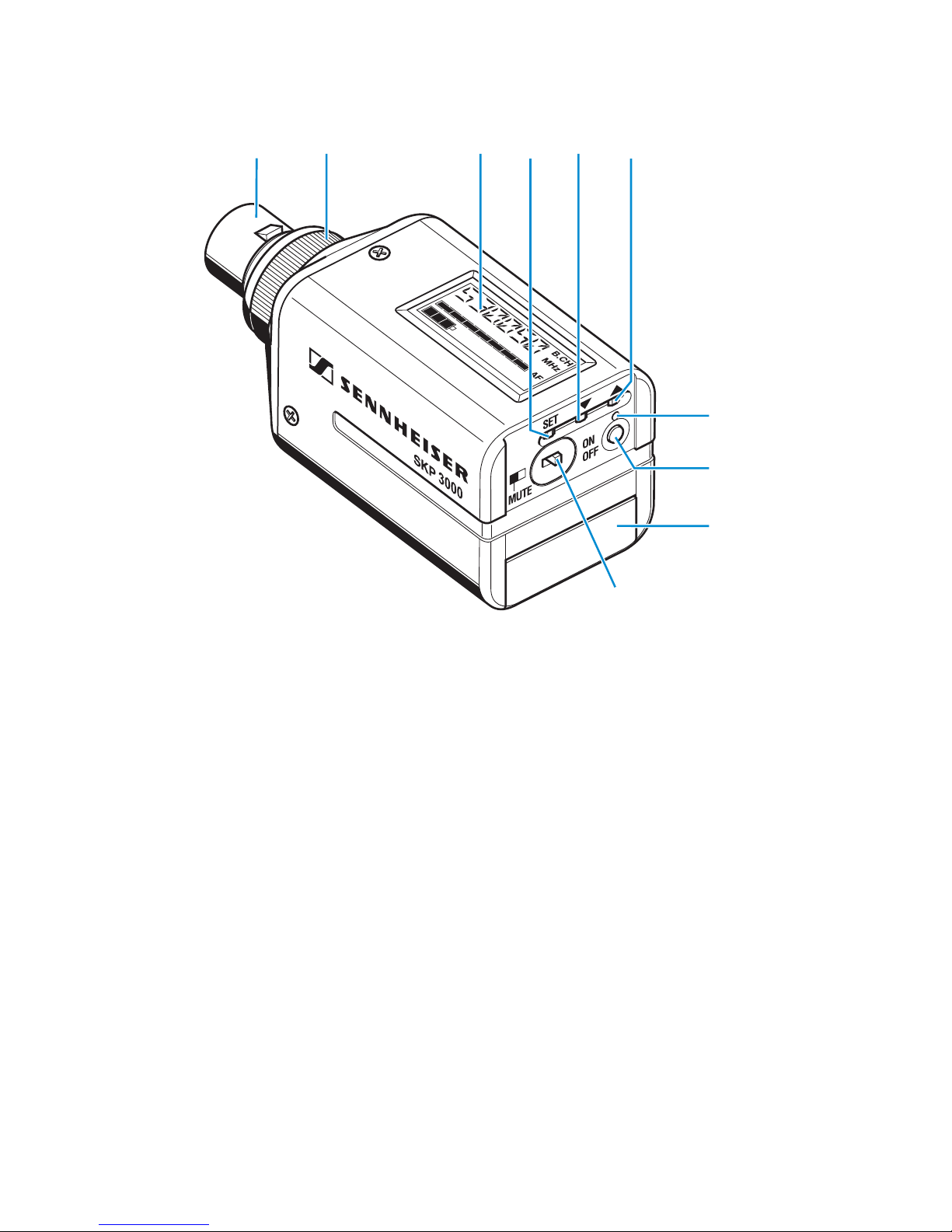

Operating controls

Microphone input, XLR-3F socket (balanced)

Mechanical locking ring of XLR-3 socket

LC display

SET button

button (DOWN)

button (UP)

Red LED for operation and battery status indication

(ON/LOW BAT)

ON/OFF button

(serves as the ESC (cancel) key in the operating menu)

Battery compartment cover

MUTE switch

  













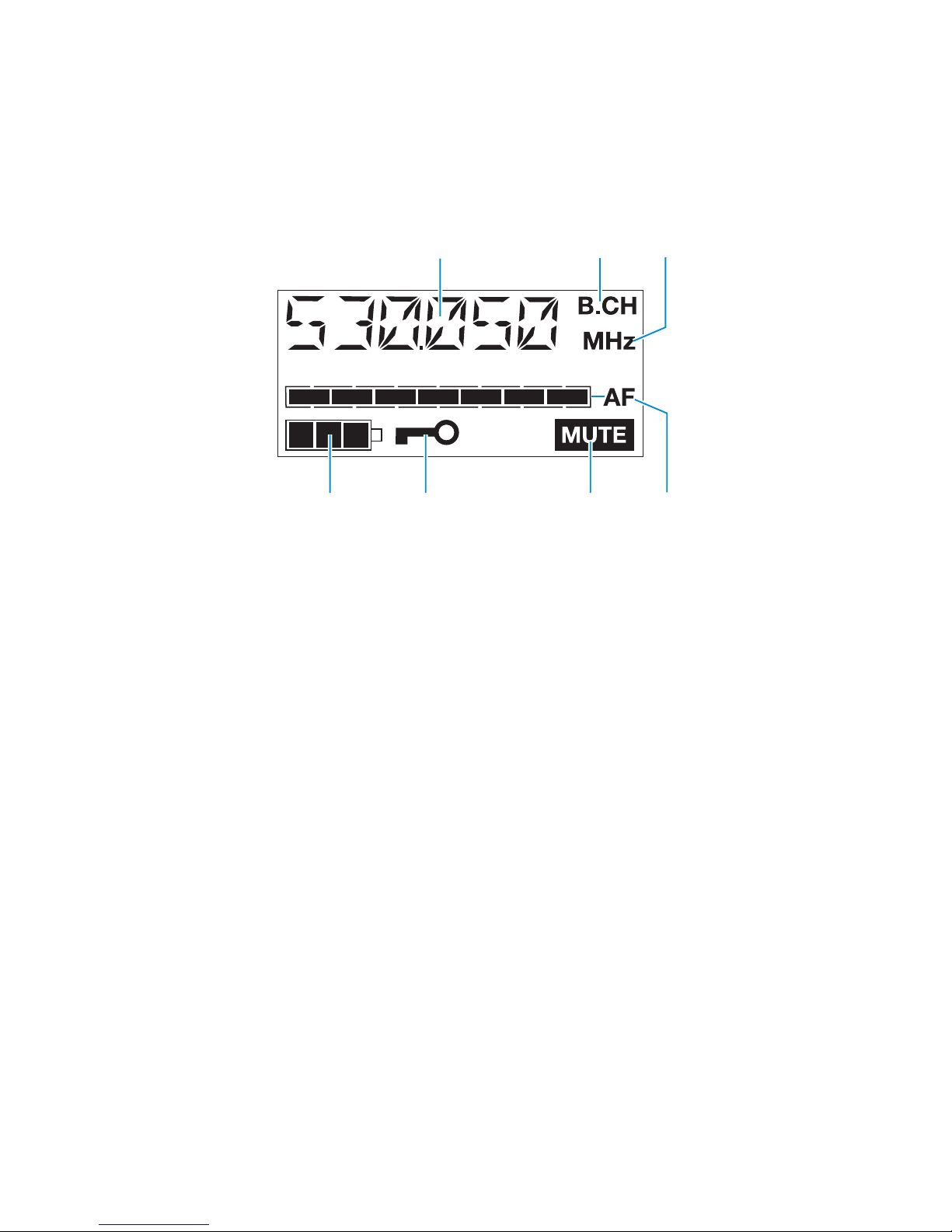

Indications and displays

LC display panel

Alphanumeric display

“B.CH” – appears when the channel bank and

the channel number are displayed

“MHz” – appears when the frequency is displayed

Battery status display

Lock mode icon

(lock mode is activated)

“MUTE” display

(audio input is muted)

7-step level display for audio signal “AF”

with “Peak-Hold” function







Operation and battery status indication

The red LED (LOW BAT/ON) provides information on the

current operating state of the plug-on transmitter:

Red LED lit up: The plug-on transmitter is switched on.

The capacity of the batteries/BA 2015

accupack is sufficient.

Red LED flashing: The batteries are/the BA 2015 accupack

is going flat (LOW BAT)!

In addition, the 4-step battery status display on the display

panel provides information on the remaining battery/BA 2015

accupack capacity:

3 segments: capacity approx. 100 %

2 segments: capacity approx. 70 %

1 segment: capacity approx. 30 %

Battery icon flashing: LOW BAT

Display backlighting

After pressing a button, the display remains backlit for approx.

15 seconds.




