SEWOO LK-P30B Manuale utente

Rev. 2.0

SEWOO TECH CO.,LTD.

Doosung BD, 689-20, Geumjung-dong, Gunpo-si, Gyeonggi-do, 435-862 South Korea

TEL : +82-31-459-8200 FAX : +82-31-459-8880

www.miniprinter.com

All specifications are subject to change without notice

MOBILE PRINTER

MODEL : LK-P30B

Table of Contents

Unpacking

2. Product overview 3

3. Usage and Installation 4

3-1. Control panel usage

3-2. Battery Installation

3-3. Battery removal

3-4. Battery charging

3-5. Battery charger usage

3-6. Usage of Cigar Jack for charging

3-7. Belt clip usage

3-8. Roll paper installation

3-9. Leather case usage

3-10. Self test

3-11. MSR usage

3-12. IC CARD usage

Peripherals connection 17

4-1. Bluetooth connectiontion

4-2. Interface cable connection

Printer speciﬁcation 19

5-1. Speciﬁcation

CPCL Command Compatibility 21

Certiﬁcation 24

Setting up the software 26

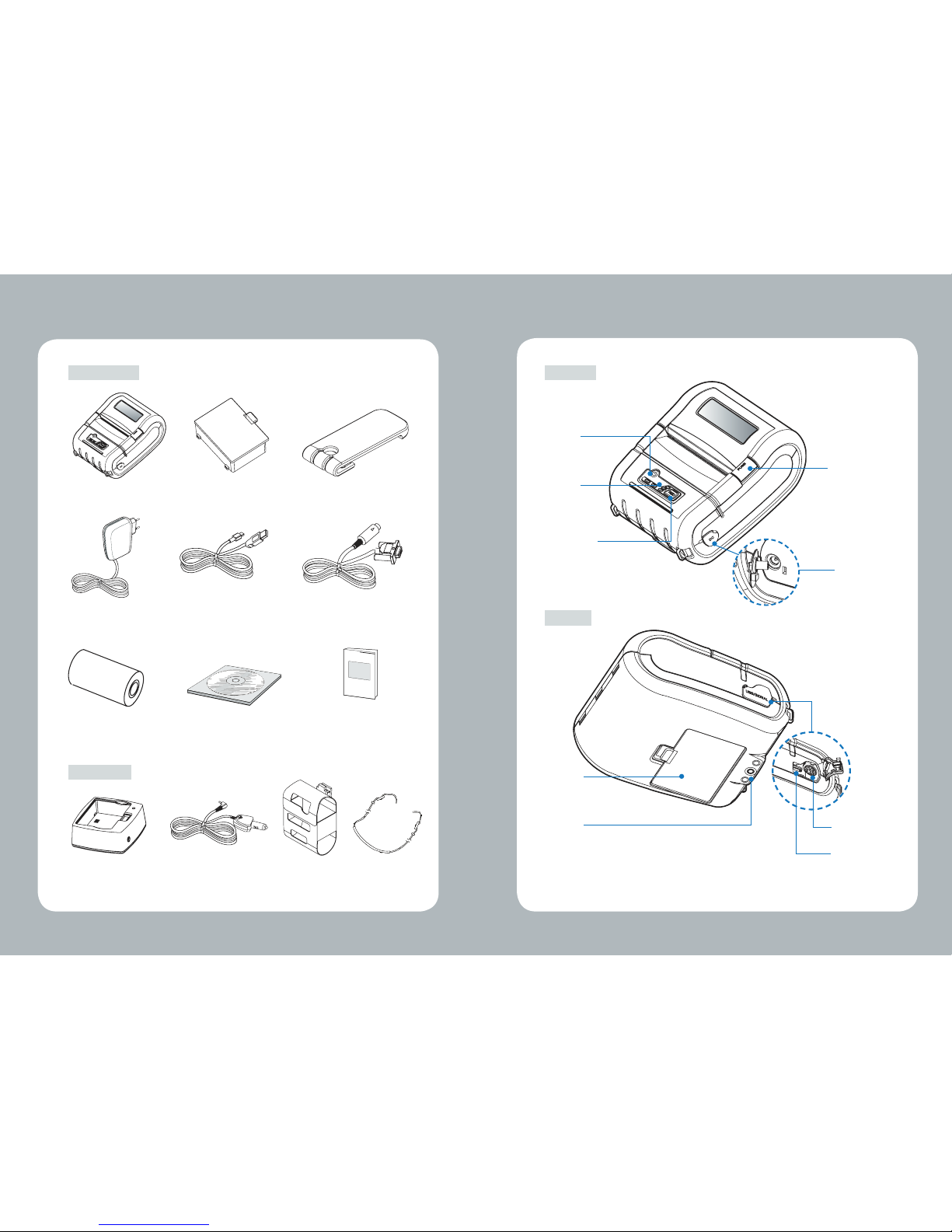

2. Product overview

Paper feed

button

Open Button

Power

switch

Control

Panel

DC Power

Belt clip

hole

Battery

SERIAL

USB

Front

Rear

1. Unpacking

Printer Battery

Serial Cable

Roll paper

Belt Buckle

USB Cable Shielded

Charger

CD Quick Manual

Battery Holder (Cradle) Leather case Shoulder strip

Cigar Jack Charger

Optional

Standard

1. Align battery hook as shown in the picture

2. Push the battery into the printer until it locks in place.

NOTE

As the battery is not charged at the time of your purchase, charge the

battery prior to using the printer

(Battery charger or Cradle can be used to charge)

Hook

3-2 Battery Installation

☞CAUTION

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions

3. Usage and Installation

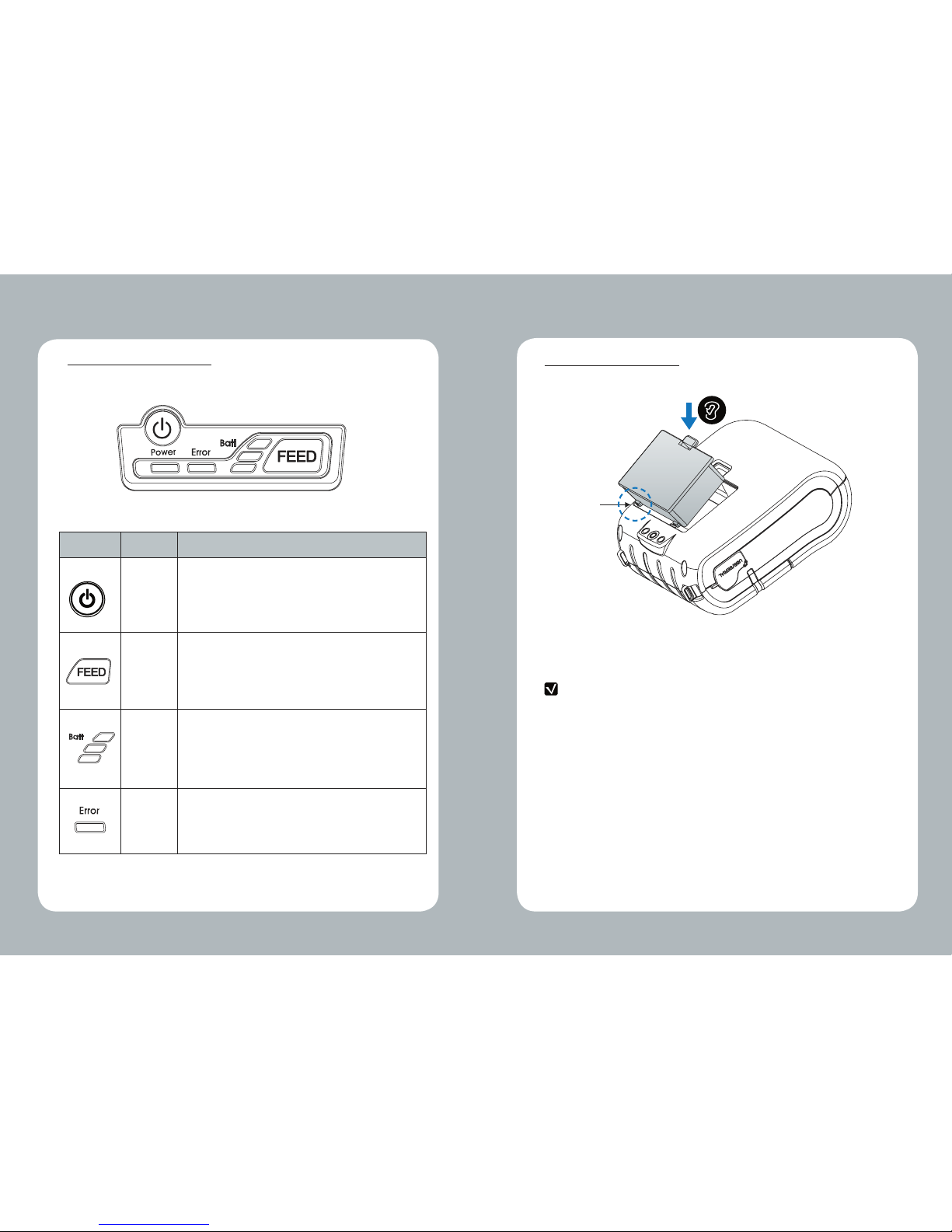

3-1 Control panel usage

Button

Name

function

Power

button

This button is used to turn the printer on and off.

When the printer is off, press this button for approximately 3 seconds

and it will turn on the power.When you press this button in a state

that the printer is on, the printer will turn off.

Paper

Feed

Button

Paper output can be done manually by pressing this button.

Additionally, self-testing and Hexadecimal Dumping can be

processed..

1.Refer to“3-10” for self test information.

2. Refer to the service manual regarding Hexadecimal Dumping.

Battery

Status

Lamp

1.If the Batt,LED are Lit, the battery is fully charged.

2. If you can hear beeping sound and LED light is turned off,it means

that the battery is at the lowest level.

3. If the battery is not charged at all, the printer turns off

automatically.

Error

Lamp

If the red light is turned on, it means there is no paper roll or the

paper cover is open.

NOTE

1. Unless the exclusive charger is used provided by the manufacturer, the printer

can be damaged, and the manufacturer is not liable for the consequential damage.

2. Before removing the battery, make sure that power is turned off.

3. Printer does not work in the status of being connected with charger only.

4. The battery should be installed to operate printer.

5. While charging, do not turn on the power.

6. Do not operate the print while charging the battery.

7. Do not connect the charger while the printer is operated.

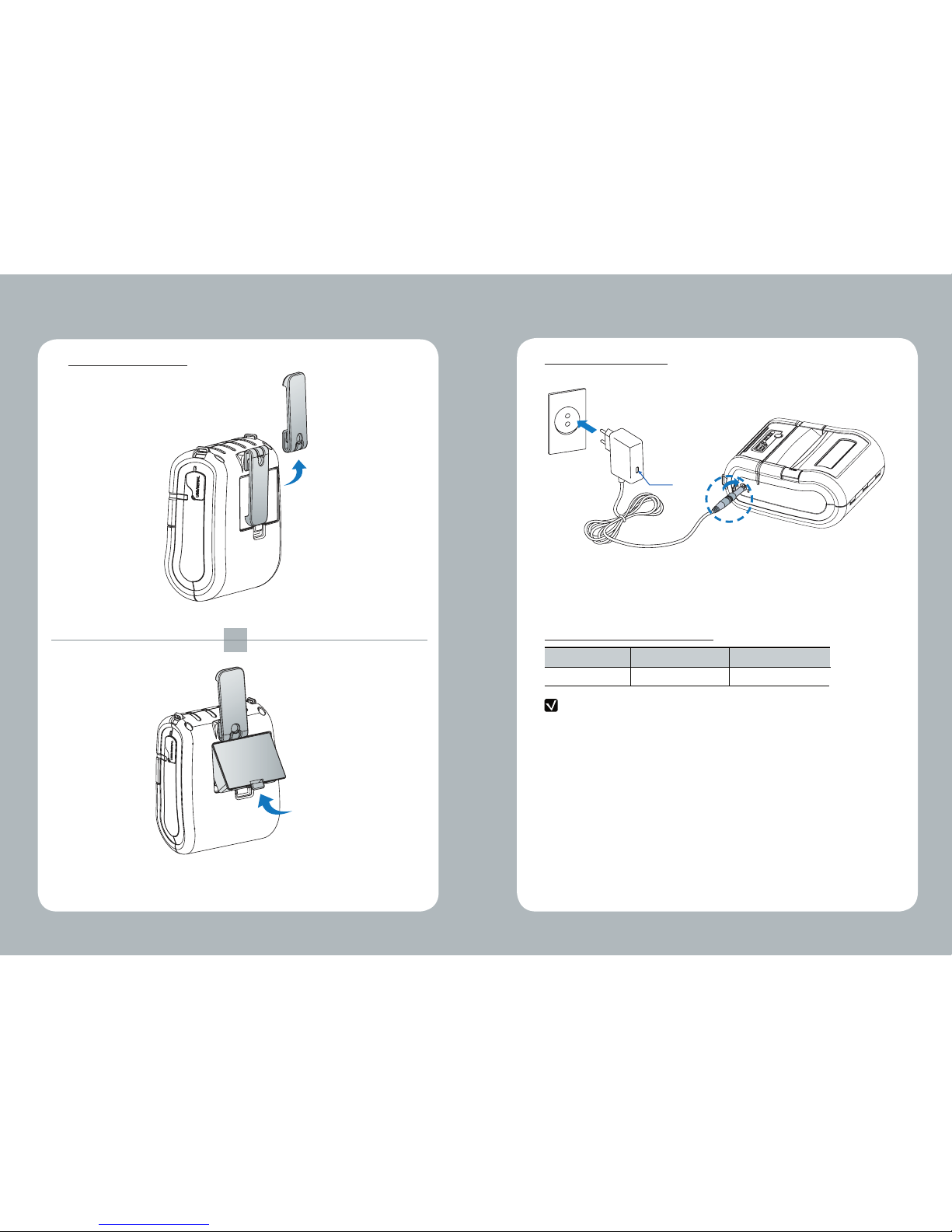

1. Be sure that the printer is turned off

2. After open the DC JACK cover, insert DC JACK into the printer.

3. Plug the power code to electrical outlet.

3-4 Battery charging

Put up the Belt clip hole turning 180 degree.

After putting up the belt clip, remove the battery holding it up as shown above.

180˚

3-3 Battery removal

Lamp

3-4-1 The status of lamp in charging

Status charging charging complete

Charging Lamp Red

Green

Connect the car cigar JACK charger into the printer or battery holder.

3-6 Usage of Cigar Jack Charger for charging

Printer

Battery holder

NOTE

Use the Cigar Jack offered by the manufacturer

Optional

Input 12 ~ 24V

8.4V 0.8 ~ 1.2A

Output

3-5-1 The status of lamp in charging

Status charging charging complete

Charging Lamp Red

Green

NOTE

In the case the battery is not ﬁxed properly in the holder, the red lamp will be

blinking, Then, extract and reinsert the battery.

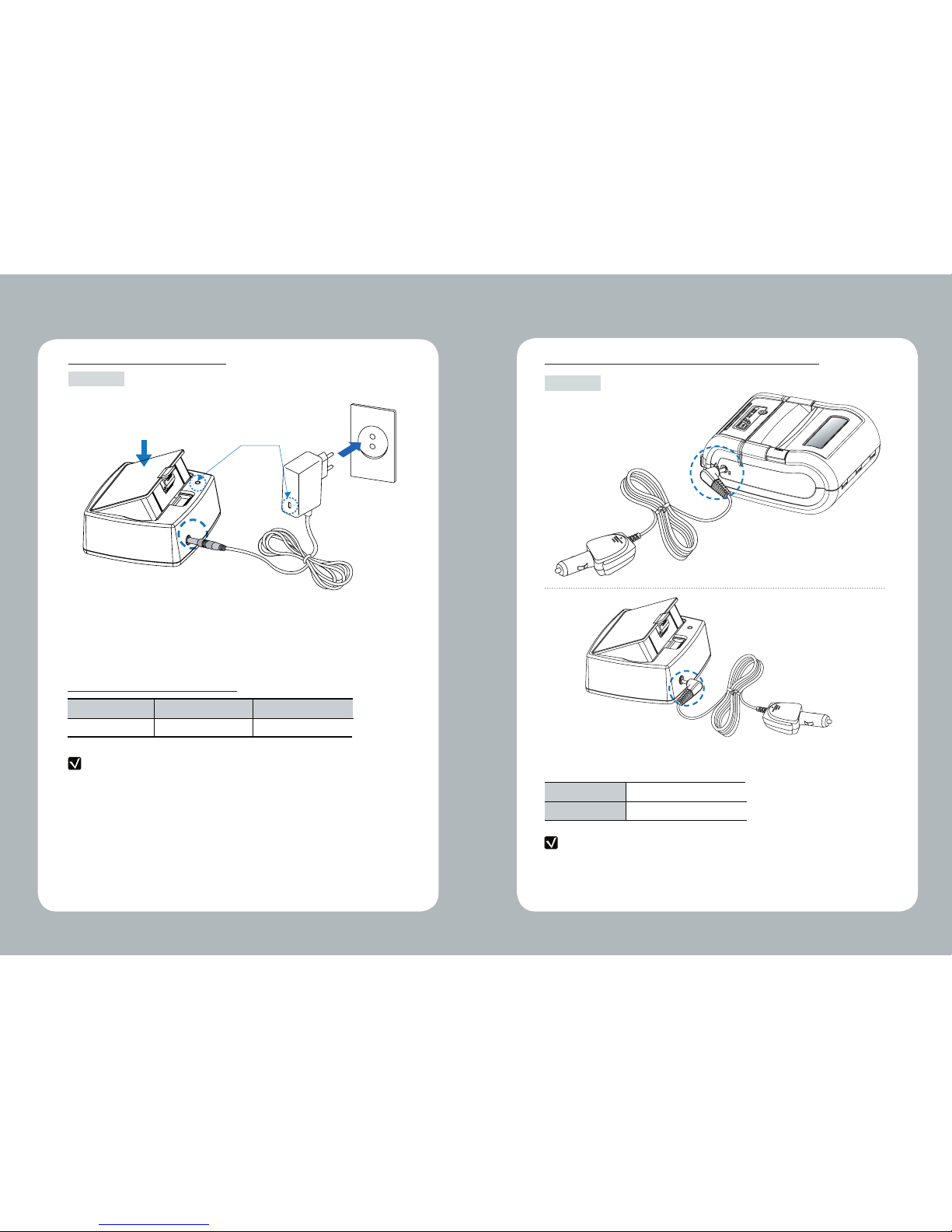

1. Insert the battery into the battery holder as shown above

2. Connect the DC JACK to the power electrical outlet.

3. Plug the power code into the electrical outlet.

4. Once the charging is completed, remove the battery from the holder.

3-5 Battery charger usage

Optional

Lamp

DC Jack

1 2

Press the PUSH button to open

the paper cover

Pull a short length of paper out of

the printer and close the cover.

Insert the paper in the right

direction

Tear off the additional paper using

tear bar.

3-8 Roll Paper installation

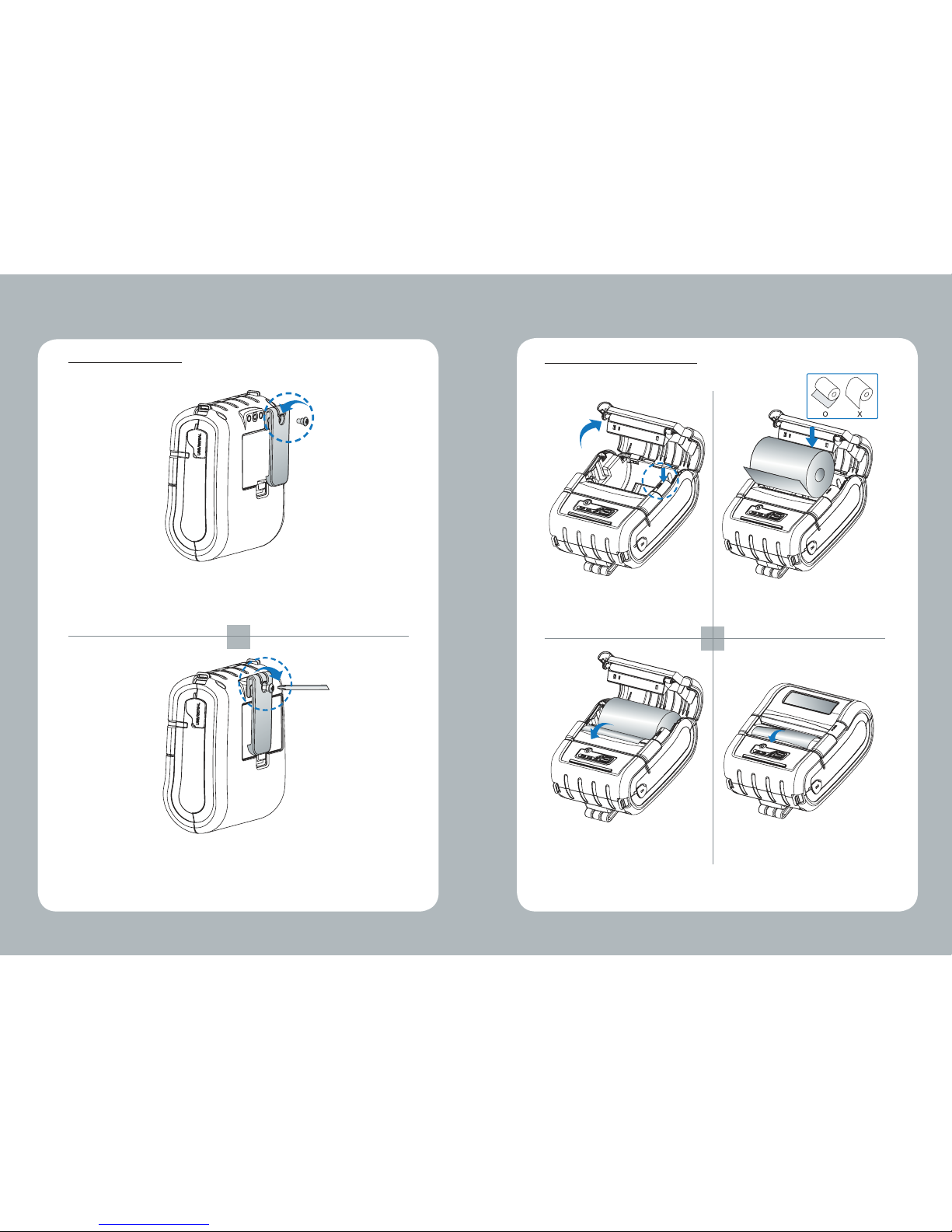

As shown in the picture, tighten the screw with a screw driver.

Insert the belt clip screw into the hole of Belt clip

3-7 Belt Clip usage

1 2

NOTE

Turn off the power pressing the

power button for approximately

3 seconds.

The printout is produced.

While you are pressing the FEED

button, press the power button

3-10 Self Test

1. To print ASCII pattern additionally,

press the Feed button once more

2. After printing ASCII pattern, the

self test will be ﬁnished automatically.

3. If the Feed button is not pressed

to print ASCII pattern, self test will be

ﬁnished automatically after 30 seconds.

1 2

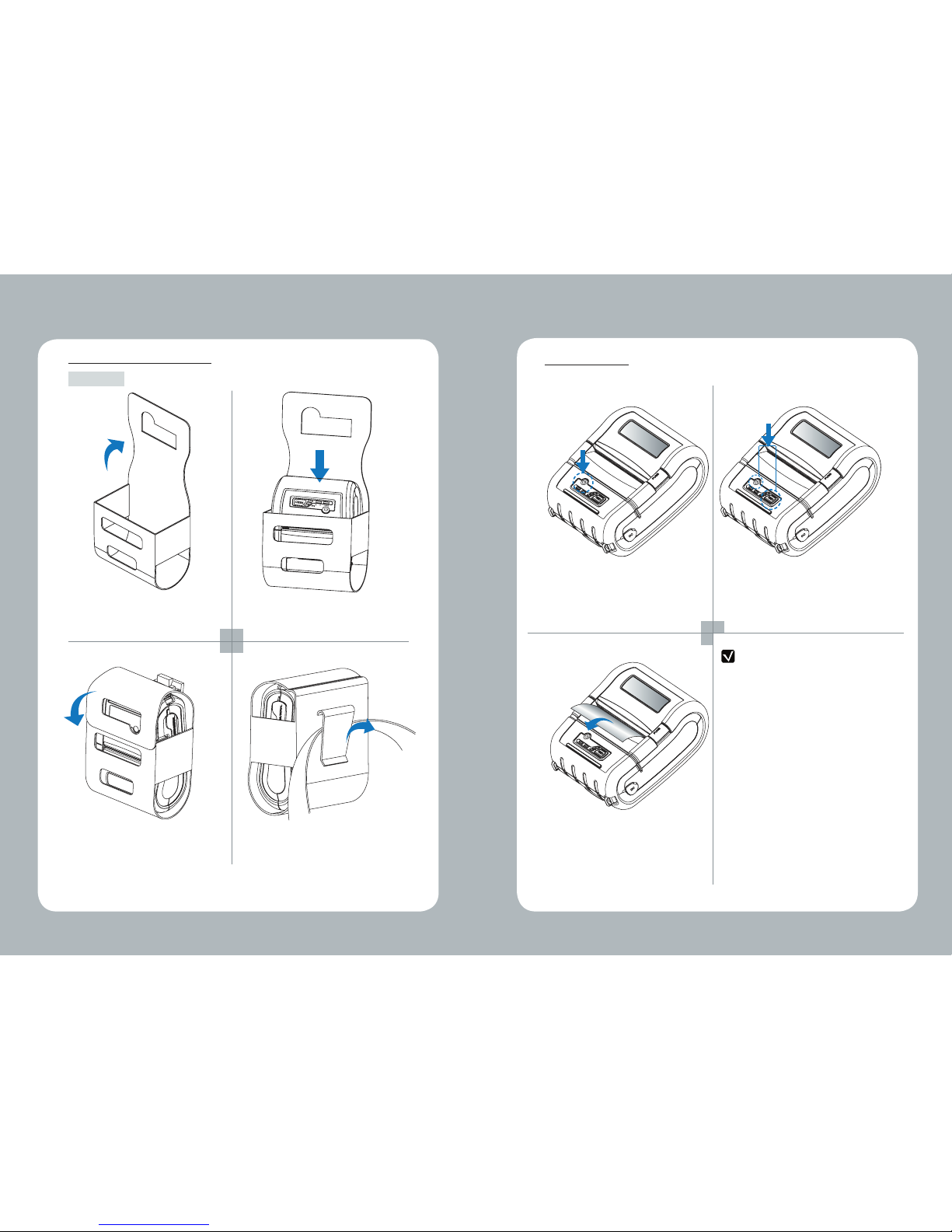

Open the leather case

Close the Velcro and stick the

cover.

Place the printer into the leather

case

Fasten to the belt by using the clip

at the rear of the leather case

3-9 Leather case usage

Optional

Insert and swipe the card in the direction of the arrow as shown in the

picture.

3-11 MSR usage

Optional

When the printer is installed initially or when you face a problem, you can run the

self test and check the information about

-Control Circuit, Mechanism, Print Quality, ROM Version

After checking with self-test and no issues are found, you can examine other

devices and software. This function is working independent of devices and software.

●

Motor protection from being overheated

The motor should be stopped and cooled about more than 30 seconds after

continuous printing 1.5 meter

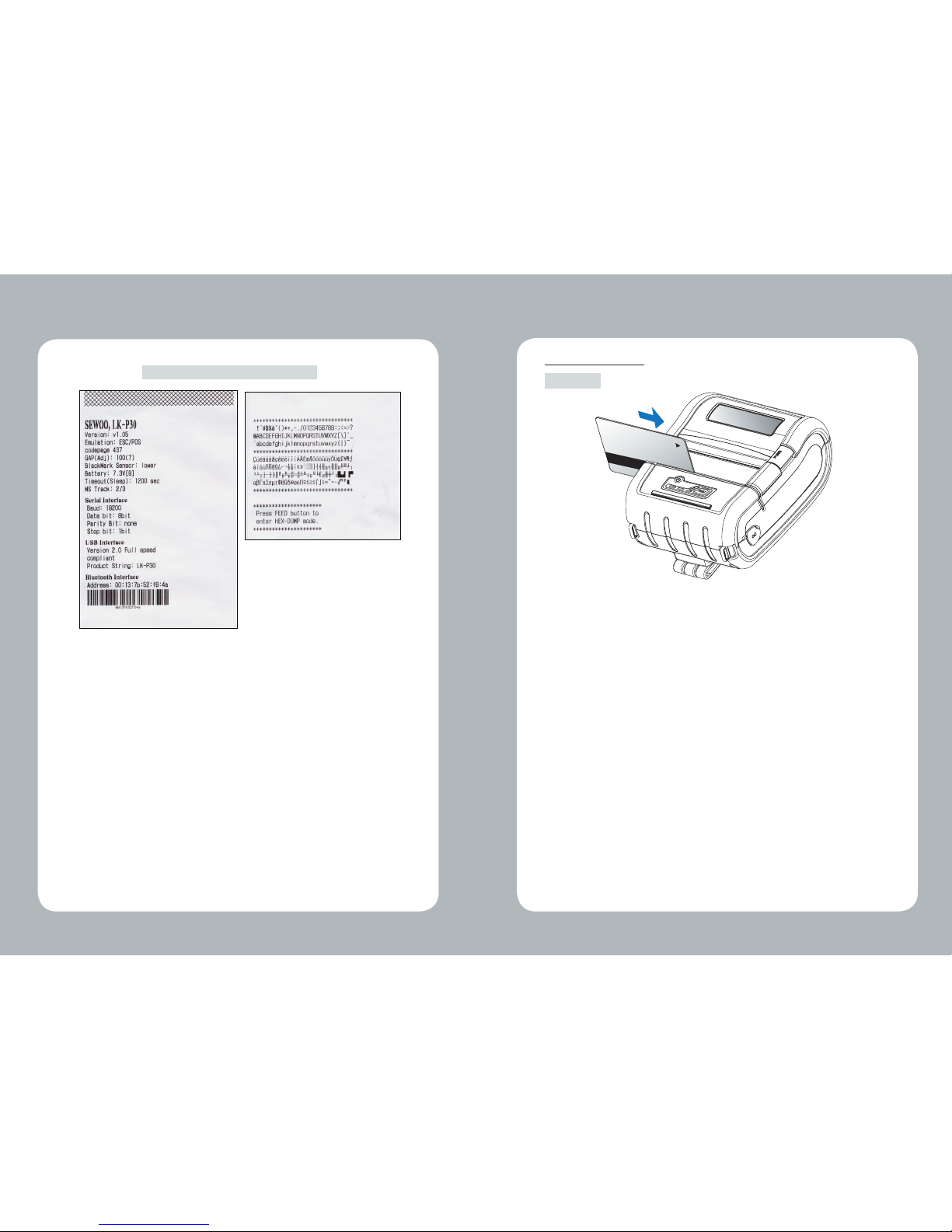

The sample of self test printout

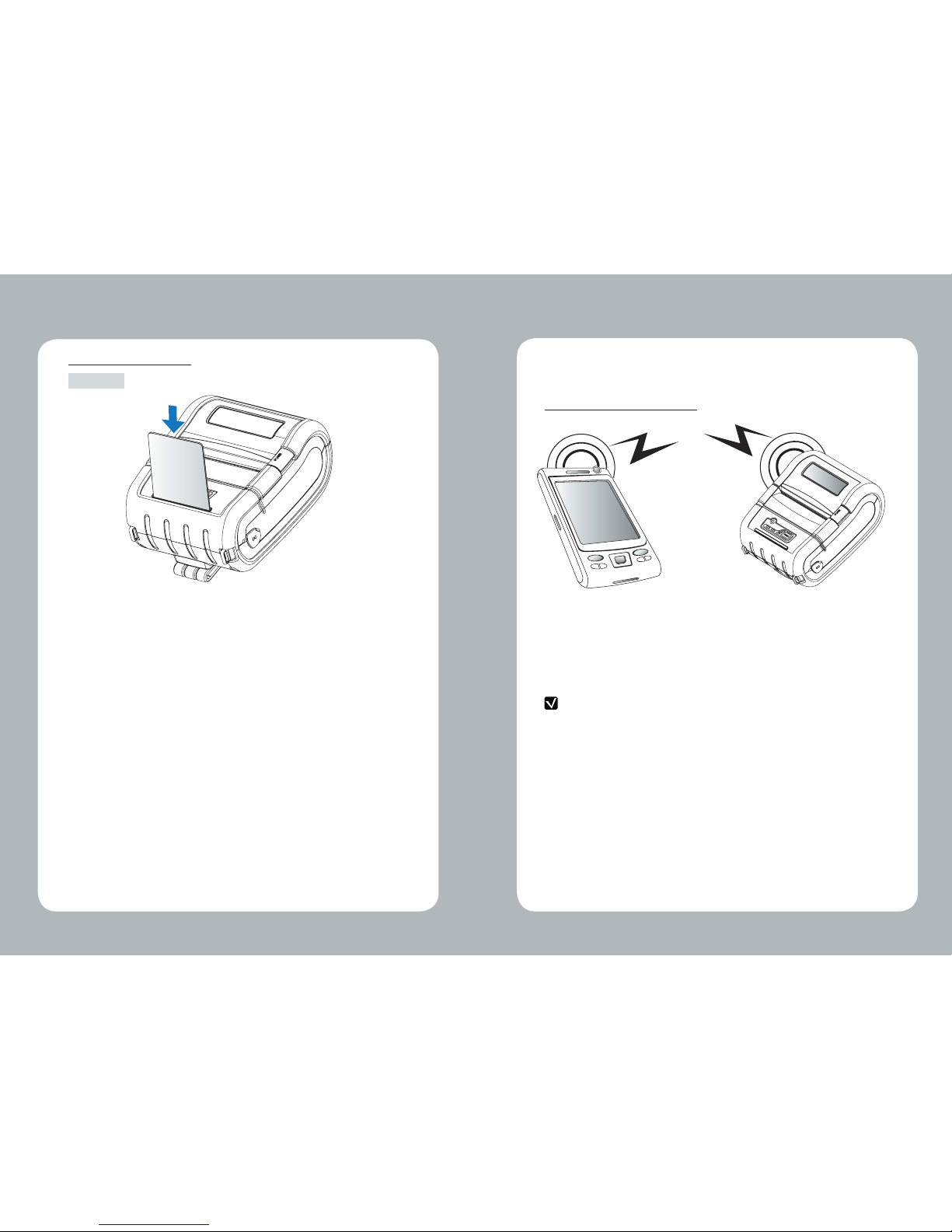

1. Printer can be connected to the PDA and PC which can do wireless

communication.

2. By using Bluetooth function supported in PC, printer can be connected.

This printer can communicate with Peripherals device via Bluetooth

and cables.

4-1 Bluetooth Connection

4. Peripherals connection

3-12 IC CARD usage

Insert the card in the direction of the arrow as shown in the picture.

Optional

NOTE

Refer to the

Bluetooth

Manual for more details on connection.
