SEWOO WTP-100 Manuale utente

WTP-100

Thermal Receipt printer

Technical manual

SEWOO TECH CO., LTD.

www.miniprinter.com

TECHNICAL MANUAL

TABLE OF CONTENTS

1. General Specifications

1.1 Printing Specifications

1.2 Character Specifications

1.3 Auto Cutter

1.4 Paper Roll Supply Device

1.5 Paper Specifications

1.6 Printable Area

1.7 Printing and Cutting Positions

1.8 Internal Buffer

1.9 Electrical Characteristics

1.10 EMI and Safety Standards Applied

1.11 Reliability

1.12 Environmental Conditions

2. Configuration

2.1 Interface

2.1.1 RS-232 serial interface

2.1.2 Specifications

2.1.3 Switching between on-line and off-line

2.1.4 Interface connector terminal assignments and signal functions

2.1.5 Serial interface connection example

2.1.6 Centronics parallel interface

2.1.7 Data Receiving Timing(Compatibility Mode)

2.1.8 USB Interface

2.1.9 Interface Connector

3. Connectors

3.1 Interface Connectors

3.2 Electrical Characteristics

3.3 Drawer kick-out Connector (Modular Connector)

4. Control Command Summary

TITLE : WTP-100

Page2

TECHNICAL MANUAL

1. General Specifications

1.1 Printing Specifications

1) Printing method: Thermal line printing

2) Dot density: 180dpi x 180dpi

3) Printing direction: Unidirectional with friction feed

4) Printing width: 72mm(2.83"), 512 dot positions

5) Characters per line(default): Font A: 42

Font B: 56

6) Printing speed: High speed mode:

35.5lines/second maximum

(1/6inch feed) (at 24V, 20℃)

Approximately 150mm/sec maximum

(approximately 5.9inchs/sec maximum)

☞ NOTE: Speeds are switched depending on the applied voltage to the printer and

head temperature conditions automatically.

☞ NOTE: There may be variations in printing after switching the mode of the

printing speed. To prevent this for logo printing with ESC* command,

using a downloaded bit image is recommended. Change in printing

speed does not occur during down loaded bit image printing.

7) Line spacing (default): 1/6 inch (4.23mm)

Programmable by control command.

TITLE : WTP-100

Page3

TECHNICAL MANUAL

1.2 Character Specifications

1) Number of characters: Alphanumeric characters: 95

Extended graphics 128 × 7 pages

(including one space page)

International characters: 32

① English

② Hangul

③ Chinese (GB2312,Big5)

④ Kanji

2) Character structure: Font A: 12 ⅹ 24

Font B: 9 ⅹ 24

Hangul, Chinese: 24 ⅹ 24

Font A is selected as the default

3) Character size:

Standard Double-height Double-width Double-width /

Double-height

WⅹH(mm) CPL WⅹH(mm) CPL WⅹH(mm) CPL WⅹH

(mm) CPL

FontA 12ⅹ24 1.41ⅹ3.39 42 1.41ⅹ 6.77 42 2.82ⅹ3.39 21 2.82ⅹ6.77 21

FontB 9ⅹ17 0.99ⅹ2.40 56 0.99ⅹ4.80 56 1.98ⅹ2.40 28 1.98ⅹ4.80 28

Hangul, GB 24ⅹ24 3.39ⅹ3.39 21 3.39ⅹ6.67 21 6.77ⅹ3.39 10 6.77ⅹ6.77 10

Space between characters is not included.

CPL = Characters per line

1.3 Auto Cutter

Partial cut: Cutting with one point center uncut

NOTE: To prevent dot displacement, after cutting, paper must be fed

approximately 1mm(14/360 inches) or more before printing.

1.4 Paper Roll Supply Device

1) Supply method: Drop-in paper roll

1.5 Paper Specification

1) Paper type: Specified thermal paper

2) Form: Paper roll

3) Paper width: 79.5 ± 0.5mm(3.13"±0.02")

4) Paper roll size: Roll diameter : Maximum 83mm

Take-up paper roll width: 80 ± 0.5, 1.0mm(3.15"±

0.020", 0.04")

5) Paper roll spool diameter: Inside: 12mm(.47")

Outside: 18mm(.71")

TITLE : WTP-100

Page4

NOTE: Paper must not be pasted to the paper roll spool.

TECHNICAL MANUAL

1.6 Printable Area

1) Paper roll

The printable area of a paper with width of 79.5± 0.5mm(3.13"±0.02") is 72.2 ±

0.2mm(2.84"±0.008")(512dots) and the space on the right and left sides are

approximately 3.7 ± 2mm(0.15"±0.079").

a=79.5±0.5mm(3.13"±0.02")

b=0.141mm±0.05mm(.056"±.002")

c=72.2mm±0.2mm(2.84±.008")

d=3.7±0.2mm(0.15"±0.079")

e=3.7±0.2mm(0.15"±0.079")

[All the numeric values are typical.]

< Figure 1.1 Paper Roll Printable Area >

1.7 Printing and Cutting Positions

< Figure 1.2 Printing and Cutting Positions >

NOTE: Numeric values used here are typical values; the values may vary slightly as

a result of paper slack or variations in the paper. Take the notice into account

when setting the cutting position of the auto-cutter.

1.8 Internal Buffer

1) Receive buffer: 4kbyte

1.9 Electrical Characteristics

1) Supply voltage: +24 VDC ± 7%

2) Current consumption (at 24V):

Operating: Approx. 1.5A(at ASCII Printing)

Peak:Approx. 10A(at print duty 100%, For 10 seconds or less)

Stand-by: Approx. 0.15A

TITLE : WTP-100

Page5

TECHNICAL MANUAL

1.10 EMI and Safety Standards Applied

1) Europe: EMI – EN55022 CLASS A

EMS – EN61000-3-2, EN61000-3-3, EN50082-1

Safety Standard: EN60950

2) North America: EMI - FCC Part#15 Class A

Safety Standards- UL(1950), c-UL(No.950)

1.11 Reliability

1) MCBF: 50 million lines

(based on an average printing rate of 12.5% with paper thickness

in the range 65 ㎛ to 75 ㎛).

35 million lines

(based on an average printing rate of 12.5% with paper thickness

in the range 76 ㎛ to 150 ㎛)

2) Cutter Life: 1.0 million cuttings

(if the paper thickness is between 65 and 100㎛)

1.12 Environmental Conditions

1) Temperature: Operating: 5° to 45°C

Storage: -20° to 60°C

(except for paper)

2) Humidity: Operating: 10 to 90%RH

Storage: 10 to 90%RH (except for paper)

TITLE : WTP-100

Page6

TECHNICAL MANUAL

2. Configuration

2.1 Interface

2.1.1 RS-232 serial interface

2.1.2 Specifications

Data transmission: Serial

Synchronization: Asynchronous

Handshaking: DTR/DSR or XON/XOFF control

Signal levels: MARK= -3 to –15V: Logic “1”

SPACE= +3 to +15V: Logic “0”

Baud rage: 4800, 9600, 19200, 38400 bps

Data word length: 7 or 8 bits

Parity Settings: None, even, odd

Stop bits: 1 or more

Connector (printer side): Female DSUB-25 pin connector

NOTE: The data word length, baud rate, and parity depend on the

DIPswitch settings.

2.1.3 Switching between on-line and off-line

The printer does not have an on-line/off-line switch.

The printer goes off-line:

• Between when the power is turned on (including reset using the

interface) and when the printer is ready to receive data.

• During the self-test.

• When the cover is open.

• During paper feeding using the paper feed button.

• When the printer stops printing due to a paper-end (in cases when

an empty paper supply is detected by either paper roll end detector or

the paper roll near-end detector with a printing halt feature by

ESC c4).

• During macro executing stand by status.

• When a temporary abnormality occurs in the power supply voltage.

• When an error has occurred.

2.1.4 Interface connector terminal assignments and signal functions

PIN SIGNAL I/O DESCRIPTION

2 TXD - Printer transmit data line RS-232C level

3 RXD - Printer receive data line RS-232C level

4, 20 DTR Output Printer handshake to host line RS-232C level

6 DSR Input Data Send Ready

1,7 GND - System Ground

TITLE : WTP-100

Page7

TECHNICAL MANUAL

2.1.5 Serial interface connection example

Host side Printer side

TXD ………………………………… RXD

DSR ………………………………… DTR

RXD ………………………………… TXD

DTR ………………………………… DSR

FG ………………………………… FG

SG ………………………………… SG

NOTES: ◦ Set the handshaking so that the transmit data can be received.

◦ Transmit data to the printer after turning on the power and

initializing the printer.

1 or 2

Bit

one o

1 Bi

7 or 8

1Bit

< Figure 2.1 Serial transmission bit frame >

< Figure 2.2 Line transmission with protocol >

TITLE : WTP-100

Page8

TECHNICAL MANUAL

TITLE : WTP-100

Page9

2.1.6 Centronics parallel interface

PIN SIGNAL I/O DESCRIPTION

1 STROBE- Input Synchronize signal Data received

2-9 DATA0-7 Input Data bit Transmitted 0-7

10 ACK- Output Data receiving competed

11 BUSY Output Impossible to printer data receiving

12 PE Output Paper empty

13 SELECT Output Printer’s status for ON/OFF line

14 AUTO FEED- Input ND

15 GROUND - System Ground

16 GROUND - System Ground

17 NC -

18 LOGIC-H - +5V

19-30 GROUND - System Ground

31 INIT- Input Initialize

32 ERROR- Output Printer Error

33 GROUND - System Ground

34 NC -

35 +5V - +5V

36 SELECT IN- Input ND

TECHNICAL MANUAL

1) Specifications

Data transmission: 8-bit parallel

Synchronization: STROBE pulse supplied by host computer.

Handshaking: ACK and BUSY

Connector: D-SUB 36(female) or equivalent

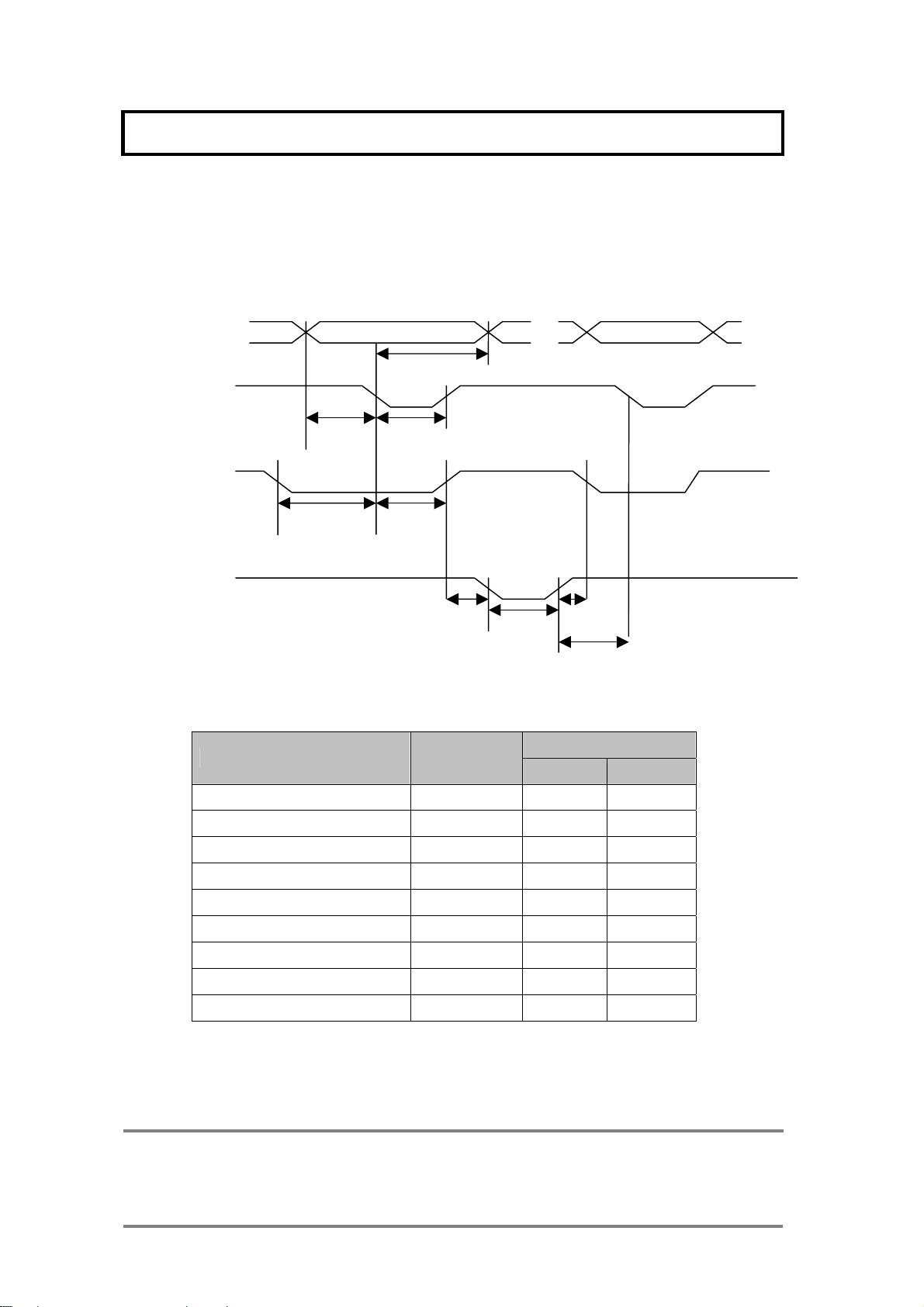

DATA Data n Data n+1

tHold

nStrobe

tSetup tSTB

Busy Peripheral Busy

tReady tBUSY

nAck

tReply tACK tnBUSY

tNext

2.1.7 Data Receiving Timing (Compatibility Mode)

Specifications

Characteristics Symbol Min [ns] Max [ns]

Data Hold Time (host) tHold 750 --

Data Setup Time tSetup 750 --

STROBE Pulse Width tSTB 750 --

READY Cycle Idle Time tReady 0 --

BUSY Output Delay Time tBUSY 0 500

Data Processing Time tReply 0 ∝

ACKNLG Pulse Width tACK 500 10us

BUSY Release Time tnBUSY 0 ∝

ACK Cycle Idle Time tNEXT 0 --

*The printer latches data at a nStrobe ↓ timing

TITLE : WTP-100

Page10
