1 Description

1.1 Overview

This manual applied to two HOT-559 main boards - with (HOT-559S) or without

(HOT-559) SCSI onboard.

HOT-559 is an Intel 430VX ATX mainboard with 4 PCI/4 ISA slot onboard and HOT-

559S the same with the HOT-559 except provides Adaptec AIC7880 Ultra Wide

SCSI adapter onboard and support RAID(Redundant Array of Inexpensive Disks).

The HOT-559(S) main board integrates the Pentium microprocessor, memory, and I/

O technologies into a standard ATX form factor.

The HOT-559(S) main board design support Pentium and Pentium MMX processors

75~233MHz, Cyrix/IBM 6x86 and 6x86L P120+~P166+, AMD K5

PR75~PR166 and K6 PR2-166~PR2-266. The other HOT-559 main board features

include:

Supports 8MB to 128 MB of Synchronous DRAM, EDO DRAM or standard Fast

Page DRAM in 72-pin SIMM and 168-pin DIMM sockets.

Type 7 Pentium OverDrive socket provides an upgrade to future OverDrive ,

Cyrix 6x86/6x86L and AMD K5/K6 processors

Intel's 82430VX PCIset

ITE 8680 Giga I/O controller

Bus mastering IDE

Supports pipeline burst cache with size of 512KB or 256KB

Onboard Adaptec AIC-7880 16-bit Ultra Wide SCSI Controller (HOT-559S)

Expansion

32-bit PCI slot x 4 on HOT-559 - support four PCI bus masters

32-bit PCI slot x 4 on HOT-559S - support three PCI bus masters ( PCI1 support

slave PCI device only)

Expansion slot x 1 for RAID adapter (HOT-559S)

16-bit ISA slot x 4

50-pin SCSI-II connector x 1 (HOT-559S)

68-pin Ultra Wide SCSI connector x 1 (HOT-559S)

Enhance IDE port x 2

Floppy port x 1

Serial port x 2 (IrDA Infra-Red port including)

USB port x 2

BIOS

Award 4.51PG PnP Green BIOS

4 User's Manual

1.1.1 HOT-559S Layout

User's Manual 5

1.1.2 HOT-559 Layout

6 User's Manual

1.2 Form Factor

The HOT-559(S) main board is designed to fit into a standard ATX form factor

chassis. The ATX form factor does not adhere to the standard ATX guidelines in that

the outer dimensions are 305mm x 240mm. Location of the I/O connectors, riser

slot, and mounting holes are in strict compliance with the ATX specification.

1.3 Microprocessors

The HOT-559(S) main board is designed to operate with 3volt range Pentium/MMX

Processor and Cyrix 6x86/6x86L and AMD K5/K6 processors. An onboard switching

voltage regulator circuit provides the required 3 volts range from the 5.0 volt tap of

the power supply. Pentium/MMX processors that run internally at 75, 90, 100, 120,

133, 150, 166, 200 and 233 MHz are supported.

Cyrix 6x86/6x86L processors that run internally at P120+, P133+, P150+ and

P166+ are supported.

AMD K5 processors that run internally at PR75, PR90, PR120, PR100, PR133,

PR150, PR166, and K6 processor that run internally PR2-166, PR2-200, PR2-233

and PR2-266 are supported.

1.4 Memory

Second-level Cache

The Intel 82430VX Xcelerated Controller PCIset supports 512KB or 256KB second

level cache that uses the Synchronous Pipeline Burst SRAM. Pipeline Burst (PB)

SRAM provides performance similar to Synchronous Burst SRAMs for only a slight

cost premium over slower performing Asynchronous SRAMs.

Main System Memory

The HOT-559 mainboard provides four 72-pin SIMM sockets and one 168-pin

DIMM socket that make it possible to install up to 128MB of RAM. The SIMM socket

support 4MB, 8MB, 16MB, and 32MB 5V single- or double-side fast page or EDO

DRAM modules, and DIMM socket support 8MB, 16MB, 32MB, . ., 3.3V single- or

double-side SDRAM, fast page, or EDO modules.

Caution : The user should not populate both 5V SIMM modules & 3.3V DIMM

modules at the same time.

The four SIMM sockets are arranged in two banks of two sockets each, the DIMM

socket arranged in one bank provides a 64/72-bit wide data path.

Both SIMMs in a bank must be of the same memory size and type, although the

different types of memory may differ between banks. It is possible to have 70 ns fast

page DRAM in one bank and 60 ns EDO DRAM in the other.

User's Manual 7

1.5 Chipset

The Intel 82430VX PCIset consists of the 82437VX System Controller (TVX),

82438VX Data Path (TDX) and one 82371SB PCI ISA/IDE Xcelerator (PIIX3) bridge

chip.

82437VX System Controller (TVX), 82438VX Data Path (TDX)

The Intel 430VX PCIset provides all control signals necessary to drive a second level

cache and the DRAM array, including multiplexed address signals. The 430VX

PCIset also controls system access to memory and generates snoop controls to

maintain cache coherency. The 82437VX comes in a 208-pin QFP package and

82438VX comes in a 100-pin QFP package.

82371SB PCI ISA/IDE Xcelerator (PIIX3)

The PIIX3 provides the interface between the PCI and ISA buses and integrates a dual

channel fast IDE interface capable of supporting up to 4 devices. The PIIX3

integrates seven 32-bit DMA channels, one 16-bit timer/counters, two eight-channel

interrupt controllers, PCI -to-AT interrupt mapping circuitry, NMI logic, ISA refresh

address generation, and PCI/ISA bus arbitration circuitry together onto the same

device. The PIIX3 comes in a 208-pin QFP package.

IDE Support

The HOT-559(S) main board provides two independent high performance bus-

mastering PCI IDE interfaces capable of supporting PIO Mode 3 and Mode 4 devices.

The system BIOS supports Logical Block Addressing (LBA) translation modes as well

as ATAPI (e.g. CD-ROM) devices on both IDE interfaces. Detection of IDE device

transfer rate and translation mode capability is automatically determined by the

system BIOS.

Onboard Adaptec AIC-7880 SCSI Controller (HOT-559 S)

The onboard Adaptec AIC-7880 SCSI controller is a Wide PCI-to-SCSI host adapters

provide a powerful multitasking interface between system's PCI bus and SCSI devices

(disk drives, CD-ROM drives, scanners, tape backups, removable media drives, etc).

Up to a total of 15 SCSI devices can be connected to the onboard 50-pin 8-bit SCSI-II

and 68-pin 16-bit Ultra wide SCSI connectors.

8 User's Manual

RAID (HOT-559S)

At today, the more network storage capacity expands, the more critical it becomes to

find a solution that maximizes data availability and performance. While tape backup

meets disaster recovery requirements, it does not ensure that continuous availability

and data integrity necessary to keep your network up and running. TheRedundant

Array of Inexpensive Disks (RAID) support on-line, real-tim data recovery that

overcomes the physical limitations of hard disk drives to delevery uninterrupted data

access.

RAID storage systems offer the potential for exceptional data availability and

performance that is far superior to individual drives.

HOT-559S provides an optional RAID slot for Adaptec PCI RAID adapter to fulfill

RAID solutions.

1.6 I/O Controller

Control for the integrated serial ports, parallel port, floppy drive, is incorporated into

a single component, the ITE 8680F. This component provides :

Two 16C550-compatible UARTs with send/receive 16 byte FIFO

Support for an Infra Red interface

Multimode bidirectional parallel port

-- Standard mode; IBM and Centronics compatible

-- Enhanced Parallel Port (EPP) with BIOS/Driver support

-- High Speed mode; Extended Capabilities Port (ECP) compatible

Industry standard floppy controller with 16 byte data FIFO (2.88 MB floppy

support)

1.7 Real-Time Clock, CMOS RAM

The onboard real-time clock (RTC) is builted in ITE 8680 I/O chip which provide a

24-hour clock mode and totally nonvolatile with over 10 years of operation in the

absence of power. The RTC can be set via the BIOS SETUP program. The RTC also

supports 128byte battery-backed CMOS RAM in two banks which is reserved for

BIOS use. The CMOS RAM can be set to specific values or cleared to the system

default values using the BIOS SETUP program. Also, The CMOS RAM values can be

cleared to the system defaults by using a configuration jumper on the HOT-559(S)

main board.

User's Manual 9

1.8 Main Board Connectors

There are connectors on-board for Power supply, Floppy, IDE, back panel connector,

and front panel I/O.

Front panel Connector

The HOT-559(S) main board provides header connectors to support function

typically located on the chassis bezel. Front panel features support include :

*Infra-red (IrDA) Port

*System Reset

*EPMI

*Green LED

*System Speaker

*Power LED & KeyLock

*IDE Hard Drive active LED

*Sleep & Power Control Port

*SCSI Hard Drive active LED

Speaker

The external speaker provides error beep code information during the Power-on Self

Test, if the system cannot use the video interface.

Sleep / Resume

When Advanced Power Management (APM) is activated in the system BIOS and the

Operating System's APM driver is loaded, Sleep mode (Standby) can be entered in

one of three ways: an optional front panel "Sleep/Resume" button, a user defined

keyboard hot key, or prolonged system inactivity. The Sleep/Resume button is

supported by a 2-pin header located on the front panel I/O connector. Closing the

"Sleep" switch will generate an SMI (System Management Interrupt) to the processor

which immediately goes into System Management Mode (SMM), the so called

"Sleep" mode.

The front panel "Sleep mode" switch must be a momentary two pin SPST type that is

normally open. The function of the Sleep/Resume button can also be achieved via a

keyboard hot-key sequence, or by a time-out of the system inactivity timer. Both the

keyboard hot-key and inactivity timer are programmable in the BIOS setup. To

reactivate the system, or "Resume", the user must simply press the sleep/resume

button again, or use the keyboard or mouse. Mouse activity will only "wake up" the

system is a mouse driver is loaded. While the system is in Stand-by or "sleep" mode

it is fully capable of responding to and servicing external interrupts (such as incoming

FAX) even though the monitor will only turn on if a user interrupt (keyboard/mouse)

occurs as mentioned above.

10 User's Manual

Infra-red (IrDA) connector

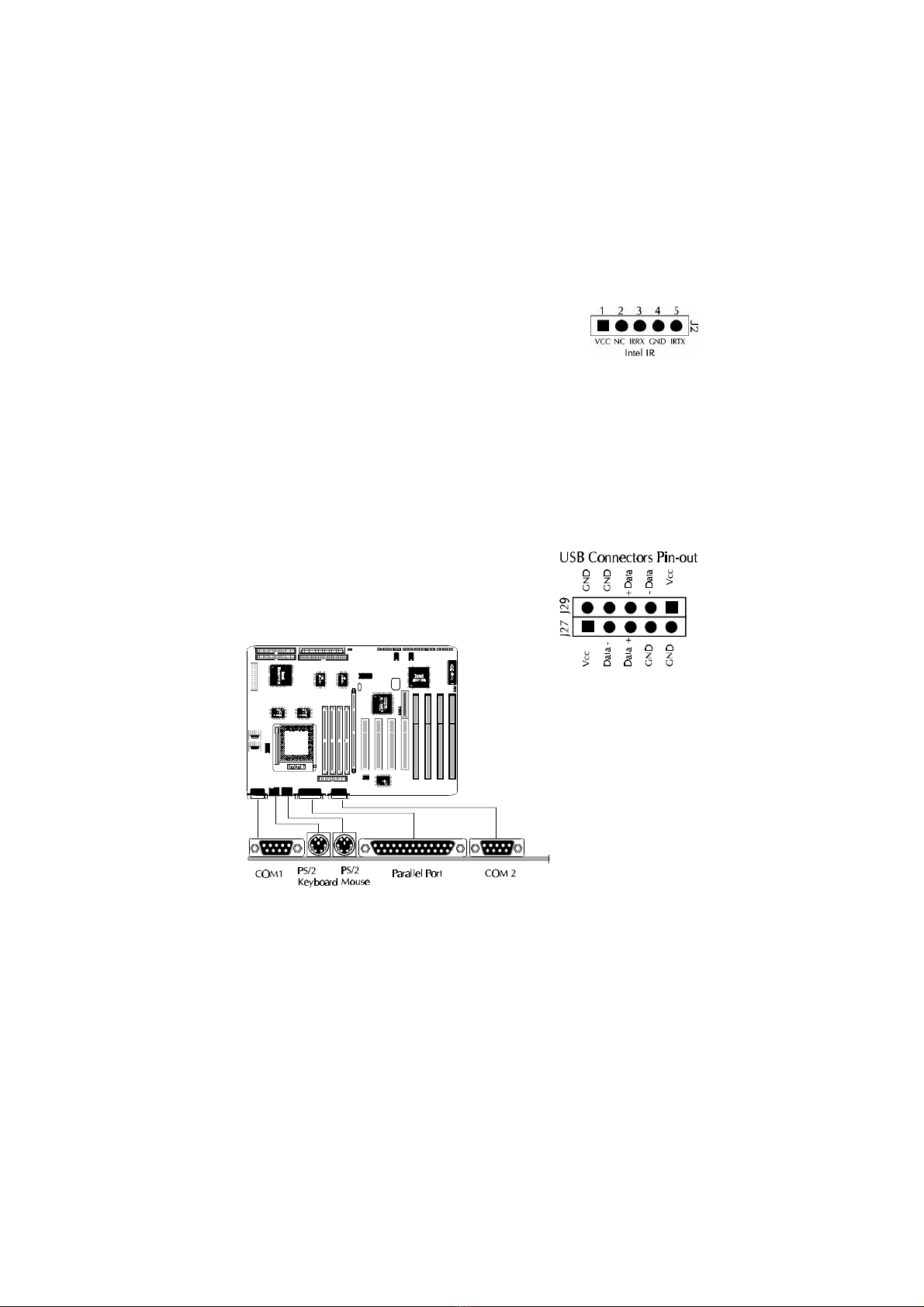

Serial port 2 can be configured to support an IrDA module

via a 5-pin header connector. Once configured for IrDA, the

user can transfer files to or from portable devices such as

laptops, PDA's and printers using application software such

as LapLink. The IrDA specification provides for data transfers

at 115Kbps from a distance of 1 meter.

Reset

This 2-pin header can be connected to a momentary SPST type switch that is

normally open. When the switch is closed, the system will hard reset and run POST.

Back Panel Connectors

The back panel provides external access to PS/2 style keyboard and mouse connec-

tors as well as two serial and one parallel port, which are integrated on the HOT-559

main board. (please refer to diagram on next page)

USB Connectors

The main board provides two sets USB (Universal Serial

Bus) connectors - J27 and J29 for USB devices use.

1.9 Add-in Board Expansion Connectors

Expansion Slots support up to four PCI and up to four ISA add-in boards. The PCI

bus is fully compliant with the PCI 2.1 specification and supports up to four bus

master through the four PCI connectors (or three PCI connectors when Adaptec AIC-

7880 SCSI controller on board.)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Shuttle Scheda madre

Shuttle

Shuttle AK35GT Manuale utente

Shuttle

Shuttle Spacewalker MS51 Manuale utente

Shuttle

Shuttle Spacewalker MS50 Manuale utente

Shuttle

Shuttle MN31 Manuale utente

Shuttle

Shuttle FS58 Manuale utente

Shuttle

Shuttle MB11 Manuale utente

Shuttle

Shuttle MV21 Manuale utente

Shuttle

Shuttle FB54 Manuale utente

Shuttle

Shuttle FB65 Manuale utente

Shuttle

Shuttle Spacewalker AK11 Manuale utente

Shuttle

Shuttle HOT-661/P Manuale utente

Shuttle

Shuttle FV24 Manuale utente

Shuttle

Shuttle FB95 Manuale utente

Shuttle

Shuttle MB48 Manuale utente

Shuttle

Shuttle FS51 Manuale utente

Shuttle

Shuttle HOT-675V Manuale utente

Shuttle

Shuttle AK10 Manuale utente

Shuttle

Shuttle HOT-579 Manuale utente

Shuttle

Shuttle AK12 Manuale utente

Shuttle

Shuttle FB61 Manuale utente

Shuttle

Shuttle Spacewalker FE22 Manuale utente

Shuttle

Shuttle Spacewalker MK20 Manuale utente

Shuttle

Shuttle FT61 Manuale utente

Shuttle

Shuttle HOT-675 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
