PPGACeleronprocessor

Based AGPMAINBOARD

User's Manual

MB11

Shuttle®SpacewalkerTM MB11

PPGA Celeron®processor based AGPset Mainboard

Manual Version 1.0

No part of this publication may be reproduced, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means, electronic,

mechanical,magnetic,optical,chemical,photocopying,manual,orotherwise,without

prior written permission from Shuttle®Inc.

Disclaimer

Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

Thiscompany makes no representations or warranties regarding the contents of this

manual. Information in this manual has been carefully checked for reliability; however,

no guarantee is given as to the correctness of the contents. In the interest of continued

productimprovement, this company reserves the right to revise the manual orinclude

changes in the specifications of the product described within it at any time without

notice and without obligation to notify any persion of such revision or changes. The

informationcontained in this manual is provided for general use by the customers.

Trademarks

Spacewalker is a registerred trademark of Shuttle Inc.

Intel, Celeron is a registered trademarks of Intel Corporation.

PC/ATX is a registered trademark of International Business Machines(IBM) Corporation

PS/2 is a registered trademark of IBM Corporation.

AWARDis a registered trademark of Award SoftwareInc.

Microsoftand Windows are registered trademarks of Microsoft Corporation.

General Notice: Other brand and product names used herein are for identification

purposes only and may be trademarks of their respective owners.

M261

- 2 -

FederalCommunicationsrCommission (FCC)

Compliance Notice

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reason-

able protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy. If not in-

stalled and used properly, in strict accordance with the manufacturer's instructions, may

cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

moreof the following measures :

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/television technician for help and for

additionalsuggestions.

The user may find the following booklet prepared by the Federal Communications

Commissionhelpful "How to Identify and Resolve Radio-TV Interference Problems."

Thisbooklet is available from the U.S. Government Printing Office. Washington, DC

20402, Stock 004-000-00345-4

CE Notice

This device complies with the requirements of the EEC directive 89/336/EEC with

regard to EMC (Electromagnetic Compatibility). Following standards are applied to this

product,in order to achieve compliance with theEMC:

Immunityis in accordance withEN 50082-1 (1992).

Emissions are in accordance with EN 55022 (1987) Class B.

- 3 -

TABLE OFCONTENTS

CHAPTER 1INTRODUCTION .......................................................4

CHAPTER 2FEATURES ............................................................5

2.1 Specifications ........................................................................................... 5

2.2 Accessories of MB11................................................................................ 7

2.3 Accessories of MZ11 ................................................................................ 8

CHAPTER 3HARDWARE INSTALLATION ........................................9

3.1 The Installation PPGA Celeron Processor................................................. 9

3.2 Jumpers .................................................................................................... 10

CPU Host Clock and Ratio Selection - JP2, J113 and JP9 ........................ 10

Clear CMOS - JP11.................................................................................. 11

Keyboard & PS/2 Mouse Power-on Setting - JP1..................................... 11

Wake-On-LAN Setting - JP26.................................................................. 11

On Board Audio Controller Setting - JP25 ............................................... 12

3.3 Connectors................................................................................................ 13

Front Panel Connectors ............................................................................ 13

Back Panel Connectors............................................................................. 14

Other Connectors ..................................................................................... 15

CHAPTER 4MEMORY CONFIGURATION .........................................17

CHAPTER 5FLASH UTILITY ......................................................18

CHAPTER 6 AWARD BIOS SETUP .............................................20

The Main Menu .............................................................................................. 21

Standard CMOS Setup.................................................................................... 23

BIOS Features Setup ...................................................................................... 25

Chipset Features Setup ................................................................................... 28

Power Management Setup .............................................................................. 31

PNP/PCI Configuration Setup ........................................................................ 34

CPU Features Setup........................................................................................ 36

Integrated Peripherals ..................................................................................... 38

Password Setting ............................................................................................ 42

- 4 -

CHAPTER 7ONBOARD ATIAGPVGA......................................44

General Features ............................................................................................. 44

Windows 95/98 Drivers .................................................................................. 45

Windows NT4.0 Driver .................................................................................. 48

CHAPTER 8ONBOARD CREATIVE 3D AUDIO.................................51

Introduce ........................................................................................................ 51

General Specification ..................................................................................... 52

InstallCreativeES1373 Windows 95/98 Driver ............................................. 53

Install Creative ES1373 Windows NT4.0 Driver ............................................ 56

- 5 -

INTRODUCTION

Congratulations on your purchase of the ShuttleSpacewalkerTM MB11/MZ11

computermainboard.

The MB11/MZ11 mainboard is a highly integrated IBM PC/ATX compatible

system board designed to meet the industry's most demanding desktop applications.

The MB11 based on the Intel 82443BX AGPset chipset and MZ11 based on the

82443ZX AGPset chipset which both support up to 500MHz PPGA Celeron

processorwith MMX technology.

MB11/MZ11 is equipped with an Accelerated Graphics Port (A.G.P.), a high-

performanceinterconnectforgraphic-intensiveapplication, such as 3D applications.

The A.G.P. is independent of the PCI bus and is designed to exclusively use with

graphical-display devices. The MB11/MZ11 supports 3.3V A.G.P. devices with

data transfer rates up to 133 MHz, allowing data throughput of 500 MB/sec.

The Intel's 82443BX/82443ZX AGPset chipset provide an integrated Bus Mastering

IDE controller with two high performance IDE interfaces which allows

up to four IDE devices connection and up to 33 MB/sec of data transfer rates.

Onboard Creative ES1373 is an advanced PCI audio controller, it is compatible with

Microsoft Windows, DirectX and Adlib Music Synthesizer, Sound Blaster Pro and

supports thousands of DOS games.

Theon-boardI/Ocontrollerprovides standard PC I/O functions:

floppy drive interface, two FIFO serial ports, an InDA device port and a SPP/EPP/

ECPcapableparallelport.

MB11 and MZ11 are built with three PCI local bus slots providing a high band-

width data path for data-movement intensive functions such as graphics, and with

one ISA slot.

MB11/MZ11 provides the foundation for cost effective, high performance and

highly expandable platforms, which delivers the latest in the Intel PPGA Celeron

processor and new advanced chipset technology.

- 6 -

FEATURES

The MB11/MZ11 mainboard is carefully designed for the demanding PC user

who wants high performance and maximum intelligent features in a compact

package.

2.1SpecificationsSpecifications

Chipset:

MB11 : Features Intel's 82443BX AGPset with I/O subsystems.

MZ11 : Features Intel's 82443ZX AGPset with I/O subsystems.

CPUSupport:

Intel PPGA Celeron processor 300 ~ 500 MHz.

VersatileMemory Supports:

MB11 : Supports three banks of normal or PC/100 SDRAM

maximum memory size up to 768 MB.

MZ11 : Supports two banks of normal or PC/100 SDRAM

maximum memory size up to 512 MB.

PCI and ISA Expansion Slots:

Provides three 32-bit PCI slots and one 16-bit ISA slot.

Onboard I/O:

Provides a variety of I/O interfaces:

1 x Floppy interface for 3.5-inch FDD or 5.25-inch FDD.

1 x PS/2 mouse connector.

1 x PS/2 Keyboard connector.

2 x DB9 Serial connectors 16C550 UARTS compatible.

1 x Infrared communications port ASKIR and HPSIR compatible.

(Serial port COM2 can also be re-directed to an external IrDA Adapter

for wireless connections.)

1 x DB25 Parallel port supporting Standard Parallel Port and Bi-directional

(SPP), Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)

data transmission schemes.

Onboard PCI Bus Master IDE Controller:

Two Ultra DMA/33 Bus Dual-channel Master IDEports provide support to a

maximum offour IDE devices(one Master and one Slave per channel). The IDE

Bus implements data transfer speeds of up to 33MB/sec IDE and also supports

Enhanced PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2 devices.

- 7 -

OnboardAudio Controller:

Provides Creative ES1373 AC97 digital controller, advanced 64 polyphonic wavetable synthesis

with additional DOS support. Full-Duplex Record/Playback at up to 48KHz and supports

Microsoft DirectSound 3D. Digital effects engine for reverb, chorus, tone control.

Onboard AGP VGA Controller:

Provides ATi Rage Pro Chip, support 3D graphics visual and texturing enhancements.

8MB SDRAM on board High-Speed 64-Bit 100MHz Interface.

ATX Power Supply Connector:

ATX power supply unit can connect to the20-pin ATX power connectoronboard, supporting

Suspend and soft-on/off by dual-function power button.

SystemBIOS:

Provides licensed Award V4.51PG BIOS on 2MB Flash EEPROM.

Supports Green PC, Desktop Management Interface (DMI) and bundled with NCR SCSI BIOS.

ACPI:

Support ACPI (Advanced Configuration and Power Interface)function. ACPI provide more

Energy Saving Features for the future operating system supporting OS Direct Power Management

(OSPM) functionality.

Board Size:

MicroATX form factor, dimension 244mm x 220mm.

Advanced Features:

Low EMI --Using built-in Spread Spectrum with 1.5% modulation and automatic clock shut-

off of unused PCI/SDRAMS slots to reduce the Electromagnetic Interference (EMI).

Dual Function Power Button-- The system can be one of two states, one is Suspend mode and

the other is the Soft-off mode. Pushing the power button for less than 4 seconds will place the

system into Suspend mode. When push the power button for more than 4 seconds, the system

enters the Soft-off mode.

Wake-On-LAN --The Wake-On-LAN connector onboard can be attached to a network card

that supports this function to wake up the system via the LAN.

(This function support Intel LAN card only).

Modem Ring Power-on --The system can be powered on automatically by activation of

modem ring.

PS/2 Keyboard & Mouse Power-on --The system will power-on automatically by stroke

keyboard or double click PS/2 mouse.

Optional Features:

Voltages Monitoring-- Various voltages of key elements, such as the CPU, and other critical

system voltage levels are monitored to ensure stable current reach to mainboard components.

System voltages include VCORE/VL2 on CPU, and +5V, +12V, -5V, -12V on system.

FAN Status Monitoring-- To prevent CPU overheat, CPU fans is monitored for RPM and

failure. (CPU Cooling FAN with RPM sensor is required)

- 8 -

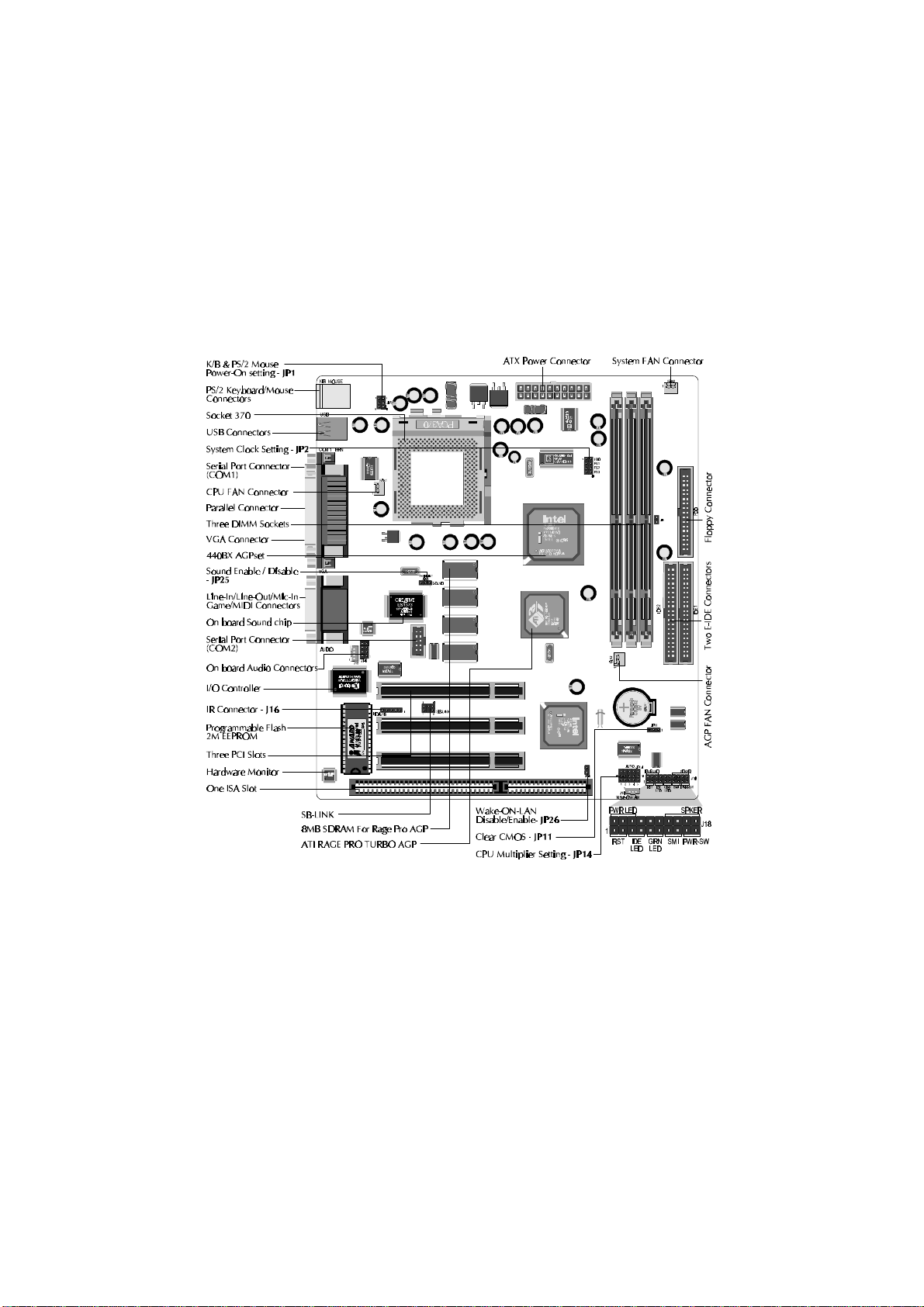

2.2Accessories Of MB11Accessories Of MB11

- 9 -

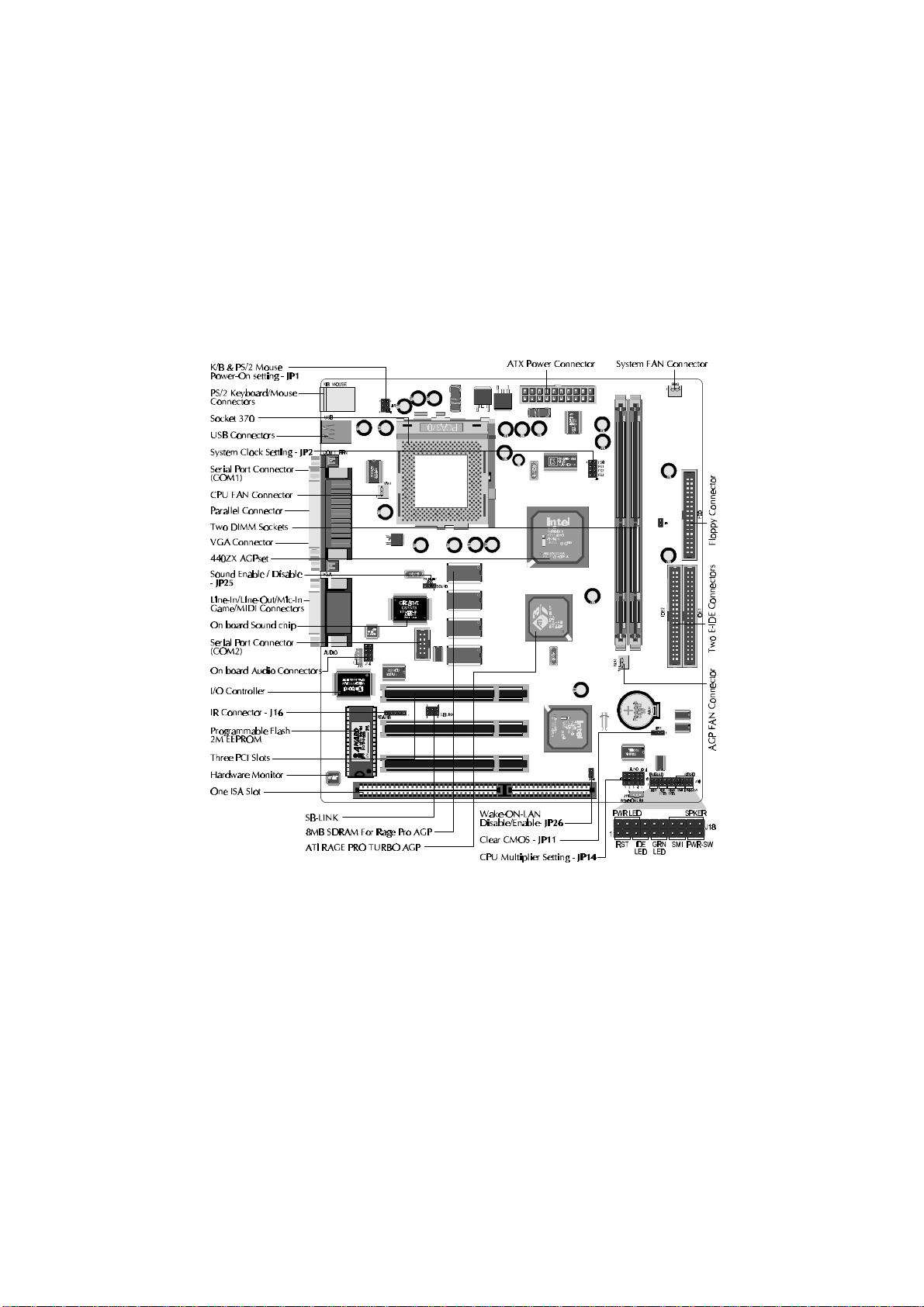

2.3Accessories Of MZ11Accessories Of MZ11

Indice

Altri manuali Shuttle Scheda madre

Shuttle

Shuttle FB51 Manuale utente

Shuttle

Shuttle HOT-679 Manuale utente

Shuttle

Shuttle FN41V3 Manuale utente

Shuttle

Shuttle Spacewalker AV41 Manuale utente

Shuttle

Shuttle AV11 Manuale utente

Shuttle

Shuttle Spacewalker HOT-687 Manuale utente

Shuttle

Shuttle AB48 Manuale utente

Shuttle

Shuttle Spacewalker AV45GT Manuale utente

Shuttle

Shuttle FB54 Manuale utente

Shuttle

Shuttle FB65 Manuale utente

Shuttle

Shuttle Spacewalker AV40 Manuale utente

Shuttle

Shuttle AB45 Manuale utente

Shuttle

Shuttle Spacewalker MV17 Manuale utente

Shuttle

Shuttle FV24 Manuale utente

Shuttle

Shuttle Spacewalker MV11 Manuale utente

Shuttle

Shuttle av61 Manuale utente

Shuttle

Shuttle Spacewalker AK32 Manuale utente

Shuttle

Shuttle HOT-555 Manuale utente

Shuttle

Shuttle AK35GT Manuale utente

Shuttle

Shuttle HOT-595 Manuale utente

Shuttle

Shuttle MS11 Manuale utente

Shuttle

Shuttle FT62 Manuale utente

Shuttle

Shuttle FB62 Manuale utente

Shuttle

Shuttle FN45 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
