- 2 -

Shuttle®SpacewalkerTM HOT-685V

PPGA Celeron®processor based AGPset Mainboard

Manual Version 1.0

No part of this publication may be reproduced, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without

prior written permission from Shuttle®Inc.

Disclaimer

Shuttle®Inc. shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

This company makes no representations or warranties regarding the contents of this

manual. Information in this manual has been carefully checked for reliability; however,

no guarantee is given as to the correctness of the contents. In the interest of continued

product improvement, this company reserves the right to revise the manual or include

changes in the specifications of the product described within it at any time without

notice and without obligation to notify any version of such revision or changes. The

information contained in this manual is provided for general use by the customers.

Trademarks

Spacewalker is a registered trademark of Shuttle Inc.

Intel, Celeron is a registered trademarks of Intel Corporation.

VIA is a registered trademarks of VIA Corporation.

PC/ATX is a registered trademark of International Business Machines(IBM) Corporation

PS/2 is a registered trademark of IBM Corporation.

AWARD is a registered trademark of Award Software Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other brand and product names used herein are for identification

purposes only and may be trademarks of their respective owners.

- 3 -

Federal Communications Commission (FCC)

ComplianceNotice

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reason-

able protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy. If not in-

stalled and used properly, in strict accordance with the manufacturer's instructions, may

cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures :

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/television technician for help and for

additional suggestions.

The user may find the following booklet prepared by the Federal Communications

Commission helpful "How to Identify and Resolve Radio-TV Interference Problems."

This booklet is available from the U.S. Government Printing Office. Washington, DC

20402, Stock 004-000-00345-4

CE Notice

This device complies with the requirements of the EEC directive 89/336/EEC with

regard to EMC (Electromagnetic Compatibility). Following standards are applied to this

product, in order to achieve compliance with the EMC:

Immunity is in accordance with EN 50082-1 (1992).

Emissions are in accordance with EN 55022 (1987) Class B.

- 4 -

TTABLE OFCONTENTS

CHAPTER 1INTRODUCTION .........................................................5

CHAPTER 2FEATURES ..............................................................6

Accessories of HOT-685V .............................................................................. 8

CHAPTER 3HARDWARE INSTALLATION ..........................................9

The Installation PPGA CeleronProcessor ....................................................... 9

Jumpers ........................................................................................................... 10

CPU Clock Speed and ratio Selection - JP2, J113 and JP9.............................. 10

Special Tip for User's Reference Only............................................................. 11

Clear CMOS - JP8........................................................................................... 11

Flash EEPROM Vpp - JP7 .............................................................................. 11

Keyboard & PS/2 Mouse Power-on Setting - JP1 ........................................... 11

AT and ATX Power Supply Connectors Setting - J112................................... 12

On Board Audio Controller Setting - JP6 ........................................................ 12

Connectors ...................................................................................................... 13

CHAPTER 4MEMORY CONFIGURATION ..........................................18

CHAPTER 5WINDOWS 98INSTALLATION NOTE...............................19

CHAPTER 6FLASH UTILITY ........................................................21

CHAPTER 7 AWARD BIOSSETUP ...............................................23

The Main Menu............................................................................................... 24

Standard CMOS Setup .................................................................................... 26

BIOS Features Setup ....................................................................................... 28

Chipset Features Setup .................................................................................... 31

Power Management Setup ............................................................................... 34

PNP/PCI Configuration Setup ......................................................................... 37

IntegratedPeripherals...................................................................................... 39

PasswordSetting ............................................................................................. 42

- 5 -

1INTRODUCTION

HOT-685V is a highly integrated IBM PC/AT compatible system board designed

to meet the industry's most demanding desktop applications.

Based on the VIA Apollo Pro Plus chipset which support up to 500MHz PPGA

Celeron processor with MMX technology.

HOT-685V is equipped with an Accelerated Graphics Port (A.G.P.), a high-

performanceinterconnect for graphic-intensive application, such as 3D applica-

tions. The A.G.P. is independent of the PCI bus and is designed to exclusively

use with graphical-display devices. The HOT-685V supports 3.3V A.G.P.

devices with data transfer rates up to 133 MHz, allowing data throughput of 500

MB/sec.

The VIA Apollo Pro Plus chipset provides an integrated Bus Mastering IDE

controller with two high performance IDE interfaces which allows up to four IDE

devices connection and up to 33 MB/sec of data transfer rates.

Onboard FM801 is an advanced PCI audio controller, it is compatible with

Microsoft Windows, DirectX and Adlib Music Synthesizer, Sound Blaster Pro

and supports thousands of DOS games.

The on-board I/O controller provides standard PC I/O functions:

floppy drive interface, two FIFO serial ports, an InDA device port and a SPP/

EPP/ECPcapable parallel port.

HOT-685V is built with four PCI local bus slots providing a high bandwidth data

path for data-movement intensive functions such as graphics, and with one ISA

slot.

HOT-685V provides the foundation for cost effective, high performance and

highly expandable platforms, which delivers the latest in the Intel PPGA Celeron

processor and new advanced chipset technology.

- 6 -

2FEATURES

The HOT-685V Mainboard is carefully designed for the demanding PC user

who wants high performance and many intelligent features in a compact

package:

Intel Chipset:

Features VIA Apollo Pro Plus chipset.

CPU Support:

Intel PPGA Celeron processor 300 ~ 500 MHz.

Versatile Memory Supports:

Supportsthree banks of normal or PC/100 SDRAMmaximum memory size up

to 768 MB.

PCI and ISA Expansion Slots:

Provides four 32-bit PCI slots and one 16-bit ISA slot.

Onboard I/O:

Provides one Floppy port; one PS/2 mouse and one PS/2 Keyboard port connector

or one AT keyboard and one PS/2 mouse Header connector; two high-speed

UART compatible serial ports and one parallel port with ECP and EPP capabilities.

Serial Port 2 can also be directed from COM2 to the Infrared Module for wireless

connections.

Onboard PCI Bus Master IDE Controller:

Two Ultra DMA/33 Bus Dual-channel Master IDEports provide support to a

maximum offour IDE devices(one Master and one Slave per channel). The IDE

Bus implements data transfer speeds of up to 33MB/sec IDE and also supports

Enhanced PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2 devices.

Onboard 12-pin AT and 20-pin ATX Power Supply:

Provides AT and ATX Power connectors onboard, and ATX power connector

supports soft-on/off function.

System BIOS:

Provides licensed Award V4.51PG BIOS on 2MB Flash EEPROM.

Supports Green PC, Desktop Management Interface (DMI) and bundled with NCR

SCSI BIOS.

- 7 -

ACPI:

SupportACPI (Advanced Configuration and Power Interface)function. ACPI provide more

Energy Saving Features for the future operating system supporting OS Direct Power Management

(OSPM) functionality.

Board Size:

AT form factor, dimension 220mm x 230mm.

Advanced Features:

Low EMI --Using built-in Spread Spectrum with 1.5% modulation and automatic clock shut-

off of unused PCI/SDRAMS slots to reduce the Electromagnetic Interference (EMI).

Dual Function Power Button (ATX power only)-- The system can be one of two states, one

is Suspend mode and the other is the Soft-off mode. Pushing the power button for less than 4

seconds will place the system into Suspend mode. When push the power button for more than 4

seconds, the system enters the Soft-off mode.

Wake-On-LAN --The Wake-On-LAN connector onboard can be attached to a network card

that supports this function to wake up the system via the LAN.

(This function support Intel LAN card only).

Modem Ring Power-on --The system can be powered on automatically by activation of

modem ring.

PS/2 Keyboard & Mouse Power-on --The system will power-on automatically by stroke

keyboard or double click PS/2 mouse.

Optional Features:

Voltages Monitoring-- Various voltages of key elements, such as the CPU, and other critical

system voltage levels are monitored to ensure stable current reach to mainboard components.

System voltages include VCORE/VL2 on CPU, and +5V, +12V, -5V, -12V on system.

FAN Status Monitoring-- To prevent CPU overheat, CPU fans is monitored for RPM and

failure. (CPU Cooling FAN with RPM sensor is required)

- 8 -

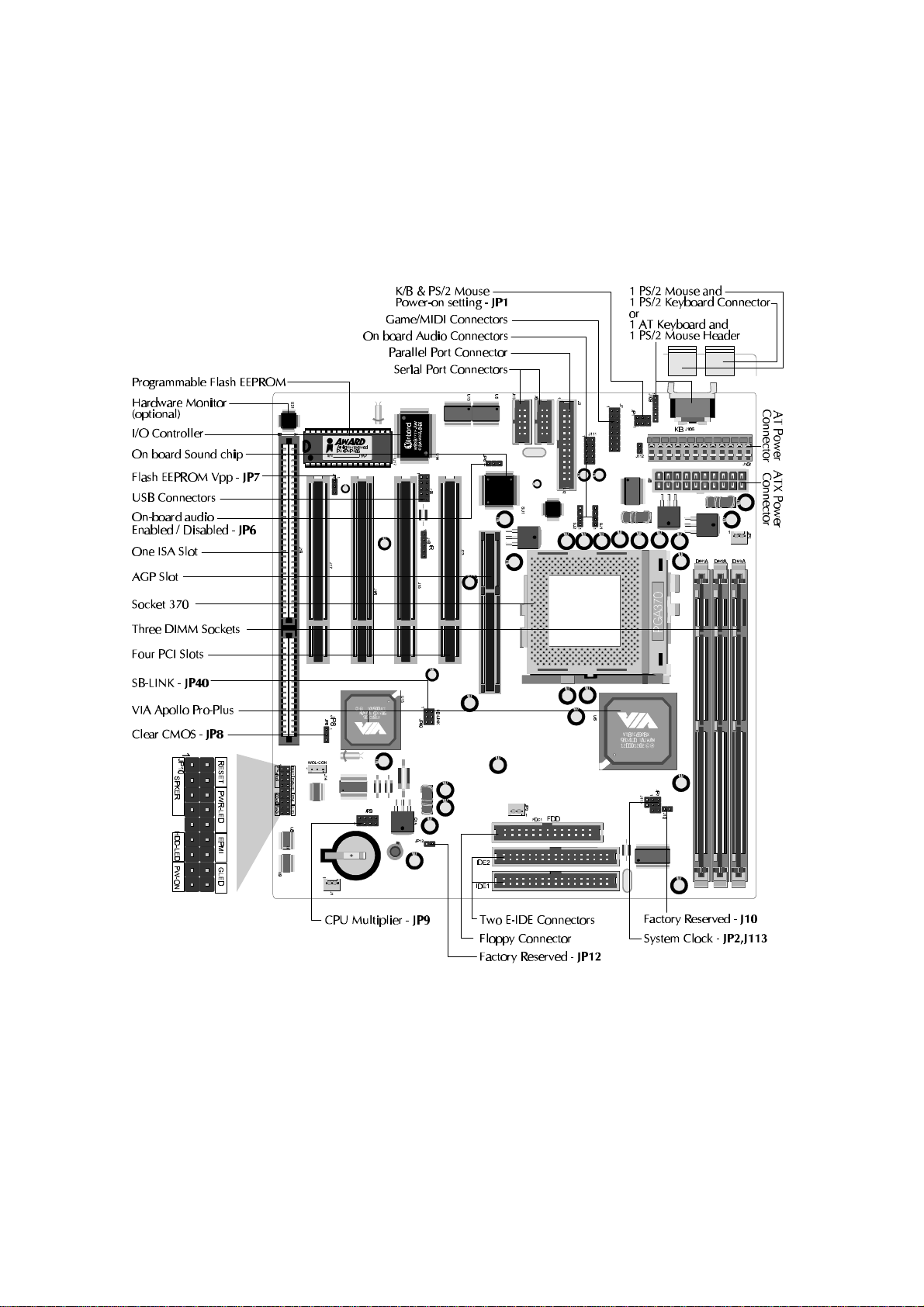

ACCESSORIES OF HOT-685V

- 9 -

The Installation PPGA Celeron Processor

HOT-685V mainboard provides a 370-pin ZIF Socket370 for Intel PPGA Celeron CPU.

The CPU that came with the mainboard should have a fan attached to it to prevent over-

heating. If this is not the case then purchase a fan before you turn on your system.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF

Socket370 and open it by first pulling the lever sideways away from the socket then

upwards to a 90-degree right angle. Insert the CPU with the correct orientation as

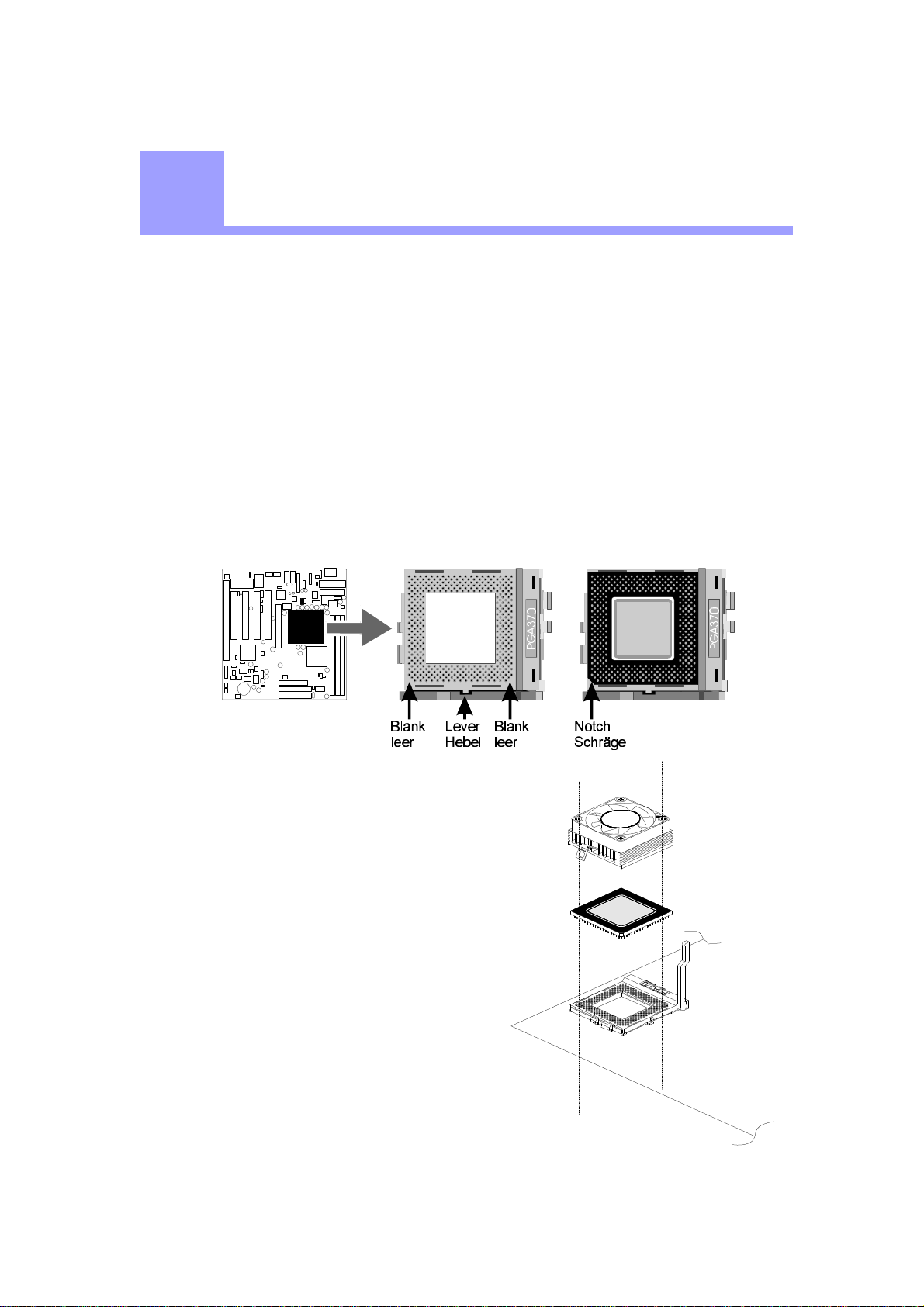

shown.(Figure 3-1) Use the notched corner of the CPU as your guide. The notched corner

should point towards the end of the lever. Notice that there are two blank area where one

hole is missing from that corner of the square array of pin holes. Because the CPU has a

corner pin for two of the four corner, the CPU will only fit in the one orientation, hold

down on the CPU and close the socket’s lever.

HARDWARE INSTALLATION

Then you should have a CPU fan that will

cover the face of the CPU. Apply thermal

jelly to the CPU metallic top and then

install the fan onto the CPU. (Figure 3-2 )

Figure 3-2

Figure 3-1

- 10 -

Jumpers

Several hardware settings are made through the use of jumper caps to connect jumper pins

on the main board. The jumper's pin 1 on main board will be on the top or on the left

when holding the main board with the keyboard connector away from yourself.

Jumpers with two pins will be shown as for Close (On) and for Open (Off).

To connect the pins, simply place a plastic jumper cap over the two pins.

CPU Clock Speed and ratio Selection - JP2, J113 and JP9

HOT-685V mainboard features a clock generator to provide adjustable system clock

frequency. Jumpers JP2 and J113 determine the system clock frequency 66MHz to

150MHz. and JP9 is a 8-pin jumper which determine the processor clock ratio from

2X to 8X.

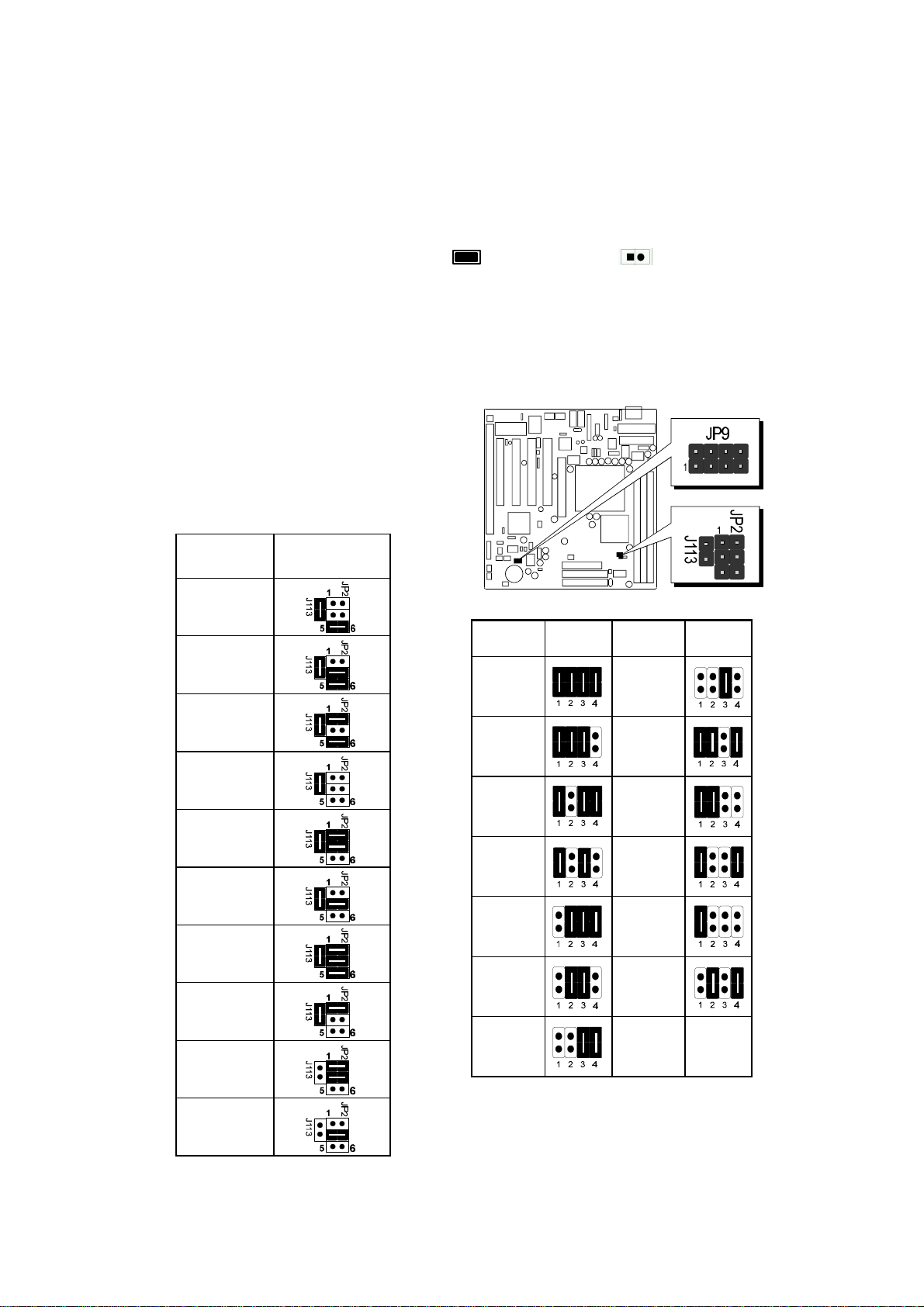

Figure 3-3 shows the position of JP2, J113

and JP9 on the mainboard.

Table 3-1 shows adjustable System clock

on jumper JP2 and J113.

Table 3-2 shows adjustable CPU Clock

Ratio on jumper group JP9.

Figure 3-3

Note:Present PPGA Celeron CPU Clock ratio

is fixed and unable to adjust, for those processors,

JP9 is not functional.

CPU

HostClock JP2and J113

66 MHz

75 MHz

83 MHz

100 MHz

103 MHz

112 MHz

124 MHz

133 MHz

140 MHz

150 MHz

Table 3-1

CPU

Clock RatioJP9CPU

Clock RatioJP9

2x5.5x

(366 /66 )

2.5x6x

(400 /66 )

3x6.5x

(433 /66 )

3.5x

(350 /100 )7x

(466 /66 )

(400 /100 )7.5x

(500 /66 )

4.5x

(300 /66 )

(450 /100 )8x

(333 /66 )

(500 /100 )

Table 3-2

Indice

Altri manuali Shuttle Scheda madre

Shuttle

Shuttle FB65 Manuale utente

Shuttle

Shuttle FN41V3 Manuale utente

Shuttle

Shuttle Spacewalker AV32 Manuale utente

Shuttle

Shuttle Spacewalker AK32 Manuale utente

Shuttle

Shuttle HOT-683 Manuale utente

Shuttle

Shuttle Spacewalker HOT-687 Manuale utente

Shuttle

Shuttle Spacewalker AK31 Manuale utente

Shuttle

Shuttle AK32V Manuale utente

Shuttle

Shuttle Spacewalker MV17 Manuale utente

Shuttle

Shuttle Spacewalker AV40 Manuale utente

Shuttle

Shuttle AV42 Manuale utente

Shuttle

Shuttle MT63 Manuale utente

Shuttle

Shuttle Spacewalker HOT-685Z Manuale utente

Shuttle

Shuttle MV43 Manuale utente

Shuttle

Shuttle AV64 Manuale utente

Shuttle

Shuttle HOT-591P Manuale utente

Shuttle

Shuttle av61 Manuale utente

Shuttle

Shuttle HOT-591 Manuale utente

Shuttle

Shuttle AK35GT Manuale utente

Shuttle

Shuttle HOT-555 Manuale utente

Shuttle

Shuttle HOT-559 Manuale utente

Shuttle

Shuttle Spacewalker MV18 Manuale utente

Shuttle

Shuttle AB52P Manuale utente

Shuttle

Shuttle FB86 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
