SIIG USB 2.0 Switch Manuale utente

04-0318C

USB 2.0 Switch

Quick Installation Guide

Introducing the USB 2.0 Switch

The USB 2.0 Switch is designed to share USB device(s)

between multiple systems.

Features and Benefits

• Compliant with USB Specifications, Revision 2.0.

Hot-swapping feature allows you to attach/detach

USB devices without powering down your

computer

• Use keyboard Hotkey control (Windows only) or

Power LED/Manual switching button to switch

between computers

• Designed for USB devices including printers,

scanners,harddiskdrives,cameras,CD-ROMSand

Zip drives. Note: Not designed to work with

keyboard or mouse

System Requirements

• PC or Mac®computer with an available USB port

(USB 2.0 recommended)

• Windows®7 (32-/64-bit) / Vista (32-/64-bit) / XP

(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) /

2000/ ME / 98SE

• Mac OS®X v10.0 or later

Package Contents

•USB 2.0 Switch

• USB cables (6 Ft, Type A to Type B)

• Software CD and quick installation guide

Layout

Do not connect the USB 2.0 Switch to your system until

after the driver has been installed. Please refer to the

Installation section starting on page 4 to install its driver.

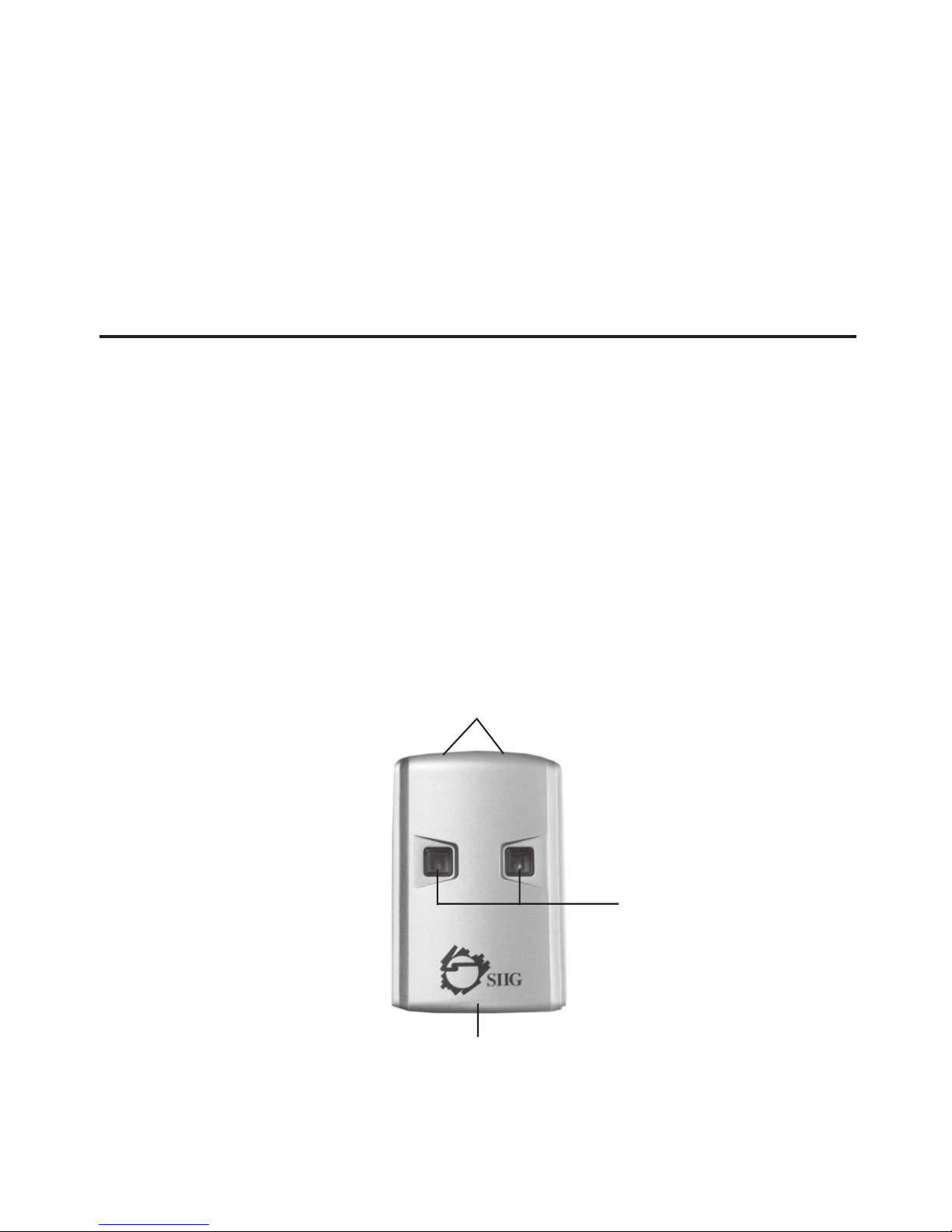

USB 2.0 Switch 2-to-1

• Two Type B connectors for system connection

• One Type A connector for device connection

• Convenient manual switching buttons

To USB device

(Type A connector)

(Type B connector)

Power LED/Manual

To PC

Figure 1. USB 2.0 Switch 2-to-1

switching button

USB 2.0 Switch 4-to-1

• Four Type B connectors for system connection

• One Type A connector for device connection

• Convenient manual switching buttons

Figure 2. USB 2.0 Switch 4-to-1

Power LED/Manual switching button

To PC

(Type B connector)

To PC

(Type B connector)

To USB device

(Type A connector)

Windows Installation

Important: Do not connect the USB 2.0 Switch to your

system until after the driver has been installed. In order

for the driver to install properly the Power LED to that

system must be switched to another system. For example,

if you connect port A to system A, make sure the Power

LED on port A is not lit.

Windows 7 (32-/64-bit) / Windows Vista (32-/64-bit)

1. Insert the driver CD after Windows boots.

At the AutoPlay box: Click Run Setup.exe

If AutoPlay doesn't start: Click Start, in Start Search

type D:\Setup.exe, press Enter. (Change D: to

match your CD/DVD-ROM drive letter)

2. At User Account Control, click Allow.

3. Select your language, then click OK.

4. Click Next, Next, then Finish.

5. Plug the USB 2.0 Switch into an available USB port

(USB 2.0 recommended) with the supplied USB

cables and the driver will install automatically.

6. Press the Power LED/Manual switching button

thatmatchesthesystemtocompletetheinstallation.

Windows XP (32-/64-bit) / Server 2003 (32-/64-bit)

1. Insert the driver CD after Windows boots.

2. AutoRun should start the installation. If AutoRun

doesn't start, click Start, Run, type D:\setup.exe,

then click OK. (Change D:tomatch your CD/DVD-

ROM drive letter)

3. Select your language, then click OK.

4. Click Next, Next, then Finish.

5. Plug the USB 2.0 Switch into an available USB port

(USB 2.0 recommended) with the supplied USB

cables and the driver will install automatically.

6. Press the Power LED/Manual switching button

thatmatches the system to complete the installation.

Windows Server 2008 (32-/64-bit)

1. Insert the driver CD after Windows boots.

At the AutoPlay box: Click Run Setup.exe.

If AutoPlay doesn't start: Click Start, in Start Search

type D:\Setup.exe, press Enter. (Change D: to

match your CD/DVD-ROM drive letter)

2. Select your language, then click OK.

3. Click Next, Next, then Finish.

4. Plug the USB 2.0 Switch into an available USB port

(USB 2.0 recommended) with the supplied USB

cables and the driver will install automatically.

5. Press the Power LED/Manual switching button

thatmatches the system to complete the installation.

Windows 2000 / ME

1. Insert the driver CD after Windows boots.

2. AutoRun should start the installation. If AutoRun

doesn't start, click Start, Run, type D:\setup.exe,

then click OK. (Change D: to match your CD/

DVD-ROM drive letter)

3. Select your language, then click OK.

4. Click Next, Next, then Finish.

5. Restart Windows. When Windows resumes, plug

the USB 2.0 Switch into an available USB port (USB

2.0 recommended) with the supplied USB cables

and the driver will install automatically.

6. Press the Power LED/Manual switching button

thatmatches the system to complete the installation.

Windows 98SE

1. Insert the driver CD after Windows boots.

2. AutoRun should start the installation. If AutoRun

doesn't start, click Start, Run, type D:\setup.exe,

then click OK. (Change D: to match your CD/DVD-

ROM drive letter)

3. Select your language, then click OK.

4. Click Next, Next, then Finish.

5. Restart Windows. When Windows resumes, plug

the USB 2.0 Switch into an available USB port (USB

2.0 recommended) with the supplied USB cables.

6. When Windows prompts for the driver, click Next.

7. Select Search for the best driver..., and click Next.

8. Clear all check boxes, click Next, click Next again.

Note: If prompted for Windows Installation CD-

ROM, click OK. Insert this CD, then click OK again.

9. Click Finish. If prompted, click Yes to restart.

To Verify Windows Installation

1. Go to Device Manager to verify installation.

For Windows 7:Right click Computer, click Manage,

then click Device Manager.

For Windows Vista: Right click Computer, click

Manage,click Continue,thenclickDeviceManager.

For Windows XP / Server 2003 / 2000: Right click My

Computer, click Manage, then click Device

Manager.

For Windows Server 2008: Right click Computer,

click Manage, double click Diagnostics, then click

Device Manager.

For Windows ME / 98SE: Right click My Computer,

click Properties, then click Device Manager.

2. Depending on the status of the Power LED/Manual

Switching Button, use the option that best matches

the system.

Power LED is lit: Double click Universal Serial Bus

controllers and Generic USB Hub should be

displayed.

Power LED is off: Double click Human Interface

Devices. HID-compliant device and either USB

Human Interface Device or USB Input Device

should be displayed.

Windows Device Switching

Hotkey Control, Status Indicator and Manual switching

button are the three methods that can be used to switch

devices between systems.

Note: For Mass Storage devices such as flash drives,

USB memory card readers and CD-ROMs, before

switching the USB device to another system, it must be

released from the system that controls it. Use Windows

Safely Remove Hardware feature, located in the

taskbar, to Stop the USB device.

Hotkey Control

Press Ctrl+F11 to switch the USB device to the current

system.

Status Indicator

1. The Status Indicator is located in the taskbar by the

system clock. The indicator has three functions:

Red: Another system is accessing the device -

switching not allowed.

Green: The current system controls the device.

Yellow: No system controls the device - switching

is allowed.

2. Double click the USB Sharing icon to start USB

sharing program manually.

3. Right click the Status Indicator and select Switch

can also switch USB access to the current system.

Note: Devices such as external hard drives and

printers send signals back and forth to your

computer when they are connected. This causes

the Status Indicator toremainred. Switching is still

possible by clicking Yes in the Enforce Switching

pop-up box.

Manual Switching Button

Press a Power LED/Manual switching button to switch to

another system.

Mac OS Installation

No driver installation is necessary. Simply plug the USB

2.0 Switch into an available USB port (USB 2.0

recommended).

Mac OS Device Switching

Device switching is controlled by the Power LED/Manual

switching button. Follow the instructions in the next

section for your device type.

Memory Card Readers

1. Dragthememory card'sdriveiconintotheTrashcan.

2. Remove the memory card from the card reader

then press a switching button to change systems.

3. Insert a memory card into the memory card reader.

Mass Storage Devices

CD-ROMs, flash drives, external hard disk drives, and Zip

drives typically add drive icons to the desktop. Use the

directions below for switching these devices.

1. Drag the drive icon into the Trashcan.

2. Press the switching button to change systems.

3. The drive icon will appear on the other system.

Other Devices

For other devices just press the switching button to change

to another system.

Connecting USB Devices

When connecting your USB device(s) to the USB 2.0 Switch,

follow the USB device's driver installation procedures.
