1
4x1 USB HDMI KVM
Switch with 4Kx2K & PIP
User Reference Guide
04-1008A
Introduction
The 4x1 USB HDMI KVM Switch with 4Kx2K &
PIP controls up to 4 HDMI computers or HDMI
devicesviaasinglekeyboard,mouseandmonitor.
Key Features and Benefits
• Supports video resolutions of 720p HD,
1080p Full HD and up to 3840x2160@30Hz
• High-quality circuit design with external
power adapter provide smooth and reliable
performance
• PIP feature allows up to 4 sources to display
simultaneously on the single screen
• Premium metal housing eliminates
interference and enhances stability
• Built-in USB port allows the sharing of USB
peripheral such as pen drives or printers
2
Specifications
Chipset Silicon Image Sil9687
Housing Material Metal (Aluminum)
Connectors
Input: HDMI Type-A, Female x4 & USB Type B, Female x4 &
Microphone jack x4
Output: HDMI Type-A, Female x1 & USB Type A, Female x3 &
Microphone jack x1
KVM Ports 4
Video Type HDMI (v1.4)
HDCP Compliant Yes
Audio Yes
Remote Control Yes (Up to 5M)
Resolution Up to 3840x2160, 30Hz (PIP monitor up to 1080p only)
KVM Cable Range Up to 5M
Switch Method Select button / Keyboard hotkey / Remote control
Power Input: 100-240V / 50-60Hz
Output: DC 5V / 3A
Color Black
Product Dimensions 6.73" (W) x 1.83" (H) x 2.97" (D)
Weight 0.79 lbs
3

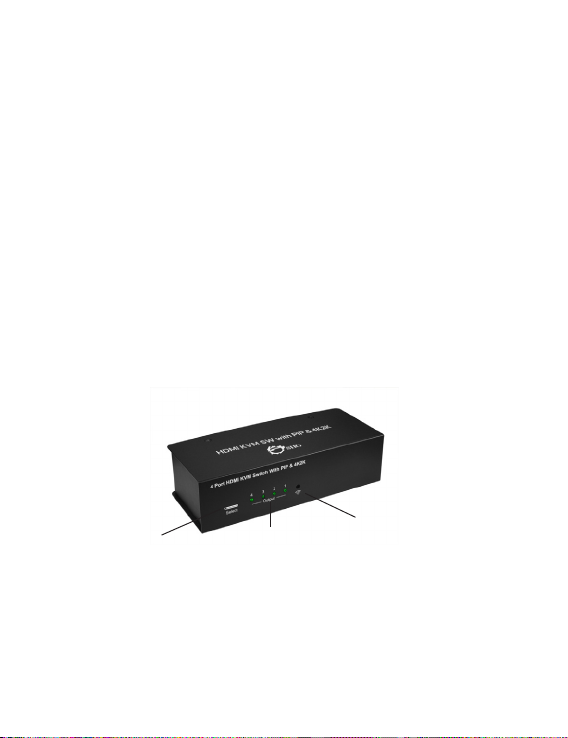

Figure 1: Front Panel Layout
•SELECT: Switch between HDMI sources
•Output LEDs (x4): Indicates which HDMI
source is active
•IR: IR receiver
Package Contents
•4x1 USB HDMI KVM Switch with 4Kx2K &
PIP
• Power adapter
• Remote control & 2 KVM cables
• User Reference Guide
Compatibility
• Windows and Mac computers with HDMI
ouput
• HDMI enabled game consoles, Blu-Ray
DVD players and other HDMI devices
Layout
Select Output LEDs (x4)
IR
4
Console Setup:
•USB Keyboard & Mouse Ports: Connects to
USB keyboard and mouse
•MIC: Connects to microphone (optional)
•HDMI OUT: Connects to an HDMI display
•Power Jack: Connects to the included power
adapter
•USB Port: Connects to a USB peripheral
(optional)
Figure 2: Rear Panel Layout
Power Jack
HDMI IN
MIC IN
USB Port
HDMI OUT
USB Keyboard & Mouse Ports
USB Type-B
Port
Console Setup
PC / HDMI device Input
MIC
5
Power Adapter:
Refer to the table below for the specifications of
the power plug.
Table 1: Power Plug Specifications
OD ID
L
PC / HDMI Source Device:
•MIC IN: Connects to source device's MIC
input (optional)
•HDMI IN: Connects to source device's HDMI
putput
•USB Type-B Port: Connects to source device's
USB port
Outside
diameter
(OD)
Inside
diameter
(ID)
Plug
length
(L)
Negative / Positive
5.5mm 2.5mm 10mm
*Center pin for positive voltage and the
outer shield for negative voltage
6
Hardware Installation
1. Power off all devices you plan to connect to
the Switch.
2. Connect an HDMI monitor/display to the
Switch's HDMI Output connector using an
HDMI cable (cable not included).
3. Connect a USB keyboard and USB mouse
to the dedicated USB keyboard and mouse
ports on the Switch.
4. Connect the computer's HDMI output to
the Switch's HDMI Input 1 connector using
the included HDMI cable.
5. Connect the computer's USB Type-A port
to the switch's USB Type-B port associated
with the HDMI Input 1 connector from
step 4 using the included USB cable.
6. Connect the computer's microphone
connector to the Switch's MIC IN port
associated with the HDMI Input 1 connector
from step 4 using the included 3.5mm
mini-jack audio cable. This connection is
optional and only needed if you plan to use
a microphone.
7
7. Repeat steps 4 to 6 to connect additional
computers/source devices to the Switch.
8. Optional:Connect a USB peripheral you
wish to share between the connected
computers/devices to the extra USB port
on the Switch.
9. Connect the power adapter to the Switch,
then plug it into a reliable wall outlet.
10. Power up the first computer, when it is fully
booted up, verify the keyboard, mouse and
monitor are working properly.
11. After the first computer system is
successfully setup, power up the other
computers/devices in numerical order and
verify each are working properly.
12. The installation is complete and the Switch
is ready for use.
Note: To connect a DVD player or game
console to the Switch, the Switch's USB
port must be connected to a USB power
source such as a USB wall charger or
computer USB port using a Type-B to
Type-A cable (cable not included).
8
Instructions For Use
Switch the PC / HDMI Device
A. Select button
Press the Select button on the front panel of
the Switch
B. Keyboard hotkey
Twice Ctrl + Number (1~4) + Enter
C. Remote control
Press the number you're going to use toward
IR receiver of the Switch
Start /Close PIP feature
A. Keyboard hotkey
Twice Ctrl + P+ Enter
B. Remote control
Press PIP ON / OFF button
Start /Close Reminder Buzzer
A. Keyboard hotkey
Twice Ctrl + B + Enter
9
Start / Stop Auto Scan (Default Interval -
10 sec)
A. Keyboard hotkey
Twice Ctrl + S+ Enter
B. Remote control
Press Auto Scan button
Increase Auto Scan Interval (+5 sec/per)
A. Keyboard hotkey
Twice Ctrl + "+"
Decrease Auto Scan Interval (-5 sec/per)
A. Keyboard hotkey
Twice Ctrl + "-"
10

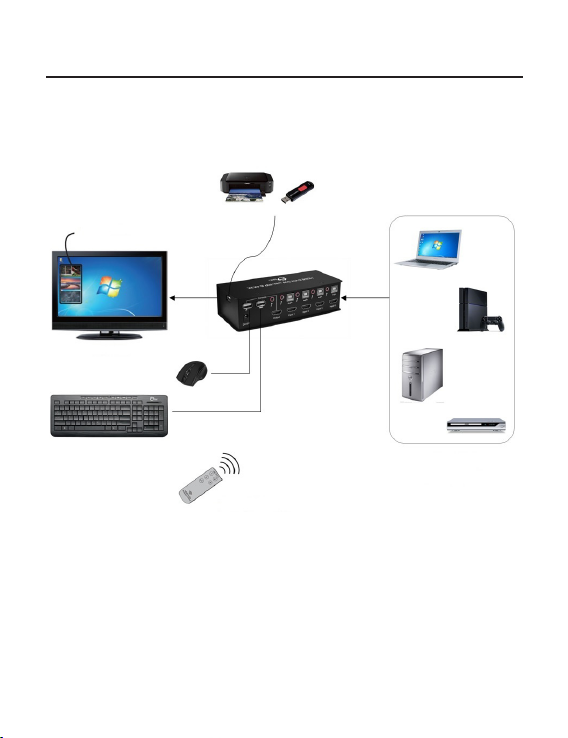

Application
Control up to 4 computers / HDMI devices and
share one USB peripheral.
PIP Monitor
HD TV
Remote Control
Computer
HDMI Device
Figure 3: Application
