Singer STEAMFORCE SG-19700 Manuale utente

SGΕ-19700 STEAMFORCE

Reﬁll steam generator

Reﬁll σύστημα σιδερώματος ατμού

Ютия спарогенератор

INSTRUCTION MANUAL

ΒΙΒΛΙΟ ΟΔΗΓΙΩΝ

ИНСТРУКЦИИ ЗА ЕКСПЛОАТАЦИЯ

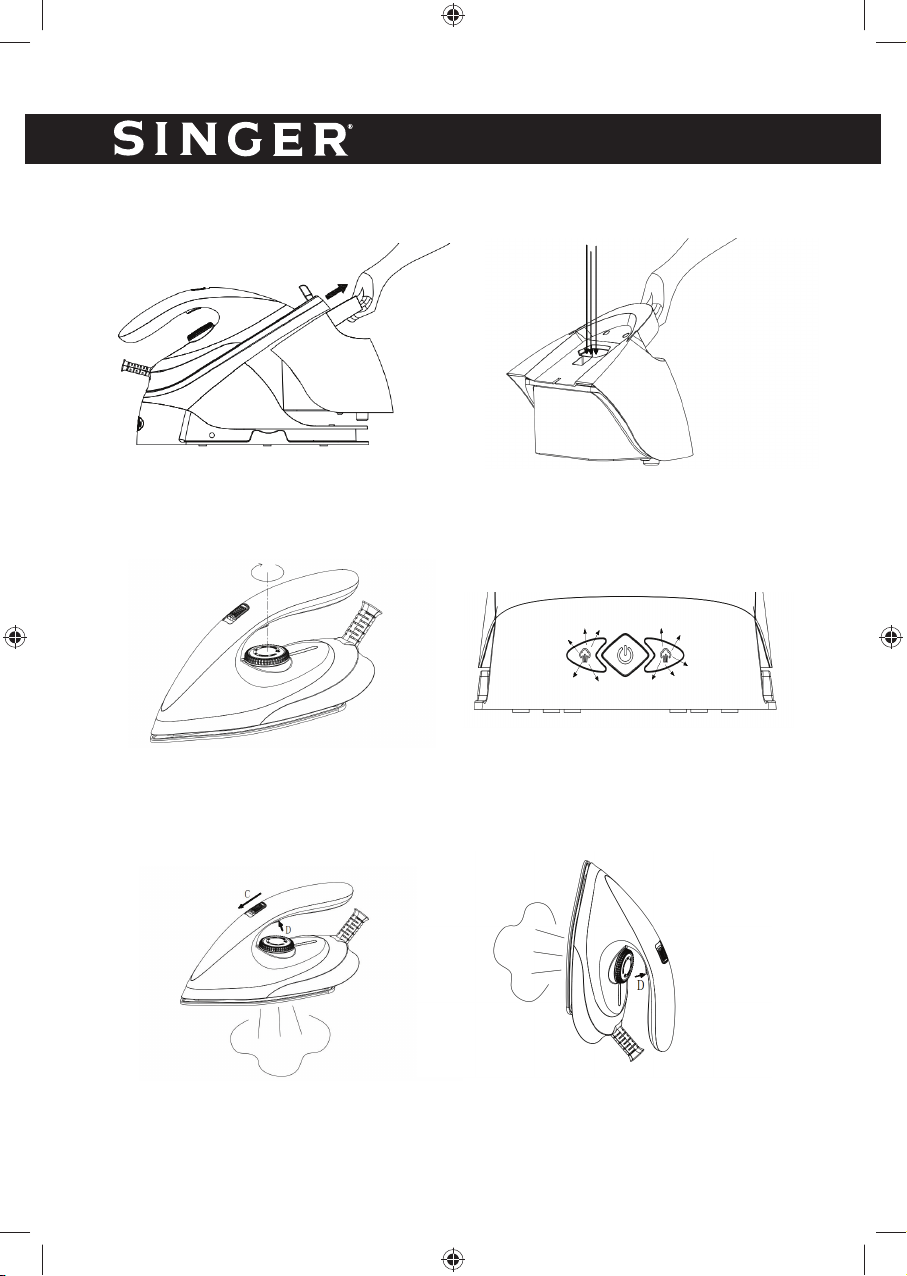

Fig.1 Fig.2

Fig.3 Fig.4

Fig.5 Fig.6

ENGLISH

IMPORTANT SAFEGUARDS

Before using the electrical appliance, basic precautions should

always be followed including the following:

Read all instructions.

1. Before using, check that the voltage of wall outlet corresponds

to the one shown on the rating plate.

2. Do not use the appliance if the main cord, plug, light or the

appliance itself shows visible damage, neither when the

appliance has been dropped or is leaking. Take it to the

nearest authorized service facility or a qualiﬁed repair agent

for examination and repair in order to avoid any hazard.

3. Do not allow the cord to come in contact with the soleplate

when this is hot.

4. Burns may occur from touching hot metal parts, hot water, or

steam.

5. Do not let cord hang over the edge of table or any hot surface.

6. To protect against the risk of electric shock, never immerse the

iron in water or other any other liquid. If this happens, do not

use the appliance again. Dispose the appliance.

7. Keep the appliance out of the reach of children.

8. Do not leave the appliance unattended while connected to the

power supply, or on an ironing board.

9. Always place or use the appliance on a stable and horizontal

surface.

10. The use of any accessory not recommended by manufacturer

may cause injuries to the person using the appliance or

damage the appliance.

11. When placing the iron on its stand, ensure that the surface on

which the stand is placed is stable.

12. The drain water cap must always be well closed during the use

of the appliance.

13. Never ﬁll the water tank with hot water, scent, vinegar, starch,

ENGLISH

descaler, fabric softener or any other chemical reagent.

14. Unplug the appliance from wall outlet when not in use, before

ﬁlling with water or cleaning it.

15. Do not use the appliance for any other purpose than its

intended use.

16. This appliance can be used by children from 8 years old and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning how to use

the appliance in a safe way and understand the hazards

involved.

17. Children shall not play with the appliance. Cleaning and

maintenance shall not be made by children without supervision.

18. The iron must not be left unattended while it is connected to

the mains supply.

19. The plug must be removed from the socket-outlet before the

water reservoir is ﬁlled with water.

20. The iron must be used and rested on a stable surface.

21. The iron is not to be used if it has been dropped, if there are

visible signs of damage or if it is leaking.

22. Keep the iron and its cord out of reach of children less than 8

years of age when it is energized or cooling down.

23. Do not use this appliance outdoors.

24. Do not touch the surfaces marked with symbol during

or just after ironing. It is hot!

FOR HOUSEHOLD USE ONLY

ENGLISH

SERVICE & REPAIR

1. For service or repair under warranty, please contact the authorized service

company that is mentioned on the guarantee card that accompanies the

product.

2. Do not operate any product with a damaged cord or plug. If the supply

cord is damaged, return the appliance to a SINGER service center for

examination repair or adjustment. Do not attempt to dismantle any part of

the appliance. This should only be done at an authorized SINGER service

centre.

3. The partial or total non-respect of the safety instructions in the present

instruction manual will automatically release Singer of any type of

responsibility in case of malfunction of the machine or injuries to persons

or animals.

4. In case of manipulation, repairing or any modiﬁcation of the machine

made by unqualiﬁed persons or in case of improper use, the guarantee

will be automatically cancelled.

ENGLISH

KNOW YOUR STEAM STATION

A. Water tank

B. Iron lock

C. Steam button lock

D. Steam button

E. Temperature knob

F. Heating lamp

G. Steam lamp

H. ON/OFF Power switch

BEFORE FIRST USE

1. Remove any sticker, protective foil or storage cover from the soleplate.

2. Put the power cable into the socket.

Note: Make sure the voltage which is indicated on the device matches the

local voltage before connecting the device.

3. Place your steam generator on a stable, horizontal heat-resistant surface.

4. Never use the steam generator when water tank is empty, reﬁll it before

use it again.

5. Always make sure the continuous steam button is in the off position

before you will turn on the appliance. Only use the steam functions when

the appliance is preheated otherwise the water will not evaporate and the

appliance will leak water.

6. Heat up the iron to maximum temperature and iron over a piece of damp

cloth for several minutes for the purpose of removing any residue on the

soleplate according to the section of Steam ironing.

NOTE: It is normal that strange odor comes out from the unit for the ﬁrst

use. This will cease after a short while.

NOTE: Some particles may come out of the soleplate when you use the

iron for the ﬁrst time. This is normal; the particles are harmless and stop

coming out of the iron after a short while.

ENGLISH

NOTE: When you switch on the appliance, the steam generator may

produce a pumping sound. This is normal; the sound tells you that water

is pumped into the steam generator.

NOTE: During the heating process of the soleplate, there will be little

steam coming out from the soleplate automatically and this phenomenon

will continue for about 3 seconds, this is normal.

USING YOUR STEAM STATION

The appliance has following ironing option: dry, vertical or steam ironing, the

details are referred below:

Dry ironing

1. Place the steam station on a stable and horizontal surface.

2. Connect the plug to wall outlet select from the continuous steam button

lock (C) dry ironing (without steam) and press down the ON/OFF Power

switch (H).

3. Turn the temperature switch (E) to your desired setting, which depends on

the fabric of garment, and then the temperature indicator will illuminate.

Refer to IRONING TIPS. The iron starts heating.

4. When the temperature indicator turns off, the selected temperature is

reached. You can now start ironing.

WARNING: Never touch the hot soleplate before cooling down!

Vertical ironing

It is possible to iron hanging curtains and clothes on a hanger, etc. To do so:

1. Select the maximum iron temperature, turning the iron temperature knob

clockwise (Fig. 3).

2. Move the iron from top to bottom, having enabled the constant steam

button (D).

IMPORTANT: Place the iron base in contact with the fabric for cotton and linen.

Keep the iron base a few centimeters away for other more delicate fabrics.

Steam ironing

Filling the water tank

1. The appliance must be unplugged.

2. Place the steam station on a stable and horizontal surface.

ENGLISH

3. Take out the water tank and ﬁll it with water (Fig. 1 & Fig. 2).

4. The max capacity of water tank is 1,8L, the water level shall not exceed

the MAX mark.

Steam ironing

1. We recommend you ﬁlling water tank (A) before steam ironing.

2. Connect the plug to the wall outlet, press down the On/Off Power switch

(H).

3. The power light will illuminate. Turn temperature switch to your desired

setting, which is depended on the fabric of garment (Fig.3). Then the

heating indicator will illuminate (Fig. 4). Refer to IRONING TIPS

TEMPERATURE ADJUSTMENT

POSITION TYPE OF FABRIC STEAM

●Nylon, silk, synthetic ﬁbers NO

ECO ECO YES (weak)

●● Wool YES

●●● Cotton YES

MAX Linen YES

TURBO Linen YES (strong)

SELF CLEAN / YES

Off /NO

Anti-drip system: result no water runs at temperature settings below ECO, where no

steam is emitted.

4. Wait until the heating indicator light (F) goes out; it indicates the soleplate

temperature has reached the selected temperature.

5. Open lock B and take out the iron.

6. According to your requirement, you can select the desired steam output

for each garment. Make sure that there is enough water in the tank.When

pressing steam button (D) for the ﬁrst time, a little water may drip from the

soleplate due to initial thermal instability.

7. To obtain a constant jet of steam, press the steam button (D) or lock

steam control (C) (Fig. 5).

8. The appliance will then be ready to start ironing. The steam ready light

(G) (Fig.4) will then switch on and off automatically as the steam is used.

Slight noise will also sometimes be heard, which is caused by the pump

reﬁlling the water tank. Continue ironing normally.

ENGLISH

Caution: 1) Do not touch hot soleplate before cooling down!

2) Never direct steam at people!

9. After ironing, press down the On/Off switch for a while and the appliance

will be turned off, all the indicators will be extinguished. Remove the plug

from the wall socket. But the soleplate is still hot, never touch it.

10. After cooling down, you can place the iron onto the thermal insulating

cushion.

Caution: During the operation or after ﬁnishing ironing, never place the hot

soleplate on any area except the thermal insulating cushion.

REPLACEMENT OF FILTER

Caution: Disconnect the appliance from the power supply and allow the

appliance to cool down for 60 minutes at least, before storing in a clean

and dry place.

Follow the procedure below to replace the ﬁlter:

I. Open the cap on the insulating cushion base and take out the ﬁlter from

the water tank.

II. Replace it with a new one by putting it into the water tank.

III. Fill water into the water tank up to the MAX ﬁll level.

ANTI-SCALE SYSTEM

1. The ﬁlter is designed to reduce the build-up of lime scale which occurs

during steam ironing. This will prolong the life of your steam station.

However, note that the ﬁlter will not completely stop the natural process of

lime scale build-up.

2. The ﬁlter should be replaced with a new one after about a 12 month use.

The working life of the ﬁlter depends on the type of local water used. If you

exceed the working life of the ﬁlter, you can continue to use the appliance,

but lime scale will be built up in the steam chamber. It is proposed to

replace it with a new ﬁlter as soon as possible.

SELF-CLEANING

Caution: During this process hot water, lime and other particles will come out

from the soleplate. Put soleplate horizontally and place a container under the

ENGLISH

soleplate to hold hot water.

Caution: Self-cleaning function should be repeated after 10 working (ironing)

hours to improve the effectiveness of steam and prolong the boiler life of your

product.

Caution: Do not iron any clothes during the self-cleaning procedure.

1. By turning the temperature setting (E) clockwise select SELF CLEAN.

Activate the steam lock button (C).

2. The process will automatically ﬁnish after 90 seconds when the signal

warning sound stops.

REDUCE LIMESCALE

You can reduce the formation of limescale by using the household descale

for cleaning steam generators SINGER CALC OUT (follow directions on the

packaging).

You can ﬁnd SINGER CALC OUT in authorized SINGER service centers.

CLEANING AND MAINTENANCE

Before cleaning, ﬁrstly disconnect the power outlet and let the appliance cool

down.

1. Empty the boiler above a sink and rinse it a few times with clear water.

Wipe ﬂakes and any other deposits on the soleplate with a damp cloth or

a non-abrasive (liquid) cleaner.

NOTE: Do not use chemical, steel, wooden or abrasive cleaners to scrape the

soleplate.

2. Clean the upper part of iron with a soft damp cloth. Wipe the water drop

on the steam generator and the thermal insulating cushion with dry cloth.

3. To not damage the soleplate, we advise you never to put the soleplate on

a metal surface. Clean your steam generator after every 10 times of use.

4. When do not use the appliance for a long time, pour out the water in the

tank, and store the iron on the thermal insulating cushion.

Type of water to use

You can use normal tap water to ﬁll the tank. Therefore, especially if your tap

water is very hard, we advise you to mix it with distilled water or use distilled

Indice

Lingue:

Altri manuali Singer Ferro

Singer

Singer Comfort Steam Care Manuale utente

Singer

Singer Household Steam Iron Manuale utente

Singer

Singer 220013096 Manuale utente

Singer

Singer 580 ROTARY STEAM PRESS Manuale utente

Singer

Singer Perfect Steam STI-2030 Manuale utente

Singer

Singer Steam Works Classic Manuale utente

Singer

Singer COMPACT STEAM PRESS CSP1 Manuale utente

Singer

Singer SNG 5.12 Manuale utente

Singer

Singer SSG 9000 Manuale utente

Singer

Singer Steam care 170 LIMITED EDITION Manuale utente

Singer

Singer SGR-20420 Manuale utente

Singer

Singer SGR-17200-CRMG Manuale utente

Singer

Singer SteamChoice 3.0 Manuale utente

Singer

Singer SGR-600LED Manuale utente

Singer

Singer SWP SMART Manuale utente

Singer

Singer SNG 1.10 Manuale utente

Singer

Singer 580 ROTARY STEAM PRESS Manuale utente

Singer

Singer SNG 4.23 Manuale utente

Singer

Singer Steam Choice 1.0 Iron Manuale utente

Singer

Singer ESP 2 Manuale utente

Singer

Singer SGR-20100 Manuale utente

Singer

Singer SteamLogic Manuale utente

Singer

Singer SP 1000 Manuale utente

Singer

Singer Perfect Steam Plus STI-2040 Manuale utente

Manuali Ferro popolari di altre marche

Clatronic

Clatronic DB 3703 Manuale utente

TEFAL

TEFAL FV4093Z0 Manuale utente

Gorenje

Gorenje SIH 2200 BS Manuale utente

Philips

Philips GC6012 Manuale utente

Bosch

Bosch 2 Series Manuale utente

Riffel

Riffel Catena KB-819 Manuale utente

Texi

Texi Hestia Manuale utente

Maxwell

Maxwell MW-3010 Manuale utente

TREVIDEA

TREVIDEA Girmi ST60 Manuale utente

Philips

Philips HI5914/30 Manuale utente

Primula

Primula Vapormat Manuale utente

Magio

Magio MG-541 Manuale utente

Scarlett

Scarlett SC-1334S Manuale utente

Bosch

Bosch Sensixx B22L Manuale utente

Philips

Philips GC651 Manuale utente

Vitek

Vitek VT-1247 VT Manuale utente

Cleanmaxx

Cleanmaxx 3397 Manuale utente

Philips

Philips GC800 Manuale utente
