SMC7301TA

Installation Guide

ISDN Barricade

1 Port Broadband Router with built in ISDN modem

Introduction

Welcome to Quick Start Guide for SMC7301TA. The Quick Start

Guide is intended to be a guide of easy installation and congura-

tion of the SMC7301TA for Internet access purposes. We are

condent that you will have years of consistent and reliable use

from your multifunction Broadband Router.

This Quick Start Guide describes the steps necessary to

congure your Broadband router to connect a Local Area Network

(LAN) to the Internet (through your Internet Service Provider).

Setting up your SMC7301TA is easy, but there are a few things

to keep in mind.

Workstations (or PCs) on your private network (PCs running

windows 95/98 or NT) must be installed with TCP/IP and be

congured to “obtain an IP address automatically” (through the

DHCP, Dynamic Host Control Protocol). At least one of your

workstations on the same LAN must be able to run a Web

browser (Netscape Navigator 4.5 or newer, or Internet explorer

5.0 or newer).

Before you begin, make sure your box contains all of the

following items:

1 x SMC7301TA Multifunction Access Server

1 x RJ-45 cable for WAN port

1 x 10/100 Base-T LAN cable

1 x Null modem cable for the Aux port

1 x External AC power supply

1 x Quick Start Guide

1 x CD-ROM (containing Utility software)

How to Cable Your SMC7301TA

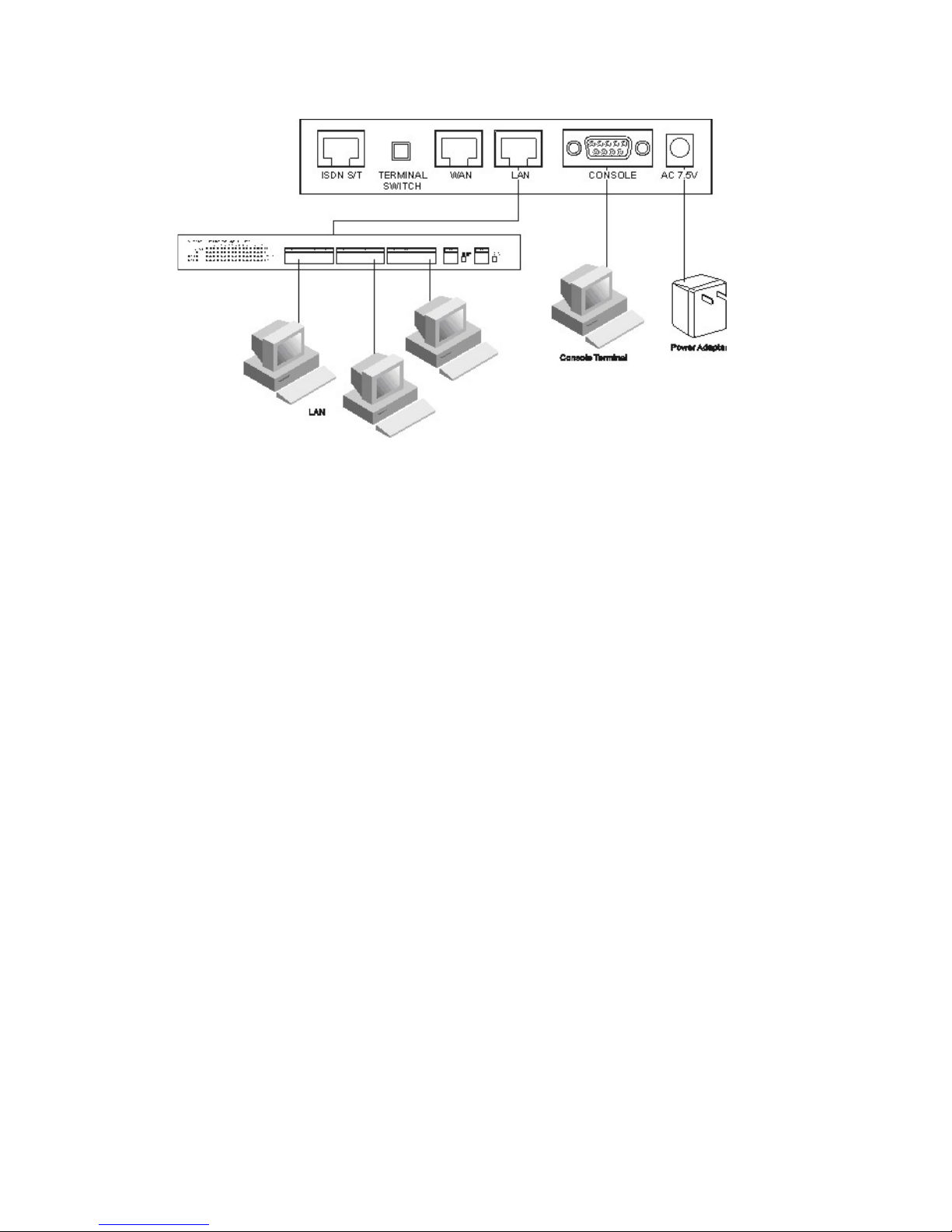

The illustration shows the connections between the back of

SMC7301TA and necessary devices. Follow these steps to

complete hardware installation for SMC7301TA:

1. Connect SMC7301TA from WAN port to a ADSL/cable modem,

or attach the ISDN line to the ISDN connector (S/T interface).

2. Connect the PC to the RJ-45 LAN connector. Two or more PCs

can connect to a multi-port Hub rst and then uplink (cascade)

port on the hub must be connected to SMC7301TA LAN port.

3. Plug the power adapter into a wall outlet and into the AC

connector on the back of SMC7301TA.

4. The Auxiliary connector is only used to connect a terminal to

run the Command Line Interface using the null modem cable.

(This is an optional connection.)

5. There is a DIP switch located on the rear panel for setting the

terminating resistor.

You only need to adjust this switch if there are two or more

external ISDN equipment attached to the local telephone line.

You are now ready to follow a few additional steps to congure

your SMC7301TA to access the Internet

Conguring all the PCs on your LAN

If TCP/IP is installed on a Windows 95/98 PC that surfs the

Internet or congures the SMC7301TA, follow the instructions

below. For other operating Systems (Macintosh, Sun, etc.), follow

the manufacturer’s instructions.

a. Install a 10/100 Base-T Ethernet network card in the PC.

Follow the manufacturer’s instructions.

b. Connect the PC to SMC7301TA LAN port.

c. From the windows 95/98 Start Button, select Settings, then

Control Panel.

d. In the Control Panel, double-click on the Network icon.

e. Check your list of Network Components. If TCP/IP is installed,

go to step i. If TCP/IP is not installed, install it now. Select the

Add button.

f. In the Network Component Type dialog box, select Protocol.

g. In the Select Network Protocol dialog box, select Microsoft.

h. In the Network Protocols area of the same dialog box, select

TCP/IP and click OK. You may need your Windows CD to com-

plete the installation.

i.After you install TCP/IP, go back to the Network dialog box.

Select TCP/IP from list of Network Components.

j. Check each of the tabs and verify the following settings:

- Bindings: Select Client for Microsoft Networks and File and

printer sharing for Microsoft Networks.

- Gateway: All elds are blank.

- DNS Conguration: Select Disable DNS.

- IP Address: Select “Obtain IP address automatically”.

k. Reboot the PC. You are now ready to congure SMC7301TA

with Access Router Manager.

Log On to SMC7301TA

Step 1: Open your Internet browser on one of the PC congured

previously.

Step 2: Use your browser’s Open command to enter the following

URL:http://192.168.2.1

Step 3: The default password (which is “password”) is already

entered for you. Click “Log On!” to log on. You may use the

System Tools menu to change the password later.

Step 4: Choose to access the Internet via WAN or ISDN.

Basic Internet Access Conguration via WAN

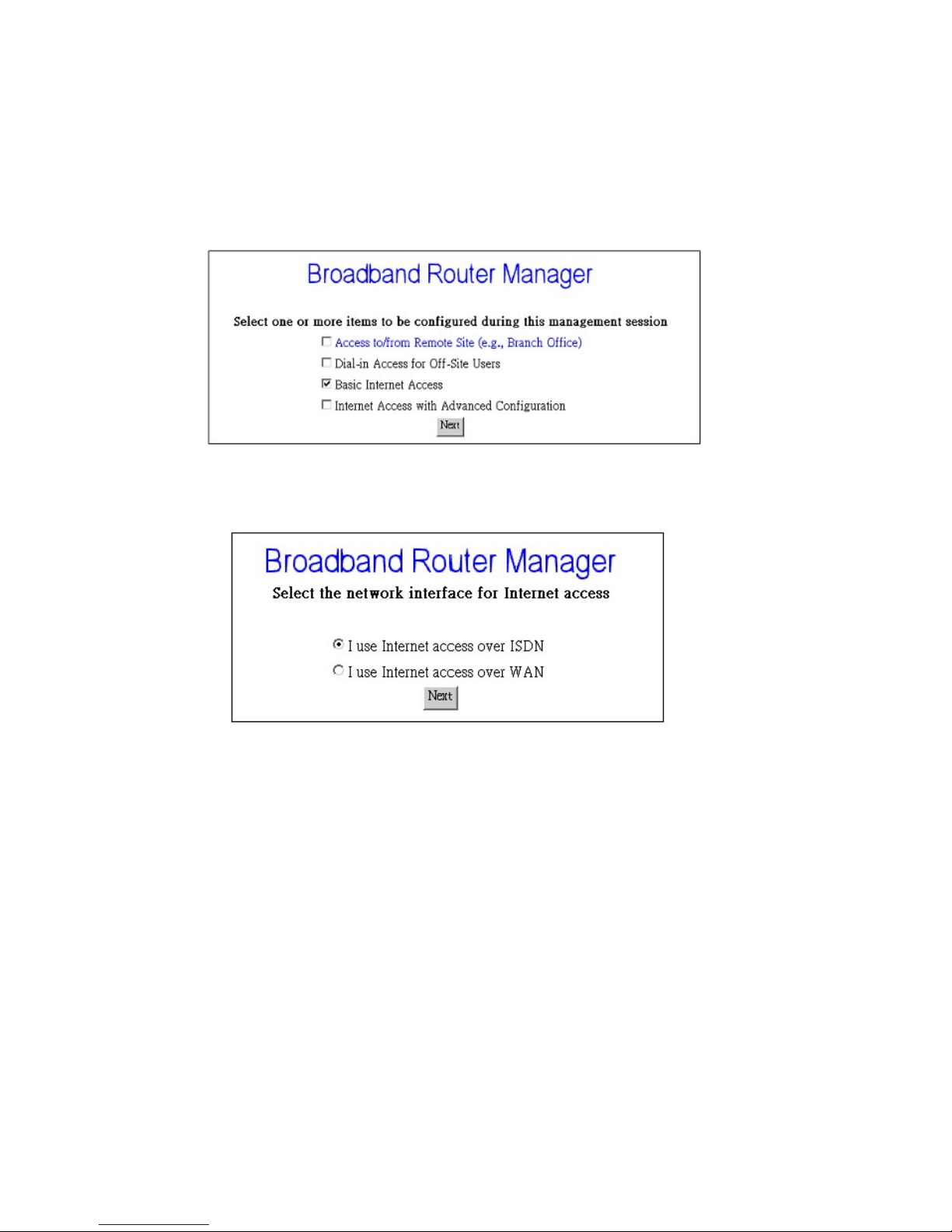

Step 1: When you logon, select Customize User Interface in the

SYSTEM TOOLS Menu. Accept the Basic Internet Access

selection and click Next. The following window will be displayed, and

select “ I use Internet access over WAN “. Click Next.

Step 2: Click WAN in the CONFIGURATION Menu.

You may choose to obtain an IP address automatically or

congure it manually by imputing a static IP address. Available options

are via PPP over Ethernet, via DHCP, or No. If you choose No go to

step 3. If you choose via DHCP go to step 4, and if you choose via PPP

over Ethernet go to step 5.

Step 3: If you choose No for the selection of Obtain IP Address

Automatically. The following screen will be displayed. Enter the

following information and then Click Apply.

Prole Name: the name that you will use to identify this Internet access

prole.

WAN IP Address: the IP address of your WAN.

WAN IP Netmask: the IP Netmask of your WAN.

ISP Gateway IP Address: the IP Address of your ISP Gateway

Primary DNS IP Address: the IP Address of your Primary DNS.

Secondary DNS IP Address: the IP Address of your Secondary DNS

Step 4: If you choose via DHCP for the selection of Obtain IP Address

Automatically. The following screen will be displayed. Enter the

following information and then Click Apply.

Prole Name: the name that you will use to identify this Internet access

prole.

(Optional) Host Name (System Name): the Host Name provided by

your system.

Step 5: If you choose via PPP over Ethernet for the selection of Obtain

IP Address Automatically. The following screen will be displayed. Enter

the following information and then Click Apply and Test.

Prole Name: the name that you will use to identify this Internet access

prole.

Obtain IP Addresses Automatically: get the IP Address via PPP over

Ethernet. Some DSL-based ISPs use PPPoE to establish

communications with an end-user. If you are connected to the Internet

through a DSL line, check with your ISP to see if they use PPPoE

ISP Account Name: the username of your ISP account

ISP Account Password: the password of your ISP account

(Optional) Service Name: Enter the Service Name provided by

your ISP if it is required.

(Optional) Access Concentrator Name: Enter the Access

Concentrator Name provided by your ISP if it is required.

Idle Timeout(0-3600 seconds): The default value of the idle

timeout is 120 seconds. It represents the number of seconds of

inactivity over the connection: when this value is reached, the

SMC7301TA will disconnect the connection. You can change the

idle timeout value to anything between 0 to 3600 seconds. But if

you select 0, the connection will never time out.

Note: When you click Apply or Apply and Test, SMC7301TA

connects to your Internet Service Provider. Watch the Message

Window for any messages. If the test is successful, your users

will be ready to access the Internet. If not, SMC7301TA will try to

give you enough information to let you know why the connection

is not successful.

Step 6: If you choose via PPTP for the selection of Obtain IP

Address Automatically, the following screen will be displayed.

Enter the following information and then click Apply and Test.

Prole Name: The name that you will use to identify this Internet

accesses prole.

Obtain IP Addresses Automatically: Obtain the IP address

from ISP using PPTP connection to the local cable modem or

ADSL modem. Some DSL-based ISPs use cable modem/ADSL

modem as PPTP server to establish communications with an

end-user. Check with your ISP to see if PPTP is used.

PPTP Local IP Address: IP address of SMC7301TA router for

the PPTP connection. Consult your ISP for this information.

PPTP IP Netmask: IP network mask for the PPTP Tunnel.

Consult your ISP for this information.

PPTP Remote IP Address: IP address of the broadband modem

for the PPTP Tunnel. Consult your ISP for this information.

ISP Account Name: the username of your ISP account

ISP Account Password: the password of your ISP account

Idle Timeout (0-3600 seconds): The default value of the idle

timeout is 120 seconds. It represents the number of seconds of

inactivity over the connection: when this value is reached, the

SMC7301TA will disconnect the connection. You can change the

idle timeout value to anything between 0 to 3600 seconds. But if

you select 0, the connection will never be timed out.

Note 1: When you click Apply or Apply and Test, the SMC7301TA

connects to your Internet Service Provider. Watch the Message

Window for any messages. If the test is successful, your users

will be ready to access the Internet. If not, the SMC7301TA

will try to give you enough information to let you know why the

connection is not successful.

Basic Internet Access Conguration via ISDN

Step 1: When you logon, select Customize User Interface in the

SYSTEM TOOLS Menu. Accept the Basic Internet Access

selection and click Next. The conguration window will be

displayed,

Step 2: Select I use Internet Access over ISDN and then click

Next.

Step 3: Select ISDN in the Conguration Menu and the following

screen will appear

Step 4: Select the ISDN switch type that your ISP will tell you.

Step 5: Select the number of the directory phone numbers and

enter the directory phone numbers in the corresponding blanks.

Step 6: Enter the following information:

Remote Phone Number: the ISDN telephone number of your ISP.

ISP Account Name: the username of your ISP account.

ISP Account Password: the password of your ISP account.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali SMC Networks Router di rete

SMC Networks

SMC Networks Barricade SMC7401BRA Manuale utente

SMC Networks

SMC Networks 7901BRA2 Manuale utente

SMC Networks

SMC Networks SMCFS501 Manuale utente

SMC Networks

SMC Networks SMCGS10C-Smart Manuale utente

SMC Networks

SMC Networks SMC Barricade Plus SMCBR14VPN Manuale utente

SMC Networks

SMC Networks 24/16 Manuale utente

SMC Networks

SMC Networks BARRICADE N SMCWBR14SN5V2 Manuale utente

SMC Networks

SMC Networks Console Manuale utente

SMC Networks

SMC Networks SMC6824M Manuale di programmazione

SMC Networks

SMC Networks SMC-EZ1026DT Manuale utente

SMC Networks

SMC Networks SMCGS501P Manuale utente

SMC Networks

SMC Networks 7824M/VSW Manuale utente

SMC Networks

SMC Networks TigerSwitch 100 SMC6924VF Manuale di programmazione

SMC Networks

SMC Networks EZ-Stream SMC2304WBRA-AG Manuale utente

SMC Networks

SMC Networks GS1601 Manuale utente

SMC Networks

SMC Networks Barricade SMCBR21VPN Guida all'installazione

SMC Networks

SMC Networks 7724M/VSW - annexe 1 Manuale utente

SMC Networks

SMC Networks Barricade SMC7904BRA Manuale utente

SMC Networks

SMC Networks 2304WBR-AG Manuale utente

SMC Networks

SMC Networks SMC6152L2 Manuale utente

SMC Networks

SMC Networks ADSL2 Barricade SMC7904BRA3 Istruzioni operative e di sicurezza

SMC Networks

SMC Networks ADSL2 Barricade N Pro SMC7904WBRA-N Manuale utente

SMC Networks

SMC Networks EZ Connect SMC7003ADSL Manuale utente

SMC Networks

SMC Networks Barricade SMC7901BRA4 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
