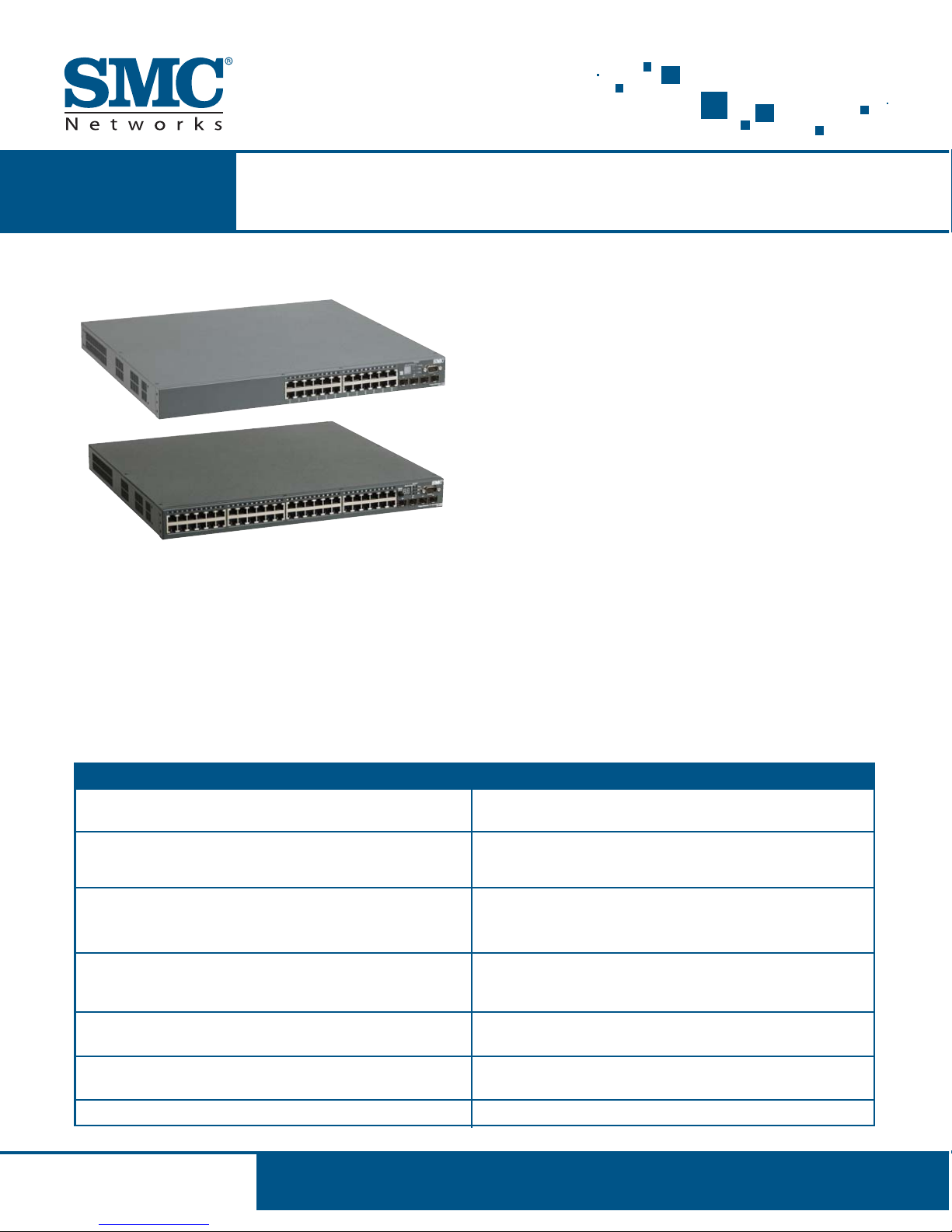

Managed Switch SMC8724M / SMC8748M

TigerStack 1000™

Stackable 24/48-port 10/100/1000+ optional 10Gigabit uplink Managed Switch

www.smc.com

SMC8748M and SMC8724M are feature-rich

10/100/1000BASE-T Stackable managed switches with

optional 10G. This tri-speed gigabit backbone switch is

designed to handle heavy traffic workgroups or power

users, capable of reaching up to 156Gbps with a

non-blocking switching architecture. High density and

1RU high, this switch is ideal for enterprise workgroups or

backbone installation.

FEATURES

High-port density and migration protection in a small footprint

QoS

VLAN with GVRP and 802.1s/v

IGMP Snooping

MultiLink Trunking with LACP

Comprehensive security support

Redundant Power Supply

Supports 24/48*10/100/1000Mbps with optional 10G

uplink in an 1RU chassis

Support eight levels of priority, with weighted fair queuing and

L2/3/4 IP precedence--ensures smooth transmission of mission

critical data

Support VLANs based on frame tags or ports, plus support for

automatic GVRP LAN registration spanning tree per VLAN--

provides maximum security and bandwidth efficiency

Only allows IP Multicast traffic transmission to the registered

members, resulting bandwidth savings--reduce IP multicast

traffic and increase LAN performance

Can group links between switches to provide higher

bandwidth of up to 16Gbps

Currently supports RADIUS, IEEE802.1x, SSH, SSL,TACACS+,

ACL, with future upgrade to SNMPv3

Provides backup power in case of power failure

BENEFITS

OVERVIEW

TECHNICAL SPECIFICATIONS SMC8724M / SMC8748M

PORTS

• 24/48 RJ-45 10/100/1000 Ports

• 4 Combo Ports (SFP/RJ45)

• 2 Stacking connectors

UPLINKS OPTIONS

• 10G Module slot

STACKING

• 8 units (MAX)

SWITCHING FABRIC

• Non-Blocking 108 Gbps - 24 port

• 156 Gbps - 48 port

PACKETS PER SECOND

• Store and forward

SWITCHING MODE

• Operating 5% to 95% (non-condensing)

MAC ADDRESS

• 16K

WARRANTY

• Limited Lifetime

BUFFER SIZE

• 2MB - 24 Port

• 4MB - 48 Port

BANDWIDTH CONTROL

• Link Aggregation

• 32 groups 8 ports per group

• Stack-wide trunking

• Rate Limiting

NETWORK & TRAFFIC CONTROL/SECURITY

• VLAN support

•255

• Protocol based vlans

• Spanning Tree protocols

• 802.1D, 802.1w, 802.1s

• IGMP snooping

• v1,v2 - 64 groups

• Jumbo frames (9K)

• L3/L4 priority mapping

• Broadcast storm control

• Flow Control

• MAC address filter

•802.1x

• RADIUS

• TACACS+

•ACL

• SSL/HTTPS

•SSH

EMISSIONS

• FCC Class A

• Industry Canada Class A

• EN55022 (CISPR 22) Class A

• VCCI Class A

SAFETY

• CSA/NRTL (CSA 22.2.950 & UL 1950), EN60950 (TÜV/GS)

MANAGEMENT

• RMON

• 4 groups

• SNMP

• v1,v2 and V3

• CLI

• Web interface

• Port mirroring

• DNS

• SNTP

• Syslog remote logging

REDUNDANCY

• Dual firmware image

• Redundant Power

STANDARDS COMPLIANCE

• CE

DIMENSIONS

• 17.3 x 16 x 1.8 in

• 440 x 407 x 43 mm

WEIGHT

• 11 Lb

•5Kg

OPTIONAL PLUG-IN TRANSCEIVERS

SMCBGSLCX1

• 1000BASE-SX

• LC Multimode fiber

• Range - 220m for 62.5/125m, 850nm

• Range - 550m for 50/125m, 850nm

SMCBGLLCX1

• 1000BASE-LX

• LC Singlemode fiber

• Range - 10Km for 9/125m, 1310nm

SMCBGZLCX1

• 1000BASE-ZX

• LC single mode fiber

• Range - 70 to 100Km for 9/125, 1310nm

North America

38 Tesla

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe/ Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local

country contact information

www.smc.com
