Parts Manual fo

22" STEEL DECK REAR DISCHARG

VARIABLE SPEED WALK BEHIND MOWER

Revision: B 2/9/2010

Briggs & Stratton Yard Power Products Group

Manual No. 7006486

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

780044

NSPVH2265

7800609 NSPVH22675

780044

SPVH2265

780060

SPVH22675

Not for

Reproduction

Not for

Reproduction

Table Of Contents

TP 400-5429-B-WB-N

22" STEEL DECK REAR DISCHARGE

Manual No. 7006486

PAGE GROUP

4 Handles and Controls

6 Deck Assembly

8 Engine, Blade & Grass Bag

10 Transmission (22")

12 Decals

Not for

Reproduction

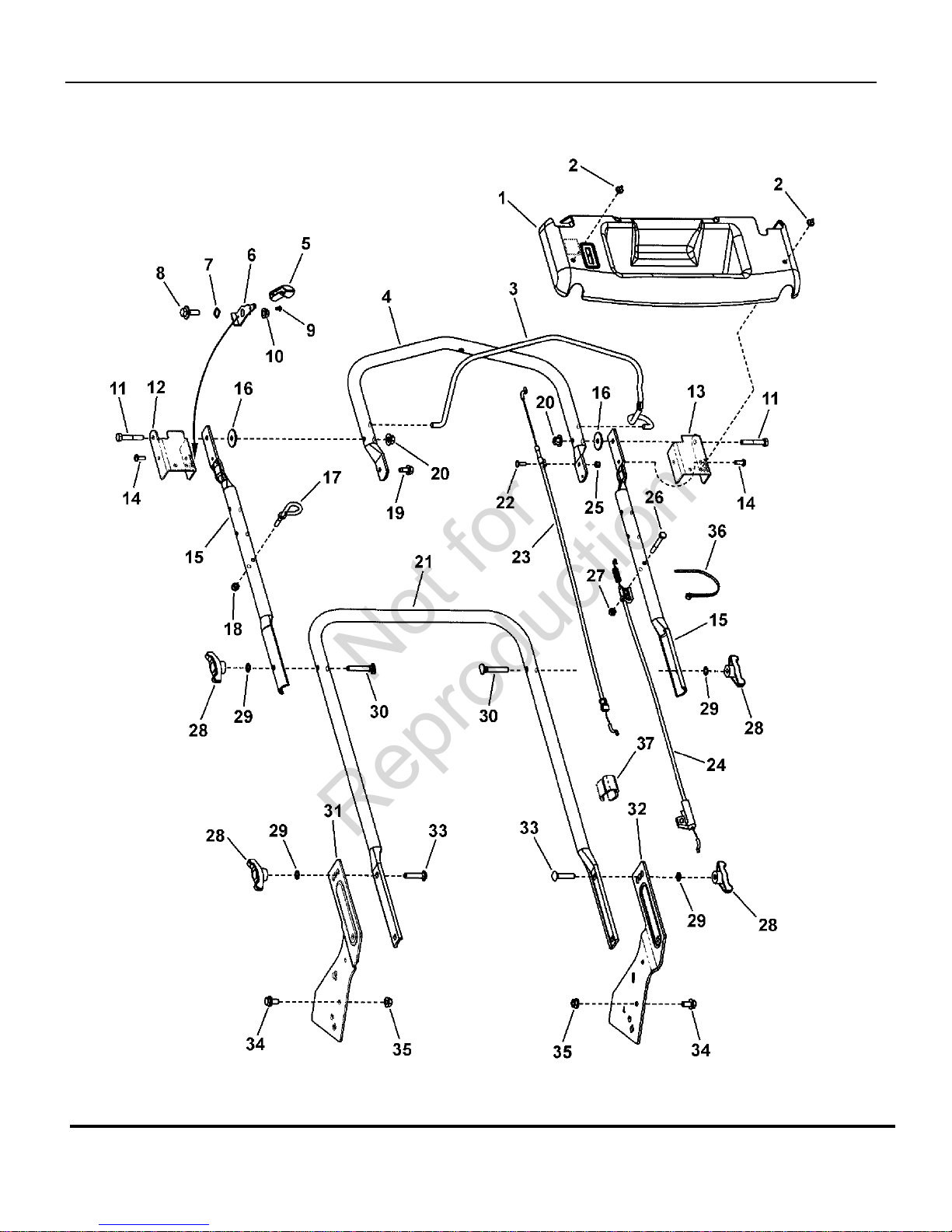

Handles and Controls

Manual No. 7006486 22" STEEL DECK REAR DISCHARGE

Not for

Reproduction

Handles and Controls

Footnotes:

Manual No. 700648622" STEEL DECK REAR DISCHARGE

Part No Descri

tionItem Qty

1 7101068 1 PANEL, Upper Handle, Snapper 21 WBM

2 1960382 2 RIVET, Pop .250 Dia.

3 7100844A 1 BAIL, Pivot Handle

4 7300434A 1 HANDLE, Pivot

5 7023655 1 LEVER, Lock Handle

6 7300526A 1 HANDLE, Lock

7 7026257 1 WASHER, .531 x .781 Wave

8 1716654 1 BOLT, 5/16-18 Shoulder

9 7071921 1 RIVET, Plastic Snap

10 7091601 5 NUT, 5/16-18 Flange Lock, YZ

11 7090669 2 SCREW, 5/16-18 x 1-3/4” Hex Head Cap, GR 5

12 7300792A 1 BRACKET, Rotation Limit, RH

13 7300436A 1 BRACKET, Rotation Limit, LH

14 7900067 2 SCREW, 1/4-20 x .55 Torx Self-Tap

15 7300459A 2 HANDLE, Upper, Straight, 22”

16 7023649 2 WASHER, 5/16 Nylon

17 7028488 1 ROPE GUIDE, (1/4-20 thread)

18 7076978 1 NUT, 1/4-20 Hex Nyloc

19 7090361 1 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

20 7090951 4 NUT, 5/16-18 Large Head Center Lock, Black

21 7301013A 1 HANDLE, Lower

22 7091085 1 BOLT, #10-24 x 1/2” Flat Head Square Neck

23 7102666 1 CABLE, OPC, 22”, Pivot Handle

24 7102665 1 CABLE, Drive, 22”, Pivot Handle

25 7091290 1 NUT, #10-24 Hex Nyloc

26 7090505 2 SCREW, 1/4-20 x 2”, Hex Head Cap, GR 5

27 7090372 1 NUT, 1/4-20 Hex Center Lock

28 7035744 4 KNOB, 5/16-18 Wing (Black)

29 7090391 4 WASHER, 5/16” Internal Tooth Lock

30 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2

31 7300669A 1 BRACKET, Lower Handle LH 22” WBM

32 7300668A 1 BRACKET, Lower Handle, RH 22” WBM

33 7091612 2 BOLT, 5/16-18 x 1-1/2” Round Head Square Neck

34 7091811 2 BOLT, 5/16-18 x 5/8” Hex Flange Lock, YZ

35 7091601 2 NUT, 5/16-18 Flange Lock, YZ

36 7024649 1 WIRE TIE, 11 Inch Standard Black Nylon

37 721768 2 CLIP, Cable, Double

Not for

Reproduction

Deck Assembly

Manual No. 7006486 22" STEEL DECK REAR DISCHARGE

Not for

Reproduction

Deck Assembly

Footnotes:

Manual No. 700648622" STEEL DECK REAR DISCHARGE

Part No Descri

tionItem Qty

1 7300400D 1 DECK, 22” Walk, 3-N-1

2 7900067 3 SCREW, 1/4-20 x 11/16” Pan Head Self-Tap (Torx) or 722848

3 7091020 4 PUSHNUT, 1/4”

4 7300855D 1 BRACKET, Chute

5 7300856D 1 PLATE, Mulch, 22” RB Scott's

6 722507 1 SPRING, Chute (Torsion)

7 7101067 1 ROD, Pivot (1/4” Dia. x 5.55”)

8 721682 1 COVER, Mulch, Plastic, Black

9 721681 1 SIDE CHUTE, Plastic, Black

10 7103347 1 GUARD, Rear

11 7091286 4 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Sems)

12 7091619 10 NUT, 3/8-16 Hex Flange Lock, YZ

13 7501055 1 ASSEMBLY, Height-Of-Cut, Left Rear, 22” WBM

14 7501056 1 ASSEMBLY, Height-Of-Cut, Right Rear, 22” WBM

15 7501058 1 ASSEMBLY, HOC, Left Front, 22” WBM, Propelled

16 7501057 1 ASSEMBLY, HOC, Right Front, 22” WBM, Propelled

17 7100633 4 GRIP, Height Latch

18 7500540 2 ASSEMBLY, Wheel & Bearing, 8 x 2 Idle, DW Tread incl. two 1-1/8” O.D. Flanged Ball Bearings

(p/n 7101380)

19 7500542 2 ASSEMBLY, Drive Wheel & Bearing, 8 x 2, DW Tread incl. two 1-1/8” O.D. Flanged Ball

Bearings (p/n 7101380)

20 722604 4 WASHER, 1” O.D. x .387 I.D. Flat

21 7091585 4 NUT, 3/8-16 Hex Center Lock, YZ

22 7101350 4 HUBCAP, Black

23 7300440D 1 BAFFLE, Front, 22” WBM

24 7101243 1 DOOR, 22” Rear

25 7101070 1 ROD, Pivot, Rear Door (1/4” Dia. X 17-1/2”)

26 7101461 1 SPRING, Torsion, Rear Door, 22” WBM

27 7300668A 1 BRACKET, Lower Handle, RH 22” WBM

28 7300669A 1 BRACKET, Lower Handle LH 22” WBM

29 7091811 2 BOLT, 5/16-18 x 5/8” Hex Flange Lock, YZ

30 7091601 3 NUT, 5/16-18 Flange Lock, YZ

31 7014341 4 RING, External Retaining (Waldes 5133-50)

32 7101207 2 GEAR, Pinion, 22” WBM, Front Wheel Drive

33 7101402 2 DUST SHIELD, Forward, 22” WBM

34 7900054 4 SCREW, 3/8-16 x 3/4” Hex Head Cap, GR 5, YZ

35 7100857 1 TRANSMISSION, Rocker 22” WBM, VS

36 7101270 2 DRIVE PIN, 22” WBM, Front Wheel Drive

37 7300854D 1 BAFFLE, Rear, 22” Deck

Not for

Reproduction

Engine, Blade & Grass Bag

Manual No. 7006486 22" STEEL DECK REAR DISCHARGE

Not for

Reproduction

Engine, Blade & Grass Bag

Footnotes:

Manual No. 700648622" STEEL DECK REAR DISCHARGE

Part No Descri

tionItem Qty

1 720351 1 BOLT, 3/8-16 NS x 2-1/2”

2 7101449 1 ASSEMBLY, Engine Spacer, 22” WBM, Self-Propelled includes 7101209 (spacer) & 7101448

(3) (bushings)

3 7101195 1 FRONT COVER, Deck, 22” Front Wheel Drive

4 7900018 2 SCREW, 4.8 x 1.59 x 13mm, Round Washer Head Hi-Lo (Torx)

5 7101302 2 SPACER, Belt Guide 22”

6 7101024 2 BELT GUIDE, Engine, 22”

7 7101451 2 SCREW, 3/8-16 x 3” Hex Washer Self-Tap

8 7100437 1 PULLEY, Engine

9 7092086 1 SET SCREW, 5/16-18 x 1/2” Hex Recess

10 7091214 1 KEY, #HP-506 HI-PRO

11 7100913 1 ** BELT, Drive (3L Section; 31.94” effective length)

12 7100740 1 BLADE HUB, 22” Deck, Self Propelled

13 7100851 1 BLADE, 22”, Walk Mower

14 721890 1 WASHER, .38” I.D. x 1.183 O.D. Bellville

15 720209 1 BOLT, 3/8-24 x 3-1/4” Hex Head, GR 8

16 7101230A 1 BAG FRAME, 22” WBM (weldment)

17 7102573 1 GRASS BAG, 22” Rear Discharge

18 7026421 1 GRIP, Rectangular (Black)

19 124T02-0650-B3 1 * ENGINE, B&S, 650 Ser, X-Spec used on 7800440

19 124L02-4650-F3 1 * ENGINE, B&S, 650 Ser, X-Spec used on 7800447

19 126T02-0675-B3 1 * ENGINE, B&S, 675 Ser, X-Spec used on 7800606

19 126L02-4675-F3 1 * ENGINE, B&S, 675 Ser, X-Spec used on 7800609

NOTE: * Purchase engine parts from engine manufacturer dealer.

Note: ** Part number appears on belt

Not for

Reproduction

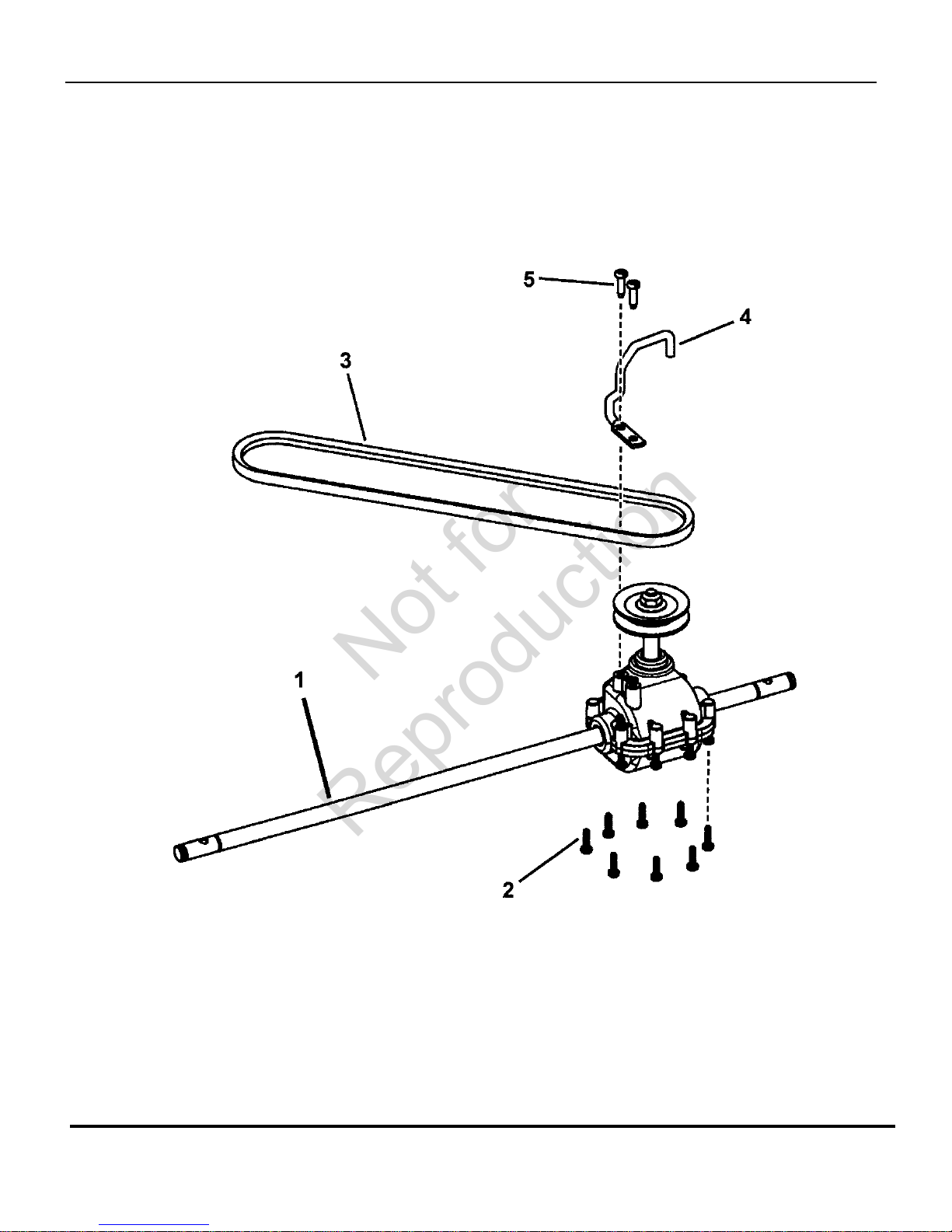

Transmission (22")

Manual No. 7006486 22" STEEL DECK REAR DISCHARGE

Not for

Reproduction
