Sola VECTOR 40 Manuale utente
Vector 40
Gebrauchsanweisung
DE
Operating instructions
EN
Manuel d’instructions
FR
Instruzioni d‘uso
IT
Instrucciones de uso
ES
Gebruiksaanwijzing
NL
Руководство по применению
RU
Instrukcja obsługi
PL
Eksploatacijos instrukcija
LT
Lietošanas instrukcija
LV
Uputstvo za upotrebu
SR
Návod k použití
CZ
Manual de utilizare
RO

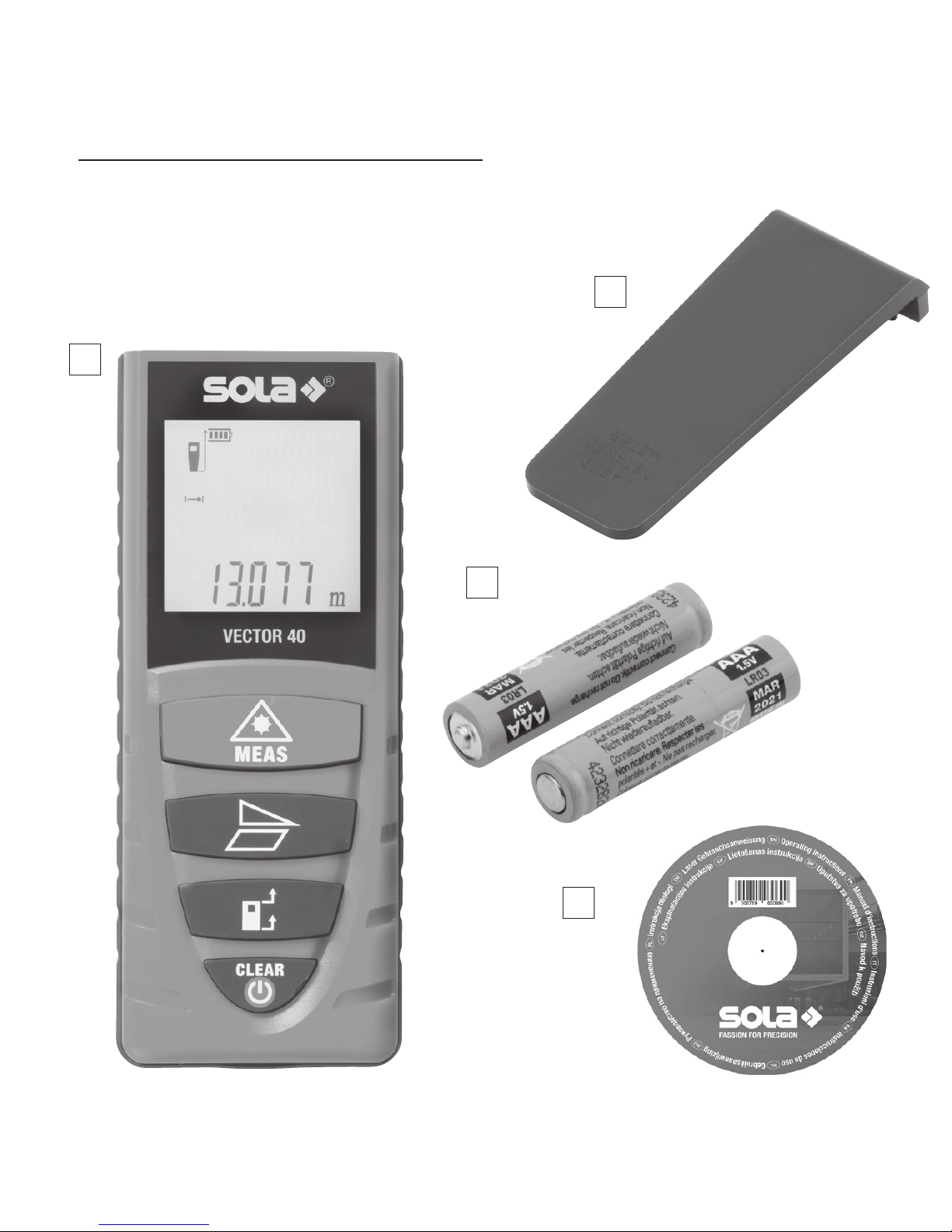

Included in delivery with the Vector 40
1. Laser distance measuring instrument
2. Belt clip
3. AA batteries
4. Operating manual CD
1.
2.
3.
4.
2.1 Function Buttons
2.2 Display
1
2
3
4
1
9
10
11
12
2
3
4
5
6,7
8
ENEN
4
Operating manual
Vector 40/Laser Distance Measurement Instrument
About this manual
Congratulations on the purchase of your new Vector 40. You have acquired a SOLA measuring instru-
ment, which can make your work easier, faster and more precise. To utilize the complete functionality
range of this measuring instrument, and to ensure safe operation, please observe the following instruc-
tions:
• Please read this operating manual before starting to use the device.
• Always keep the operating manual near the device.
• Only hand over the device to other users together with the operating manual.
• Never render the attached warning signs unreadable.
Contents
1. General information
2. Description
3. Technical data
4. Safety instructions
5. Laser safety / classication
6. Startup
7. Operation
8. Maintenance, storage and transportation
9. Scope of delivery and accessories
10. Troubleshooting
11. Disposal
12. Warranty
13. EC conformity declaration
ENEN
5
1.1 Signal words and their meaning
DANGER
For an imminent danger that could lead to serious
injury or death.
WARNING
For a possibly dangerous situation that could lead
to serious injury or death.
CAUTION
For a possibly dangerous situation that could lead
to slight injury or property damage.
NOTE
For application notes and other useful information
1.2 Pictograms and other information
1.2.1 Warning signs
Warning of dangers in general
1. General information 1.2.2 Symbols
Read instructions before use
Batteries and devices may not be
disposed of with household waste
Do not throw batteries into the re
Warning signs on battery Do not
heat the battery above 60 °C.
Class 2 laser device
Do not look into the laser beam!
ENEN
6
1.2 Function Buttons
1 Measure button
2 Surfaces - indirect measurement
3 Reference edge
4 ON/ OFF/ Delete button
2.2 Display
1 Laser ON
2 Front reference edge
3 Rear reference edge
4 Distance- Continuous measurement
5 Settings
6
7
10 Battery status
12 Measurement 1
13 Measurement 2
14 Measurement 3
15 Final measurement
2. Description
Surfaces - Indirect measurement
2.3 Intended Use
This instrument is designed to measure distances. The measured value, setting, and instrument status
can be viewed on the display.
A laser beam is emitted and then sent back to the laser distance measurement instrument from a reec-
ted surface. This is used to calculate the distance. The range depends on the model of the laser distance
measurement instrument, on reectivity and on the properties of the reective surface.
ENEN
7
3. Technical Data
3.1 General
Measuring range 0.2 – 40 m*
Precision ± 1.5 mm**
Unit of measurement m
Laser class 2
Laser type 650 nm, < 1 mW
Automatic shut-off of laser 30 s
Automatic shut-off of device 180 s
Battery life up to 5000 measurements***
Battery type 2 x AAA 1.5 V
Operating temperature 0 – 40 °C
Storage temperature -10 – 60 °C
Dimensions (H x W x D) 120 x 48 x 27
Weight, including batteries 120 g
*When measuring a target surface that is 100% reective (such as a wall painted white), with low background lighting and at an operating
temperature of 25 °C.
**This degree of precision applies when measuring distances of between 0.2 to 10 m. When measuring distances of between 10 m and 40 m,
the maximum tolerance may decrease by 0.1 mm/m.
***When operated at room temperature.
3.2 Functions
Single measurement
Min./max. measurement
Continuous measurement
Surface measurement
Indirect 3-point measurement
4-part back-lit display
ENEN
8
4. Safety instructions
4.1 AREA OF RESPONSIBILITY
4.1.1 Manufacturer
SOLA is responsible for the safe delivery condition of the product, including the operating manual and the
original accessories.
4.1.2 Operator
The operator is responsible for using the product as intended, the deployment of personnel, their training
and the operational safety of the product.
The operator understands the safety information which is stated on the
product and the instructions which are contained in the operating manual.
The operator shall comply with local regulations relating to safety and
accident prevention regulations as well as worker protection laws and regulations.
The operator shall immediately notify SOLA if safety-related issues should develop on the product or
during its utilization.
The operator shall ensure that the product is not utilized any further if defects become evident, and he
will have the product repaired professionally.
4.2 Improper Use
Use of the device and the accessories without instruction.
Use of third-party accessories or additional equipment.
Use outside of the intended limits
(see Chapter 3/Technical data)
.
Use under extreme temperature uctuations without an adequate acclimatization.
Disabling of safety devices and removal of hazard notices and labels.
Unauthorized opening of the device.
Performance of modications or alterations the device or the accessories.
Deliberate blinding of third parties.
Inadequate safeguarding at the installation site.
4.3 Utilization limitations
The Vector 40 is suitable for a continuous use in an atmosphere which can be inhabited by humans.
Do not operate the product in explosion-prone or corrosive environments.
Inform the local safety authorities and safety experts before working in hazardous environments,
in close proximity to electrical installations or similar surroundings.
ENEN
9
4.4 Usage Hazards
4.4.1 General
WARNING
Missing or incomplete instructions may result in improper or incorrect use. This can cause
accidents with serious damages to persons, property, assets and the environment.
Follow the manufacturer‘s and operator‘s safety instructions.
Protect equipment and accessories from access by children.
WARNING
Blinding by laser radiation can indirectly lead to serious accidents, especially for people who
are driving a vehicle or operating machinery.
Do not set up the laser beam and the laser plane at eye level or aim at people.
CAUTION
A fall, longer storage, transportation or other mechanical effects can lead to
erroneous measurement results. Check the unit for damage before use.
Do not use damaged equipment.
Repairs have to be exclusively performed by SOLA
4.4.2 batteries
DANGER
Strong mechanical inuences, can lead to a leakage, re or explosion of the batteries or trigger
the release of toxic substances.
Batteries and rechargeable batteries may not be opened or exposed to mechanical loads.
Repairs have to be exclusively performed by SOLA
WARNING
High ambient temperatures and immersion into liquids can cause a leakage, re or explosion
of the batteries or trigger the release of toxic substances.
Protect batteries and rechargeable batteries from mechanical inuences during transport.
Do not overheat batteries and rechargeable batteries or expose them to re.
ENEN
10
Avoid the ingress of moisture into batteries and rechargeable batteries.
Do not use damaged batteries or rechargeable batteries.
(see Chapter 11/Disposal)
.
WARNING
A short-circuiting or unintended use can cause batteries to overheat and create an injury or
re hazard.
Do not transport or store batteries in the pockets of garments.
Do not bring the battery contacts in contact with jewelery, keys, or other electrically conductive
objects.
Do not charge the batteries.
Do not discharge the batteries through short-circuiting.
Do not solder the batteries within the device.
Do not mix old and new batteries, and do not mix batteries from different manufacturers or
with a differing type designation.
WARNING
If disposed of improperly third parties can possibly be seriously injured and the environment
polluted. The burning of plastic components generates toxic fumes which may impair the
health of people. Batteries/rechargeable batteries may explode if they are damaged or heated
excessively, and thereby cause poisoning, burning, corrosion or environmental contamination.
If disposed of negligently unauthorized persons are able to use the product improperly.
The product must not be disposed of together with household waste. Dispose of the device and
accessories properly.
(see Chapter 12/Disposal)
.
Protect the product at all times from access through unauthorized persons, especially children.
