SOLTEK SL-65FVB Manuale utente

This User’s Guide & Technical Reference is for assisting system

manufacturers and end-users in setting up and installing the

mainboard.

Every effort has been made to ensure that the information in this

manual is accurate. Solte Computer Inc. is not responsible for

printing or clerical errors. Information in this document is subject to

change without notice and does not represent a commitment on

the part of Solte Computer Inc.

No part of this manual may be reproduced, transmitted, translated

into any language in any form or by any means, electronic or

mechanical, including photocopying and recording, for any purpose

without the express written permission of Solte Computer Inc.

Companies and products mentioned in this manual are for identifi-

cation purpose only. Product names appearing in this manual may

or may not be registered trademar s or copyrights of their respec-

tive companies.

Solte Computer Inc. Provides this manual “AS IS” without war-

ranty of any ind, either express or implied, including but not limited

to the implied warranties or conditions of merchantability or fitness

for a particular purpose. In no event shall Solte Computer Inc. Be

liable for any loss or profits, loss of business, loss of use or data,

interruption of business, or for indirect, special, incidental, or con-

sequential damages of any ind, even if Solte Computer Inc. Has

been advised of the possibility of such damages arising from any

defect or error in this manual or product.

Model : SL- 5FVB

Edition : June, 2000

Version : 1.0

http://www.solte .com.tw

e-mail: support@solte .com.tw

NOTICE TO END USER

5FVB/ 5FVB-X

C O N T E N T

Chapter 1: Introduction .................................................. 4

1-1 CPU .............................................................................................. 4

1-2 CHIPSET ...................................................................................... 4

1-3 L2 CACHE .................................................................................... 4

1-4 MAIN MEMORY............................................................................ 4

1-5 BIOS ............................................................................................. 4

1-6 SUPER I/O FUNCTON ................................................................. 4

1-7 OTHER FEATURES ..................................................................... 5

1-8.1 MOTHERBOARD LAYOUT --- 65FVB....................................... 6

1-8.2 MOTHERBOARD LAYOUT --- 65FVB-X ................................... 7

Chapter 2: Hardware Setup ............................................ 8

2-1 CPU INSTALLATION .................................................................... 8

2-2 CPU TYPE CONFIGURATION ................................................... 10

2-3 SYSTEM MEMORY CONFIGURATION ..................................... 12

2-4 JUMPER definitions .................................................................... 12

2-5 CONNECTORS .......................................................................... 15

2-5.1 J1 SWITCH SIGNAL SUMMARY............................................. 16

2-5.2 J2 SWITCH SIGNAL SUMMARY............................................. 18

2-5.3 ATX POWER SUPPLY CONNECTOR..................................... 20

2-5.4 PS/2 MOUSE AND PS/2 KEYBOARD..................................... 20

2-5.5 IRQ DESCRIPTION ................................................................. 21

2-6 VOICE DIAGNOSTIC FUNCTION --- 65FVB-X.......................... 22

Chapter 3: BIOS Setup.................................................. 23

3-1 STANDARD CMOS SETUP........................................................ 24

3-2 BIOS FEATURES SETUP .......................................................... 26

3-3 CHIPSET FEATURES SETUP ................................................... 30

3-4 POWER MANAGEMENT SETUP............................................... 33

3-5 PNP / PCI CONFIGURATION SETUP........................................ 37

3-6 LOAD SETUP DEFAULTS.......................................................... 39

5FVB/ 5FVB-X

3-7 CPU SPEED SETTING............................................................... 40

3-8 INTEGRATED PERIPHERALS................................................... 42

3-9 SUPERVISOR / USER PASSWORD.......................................... 46

3-10 HDD AUTO DETECTION.......................................................... 47

3-11 SAVE & EXIT SETUP................................................................ 47

3-12 EXIT WITHOUT SAVING .......................................................... 47

5FVB/ 5FVB-X

Chapter 1: Introduction

1-1 CPU

• Supports Intel FC-PGA 370 Celeron / Pentium III (Coppermine) CPU at

300MHz up to 750MHz or higher.

• Supports VIA Cyrix III (Joshua) CPUs.

• Supports CPU voltage auto-detect circuit.

• Supports 66 / 75* / 83* / 100 / 103* / 112* / 124* / 133* / 140* / 150* MHz

system bus speed.

• Cloc multipliers up to 8x or higher.

1-2 CHIPSET

• VIA VT82C693A + VT82C596B chipset with 133MHz FSB.

• PCI Rev 2.1, 5V, 33MHz interface compliant.

• Supports 66 / 100 / 133MHz, 3.3V AGP (Accelerated Graphics Port) slot.

1-3 L2 CACHE

• Pentium II / Pentium !!! supports 512K write bac cache with Pipelined

Burst SRAMs.

1-4 MAIN MEMORY

• Memory range from 8MB up to 768MB (SDRAM) with DRAM Table Free

configuration.

• Supports SDRAM with 12 / 10 / 8 / 6 ns speed.

• Supports 3pcs 168pin DIMM soc ets. (3.3V Unbuffered and 4 cloc type)

• DRAM supports ECC or Parity function.

1-5 BIOS

• Award Plug and Play BIOS.

• Supports ACPI and legacy APM.

• Flash Memory for easy upgrade.

1- SUPER I/O FUNCTON

• Integrated USB (Universal Serial Bus) controller with 2 USB ports.

• Supports 2 IDE channels with 4 IDE devices. (including ZIP / LS-120 devices)

• Provides PCI IDE Bus Master function and supports Ultra DMA33 / 66

function.

5FVB/ 5FVB-X

• Provides 1 floppy port.

• 2 high speed 16550A FIFO UART ports.

• 1 parallel port with EPP / ECP / SPP capabilities.

• PS/2 mouse connector and PS/2 eyboard connector.

• Built-In RTC, CMOS, eyboard controller on single I/O chip.

• Peripherals boot function. (with ATX power)

1-7 OTHER FEATURES

• ATX size 17.0cm x 30.5cm.

• 5x PCI Master slots, 1x ISA slot, 3x DIMM soc ets, and 1x AGP slot.

• Provides DIP switch setting.

• Supports 66 / 100 / 133MHz Bus Cloc .

• Supports WOL (Wa e On LAN) function.

• Supports Keyboard Power On function.

• BIOS supports 103 / 112 / 133 / 150MHz Bus Cloc .

• Provides Voice Diagnostic function for easy debug. ( 5FVB-X only)

5FVB/ 5FVB-X

NOTE: FOR 100 / 133MHz CPU ENVIRONMENT, THE SDRAM MUST COMPLY WITH PC-100 / PC-

133 SPEC.

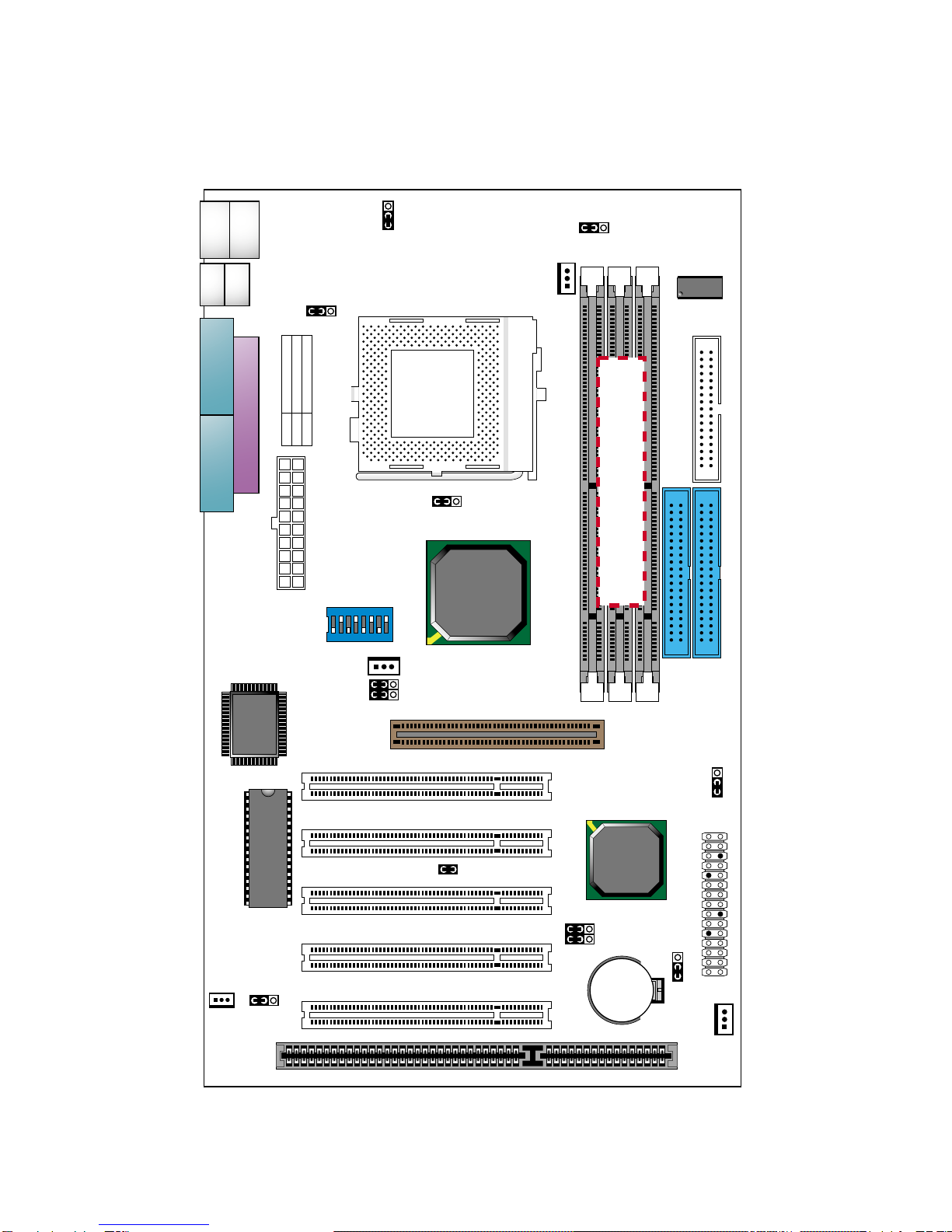

1-8.1 MOTHERBOARD LAYOUT --- 5FVB

• DEFAULT SETTING: Celeron 300/66MHz, Pentium II / Pentium !!! 450/

100MHz.

1 3

JP5

1 3

JP4

3



JP2

1 3

JP3

1 3

JVGA1

JP ;

JP7

1 3

JP12

1 3

JBAT1

CFAN1

SFAN1

PFAN1

SPK RST PWR/LED SUSLED

HD/LED IR PWR SMI

J1;

15

JWOL1

AGP

PCI 1

PCI 2

PCI 3

PCI 4

PCI 5

FDC

DIMM1;

DIMM2;

DIMM3

IDE2

IDE1

SOCKET 370

ATX POWER

ISA

FLASH BIOS

Battery

Clock;

Generator

I/O;

Controller

Intel

Cyrix

1-2 SHORT

JP3/JP4/JP5

2-3 SHORT

VIA

93A

VIA

59 B

USB0

USB1 PS/2;

MOUSE

PS/2;

K/B

LPT1

COM2 COM1

upper

lower

upper

lower

SW1

ONDIP

8 7 5 4 3 2 1

PC100/PC133 SDRAM

5FVB/ 5FVB-X

NOTE: FOR 100 / 133MHz CPU ENVIRONMENT, THE SDRAM MUST COMPLY WITH PC-100 / PC-

133 SPEC.

1-8.2 MOTHERBOARD LAYOUT --- 5FVB-X

• DEFAULT SETTING: Celeron 300/66MHz, Pentium II / Pentium !!! 450/

100MHz.

1 3

JP5

1 3

JP4

3



JP2

1 3

JP3

1 3

JVGA1

JP ;

JP7

1 3

JP9;

JP8

1 3

JP12

1 3

JP11

1 3

JBAT1

CFAN1

SFAN1

PFAN1

SPK RST PWR/LED SUSLED

HD/LED IR PWR SMI

J1;

15

JWOL1

AGP

PCI 1

PCI 2

PCI 3

PCI 4

PCI 5

FDC

DIMM1;

DIMM2;

DIMM3

IDE2

IDE1

SOCKET 370

ATX POWER

ISA

FLASH BIOS

Li

Battery

Clock;

Generator

I/O;

Controller

Intel

Cyrix

1-2 SHORT

JP3/JP4/JP5

2-3 SHORT

VIA

93A

VIA;

59 B

USB0

USB1 PS/2;

MOUSE

PS/2;

K/B

LPT1

COM2 COM1 upper

lower

upper

lower

SW1

ONDIP

8 7 5 4 3 2 1

PC100/PC133 SDRAM

5FVB/ 5FVB-X

SOCKET 370

2-1 CPU INSTALLATION

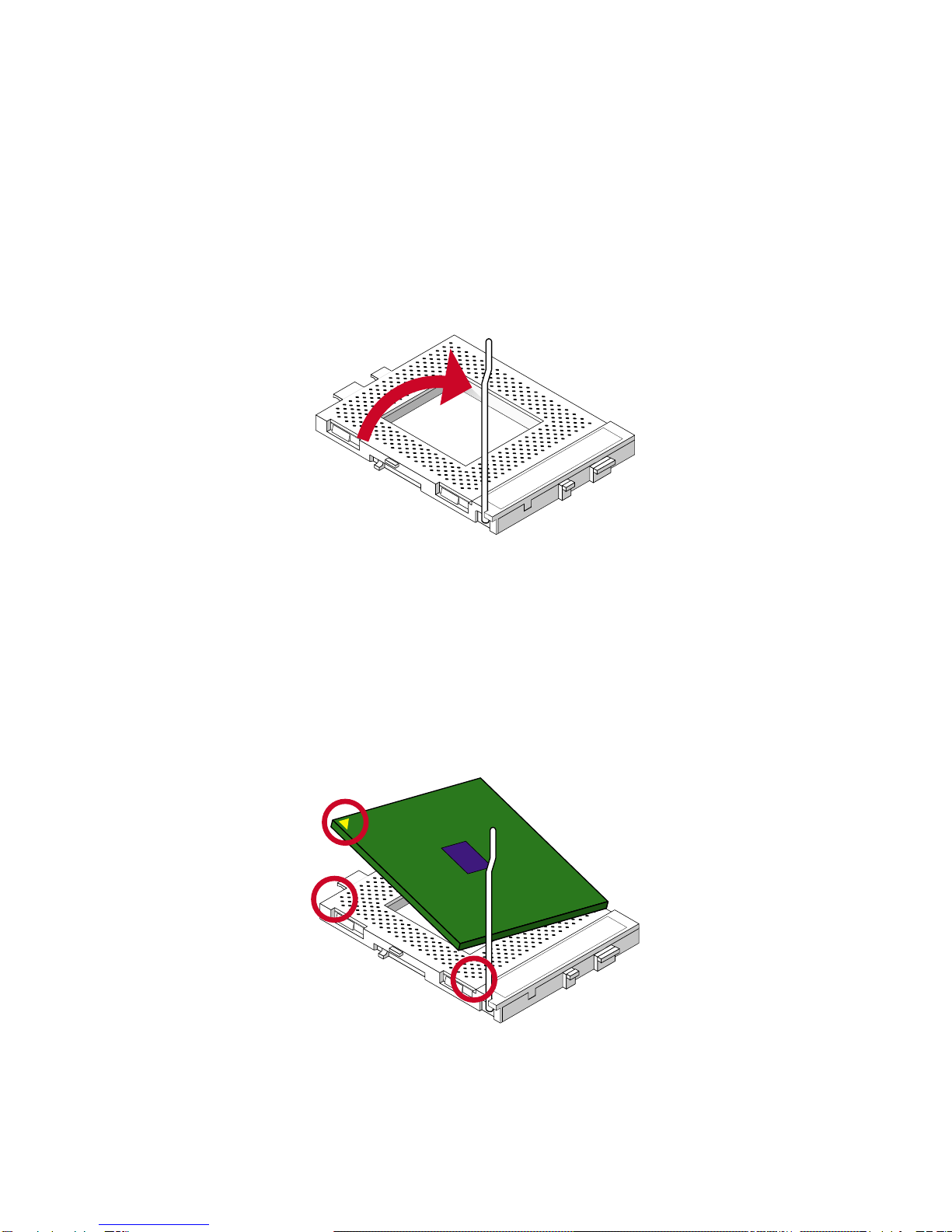

1. Pull the lever sidways away from the soc et, and then raise the lever up

to a 90-degree angle.

2. Ta e note of the red circle as below picture. When insert the CPU into

soc et, you can find out there is a definite pin orientation for CPU and

soc et.

SOCKET 370

Chapter 2: Hardware Setup

5FVB/ 5FVB-X

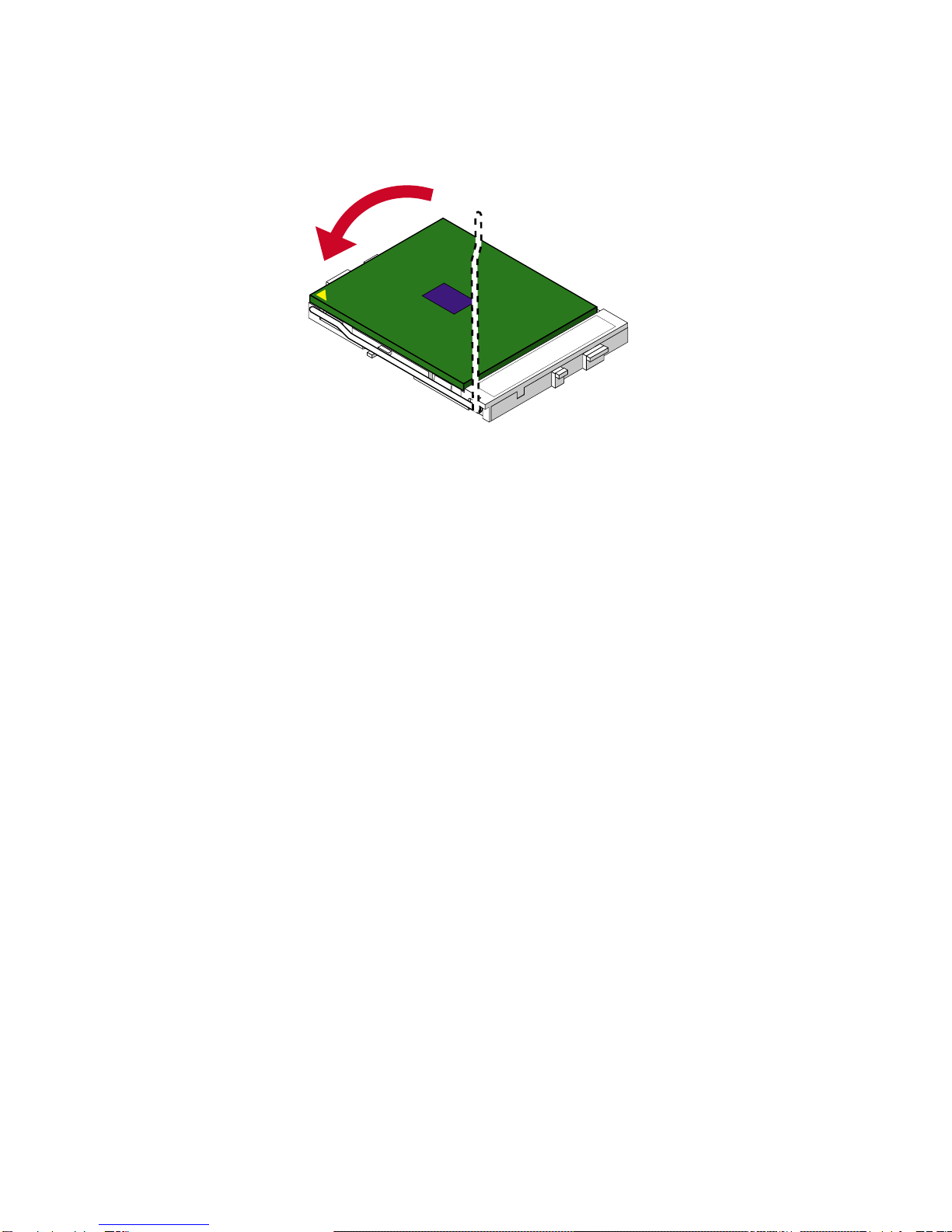

3. Ma e sure that the CPU positions in the soc et tightly, and then put the

lever down to complete the CPU installation.

SOCKET 370

5FVB/ 5FVB-X

2-2 CPU TYPE CONFIGURATION

BUS CLOCK SELECT

BUS RATIO SELECT

SW1 DIP1 ~ DIP4 SETTING

3.0x 3.5x

4.0x 4.5x

5.0x 5.5x

.0x .5x

7.0x 7.5x

8.0x

87654321

OFF

87654321

OFF

87654321

OFF

87654321

OFF

87654321

OFF

87654321

OFF

87654321

OFF

87654321

OFF

87654321

OFF

87654321

OFF

87654321

OFF

Auto Select /100/133 MHz

(default)

SW1 DIP5 ~ DIP8 SETTING

MHz

100MHz

133MHz

ON;

ON

87654321

OFF

ON;

ON

87654321

OFF

ON;

87654321

OFF

ON;

ON

87654321

OFF
