Sonel PQM-707
Power Quality Analyzer ●Quick Guide
v1.01 | 12.09.2019
Current date and time
Hold/continue button of display
refreshing
Range check
Recording status
Actual current probes connected
Free memory on microSD card
USB Stick status
Battery status and external supply
Top bar
of the display External power supply
page 2 / 8

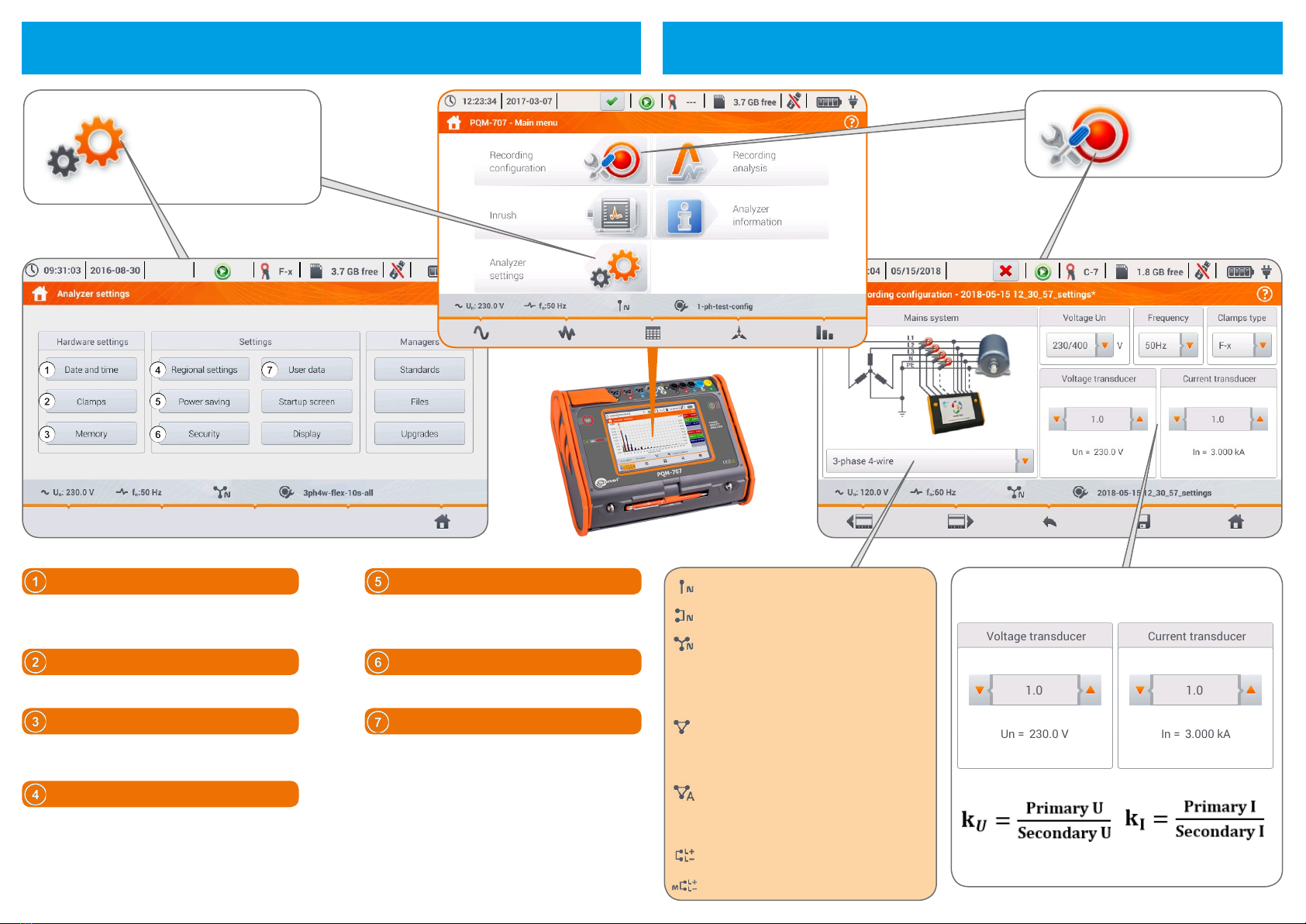

Analyzer settings
▪Hardware
▪Settings
▪Managers
└ Standard report settings
└ Files
└ Upgrades
▪YYYY-MM-DD or MM/DD/YYY
▪hh:mm:ss
Clamps
Memory
Set date and time Power saving
Security
User data
▪Instantaneous auto-off mode
▪Instrument auto-off mode
▪Set lock analyzer PIN
▪User specification, contact and address
Regional settings
Connections
1-phase system
Split-phase system
3-phase 4-wire system
3-phase 4-wire (no V L2) / 2 ½ element
(no V L2/B)
Transducers: 3-phase 4-wire
3-phase 3-wire system
3-phase open delta
Transducers: 3-phase 3-wire
3-phase 3-wire Aron / 2-elements
Transducers: 3-phase 3-wire Aron
(2 PTs, 2-Elements)
DC system
DC+M system
Coefcients of transducers
▪Set current direction
▪Check memory status
▪Format memory
▪Choose language
▪Choose name of signals
▪Choose color of signals
▪Create conguration
▪Edit conguration
▪Set conguration
as active
page 3 / 8
Recording
Before measurement adjust settings
▪General settings (I and II)
▪Voltage parameters
▪ Current parameters
▪Power parameters
▪ Energy and factors
▪ Flicker and unbalance
▪ THD and harmonics
▪ Save over own name
and select as active
Select a conguration from list
Types of congurations
user - inactive
user - active
standard - inactive
standard - active
Set
conguration
as active
Function icons
add new congu-
ration
edit selected
Connect signals
Insert a memory card
Check the power supply
Start recording Stop recording
Press
START/STOP
LED starts to blink RED
Press
START/STOP
LED does not blink
anymore
if the table includes is at least one
if the table includes is at least one ,
but there is no error (no )
if all measured parameters are correct
LIVE mode
Range check
Verify the connection
→ Status icon changes color to red
Buzzer signals are heard: 3 short signals
→ Status icon changes color to green
Buzzer signals are heard: 1 long + 3 short signals
page 4 / 8
Data analysis
List of recorded measurements Recording summery window
Conguration name
History of recording
Statistics of events
Statistics of Voltage
and Amps measure-
ment
go to list of events
go to plots
timeplots
harmonics
go to standard report (only for cong-
uration acc. to standard)
go to energy costs calculator (only for
conguration acc. to user)
Analysis of events
go to a diagram of selected item
waveforms
RMS1/2 plot
ANSI plot
CBEMA plot
▪Swells
▪Dips
▪Interruptions
▪I > max
▪I < min
▪UDC > max
▪UDC < min
Filter the list using
and select an item
Waveforms
zoom of visible time window
zoom-in horizontally
zoom-out horizontally
screenshot
Select signals as
visible:
▪U - voltages
▪I - currents
▪L1(A) - phase 1
▪L2(B) - phase 2
▪L3(C) - phase 3
▪N - neutral
select view type
go to RMS1/2 plot
Waveforms of beginning (START) and end (STOP) of event
RMS1/2 plot
zoom of visible time window
zoom-in horizontally
zoom-out horizontally
screenshot
Select signals
to visualize:
▪Ch 1: V A, V A-B, I A
▪Ch 2: V A, V A-B, I B
▪Ch 3: V A, V A-B, I C
▪Ch 4: V N-PE, I N
select view type
go to ANSI plot
go to CBEMA plot
Marker to view details at selected timeReason of event
Filtering the recordings
according to standard
according to user
inrush current
Analysis of
the selected
recording
Select a mea-
surement le
from list
ANCI / CBEMA graph
select view type
screenshot
zoom of visible time window
Select type of event
to visualize
page 5 / 8
Timeplots
select parameters to view range
Move the markers to set the range of
analyzed data
Set:
▪start time
▪duration
▪end time
Selection of timeplot data
removes all selections
Categories, types, classes:
▪Max - maximum in period
▪Avg - average in period
go to timeplot analysis
▪Min - minimum in period
▪Inst - instantaneous value
Recording analysis - timeplot
zoom menu displays additional menu
Marker to view details at selected time
Select for
visualization:
▪Ch 1
▪Ch 2
▪Ch 3
▪Ch 4
additional selecting displayed timeplots
Harmonics Table of harmonics
switching to tabular view of harmonics
additional menu
hiding the fundamental harmonic
displaying in absolute units (volts and amps)
displaying in percent of fundamental
switching to bargraph
additional menu
displaying in absolute units (volts and amps)
displaying in percent of fundamental
screenshot
Data analysis
or
page 6 / 8
Data analysis
Energy cost calculator
select parameters to view range
make screenshot
Settings Billing zones
go to billing zones
go to billing zones
back to calculator
save
▪Select
▪Verify
▪Set costs
▪Select
▪Verify
▪Set actual
go to settings
go to settings
back to calculator
save
Report according to standard Selecting options Analysis and saving the report
save settings
Enter report
settings
User data Enter personal
information
Before recording After recording After recording
save report
to memory
to USB stick
page up
page down
page 7 / 8
Inrush current
Congure the measurement Set necessary parameters Start the measurement
accept settings get from saved
save
▪Connection of the meter
▪Conguration of
└ mains system
└ frequency
└ probes type
└ measurement duration
└ nominal current and trigger threshold
Press
START/STOP
▪Wait for automatic
threshold value
▪Wait for end of recording
Waveform plot will appear Inrush RMS plot Characteristics of event
zoom of visible time window
zoom-in horizontally
zoom-out horizontally
screenshot
menu bar
waveform
RMS plot
characteristics
Find more information in the
user manual and on our website
www.soneltest.com
