SonicWALL NSA 2400 Manuale utente

Getting Started Guide

SonicWALL Network Security Appliances

NETWORK SECURITY

NSA 2400

SonicWALL NSA 2400 Getting Started Guide Page 1

SonicWALL NSA 2400

Getting Started Guide

This Getting Started Guide provides instructions for basic

installation and configuration of the SonicWALL Network

Security Appliance (NSA) 2400 running SonicOS Enhanced.

After you complete this guide, computers on your Local Area

Network (LAN) will have secure Internet access.

Document Contents

This document contains the following sections:

Pre-Configuration Tasks - page 3

Registering Your Appliance on MySonicWALL - page 9

Deployment Scenarios - page 14

Additional Deployment Configuration - page 35

Support and Training Options - page 55

Product Safety and Regulatory Information - page 63

Page 2 SonicWALL NSA 2400 Overview

SonicWALL NSA 2400 Overview

Note: Always observe proper safety and regulatory guidelines when removing administrator-serviceable parts from the SonicWALL

NSA appliance. Proper guidelines can be found in the Safety and Regulatory Information section, on page 64 of this guide.

PML

Front

Back

1U rack-mountable

17 x 10.25 x 1.75 in

43.18 x 26.04 x 4.44 cm

8.05 lbs/ 3.71 kg

Form Factor

Dimensions

Weight

WEEE Weight

1 Amp / 50-60HzVoltage

Network Security Appliance

2400

SonicWALL NSA 2400 Getting Started Guide Page 3

Pre-Configuration Tasks

In this Section:

This section provides pre-configuration information. Review this section before setting up your SonicWALL NSA 2400 appliance.

•Check Package Contents - page 4

•Obtain Configuration Information - page 5

•The Front Panel - page 6

•The Back Panel - page 7

Page 4 Check Package Contents

Check Package Contents

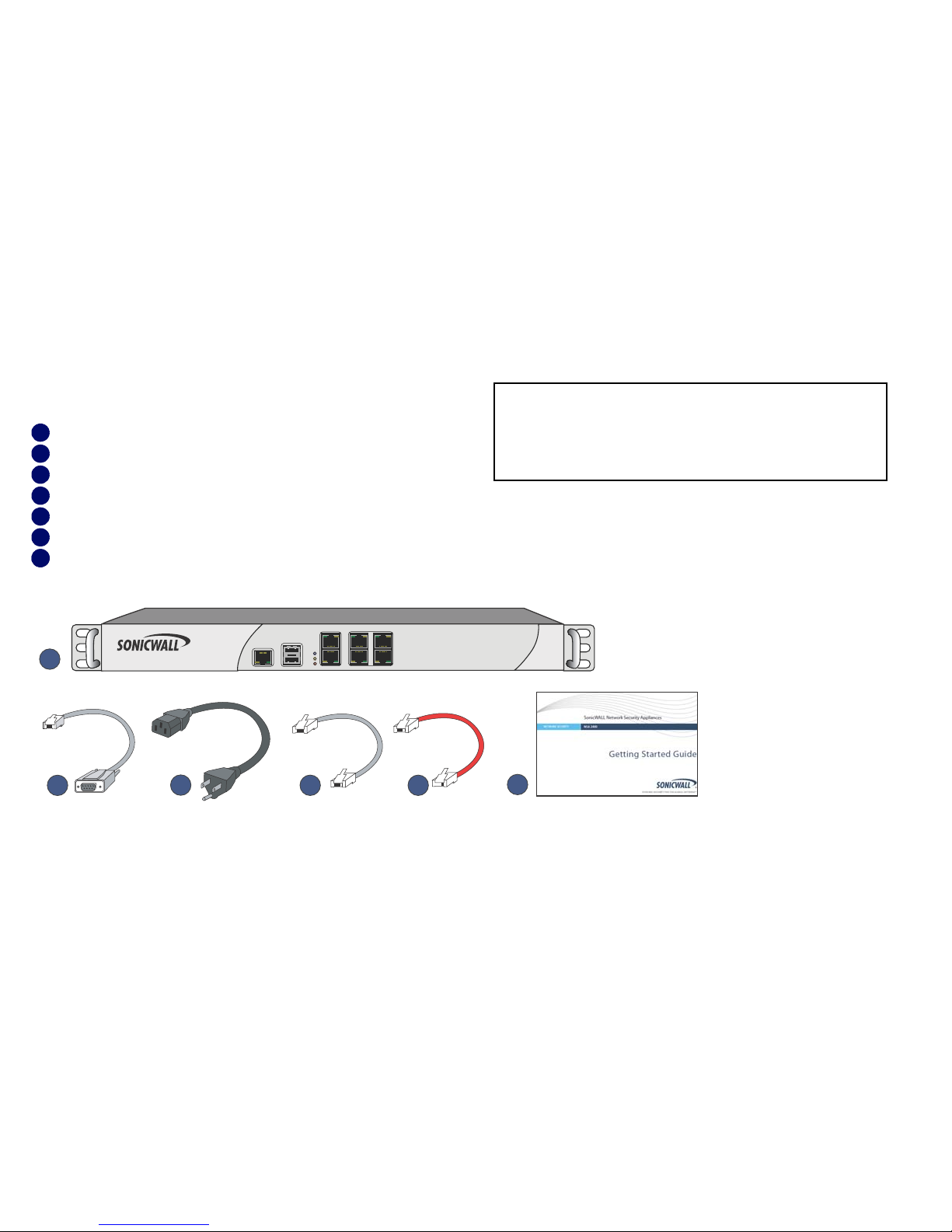

Before setting up your SonicWALL NSA appliance, verify that your

package contains the following parts:

NSA 2400 Appliance

DB9 -> RJ45 (CLI) Cable

Power Cord*

Standard Ethernet Cable

Red Crossover Cable

Getting Started Guide

Rack Mount Kit **

Any Items Missing?

If any items are missing from your package, please contact

SonicWALL support.

A listing of the most current support documents are available online

at: <http://www.sonicwall.com/us/support.html>

*The included power cord is intended for use in North America only. For

European Union (EU) customers, a power cordis not included.

*Das beigefügte Netzkabel ist nur für den Gebrauch in Nordamerikas

Vorgesehen. Für Kunden in der Europaïschen Union (EU) ist ein Netzkabel

nicht im Lieferumfang enthalten.

**This item is not included in the below illustration.

4 5

236

Network Security Appliance

2400

SonicWALL NSA 2400 Getting Started Guide Page 5

Obtain Configuration Information

Please record and keep for future reference the following setup

information:

Registration Information

Networking Information

Administrator Information

Obtain Internet Service Provider (ISP) Information

Record the following information about your current Internet service:

Note: If you are not using one of the network configurations above,

refer to <http://www.sonicwall.com/us/support.html>.

Serial Number:

Record the serial number found on the

bottom panel of your SonicWALL

appliance.

Authentication Code:

Record the authentication code found on

the bottom panel of your SonicWALL

appliance.

LAN IP Address:

. . .

Select a static IP address for your

SonicWALL appliance that is within the

range of your local subnet. If you are

unsure, you can use the default IP

address (192.168.168.168).

Subnet Mask:

. . .

Record the subnet mask for the local

subnet where you are installing your

SonicWALL appliance.

Ethernet WAN IP

Address:

. . .

Select a static IP address for your

Ethernet WAN. This setting only applies

if you are already using an ISP that

assigns a static IP address.

Admin Name:

Select an administrator account name.

(default is admin)

Admin Password:

Select an administrator password.

(default is password)

If you connect

using Please record

DHCP No information is usually required: Some providers

may require a Host name:

Static IP IP Address: . . .

Subnet Mask: . . .

Default Gateway: . . .

Primary DNS: . . .

DNS 2 (optional): . . .

DNS 3 (optional): . . .

Page 6 The Front Panel

The Front Panel

Icon Feature Description

Reset Button Press and hold the button for a few seconds to manually reset the appliance using SafeMode.

Console Port Used to access the SonicOS Command Line Interface (CLI) via the DB9 -> RJ45 cable.

USB Ports (2) For future use.

LED (Top to Bottom) Power LED: Indicates the SonicWALL NSA appliance is powered on.

Test LED: Flickering: Indicates the appliance is initializing. Steady blinking: Indicates the

appliance is in SafeMode. Solid: Indicates that the appliance is in test mode.

Alarm LED: Indicates an alarm condition.

X0 (LAN), X1 (WAN) Gigabit Ethernet ports for LAN and WAN connections.

X2-X5 (LAN) Gigabit Ethernet ports for other configurable Ethernet connections.

Network Security Appliance

2400

ABD F

SonicWALL NSA 2400 Getting Started Guide Page 7

The Back Panel

Icon Feature Description

Fans(2) The SonicWALL NSA 2400 includes two fans for system temperature control.

Power Supply The SonicWALL NSA 2400 power supply.

Page 8 Before You Register

Before You Register

You need a MySonicWALL account to register the SonicWALL

NSA appliance. You can create a new MySonicWALL account

on www.mysonicwall.com or directly from the SonicWALL

management interface. This section describes how to create an

account by using the Web site.

If you already have a MySonicWALL account, go to Registering

and Licensing Your Appliance on MySonicWALL - page 10 to

postpone registration until after having set up the appliance.

Skip ahead to Deployment Scenarios - page 14 and register

your appliance directly from the management interface once

you reach Accessing the Management Interface - page 20.

Note: For a High Availability configuration, you must use

MySonicWALL to associate a backup unit that can

share the Security Services licenses with your primary

SonicWALL.

If you do not yet have a MySonicWALL account, you can use

MySonicWALL to register your SonicWALL appliance and

activate or purchase licenses for Security Services, ViewPoint

Reporting and other services, support, or software before you

even connect your device. This method allows you to prepare

for your deployment before making any changes to your

existing network.

Note: Your SonicWALL NSA appliance does not need to be

powered on during account creation or during the

MySonicWALL registration and licensing process.

After registering a new SonicWALL appliance on

MySonicWALL, you must also register the appliance from the

SonicOS management interface. This allows the unit to

synchronize with the SonicWALL License Server and to share

licenses with the associated appliance, if any. See Accessing

the Management Interface - page 20.

SonicWALL NSA 2400 Getting Started Guide Page 9

Registering Your Appliance on MySonicWALL

In this Section:

This section provides instructions for registering your SonicWALL NSA 2400 appliance.

•Before You Register - page 8

•Creating a MySonicWALL Account - page 10

•Registering and Licensing Your Appliance on MySonicWALL - page 10

•Licensing Security Services and Software - page 11

•Registering a Second Appliance as a Backup - page 12

•Registration Next Steps - page 13

Note: Registration is an important part of the setup process and is necessary in order to receive the benefits of SonicWALL security

services, firmware updates, and technical support.
