Sonoff Basic Manuale utente

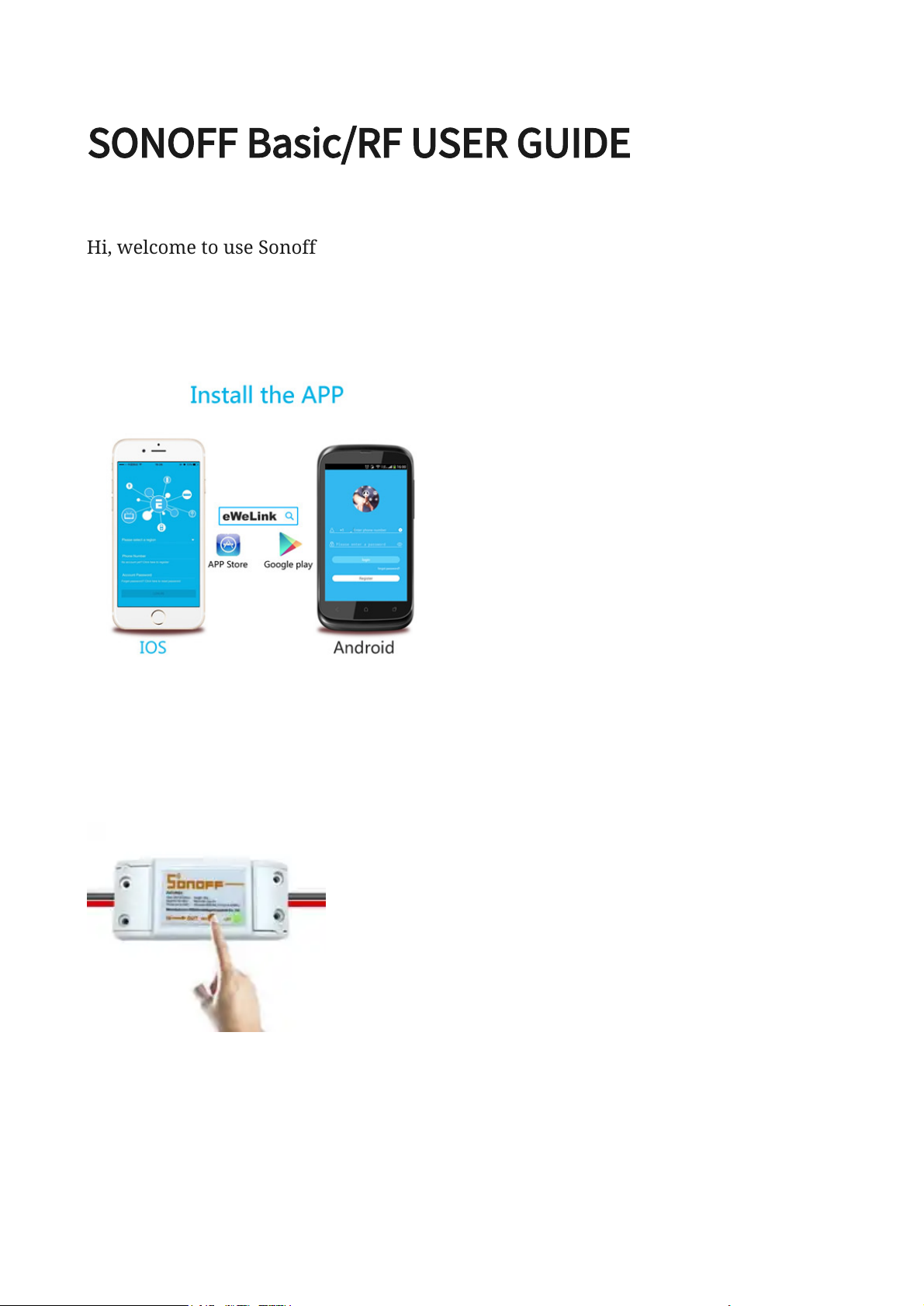

SONOFF Basic/RF USER GUIDE

Hi, welcome to use Sonoff Basic or Sonoff RF!

1. Download “eWeLink” app.

Search “eWeLink” in APP Store for iOS versionor Google play for Android version.

2. Follow below wiring instruction to connect the device.

Input Output

N ————N

L————-L



3. Add device

1. Power up the device after you complete the installation.

2. Press the button for 7 seconds until the green LED fast blinks. Due to this model

has used different ﬁrmware and module,the led has two blinking ways.

Open eWeLink app, click”+”, you’ll see the pairing icons. Please select the pairing

mode according to below instructions:

If the led blinks like this: please selectQuick Pairing Mode (TOUCH), tapNext.

If the led blinks like this:

a. If the deviceﬁrmwareis1.6.0 or higher, please selectQuick Pairing Mode

(TOUCH). Otherwise, it will fail to add the device. ClickNext.

b. If the ﬁrmware of above models islower than 1.6.0, please selectCompatible

Pairing Mode (AP)icon, clickNext. iOS users should go to Phone

Setting>WiFi>connect the WiFi begins with ITEAD-******, enter defaultpassword

12345678. Go back to eWeLink, click next.

3. It will auto-search and connect smart home device around you.

4. Input your home SSID & password:

4.1 If no password, keep it blank.

4.2 NoweWeLinkonly support 2.4G WiFi communicationprotocol, 5G-WiFi is not

supported.

5. Name the device to complete.

Maybe the device is “Oﬄine” on eWeLink, for the device needs 1 minute to connect

to your router and server. When the green LED on, the device is “Online”, if

eWeLink shows still “Oﬄine”, please close eWeLink and re-open.



3. 433MHz remote control (Sonoff RF module)

For the old models that deliver before June 1st, 2018, pleaselearn as below:

3.1. Learning:

For the old models that deliver before June 1st, 2018, pleaselearn as below:

Fast press the black button on Sonoff RF twice, the red LED blinks once, then press

one of the buttons of your RF controller to set pairing for 1-2 second.

Note:One Sonoff RF can be learned with only one button of the 433MHz RF Remote.

For the new models that deliver on and afterJune 1st, 2018, pleaselearn as below:

Press and hold the black button of Sonoff RF for 3s, you see the red led blinks once.

Press a button on RF Remote, and it will be learned successfully.

Note: One Sonoff RF can learn with 14 RF Remote buttons. The 15th RF button will

cover the ﬁrst button that has been learned.

3.2. Clear coding:

For the old models that deliver before June 1st, 2018, pleaseclear as below:

Fast press the black button on Sonoff RF for three times, the red LED is on for 3s,

thatmeans the RF controller code has been cleaned. If you failed to pair, please try

to clean ﬁrst.

For the new models that deliver on and afterJune 1st, 2018, please clear as below:

Press and hold the black button of Sonoff RF for 5s, you see the red led blinks twice.

Pressthe button on the RF Remote, the code will be cleared.



4. APP features

1. WiFi remote control and device state

Turn on/off by tapping on device icon. Device state alwayssimultaneous display on

APP.

2. ShareControl

The owner can share the devices to other eWeLink accounts. While sharing devices,

both should stay online on eWeLink. Because if the account you want to share is not

online, he/she will not receive the invitation message.

How to make it possible? Firstly clickShare, input the eWeLink account (phone

number or email address) you want to share, tick the timer permissions

(edit/delete/change/enable) you want to give, then clickNext. The other account will

receive an invitation message. ClickAccept, the device has shared successfully. The

other user will have access to control the device.

3. Timing

Support max 8enabled single/repeat/countdown timing schedules each device.

4. Set default power on status

InDevice Setting, you can set default device status:ONorOFFwhen the device is

power on.

5.Scene/Smart Scene

Scene allows triggering on/off your devices automatically. Scene Settings is in the

upper right corner of Device List. You can set up scenes or smart scenes to trigger

on/offthe device.

Users should select “Click to execute” in the condition, add different existing devices,

name the scene and save it.

6. Security mechanism

One device one owner. Other people can not add the devices that have already been

added.If you want to add your device to another account, don’t forget to delete it

ﬁrst.

7. Update

It will auto-remind you of new ﬁrmware or version. Please updateas soon as you

can.



5. Problems and solutions

Read the detailedFAQ on Itead Smart Home Forum.If below answers can’t solve

your problem, please submit a feedback on eWeLink.

1. My device has added successfully but stays “Oﬄine”.

Answers: The newly added device need 1-2 min to connectto your router and the

Internet. If it stays oﬄine for a long time, please judge the problem by the green led

status:

1.1. Green led quickly blinks one time and repeats, whichmeans device failed to

connect to the router. The reason maybe you have entered wrong WiFi password or

your deviceis too far away from the router, which causes a weak WiFi signal. The

device can not be added to the 5G-wiﬁ-router, only the 2.4G-wiﬁ is OK. At last, make

sure that your router is MAC-open.

1.2. Green led slowly blinks one time and repeats, which means the device has

connected to router and server but failed to beadded to the device list. Then power

on the deviceagain, if itstill not working, just add the device again.

1.3. Green led quickly blinks twice and repeats, this means thedevice has connected

to the router but failed to connect to the server. Then please conﬁrm your WiFi

router works normally.

2. Why the APPcan’t ﬁnd the device in pairing status?

Answers: That’s because of your phone’s cache. Please close the WLAN of your

phone then open it after a minute. At the same time, please power off the device if

you can, then power up to try again.

3. My WiFi is expired, can I connect the devices to LAN?

Answers: the Sonoff Basic and Sonoff RF support to be controlled by LAN(Update in

15/10/2017, LAN function has beenstopped).

eWelink

⾃

豪

地

采

⽤

WordPress

4. The green led keeps off, even if the device is powered on.Press the button but the

devicedoes not work.

Answers: The circuit may be broken, please send it back fortesting. Return shipping

postage and packaging will be atbuyer’s expense, if the device is damaged by the

buyer,and the buyer should bear extra repair cost.
