WatchCorder

Man.

THERMAL

DET

©1989

by

Sony

Corporation

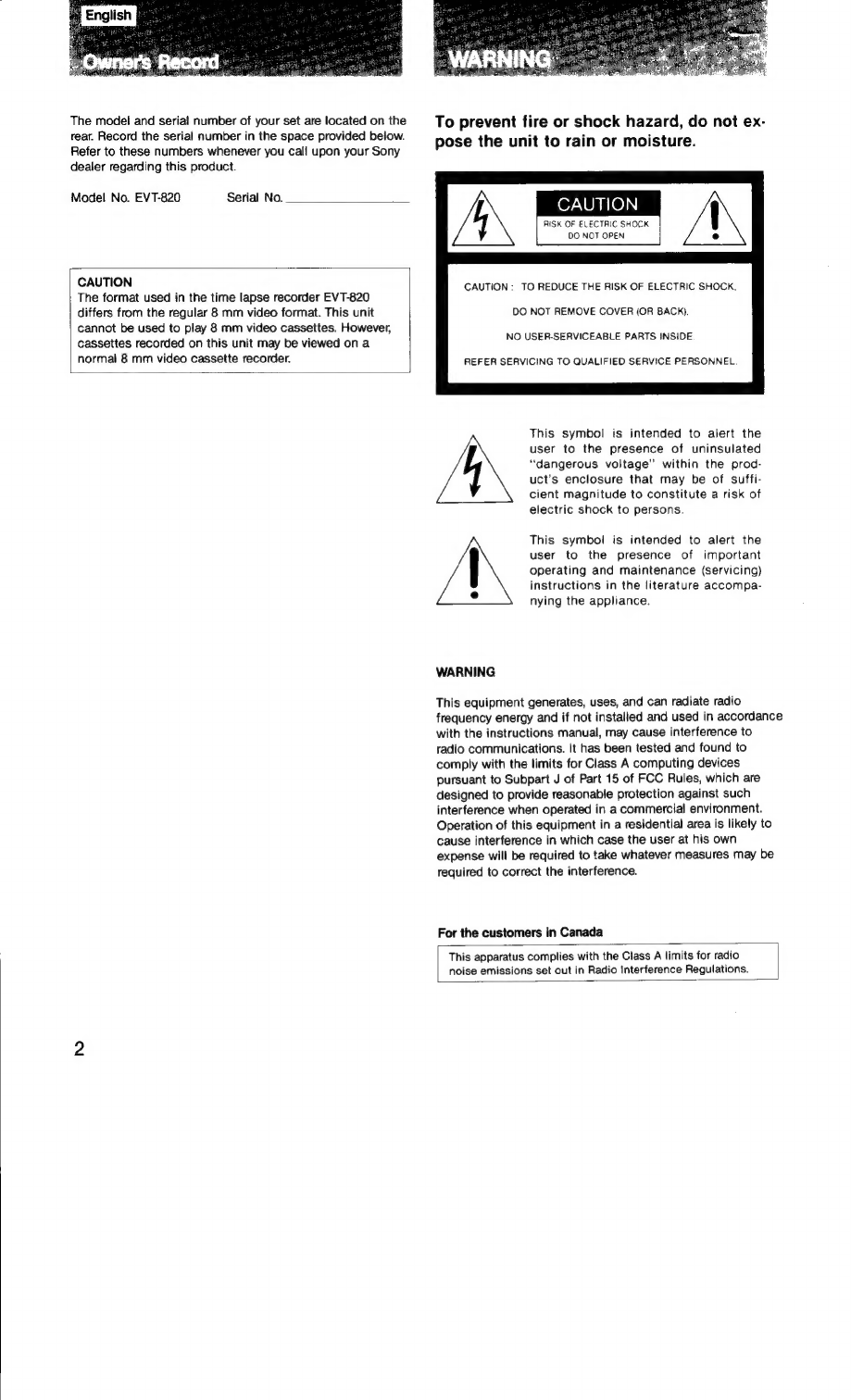

The

model

and

serial

number

of

your

set

are

located

on

the

rear.

Record

the

serial

number

in

the

space

provided

below.

Refer

to

these

numbers

whenever

you

call

upon

your

Sony

dealer

regarding

this

product.

Model

No.

EVT-820

Serial

No.

CAUTION

The

format

used

in

the

time

lapse

recorder

EVT-820

differs

from

the

regular

8

mm

video

format.

This

unit

cannot

be

used

to

play

8

mm

video

cassettes.

However,

cassettes

recorded

on

this

unit

may

be

viewed

on

a

normal

8

mm

video

cassette

recorder.

To

prevent

fire

or

shock

hazard,

do

not

ex-

pose

the

unit

to

rain

or

moisture.

CAUTION

RISK

OF

ELECTRIC

SHOCK

DO

NOT

OPEN

CAUTION:

TO

REDUCE

THE

RISK

OF

ELECTRIC

SHOCK,

DO

NOT

REMOVE

COVER

(OR

BACK).

NO

USER-SERVICEABLE

PARTS

INSIDE

REFER

SERVICING

TO

QUALIFIED

SERVICE

PERSONNEL.

This

symbol

is

intended

to

alert

the

user

to

the

presence

of

uninsulated

“dangerous

voltage”

within

the

prod-

uct's

enclosure

that

may

be

of

suffi-

cient

magnitude

to

constitute

a

risk

of

electric

shock

to

persons.

This

symbol

is

intended

to

alert

the

user

to

the

presence

of

important

operating

and

maintenance

(servicing)

instructions

in

the

literature

accompa-

nying

the

appliance.

WARNING

This

equipment

generates,

uses,

and

can

radiate

radio

frequency

energy

and

if

not

installed

and

used

in

accordance

with

the

instructions

manual,

may

cause

interference

to

radio

communications.

It

has

been

tested

and

found

to

comply

with

the

limits

for

Class

A

computing

devices

pursuant

to

Subpart

J

of

Part

15

of

FCC

Rules,

which

are

designed

to

provide

reasonable

protection

against

such

interference

when

operated

in

a

commercial

environment.

Operation

of

this

equipment

in

a

residential

area

is

likely

to

cause

interference

in

which

case

the

user

at

his

own

expense

will

be

required

to

take

whatever

measures

may

be

required

to

correct

the

interference.

For

the

customers

in

Canada

This

apparatus

complies

with

the

Class

A

limits

for

radio

noise

emissions

set

out

in

Radio

Interference

Regulations.

|

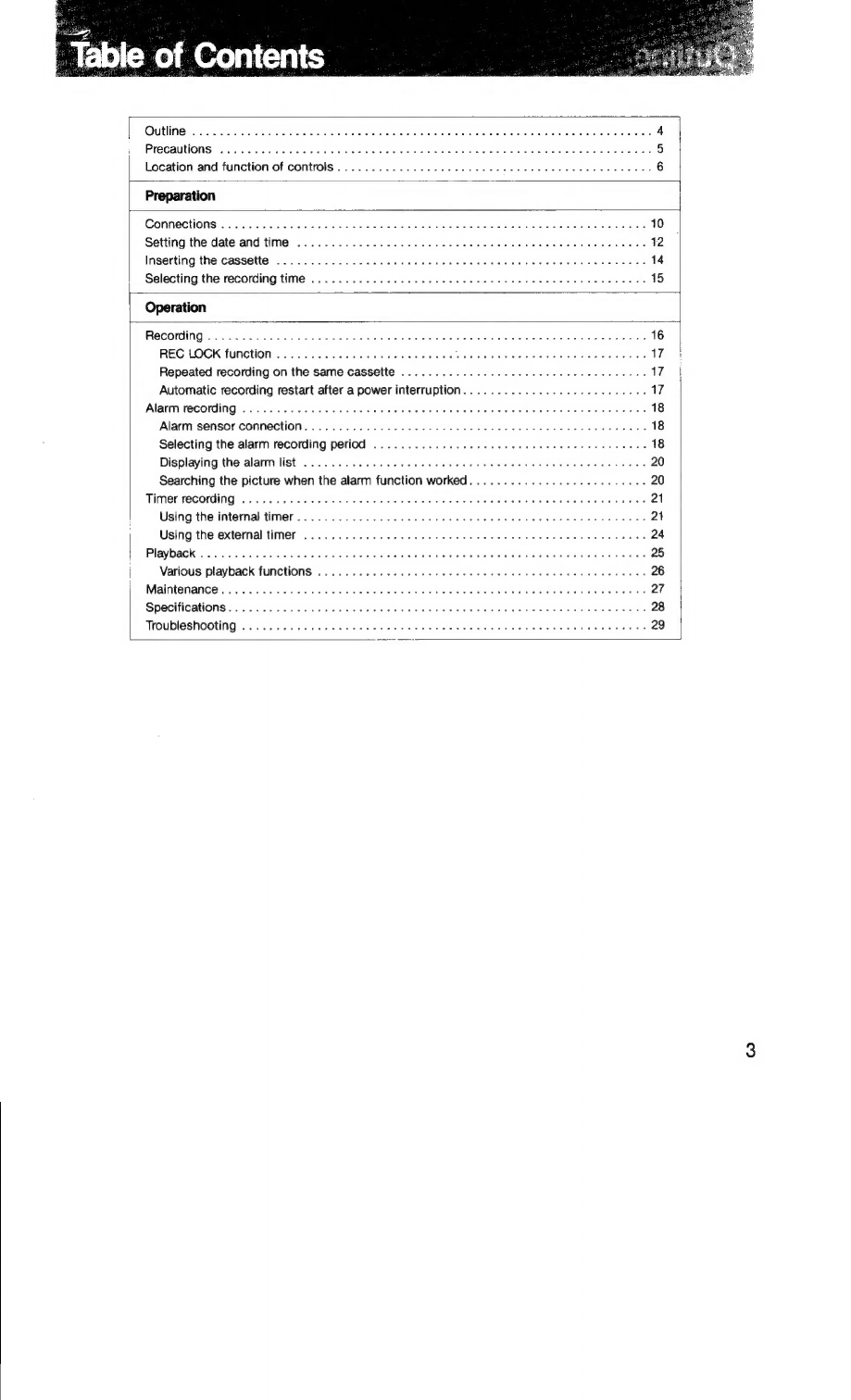

‘Table

of

Contents

OUTING

ss

ak

chee

eg

wees

dated

abe

adenced

cats

Sravenatle

cl

deavedeeaeeuh

ly

cae

ed

AP

earn

Salo.

g

BR

teers

4

PIECAUNONS:

ai.

0,

oars

eee

EG

Shee

ns

Govehstonts

Sheree

oaks

ies

Serie

yee

slg

Renee

5

Location

and

function

of

controls

.

0...

cee

nee

e

nee

eens

6

Preparation

GOMMOCHIONS

0.5.

eve

owtss

as

dance

shecoeens

otter

sisi

Boole

Dicnedha

igh

dudvoustelalatsl

gid

EAB

slays

dee

aheuierae

sage

sae

10

Setting

the

date

and

time

........

0...

cence

eens

12

Inserting

the

cassettes

..o

is

sea

ascites

Shadale

ie,

eb

ace

08

Rise

wees

8

FS4

Va

ARES

14

Selecting

the

recording

time

...

0.0...

ec

eee

ee

eee

eee

15

Operation

FROCOMDIN

ieee

3d

store

ects

a

ern

o

sree

es

cawcae

ee

Darl

eet

tecae

fale

teed

graeme

veto

ea

eee

16

REC

LOCK

1Unclion:.

«6...

ddssas

tities

isd

CN

e

ee

eed

Supe

ese

Se

ee

17

Repeated

recording

on

the

same

cassette

.........

0.0...

cee

eee

eee

eee

17

Automatic

recording

restart

after

a

power

interruption...

...............

020

cee

ee

17

Alarm

-FeCOrding):

<2

tise

vincias

tol

Bad

Vdd

sheave

cele

cade

dite

had

daveb

Saiee

Bw

add

24

18

Alarm

sensor

connection.

........

0...

c

eee

ee

eee eee

e

eee

eee

nes

18

Selecting

the

alarm

recording

period

...

2...

cc

eee

eens

18

Displaying

the

alarm

list

2.0...

kc

cee

eee

ete

eee

eens

20

Searching

the


when

the

alarm

function

worked.

..............

00-00

c

eee

20

THMEr.

PECOMGING:

f

o34

Sie

Seed

wee

eee

ROE

ae

Kee

2

oh

tee

See

Mavee

Sele tale

eles

21

Using

the

internal

timer...

ee

Sk

care

eee eee

acne

ees

eee

21

Using

the-externalitimen

<<

siscosen

sees

Detar

gets

Sage

enti

turn

sad

he

Sed

24

Playbackss

6.00

4

hinshctdee

eaten

oor

shane

ds

Pena

Mate

olen

ate

ae

25

Various

playback

fUNCtIONS

......

0...

.

cet

eee

e

eee

teens

26

Maintenances,

s:i..22.6.c00804

okt

Reed

seg

cocina

nee

baa

e

ne

Sea

ae

see

eae

27

Specifications:

vce

au

Oe

hee

eee

ee

KG

ae oe

eee

Ew

EE

Ga

a

ew

Re

ewe

SR

EER

S

28

TPSUIDIGSNGOUGE

sk

ode

Sie

eh

ee

oe

ole

eure

ead

eed

eed

chara)

29

Frame

still


with

high

resolution

The

frame

still


doubles

vertical

resolution

in

comparison

to

the

field

still

picture.

*

Horizontal

resolution

is

improved

to

more

than

380

lines

in

black-and-white

mode

and

more

than

260

lines

in

color

mode.

Six

time

lapse

modes

The

time

lapse

intervals

for

recording

can

be

set

in

six

steps,

from

1

frame

per

0.25

seconds

to

1

frame

per

16

seconds.

At

the

longest

interval

setting,

available

recording

time

is

a

full

760

hours

(about

31

days)

with

one

90-minute

tape.

Field

still


with

digital

memory

For

clear

and

unblurred

viewing

of

fast-moving

objects,

single

fields

stored

in

digital

memory

can

be

displayed.

Versatile

recording

functions

¢

Alarm

recording

—

Automatic

recording

at

shortest

time

mode

setting

when

alarm

sensor

is

activated.

©

Timer

recording

—

Two

kinds

of

timer

recording

Internal

timer

recording:

Automatic

recording

at

the

desired

time

on

the

desired

days

of

the

week.

Up

to

three

programs

can

be

preset

for

one

week.

External

timer

recording:

Automatic

start

of

recording

when

power

is

supplied

from

an

external

timer.

*

Repeat

recording

—

Automatic

rewind

at

tape

end,

and

recording

restart

at

tape

beginning.

Alarm

recall

and

alarm

search

function

Up

to

10

alarm

recordings

can

be

listed

and

the

alarm

date,

time

and

current

time

are

shown

(“Alarm

recall’).

A

still


can

be

also

obtained

at

the

alarm

recording

portion

(‘Alarm

search’).

Time/date

generator

Time

and

date

information,

which

is

invaluable

for

surveillance

and

monitoring

purposes,

can

be

recorded

together

with

the

picture.

Informative

display

with

tape

counter

The

recording

condition

and

other

settings

can

be

checked

at

a

glance

on

the

easy-to-

read

display.

The

REC

indicator

flashes

in

the

same

interval

as

the

selected

time

mode,

and

the

ALARM

indicator

alerts

of

any

alarm

sensor

operation.

Power

failure

backup

and

automatic

recording

restart

Time

and

date

settings

are

retained

for

up

to

72

hours

even

in

the

case

of

a

power

interruption.

During

recording,

when

power

is

restored,

recording

automatically

continues

in

the

previously

selected

mode.

REC

LOCK

function

To

guard

against

operation

errors,

the

record

mode

can

be

locked,

so

that

recording

is

not

interrupted

even

if

a

button

is

accidentally

pressed.

On

safety

©

Operate

the

unit

only

on

120V

AC,

50/60

Hz.

*

Should

any

solid

object

or

liquid

fall

the

cabinet,

unpiug

the

unit

and

have

it

checked

by

qualified

personnel

before

operating

it

any

further.

*

Unplug

the

unit

from

the

wall

outlet

if

it

is

not

to

be

used

for

an

extended

period

of

time.

To

disconnect

the

cord,

pull

it

out

by

the

plug.

Never

pull

the

cord

itself.

On

installation

©

Allow

adequate

air

circulation

to

prevent

internal

heat

build-up.

Do

not

place

the

unit

on

surfaces

(rugs,

blankets,

etc.)

or

near

materials

(curtains,

draperies)

that

may

block

the

ventilation

slots.

*

Do

not

install

the

unit

near

heat

sources

such

as

radiators

or

air

ducts

or

in

a

place

subject

to

direct

sunlight,

excessive

dust,

mechanical

vibration

or

shock.

¢

The

unit

is

designed

for

operation

in

a

horizontal

position.

Do

not

install

it

in

an

inclined

position.

¢

Keep

the

unit

and

cassette

tapes

away

from

equipment

with

strong

magnets,

such

as

a

microwave

oven

or

a

large

loudspeaker.

©

Do

not

place

any

heavy

object

(more

than

13

kg,

28

Ibs)

on

the

unit.

On

operation

©

When

the

unit

is

not

in

use,

turn

the

power

off

to

conserve

energy

and

to

extend

its

useful

life.

©

Remove

and

store

video

cassettes

after

recording

or

playback.

On

cleaning

Clean

the

cabinet,

panel

and

controls

with

a

dry

soft

cloth,

or

a

soft

cloth

lightly

moistened

with

a

mild

detergent

solution.

Do

not

use

any

type

of

solvent,

such

as

alcohol

or

benzine,

which

might

damage

the

finish.

On

repacking

Do

not

throw

away

the

carton

and

packing

materials.

They

make

an

ideal

container

in

which

to

transport

the

unit.

When

shipping

the

unit

to

another

location,

repack

it

as

illustrated

on

the

carton.

On

cassette

care

Store

cassettes

in

their

cases

and

keep

them

in

an

upright

position

to

prevent

intrusion

of

dust

and

uneven

winding.

If

you

have

any

questions

about

this

unit,

contact

your

Sony

dealer.

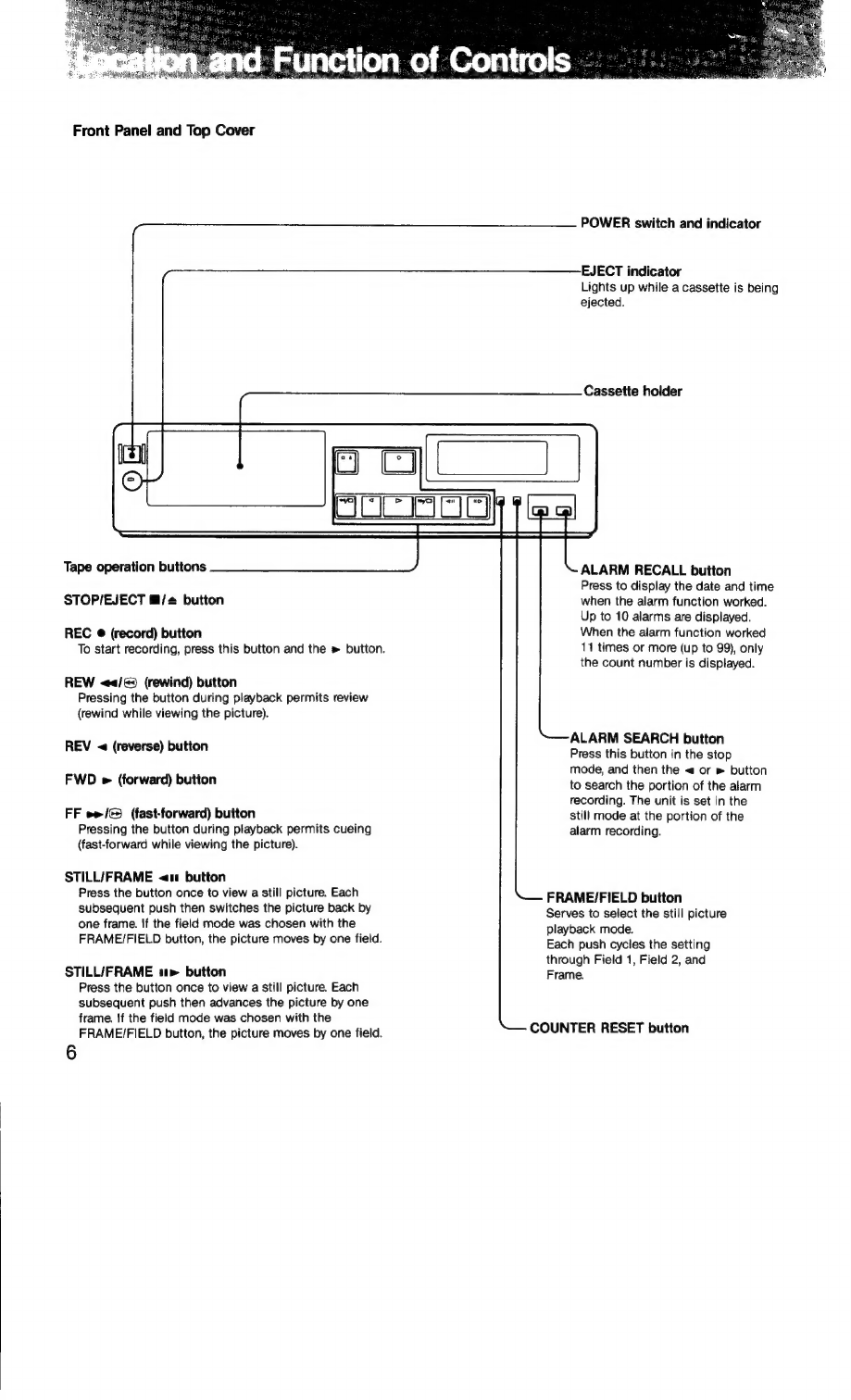

Front

Panel

and

Top

Cover

i

i

ec

POWER

switch

and

indicator

EJECT

indicator

Lights

up

while

a

cassette

is

being

|

ejected.

Cassette

holder

Tape

operation

buttons

ALARM

RECALL

button

Press

to

display

the

date

and

time

when

the

alarm

function

worked.

Up

to

10

alarms

are

displayed.

When

the

alarm

function

worked

11

times

or

more

(up

to

99),

only

the

count

number

is

displayed.

STOP/EJECT

@/

button

REC

@

(record)

button

To

start

recording,

press

this

button

and

the

»

button.

REW

<a/@)

(rewind)

button

Pressing

the

button

during

playback

permits

review

(rewind

while

viewing

the

picture).

ALARM

SEARCH

button

Press

this

button

in

the

stop

mode,

and

then

the

«

or

»

button

to

search

the

portion

of

the

alarm

recording.

The

unit

is

set

in

the

still

mode

at

the

portion

of

the

alarm

recording.

REV

<

(reverse)

button

FWD

e

(forward)

button

FF

e»/e>

(fast-forward)

button

Pressing

the

button

during

playback

permits

cueing

(fast-forward

while

viewing

the

picture).

STILL/FRAME

<u

button

Press

the

button

once

to

view

a

still

picture.

Each

subsequent

push

then

switches

the


back

by

one

frame.

If

the

field

mode

was

chosen

with

the

FRAME/FIELD

button,

the


moves

by

one

field.

FRAME/FIELD

button

Serves

to

select

the

still


playback

mode.

Each

push

cycles

the

setting

through

Field

1,

Field

2,

and

STILL/FRAME

11»

button

Frame.

Press

the

button

once

to

view

a

still

picture.

Each

subsequent

push

then

advances

the


by

one

frame.

If

the

field

mode

was

chosen

with

the

FRAME/FIELD

button,

the


moves

by

one

field.

6

COUNTER

RESET

button

PB

SPEED

switch

Toggles

the

unit

between

regular

playback

speed

and

the

speed

shown

by

the

TIME

MODE

indicator.

TIMER

REC

(recording)

switch

INT:

to

start

or

stop

recording

at

the

time

preset

with

this

unit

EXT:

to

start

or

stop

recording

at

the

time

preset

with

the

connected

timer

OFF:

when

the

timer

function

is

not

in

use

TIME

MODE

button

Selects

the

recording

time

mode

(interval

setting).

Each

push

cycles

the

setting

through

12

H,

24

H,

48

H,

96

H,

192

H,

760

H.

SET,

ADJUST

buttons

Serve

to

set

the

date

and

time.

Time

date

generator

selector:

T.D.

(time/date)

SET:

to

set

the

time

and

date

T.D.

(time/date)

POSITION:

to

change

the

position

of

the

time

and

date

TIMER

SET:

to

set

the

built-in

timer

REPEAT

REC

(recording)

switch

Set

to

ON

to

use

the

same

cassette

for

repeated

recording.

At

the

tape

end,

the

cassette

is

automatically

rewound

and

recording

restart

from

the

beginning.

Only

if

the

alarm

sensor

was

activated,

the

tape

stops

at

the

tape

end.

REC

(recording)

LOCK

switch

When

set

to

ON,

all

front-panel

buttons

are

inoperative

after

recording

is

started.

This

serves

to

prevent

operation

errors.

(aon)

|

PRL

ISFIeye°

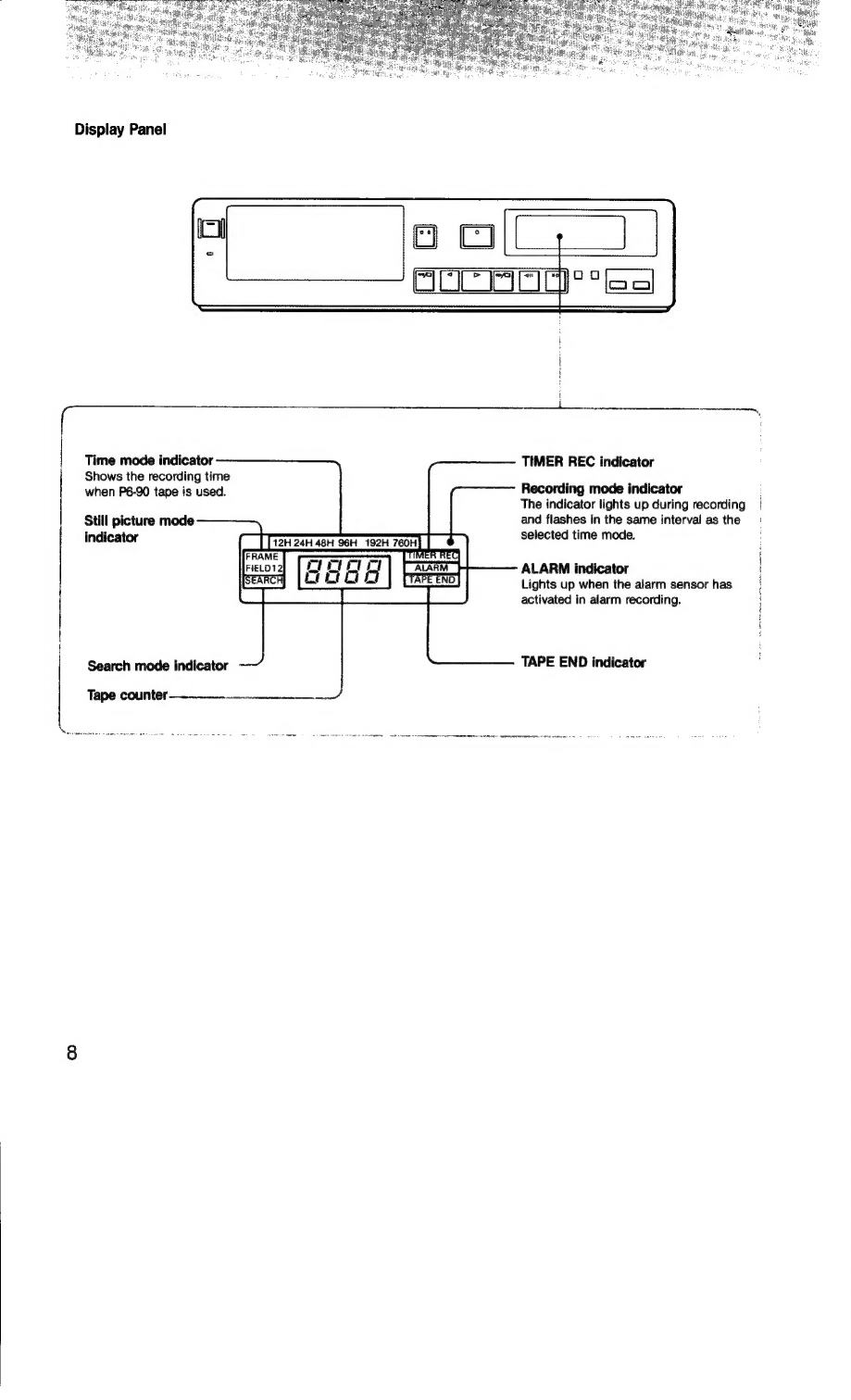

Display

Panel

TIMER

REC

indicator

Recording

mode

indicator

The

indicator

lights

up

during

recording

and

flashes

in

the

same

interval

as

the

selected

time

mode.

|

|

Time

mode

indicator

|

Shows

the

recording

time

j

when

P6-90

tape

is

used.

Still


mode

indicator

|

[12H

24H

48H

96H

192H

760H}

|

FRAME

FIELD

12)

SEARCH

ALARNM

indicator

Lights

up

when

the

alarm

sensor

has

activated

in

alarm

recording.

TAPE

END

indicator

Tape

counter

BF

ete

Sa

!

|

Search

mode

indicator

—~7

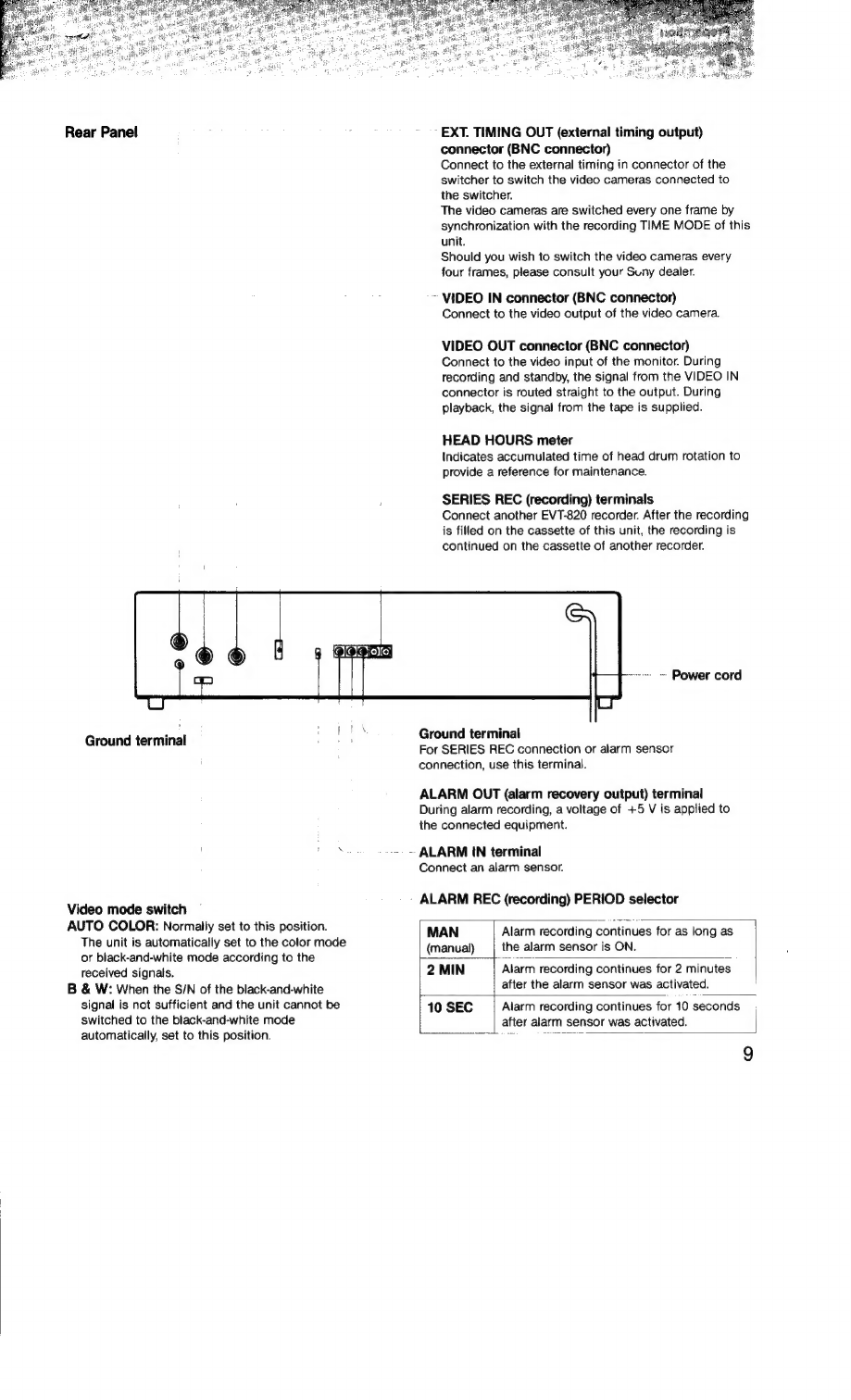

Rear

Panel

eee

Ground

terminal

Video

mode

switch

AUTO

COLOR:

Normally

set

to

this

position.

The

unit

is

automatically

set

to

the

color

mode

or

black-and-white

mode

according

to

the

received

signals.

B

&

W:

When

the

S/N

of

the

black-and-white

signal

is

not

sufficient

and

the

unit

cannot

be

switched

to

the

black-and-white

mode

automatically,

set

to

this

position.

~

--

EXT.

TIMING

OUT

(external

timing

output)

connector

(BNC

connector)

Connect

to

the

external

timing

in

connector

of

the

switcher

to

switch

the

video

cameras

connected

to

the

switcher.

The

video

cameras

are

switched

every

one

frame

by

synchronization

with

the

recording

TIME

MODE

of

this

unit.

Should

you

wish

to

switch

the

video

cameras

every

four

frames,

please

consult

your

Suny

dealer.

~

VIDEO

IN

connector

(BNC

connector)

Connect

to

the

video

output

of

the

video

camera.

VIDEO

OUT

connector

(BNC

connector)

Connect

to

the

video

input

of

the

monitor.

During

recording

and

standby,

the

signal

from

the

VIDEO

IN

connector

is

routed

straight

to

the

output.

During

playback,

the

signal

from

the

tape

is

supplied.

HEAD

HOURS

meter

Indicates

accumulated

time

of

head

drum

rotation

to

provide

a

reference

for

maintenance.

SERIES

REC

(recording)

terminals

Connect

another

EVT-820

recorder.

After

the

recording

is

filled

on

the

cassette

of

this

unit,

the

recording

is

continued

on

the

cassette

of

another

recorder.

-~-

=~

Power

cord

Ground

terminal

For

SERIES

REC

connection

or

alarm

sensor

connection,

use

this

terminal.

ALARM

OUT

(alarm

recovery

output)

terminal

During

alarm

recording,

a

voltage

of

+5

V

is

applied

to

the

connected

equipment.

-

ALARM

IN

terminal

Connect

an

alarm

sensor.

ALARM

REC

(recording)

PERIOD

selector

MAN

Alarm

recording

continues

for

as

long

as

(manual)

|

the

alarm

sensor

is

ON.

2

MIN

Alarm

recording

continues

for

2

minutes

after

the

alarm

sensor

was

activated.

10

SEC

Alarm

recording

continues

for

10

seconds

j

i

oak

after

alarm

sensor

was

activated.

|

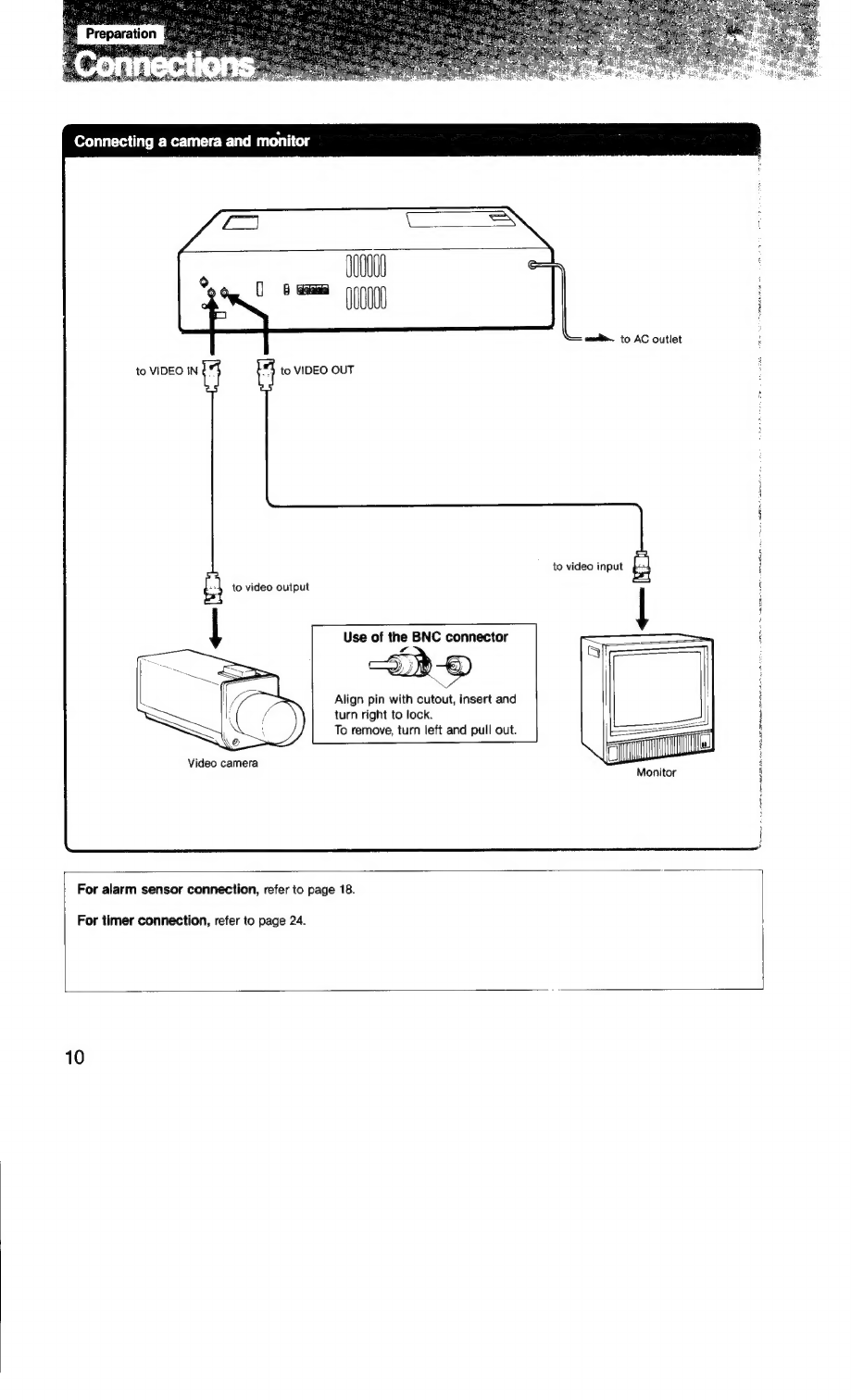

Preparation

eal

to

AC

outlet

i

to

VIDEO

IN

to

VIDEO

OUT

to

video

input

to

video

output

Use

of

the

BNC

connector

—-O

<>

H

Align

pin

with

cutout,

insert

and

i

turn

right

to

lock.

j

To

remove,

turn

left

and

pull

out.

}

a

¥

Video

camera

0

i

Monitor

For

alarm

sensor

connection,

refer

to

page

18.

For

timer

connection,

refer

to

page

24.

10
