SOR 1510 Manuale di istruzioni
Form 451 (01.13) ©SOR Inc.
1/8

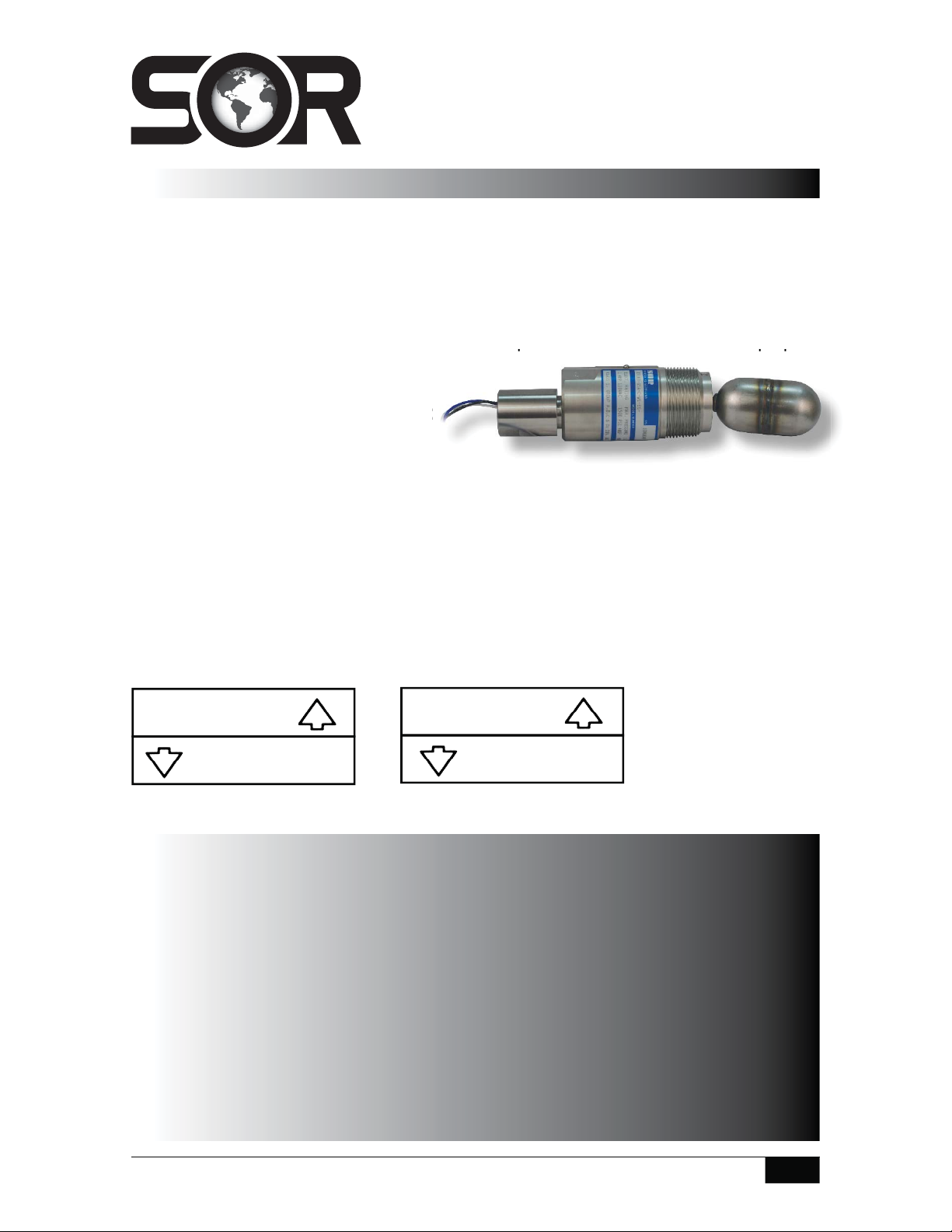

The SOR
®
1510 Level Detector mounts into the side of a vessel. Electric detecting action is
provided by the float moving a magnet into the field of a hermetically sealed reed detector
capsule.
The unit may be mounted for either high or low liquid level alarm by rotating the detector
body to the proper position. The body wrench flats provide for ease of rotation and proper
positioning. See decal on housing.
Inspect the unit for any shipment damage.
Check for mechanical clearance of
the float. Float must move freely without binding throughout its stroke.
Use an acceptable thread compound when installing unit to ensure a leak-free fit and to
avoid thread galling.
To achieve required function, install the unit according to the nameplate instructions
shown here.
NOTE: If you suspect that a product is defective, contact the factory or the SOR Representative
in your area for a return authorization number (RMA). This product should only be installed by
trained and competent personnel.
1510 Side Mounted
Level Detector
General Instructions
NC - indicates
circuit is closed
Registered Quality System to ISO 9001
Design and
specifications are
subject to change
without notice.
For latest revision, go to
www.sorinc.net
Table of Contents
Installation...................................... 2
Installation...................................... 3
Float Attachment............................... 3
Dimensions ..................................... 3
Electrical Connection.......................... 4
Special Conditions............................. 4
Wiring for DPDT Relay ........................ 5
ATEX and IECEx Marking Details ............ 6
Declaration of Conformity .................... 7
Troubleshooting ................................ 8
Replacement Parts ............................ 8
ppp
:
m
age
.
THIS SIDE UP
N.C. @ LOW LEVEL
THIS SIDE UP
N.C. @ HIGH LEVEL
THIS SIDE UP
N.C. @ HIGH LEVEL
THIS SIDE UP
N.C. @ LOW LEVEL
Nameplate Position
for Low Level Alarm
Nameplate Position
for High Level Alarm
Before Installaton of the Level Detector:
2/8
Form 451 (01.13) ©SOR Inc.
Installation

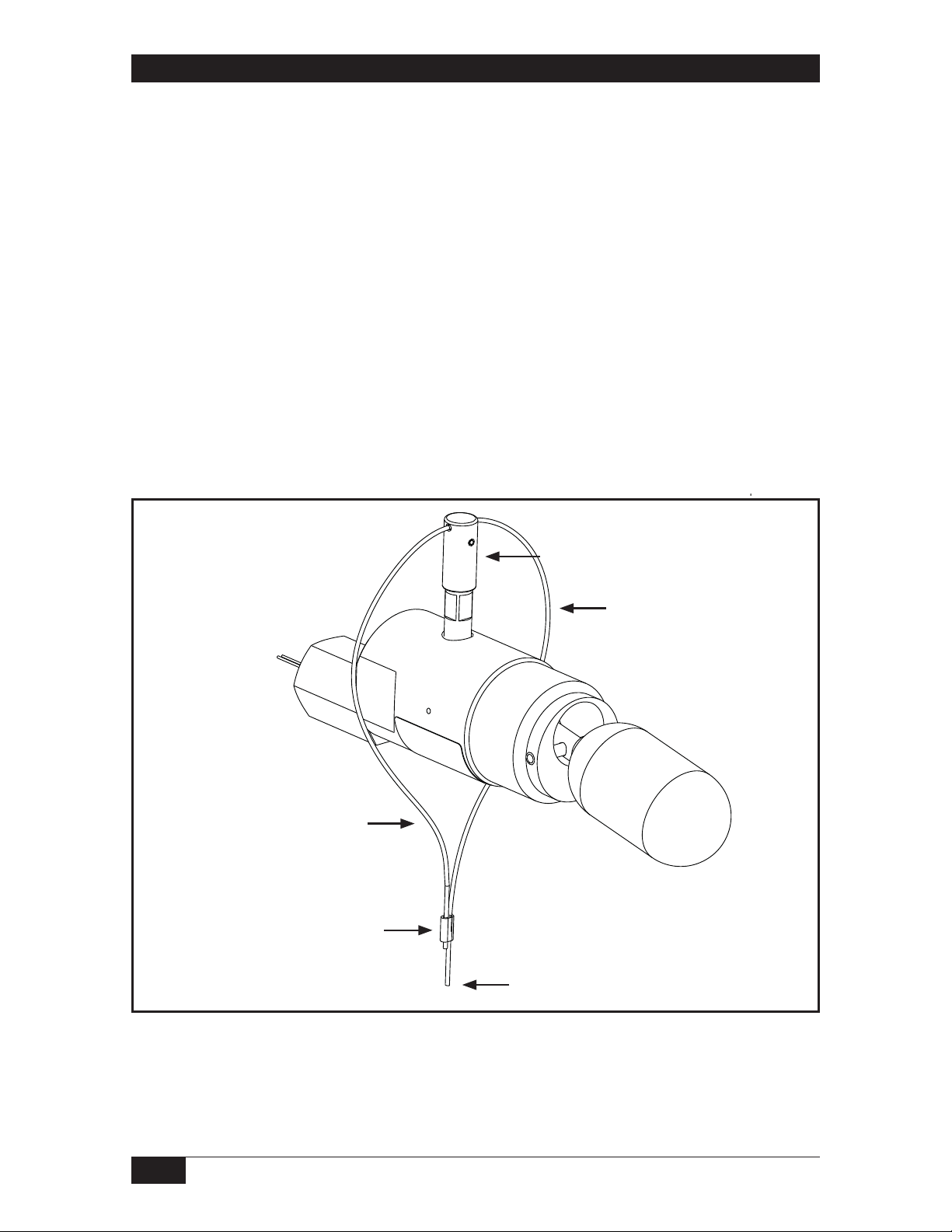

MD Remote Option (includes plundger, 20 foot cable and two crimps.)
Screw plunger to the top of unit.
Thread the 20’ cable through the hole in plunger and create a 14 inch top loop as
shown below.
At the bottom of the cable, a second loop can be created as a handle for actuation at
the desired length.
The unit may be mounted in any of the following installation arrangements:
1-1/2” NPT half coupling (No full coupling).
2” NPT full coupling. (Use in conjunction with 2 x 1-1/2” NPT bushing as required.)
2” NPT pipe tee. (Use in conjunction with 2 x 1-1/2” NPT bushing as required.)
Optional flanged mounting.
Optional chamber mounting.
Linear = mm/inches
Drawing 0098636
REMOTE MANUAL CHECK
MD OPTION
CRIMP
REMOTE CABLE
CREATE HANDLE AT DESIRED LENGTH
TOP 14” LOOP
PLUNGER
Form 451 (01.13) ©SOR Inc.
3/8
14685 W 105TH ST LENEXA KS
144.5
5.69
78.0
3.07
54.0
2.12
100.9
3.97
14.3
0.56
44.5
1.75
WRENCH
FLATS
69.9
2.75
12.7
0.50
19.1
0.75
FLOAT
1-1/2" NPT(M) PROCESS
CONNECTION
1/2"NPT(F)
ELECTRICAL
CONNECTION
WIRE LEADS
457.2
18.00 MIN LENGTH
COLOR CODED
AND MARKED
MC or MD MANUAL
CHECK OPTION
MD INCLUDES 20FT
LONG CABLE
BODY
Linear = mm/inches
Drawing 0390693

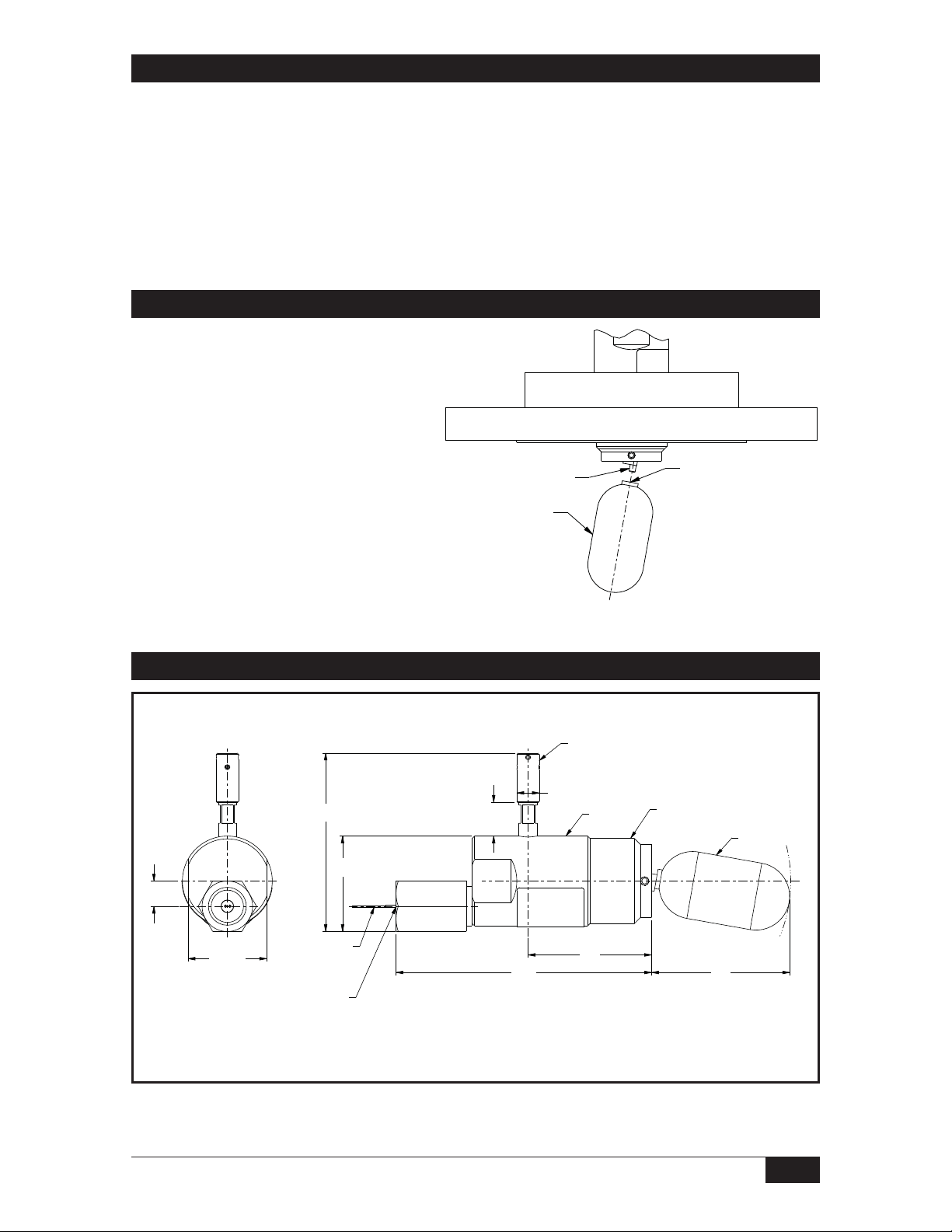

Dimensions
Dimensions are for reference only. Contact the factory
for certified drawings for a particular model number.
Linear = mm/inches
Drawing 0390747
APPLY TWO DROPS
LOCTITE 271 INSIDE
THREADED HOLE
OF FLOAT
FLOAT
SET SCREW
Place two drops of Loctite 271
inside the threaded hole of the float.
Thread the float onto the set
screw and hand-tighten.
NOTE: Do not remove the set screw as
it secures the pivot arm to the shaft.
Float Attachment (Series 1500 with Flange)
Safety Integrity Level (SIL) Installation Requirements
The SOR pressure detectors have been evaluated as Type-A safety related hardware.
To meet the necessary installation requirements for the SIL system, the following
information must be utilized:
Proof Test Interval shall be one year.
Units may only be installed for use in Low Demand Mode.
Products have a HFT (Hardware Fault Tolerance) of 0, and were evaluated in a
1oo1 (one out of one) configuration. Form 1538 (03.12) ©2012 SOR Inc.
4/8
Form 451 (01.13) ©SOR Inc.
Special Conditions for Safe Use
The permanently attached leads must be suitably protected against mechanical damage and
terminated in a suitable junction or terminal facility with a minimum degree of protection of
at least IP20.0
Ensure that the wiring conforms to all applicable local and national electrical codes and
install unit(s) according to relevant national and local safety codes.
Electrical connection is free wire leads with a 1/2” NPT(F) conduit connection. Use two
wrenches — one to hold the hex conduit connection, the other to tighten conduit fitting.
Detecting element is a hermetically sealed reed detector.

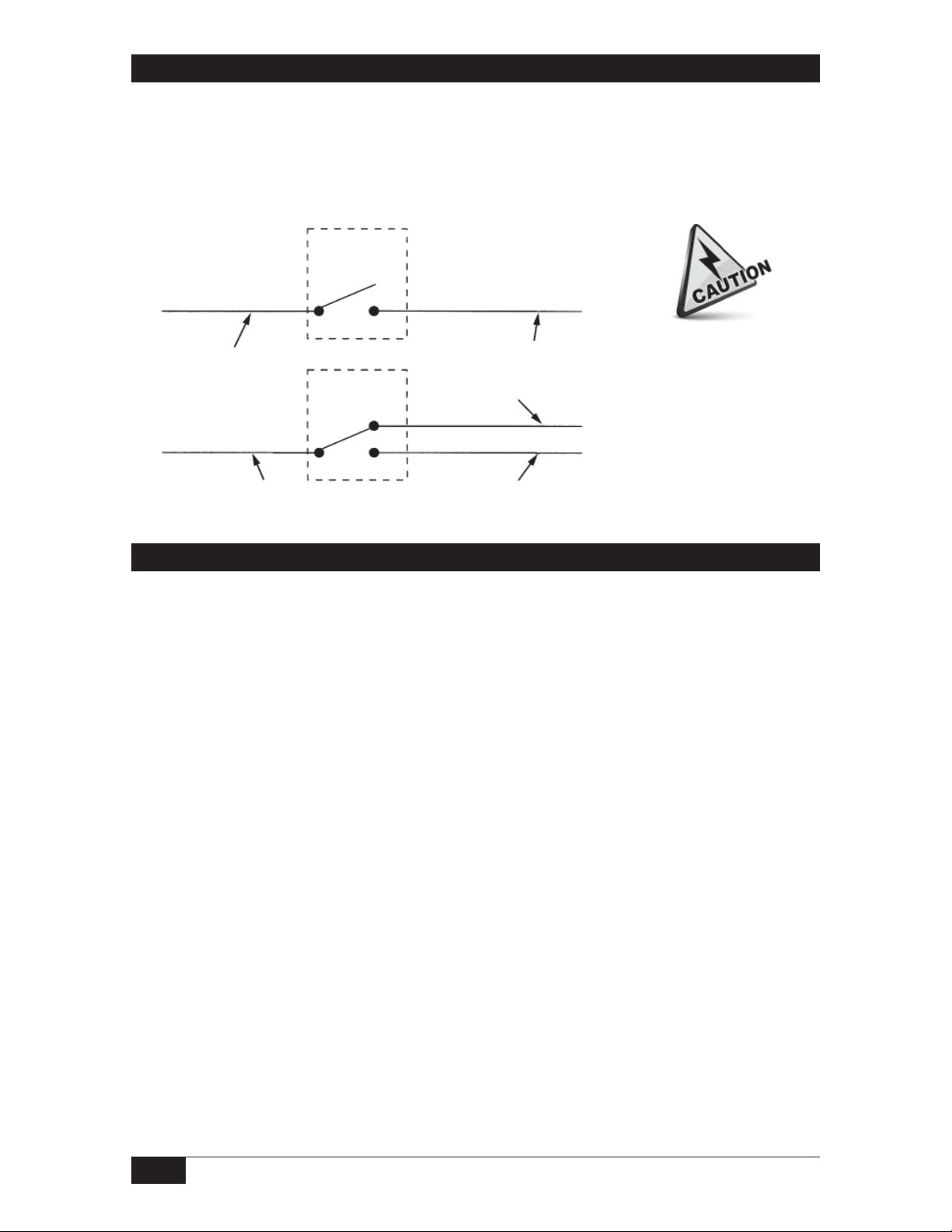

Electrical Connection
SPST
Reed Detector
Capsule
SPDT
Reed Detector
Capsule
Common Black Lead
Common Black Lead
Normally Open White Lead
Normally Closed White Lead
Normally Open Blue Lead
Do not exceed
catalog stated electrical
ratings. Improper
current input to detector
will cause permanent
damage to contacts.
Form 451 (01.13) ©SOR Inc.
5/8

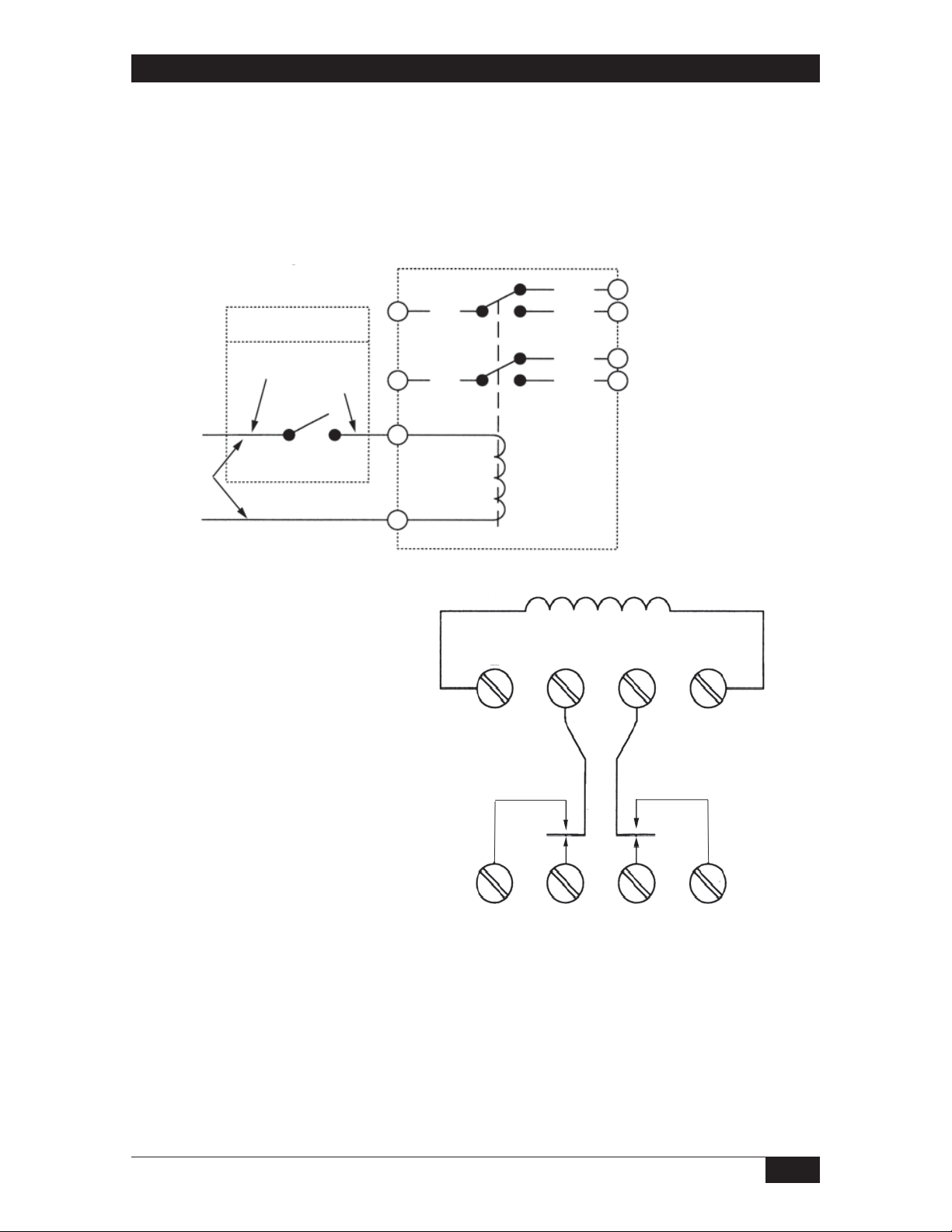

For Type 1510 Level Detectors equipped with DPDT relays, a wiring schematic and pin
position schematic is shown below. When the 1510 is actuated, the coil will energize and
“make” both NO1 and NO2 while it will “break” NC1 and NC2. This provides a DPDT circuit.
C1 C2
2187
3456
NO 1 NC 1 NC 2 NO 2
Detector Capsule
Black
Lead White
Lead
C2
C1
NC 2
NO 2
NC 1
NO 1
2
1
8
7
5
6
4
3
Power
Supply Relay Coil
Wiring for DPDT Relay
6/8
Form 451 (01.13) ©SOR Inc.
For ATEX and IECEx Certied Models
Standards Assessed To: ATEX Certification: EN 60079-0: 2009 & EN 60079-11:2007
IECEx Certification: IEC 60079-0:2004 & IEC 60079-11: 1999

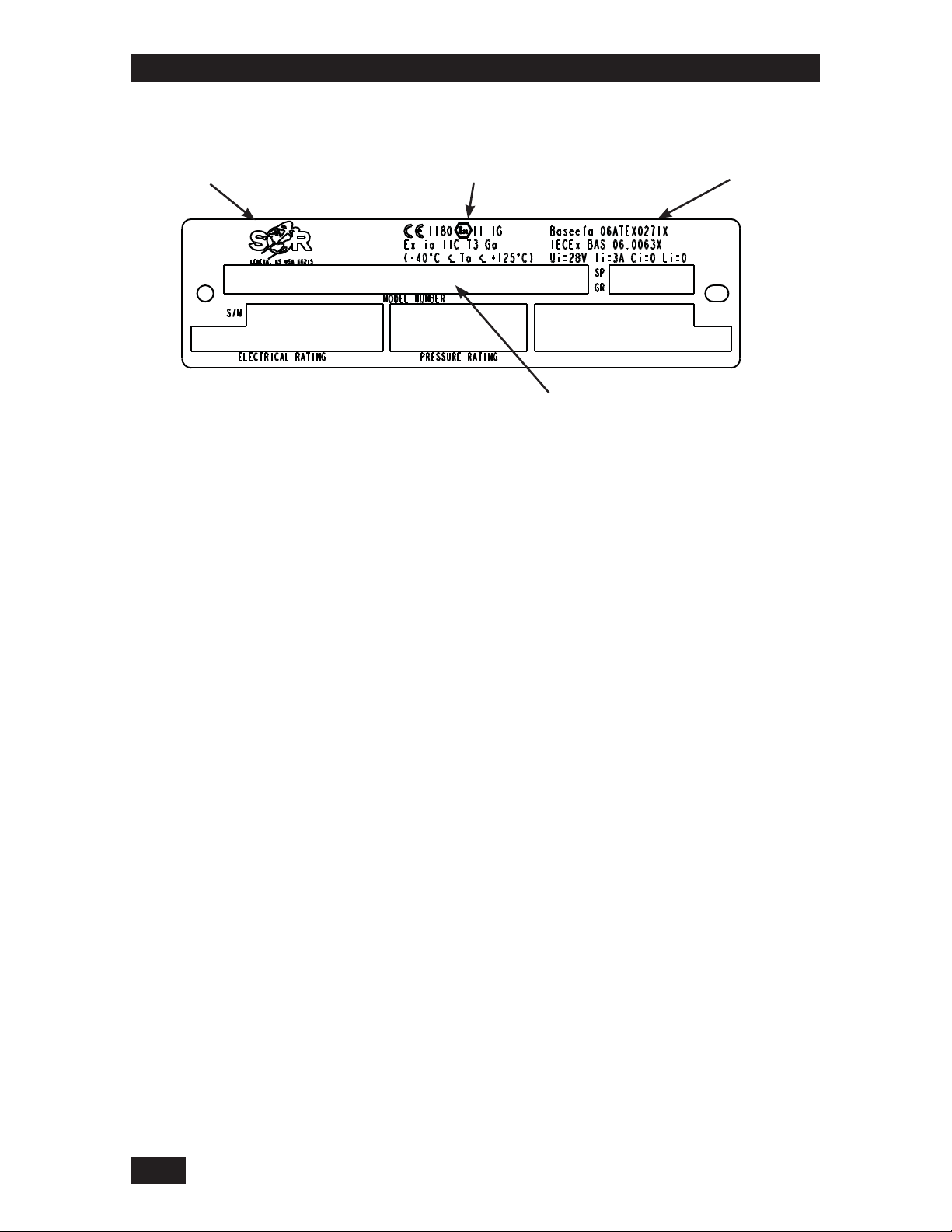

ATEX and IECEx Marking Details
Drawing 0720531
Manufacturer’s
Registered Trademark
ATEX Listing
Information
Product Type
Identification
Product Model
Identification
Form 451 (01.13) ©SOR Inc.
7/8
Declaration of Conformity
For ATEX Certied Models
EC Declaration
of Conformity
14685 West 105th Street, Lenexa, KS 66215-2003
s53!s&!8
Engineered to Order with Off-the-Shelf Speed
Form 1385 (11.12) SOR Inc.
Product
Manufacturer
Date of Issue
We declare that the above
products conform to
the following specifications
and directives
Carries the marking
Reference document
ATEX Notified Body
Persons responsible
Type 1500 Electric Detectors
SOR Inc.
14685 West 105
th
Street
Lenexa, Kansas 66215-2003
5NITED3TATESOF!MERICA
November 12, 2012
!4%8$IRECTIVE%#%QUIPMENT)NTENDEDFORUSE
IN0OTENTIALLY%XPLOSIVE!TMOSPHERES
%.%.
)%#)%#
II 1 G Ex ia IIC T3
²#4A²#OR²#4A ²#
%XIA))#4²#4A ²#
EC-Type Examination Certificate
Baseefa06ATEX0271X
IECEx BAS06.0063X
)SSUED*ANUARY
Baseefa Ltd..OTIlED"ODY.O
2OCKHEAD"USINESS0ARK3TADEN,ANE
"UXTON$ERBYSHIRE3+2:
5NITED+INGDOM
"ASEEFA#USTOMER2EFERENCE.O
*OHN*&ORTINO60OF%NGINEERING
*OHN*&ORTINO
8/8
Form 451 (01.13) ©SOR Inc.
14685 West 105th Street, Lenexa, KS 66215
913-888-2630
800-676-6794 USA
Fax 913-888-0767
Registered Quality System to ISO 9001
Printed in USA www.sorinc.net
Troubleshooting
Symptom Probable Cause
Float in actuated position but no output signal. No power supply.
Detector damaged. (Replace.)
Float in de-actuated position but still receiving
an output signal. Detector damaged. (Replace.)
Control will not function when installed but
operates when removed from process
connection.
Inadequate float travel. Float
travel restricted by mounting
nozzle. See Mounting Require-
ments.
Liquid in vessel at the actuation level but unit
does not respond.
Leaky or collapsed float.
(Replace.)
Liquid specific gravity too low.
Float stem bound up or dirty.
(Clean.)
Part Number Description
3130-052 316SS Float Assembly
3130-091 W9 - SPST Hermetically Sealed Detector Capsule
3130-245 W1 - SPDT Hermetically Sealed Detector Capsule
3130-107 L9 - SPST Hermetically Sealed Detector Capsule
3130-244 L1 - SPDT Hermetically Sealed Detector Capsule
9227-028 MC Manual Check Assembly for 1 1/2” NPT Body*
9227-029 MD Manual Check Assembly for 1 1/2” NPT Body*
9227-024 MC Manual Check Assembly for 2” NPT Body*
9227-025 MD Manual Check Assembly for 2” NPT Body*
3130-040 20’ Remote Cable with two cable crimps, for use with MC or MD
accessory only.
Replacement Parts
* Unit must have originally been supplied with MC or MD option.
