SOYO LI-7000 Manuale utente

SOYO LI-7000

LPX SYSTEM

****************************************************

Socket 370 CeleronProcessor supported

FW82810 AGP/PCI/AMR Chipset

66/100 MHz Front Side Bus supported

Custom LPX Form Factor

****************************************************

User's Manual

SOYO™LI-7000

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: August 1999

Version 1.0

LI-7000 SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents LI-7000

iii

Table of Contents

CHAPTER 1 INTRODUCTION..............................................................1

1-1 KEY FEATURES.............................................................1

1-2 LI-7000 SYSTEM ILLUSTRATION ................................1

1-3 UMPACKING..................................................................4

CHAPTER 2 MOTHERBOARD DESCRIPTION ...................................5

2-1 INTRODUCTION............................................................5

2-2 KEY FEATURES.............................................................5

2-3 HANDLING THE MOTHERBOARD..............................7

2-4 ELECTROSTATIC DISCHARGE PRECAUTIONS .........7

2-5 SY-7IWL-T MOTHERBOARD COMPONENTS.............8

2-6 CHIPSET.......................................................................10

2-7 I/O INTERFACE CONTROLLER..................................16

2-8 AUDIO SUBSYSTEM...................................................18

2-9 HARDWARE MONITOR...............................................18

2-10 WAKE ON LAN TECHNOLOGY..................................19

CHAPTER 3 HARDWARE INSTALLATION.......................................20

3-1 PREPARATIONS...........................................................20

3-2 INSTALLATION GUIDE...............................................21

3-2.1 CPU Installation............................................................. 22

3-2.2 SDRAM Memory Module Installation.............................. 24

3-2.3 Motherboard Connector.................................................. 26

3-2.4 Jumpers Setting .............................................................. 42

3-2.5 CMOS Clearing (JP5)..................................................... 43

3-2.6 Power On ....................................................................... 43

3-2.7 Quick BIOS Setup........................................................... 44

3-2.8 Troubleshooting at Fist Start........................................... 46

3-2.9 Power Off....................................................................... 47

CHAPTER 4 BIOS SETUP UTILITY...................................................48

Table of Contents LI-7000

4-1 SOYO COMBO SETUP.................................................51

4-2 STANDARD CMOS SETUP..........................................55

4-3 ADVANCED BIOS FEATURES.....................................58

4-4 ADVANCED CHIPSET FEATURES..............................62

4-5 INTEGRATED PERIPHERALS.....................................64

4-6 POWER MANAGEMENT SETUP ................................68

4-7 PNP/PCI CONFIGURATION SETUP.............................71

4-8 PC HEALTH STATUS....................................................74

4-9 LOAD OPTIMIZED DEFAULTS...................................76

4-10 LOAD FAIL-SAFE DEFAULTS.....................................77

4-11 SUPERVISOR PASSWORD...........................................78

4-12 USER PASSWORD........................................................79

4-13 IDE HDD AUTO DETECTION .....................................80

CHAPTER 5 DRIVERS INSTALLATION ............................................81

CHAPTER 6 SIGMATEL AUDIO DRIVER INSTALLATION..............86

CHAPTER 7 REALTEK LAN DRIVER INSTALLATION....................89

Introduction LI-7000

Chapter 1

INTRODUCTION

1-1 KEY FEATURES

ØLPX Form Factor 36.3(d) x 31.5(w) x 8.5(H) cm

Ø150W (Max.) SFX Switching Power Supply

ØScrew less & Wire-Free Front Panel

ØDetachable Logo Plate

Ø1 x FDD, 1 x HDD (hidden), 1 x CD-ROM drive bay

ØDetachable Drive Bracket

ØRiser Card for 1 x PCI and 1 x AMR slot Expansion

1-2 LI-7000 SYSTEM ILLUSTRATION

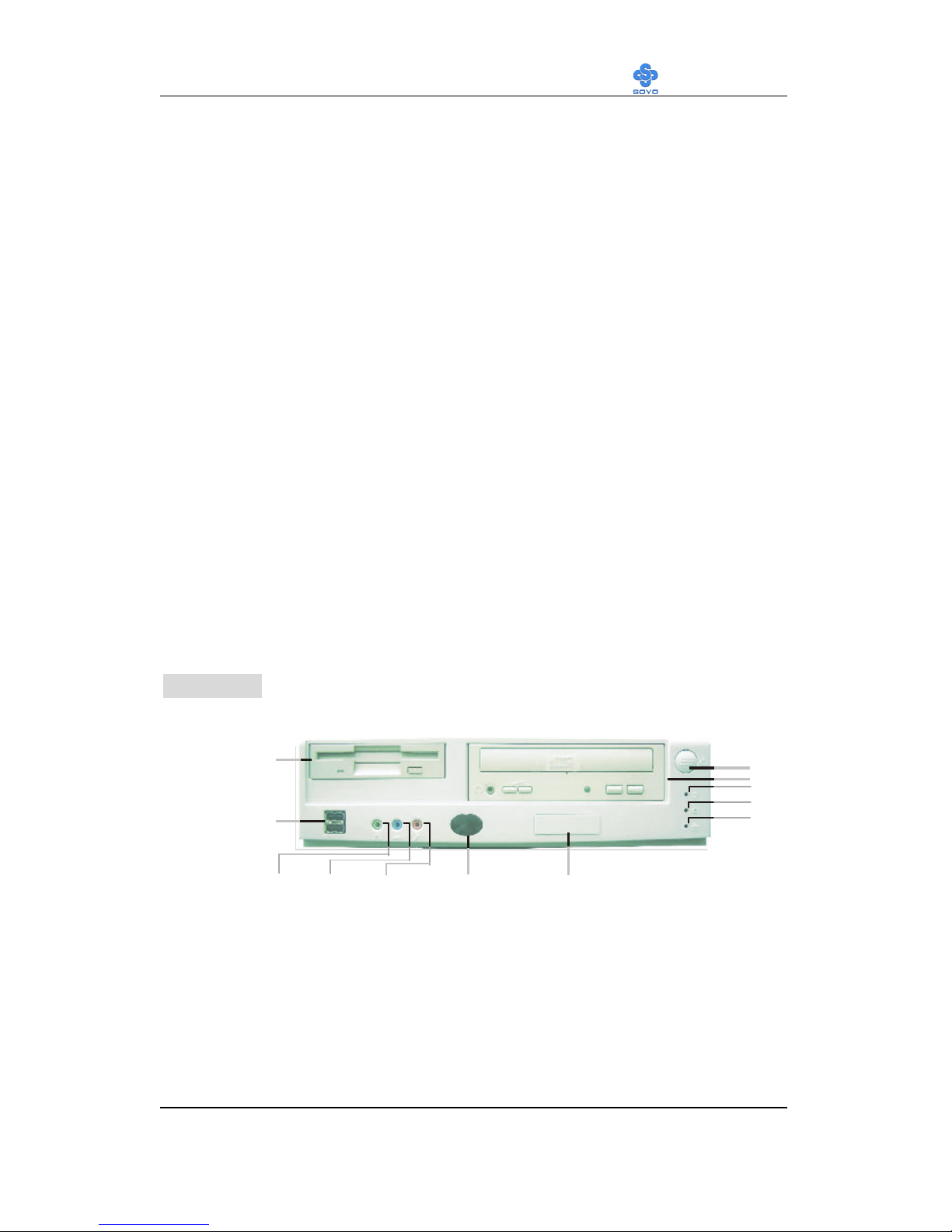

Figure 1.

Front Panel

USB Ports

IR WindowsLINE-OUT LINE-IN MIC JACK

LAN LED

Power Button

CD-ROM Mounting Bay

Power LED

HDD LED

Floppy Drive Mounting Bay

Detachable Loge Plate

Introduction LI-7000

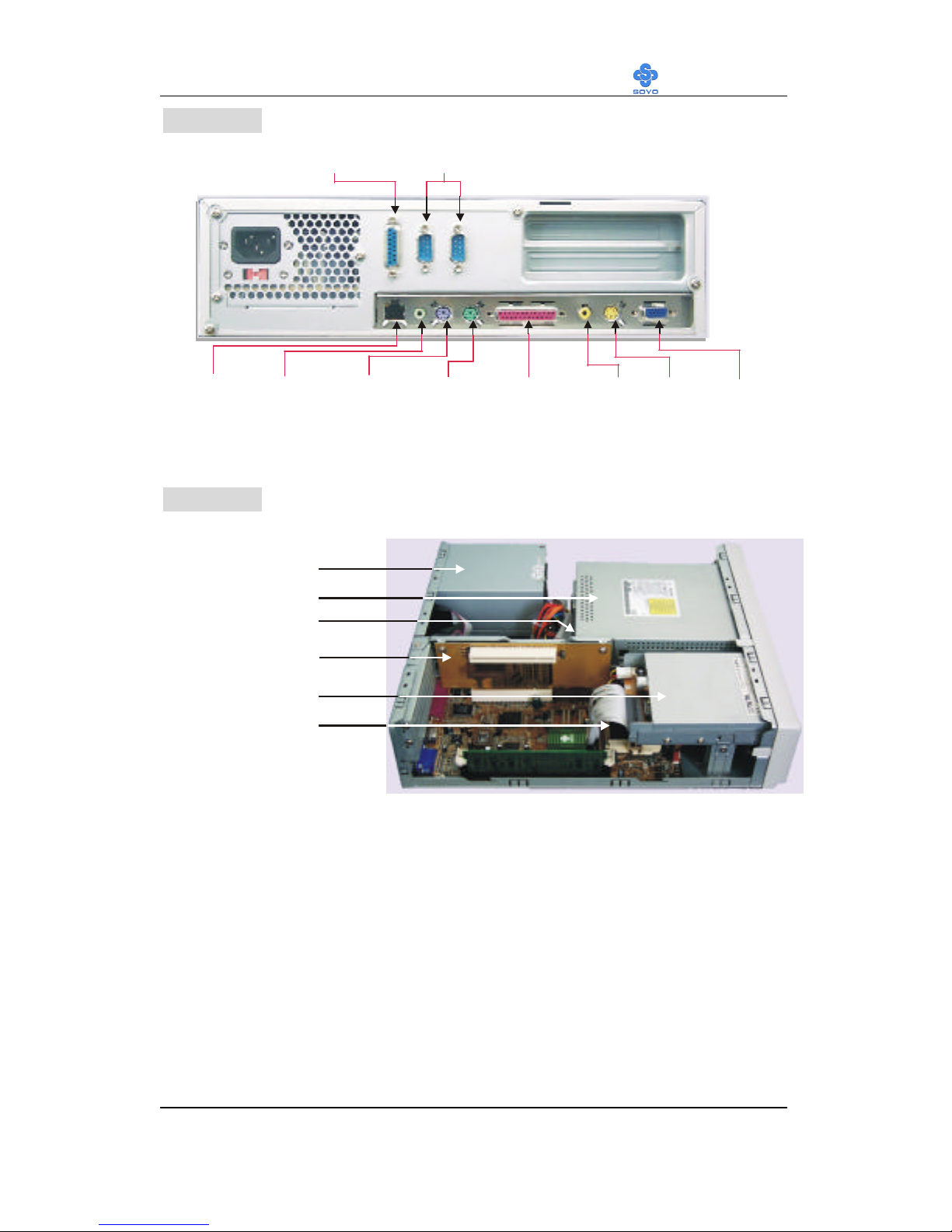

Figure 2.

Back Panel

Figure 3.

Inside Look

Serial Port

Game Port

Parallel Port

Mouse

Keyboard

LINE-OUT

LAN

TV-OUT

S-OUT

VGA Port

Socket 370 CPU

FDD

150W SFX Power Supply

CD-ROM

HDD

Riser Card

Introduction LI-7000

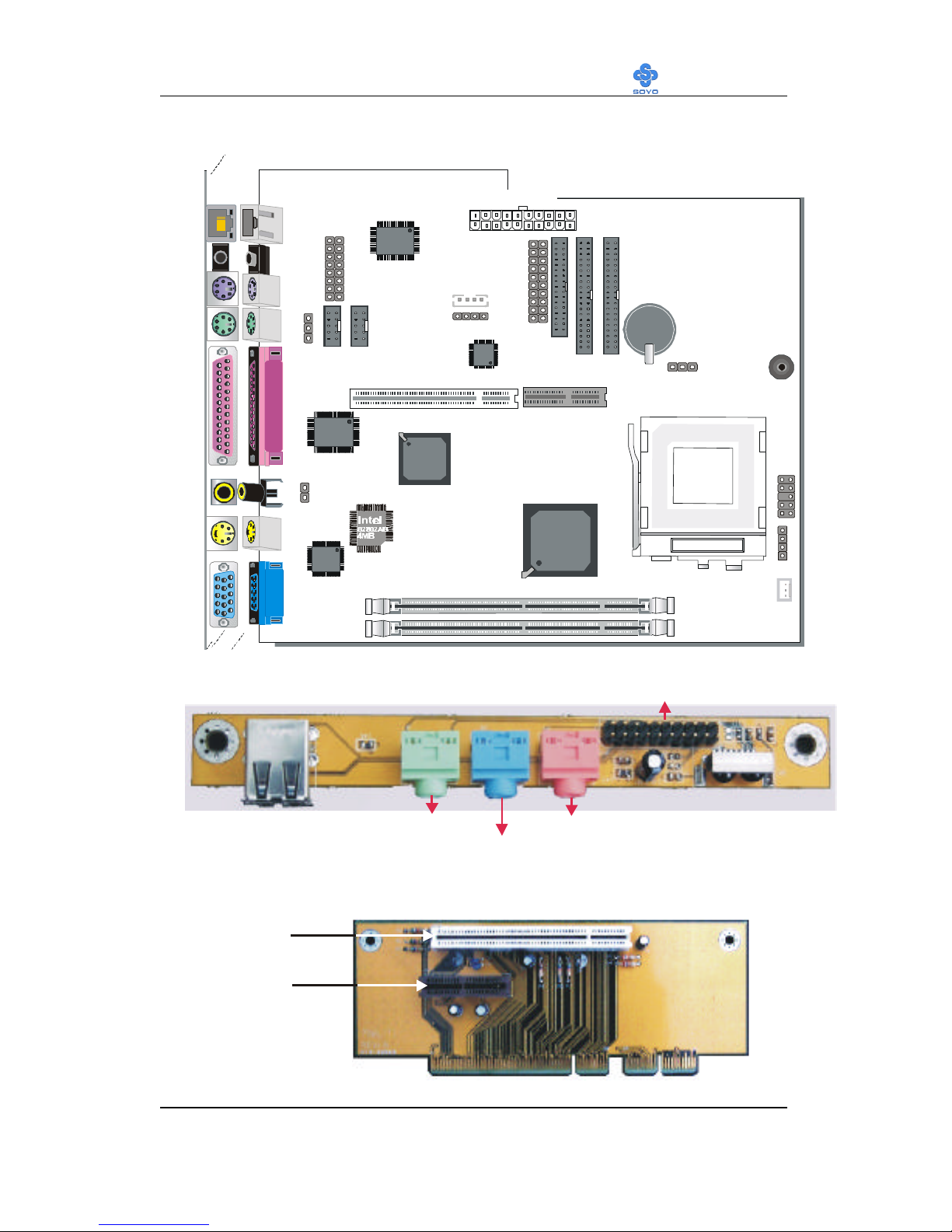

1. SY-7IWL-T Motherboard Layout

2. Front Panel Board

3. Riser Card

USBLINE-OUT

LINE-IN

MIC JACK

IR Module

To 7IWL-T Motherboard

PCI Slot

AMR Slot

Riser Card

PRT

PS/2 KB

Connector

PS/2 Mouse

Connector

PCI Slot

AMR

Lithium

Battery

LPC

W83627HF

-AW

TV-Out

Chip

LAN Chip

Realtek

8139B

IDE 2IDE 1

FDC

ATX Power

LINE-OUT

Socket 370

JP5

Jumper

CMOS Clear

DIMM 1

DIMM 2

COM1COM2

CODEC

AC97

Intel

FW82801

JP1

CPUFAN

910

VGA

S-Video

Connector

AV onnector for

TV-Out

LAN

Connector Game Port

Front Panel

Connector

JP15

JP10

Buzzer

Intel

FW82810

Introduction LI-7000

1-3 UNPACKING

When unpacking the System, check for the following items:

uThe LI-7000 System

uThe Quick Start Guide

uThe Installation CD-ROM

uSOYO 3-in-1 Bonus Pack CD-ROM (Norton

AntiVirus, Ghost and Virtual Drive)

uPower Cord

Like most electronic equipment, your Motherboard and other components

and devices may be damaged by electrostatic discharge. To avoid

permanent damage to components ground yourself while working by using

a grounding strap. Otherwise, ground yourself frequently by touching the

unpainted portion of the computer chassis to drain the static charges.

Motherboard Description LI-7000

Chapter 2

MOTHEBOARD DESCRIPTION

2-1 INTRODUCTION

The SY-7IWL-T AGP/PCI/AMR Motherboard is a high-performance

Socket 370 processor supported Custom LPX form-factor system board.

SY-7IWL-T uses the FW82810 Chipset technology and supports Socket

370 processors. This Motherboard is fully compatible with industry

standards and adds many technical enhancements.

2-2 KEY FEATURES

ØSupports Intel Celeron™

processors (300A-500MHz)

ØSupports 100 & 66 MHz Front Side Bus Frequency

ØAuto detect CPU bus Frequency (66/100)

ØAuto-detect CPU voltage

ØChipset integrated 3D AGP Accelerator

ØEasy CPU settings in BIOS with the “SOYO COMBO Setup”

ØPC98, ACPI

ØUltra DMA33/66 (ATA 33/66)

ØSupports ACPI Suspend Indicator

ØPower-on by modem, alarm, PS/2 Keyboard and Mouse

ØSupports Wake-On-LAN Function

ØSupports Onboard PCI LAN Realtek 8139B 10/100Mb/s

ØSupports TV-out (NTSC/PAL)

ØSupports AC97 Codec software audio

ØSupports onboard hardware monitoring and includes Hardware

Doctor™utility

ØPower failure resume

Motherboard Description LI-7000

ØFan speed control

ØBattery Low voltage Detect

ØSupport 7 sets of voltage monitoring

ØSupports multiple-boot function

ØY2K Complaint

ØSupports Audio Modem Riser slot (AMR 1.0 compliant)

Ø1 x 32-bit bus mastering PCI slot

Ø2 x USB ports onboard

Ø1 x IrDA Device

ØATX power connector

ØHardware Random Number Generator (RNG) for enabling enhanced

platform security

ØRTC hardware to handle Y2K Century Rollover

* If the user wants to use a Modem Riser card (MR) make sure to use a

Secondary

mode

MR,

PRIMARY

mode MRs are

NOT

Supported.
