SOYO SY-7IWM-X Manuale utente

SY-7IWM-X

Motherboard

Quick Start Guide

Hardware

Installation

Quick BIOS

Setup

Introduction

The SOYO CD

SOYO™

SY-7IWM-X Motherboard

Socket 370 for Intel Pentium® &Celeron

processors

Intel FW82810E AGP/PCI/AMR Motherboard

66/100/133 MHz Front Side Bus supported

Micro ATX Form Factor

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the properties of

their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for identification

purposes only. The registered trademarks and copyrights belong to their respective companies.

manual may be reproduced, transmitted, transcribed, translated into any other language, or

stored in a retrieval system, in any form or by any means, such as by electronic, mechanical,

magnetic, optical, chemical, manual or otherwise, without permission in writing from Soyo

Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this

manual. We reserve the right to amend the manual or revise the specifications of the product

described in it from time to time without obligation to notify any person of such revision or

amend. The information contained in this manual is provided to our customers for general use.

Customers should be aware that the personal computer field is subject to many patents. All of

our customers should ensure that their use of our products does not infringe upon any patents. It

is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to

infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up and installing

the Motherboard. Information in this guide has been carefully checked for reliability; however,

to the correctness of the contents there is no guarantee given. The information in this document

is subject to amend without notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

7IWM-X Serial - Version 1.1 - Edition: November 2000

*Thesespecificationsaresubjecttoamendwithoutnotice

SY-7IWM-X

Quick Start Guide

Introduction

Congratulationsonyourpurchaseofthe

SY-7IWM-X

Motherboard.ThisQuickStartGuide

illustratesthestepsforinstallingandsettingupyournewMotherboard.

ThisguideprovidesalluserswiththebasicstepsofMotherboardsettingandoperation.For

furtherinformation,please refertothe SY-7IWM-XMotherboardUses’Guidethatcamewith

yourMotherboard.

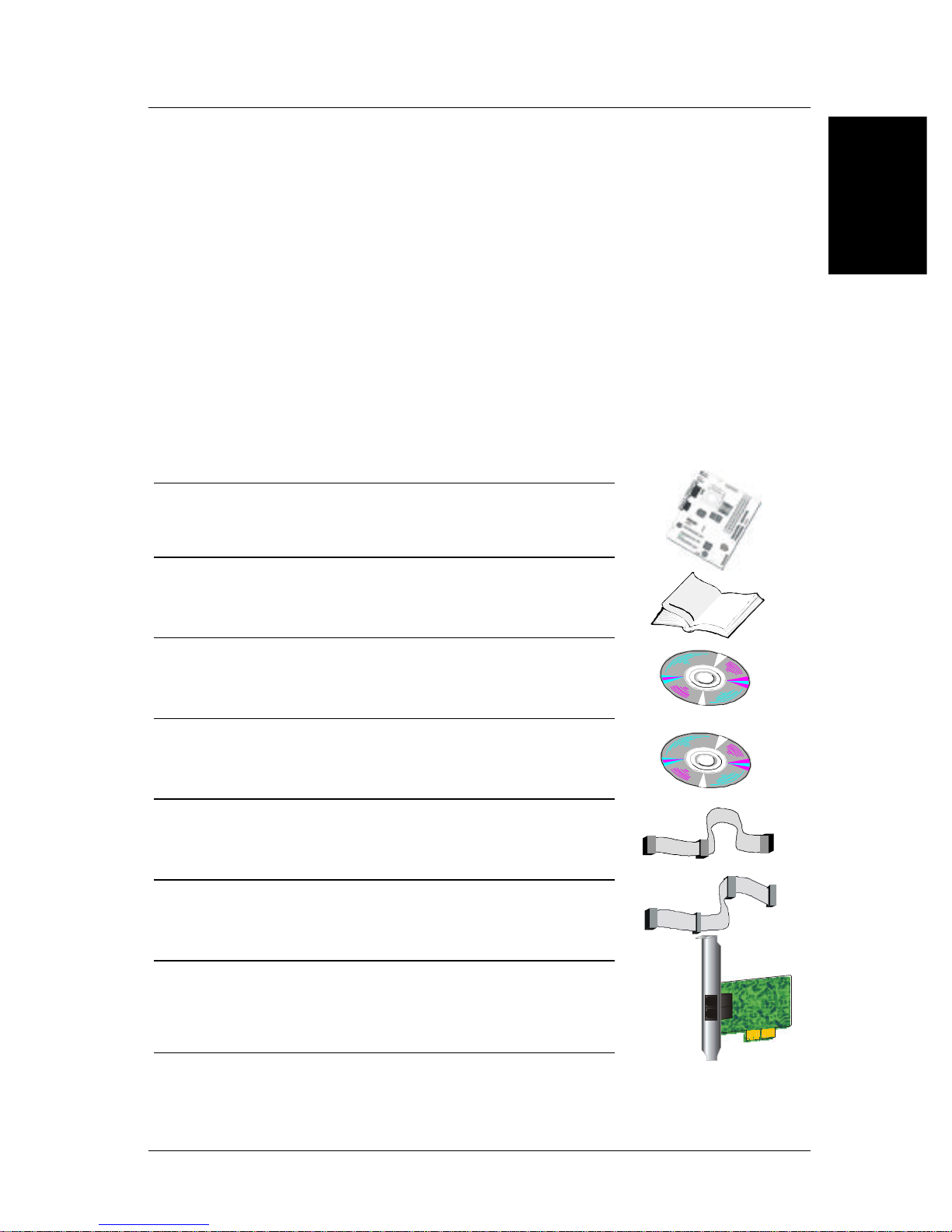

Unpacking

WhenunpackingtheMotherboard,checkforthefollowingitems:

TheSY-7IWM-XFW82810EAGP/PCI/AMRMotherboard

ThisQuickStartGuide

TheInstallation CD-ROM

SOYOBonusPackCD-ROM

OneIDEDeviceATA66FlatCable

OneFloppyDiskDriveFlatCable

uModemRiserCard(Optional)

LINE

PHONE

SY-7IWM-X Quick Start Guide

Introduction

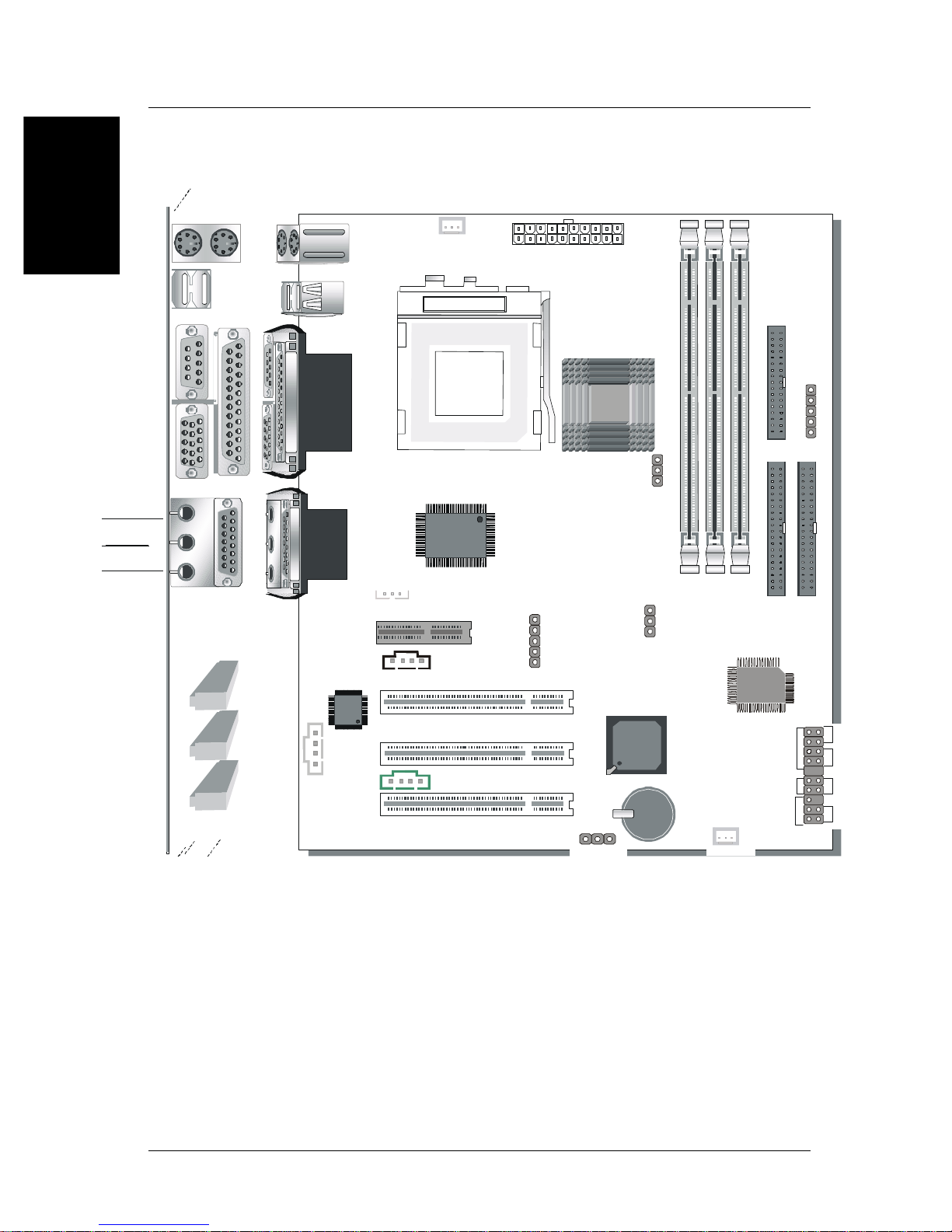

SY-7IWM-X Motherboard Layout

(Optional)

VGA

PRT

PS/2 KB

Connector

PS/2 Mouse

Connector

PCI Slot #1

PCI Slot #3

AMR

Lithium

Battery

CPUFAN

Winbond

W83627HF

-AW

IDE 2 IDE 1

FDC

ATX Power

LINE-OUT

LINE-IN

MIC JACK

JOYSTICK

JP44

WOL

Header

J9 CD-IN

J11

PHONE-IN

J10

AUX-IN

Socket 370

JP5

DIMM 1

DIMM 2

DIMM 3

COM1

PCI Slot #2

CODEC

AC97

Intel

Fw82801

Intel

82802AB

4MB

IR1

SDRAM

JP3

JP2

CHAFAN

Speaker

Keylock

Power

LED

ACPI

LED

HDD

LED

Reset

PWRBT

CMOS Clear

Jumper

USB 3

USB 1

USB 2

SDRAM

Intel

FW82810E

SY-7IWM-X

Quick Start Guide

Introduction

Key Features

SupportsIntel®processors

-FSB66MHz:Celeron



(400-700MHz)

-FSB100MHz:Pentium®III (500-

850MHz)

-FSB133MHz:Pentium®III (533MHz-

1.13GHz)

Supports66/100/133MHzFrontSide

BusFrequency

Auto-detectCPUvoltage

3DAGPAcceleratorintegratedinto

Chipset

PC99,ACPI

UltraDMA33/66(ATA33/66)

SupportsWake-On-LAN(WOL)

SupportsACPISuspendIndicator

Power-onbymodem,alarm,PS/2

KeyboardandMouse

Powerfailureresume

Supportsonboardhardwaremonitoring

andincludes Hardware Doctor™utility

Fanspeedcontrol

BatteryLowvoltageDetect

Support7setsofvoltagemonitoring

Supportsmultiple-bootfunction

Y2KComplaint

SupportsAudioModemRiserslot(AMR

1.0compliant)*

3x32-bitbusmasterPCIslots

3xUSBportsonboard(USB2andUSB3

aresharedandcannotbeused

simultaneously)

1xIrDAport

ATXpowerconnector

HardwareRandom Number Generator

(RNG)forenablingenhancedplatform

security

RTChardwaretohandleY2KCentury

Rollover

*BecausethisboardcomeswithsoftwareAudio(AC97) onboard,theAudiofunctioninAMRis notrelevant.

Ifthe userwantstousea ModemRiser card(MR)makesureto usea

Secondary

modeMR,

PRIMARY

modeMRs are

NOT

Supported.

SY-7IWM-X Quick Start Guide

Hardware

Installation

ToavoiddamagetoyourMotherboard,pleasefollowthesesimpleruleswhile

handlingthisequipment:

BeforehandlingtheMotherboard,groundyourselfbytouchingontoanunpainted

portionofthesystem'smetalchassis.

RemovetheMotherboardfromitsanti-staticpackaging.Holdthemotherboardbythe

edgesandavoidtouchingitscomponents.

ChecktheMotherboardfordamage.Ifanychipappearstobeloose,presscarefully

toseatitfirmlyinitssocket.

Followthedirectionsinthis sectionwhichisdesignedtoguideyouthroughaquickand

correctmethodtoinstallyournew

SY-7IWM-X

Motherboard.Fordetailedinformation,

pleaserefertotheSY-7IWM-XMotherboardUser'sguideandTechnical Reference online

manualonintheCD-ROMpackagethatcamewithyourMotherboard.

Gatherandprepareallnecessarycomponentstocompletetheinstallationsuccessfully:

Socket370processorwithbuilt-inCPUcoolingfan(boxedtype)

SDRAMmodule(s)

Computercasewithadequatepowersupplyunit

Monitor

PS/2Keyboard

PointingDevice(PS/2Mouse)

Speaker(s)(optional)

DiskDrives:HDD,CD-ROM,Floppydrive…

ExternalPeripherals:Printer,Plotter,andModem(optional)

InternalPeripherals:ModemandLANcards(optional)

Note: 1.

ThisMotherboardfeaturesonebuilt-inVGAportandthreebuilt-inaudio-stereo

ports.ThereforyoudonotneedtoinstallneitheraVGAcardnorasoundcard.

Ifyouwanttouseanexternalspeakerconnectedto"Line-out"port,pleasemake

suretousean"amplifiedspeaker"thatcangenerateproperoutputsoundvolume.

SY-7IWM-X

Quick Start Guide

Hardware

Installation

Install the Motherboard

Toperformtheinstallationofyournew

SY-7IWM-X

Motherboard,followthestepsbelow:

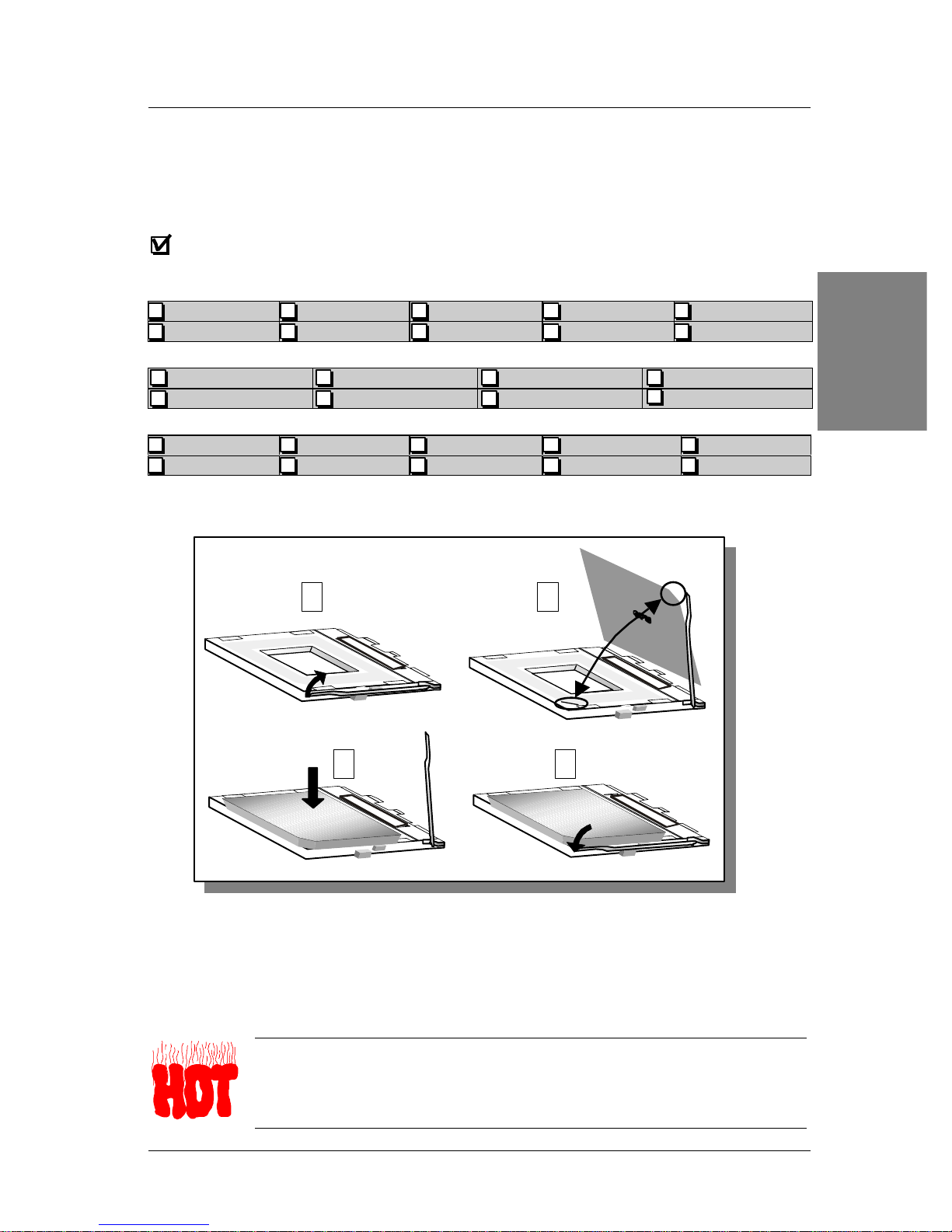

Step 1. CPU Installation

Mark your CPU Frequency:

RecordtheworkingfrequencyofyourCPU

thatshouldbeclearlymarkedontheCPUcover.

FSB66MHz

400MHz(66x6.0) 466MHz(66x7.0) 533MHz(66x8.0) 600MHz(66x9.0) 667MHz(66x10.0)

433MHz(66x6.5) 500MHz(66x7.5) 566MHz(66x8.5) 633MHz(66x9.5) 700MHz(66x10.5)

FSB100MHz

500MHz(100x5.0) 600MHz(100x6.0) 700MHz(100x7.0) 800MHz(100x8.0)

550MHz(100x5.5) 650MHz(100x6.5) 750MHz(100x7.5) 850MHz(100x8.5)

FSB133MHz

533MHz(133x4.0) 667MHz(133x5.0) 800MHz(133x6.0) 933MHz(133x7.0) 1.13GHz(133x8.5)

600MHz(133x4.5) 733MHz(133x5.5) 866MHz(133x6.5) 1000MHz(133x7.5)

CPU Mount Procedure:

TomountthePentium®& Celeron

processorthatyou

havepurchasedseparately,followtheseinstructions.

Liftthesockethandleuptoaverticalposition.

AlignthebluntedgeoftheCPUwiththematchingpinholeedgeonthesocket.

Seattheprocessorinthesocketcompletelyandwithoutforcing.

ThenclosethesockethandletosecuretheCPUinplace.

RemembertoconnecttheCPUCoolingFantotheappropriatepower

connectorontheMotherboard. Thefanis akeycomponentthatstabilizesthe

system.Itpreventstheequipmentfromoverheatingandprolongsthelifeof

yourCPU.

1 2

3 4

cket37

t37

SY-7IWM-X Quick Start Guide

Hardware

Installation

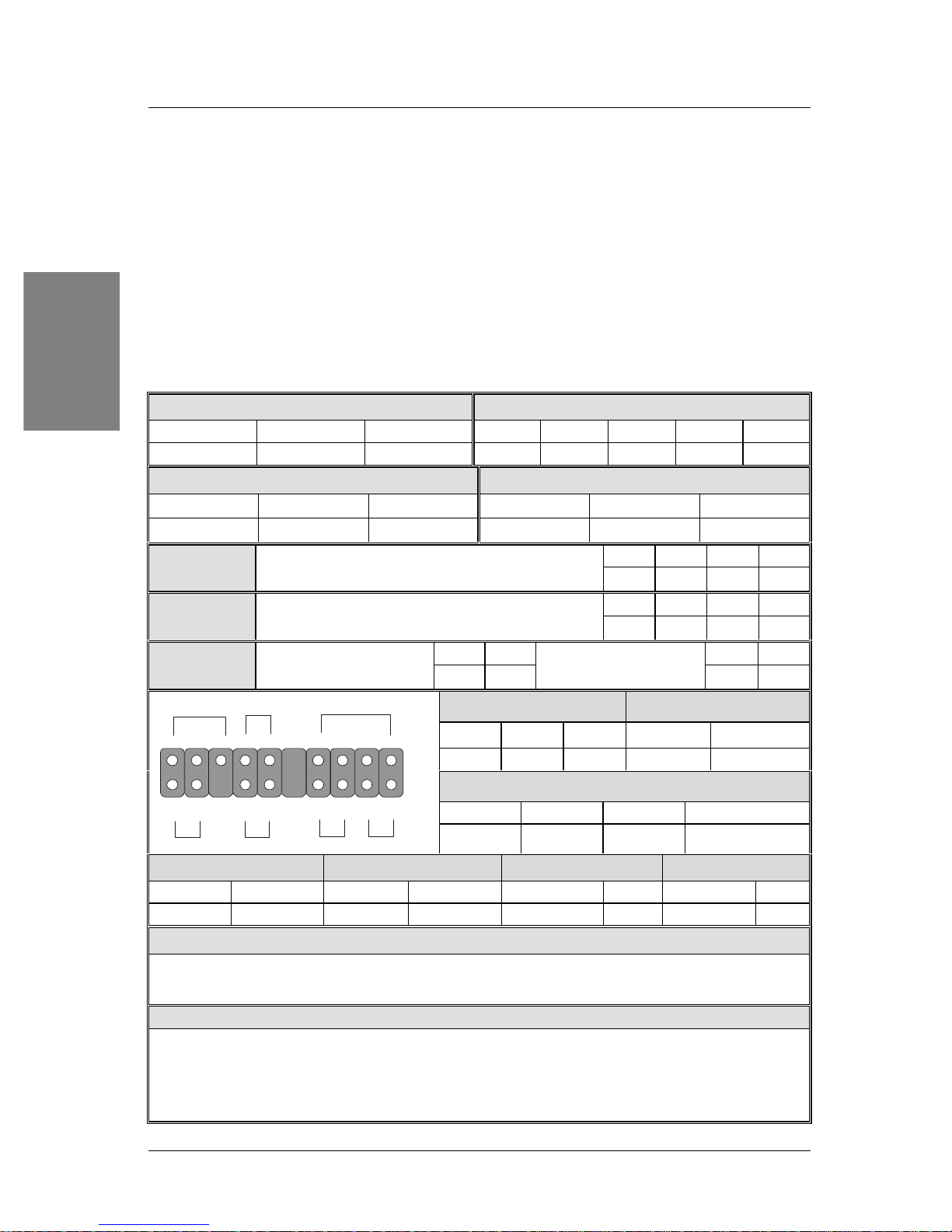

Step 2. Connections to the Motherboard

ThissectiontellshowtoconnectinternalperipheralsandthepowersupplytotheMotherboard.

TheinternalperipheralsconsistofIDEdevices(HDD,CD-ROM),FloppyDiskDrive,Chassis

Fan,FrontPanelDevices(ACPILED,InternalSpeaker,ResetButton,IDELED,and

KeyLockSwitch.),Wake-On-LANcard,VGAcard,SoundCard,andotherdevices.

FormoredetailsonconnectinginternalandexternalperipheralstoyournewSY-7IWM-X

Motherboard, pleaserefer to SY-7IWM-XMotherboardUser'sGuideandTechnical

ReferenceonlinemanualontheCD-ROM.

Connectors and Plug-ins

Wake-On-LANHeader: JP44 IrDA (Infrared Device Header):IR1

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3 Pin4 Pin5

5VSB GND MP-Wakeup VCC None IRRX GND IRTX

CPU Cooling Fan: CPUFAN ChassisFan:CHAFAN

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3

GND 12V SENSOR GND 12V SENSOR

Pin1 Pin2 Pin3 Pin4

CD -IN: J9

ConnecttoyourCD-ROMaudiooutput.

RG G L

Pin1 Pin2 Pin3 Pin4

AUX-IN: J10

ForAuxiliaryAudiodevices(1.0Vrms typ.)

RG G L

Pin1 Pin2 Pin3 Pin4

ModemSound:

J11

Connecttomodem

soundconnector

IN GGeneral mono output. GMono

PowerLED Keylock

Pin1 Pin2 Pin3

Pin1 Pin2

5V NC GND

ControlPin GND

Speaker

Pin1 Pin2 Pin3 Pin4

5V NC NC Speakerout

HDDLED ACPILED PWRBT RESET

Pin1 Pin2 Pin1 Pin2 Pin1 Pin2 Pin1 Pin2

LEDAnode LED Cathode LEDAnode LED Cathode Power On/Off GND Power Good GND

ATXPowerOn/Off:PWRBT

Connectyourpowerswitchtothisheader(momentaryswitchtype).

Toturn offthe system,press thisswitch andhold downfor longerthan 4seconds.

ATXPower Supply: ATXPW

AttachtheATXPowercabletothisconnector.(ThismotherboardrequiresanATXpowersupply,anAT

powersupply canNOTbeused.)

WhenusingthePower-OnbyPS/2Keyboardfunction,pleasemakesuretheATXpowersupplyisableto

provideatleast720mAonthe5VStandbylead(5VSB)inordertomeetthestandardATXspecifications.

Power LED

Key Lock

Speaker

Reset

PWRBT

ACPI LED

HDD LED

SY-7IWM-X

Quick Start Guide

Hardware

Installation

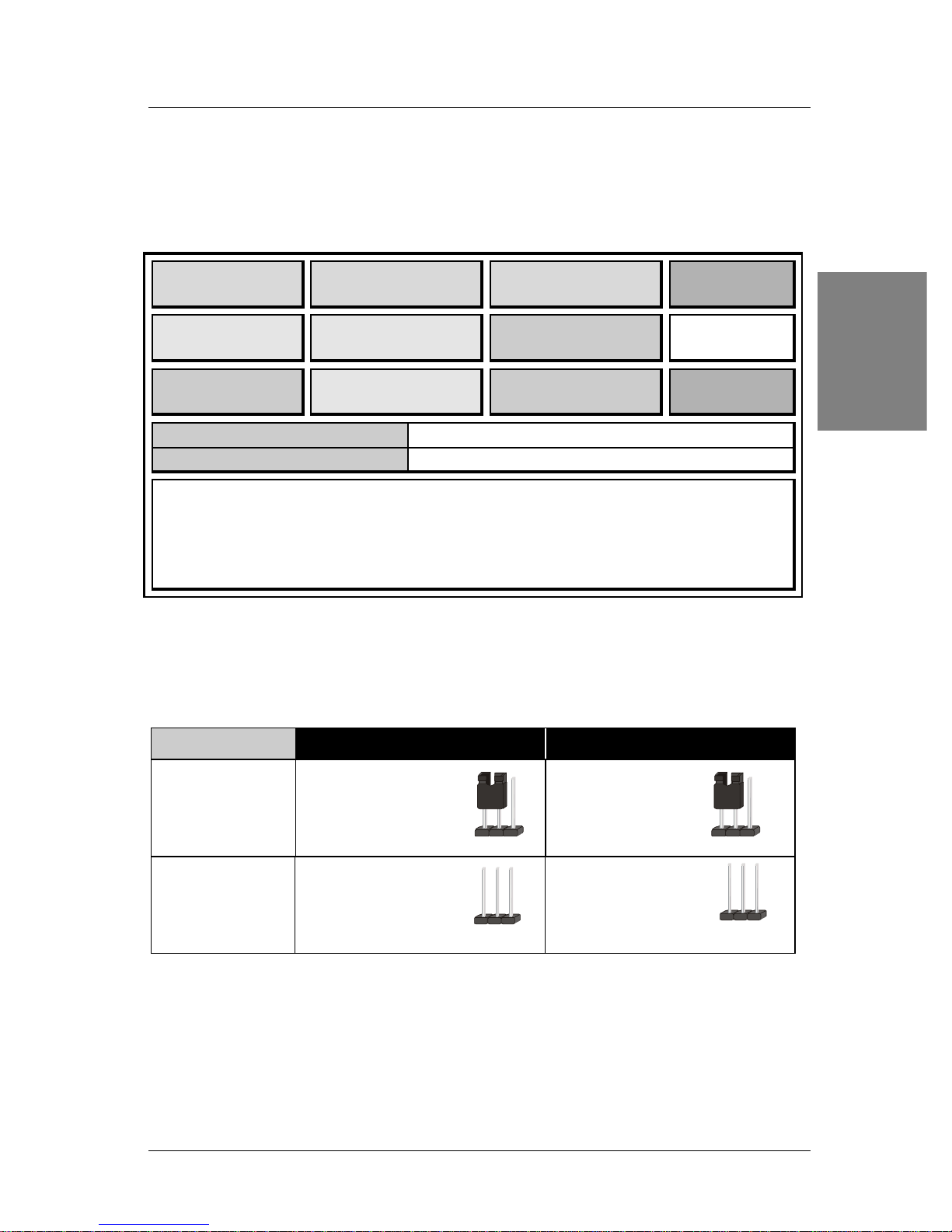

Step 3. Configure Memory

YourboardcomeswiththreeDIMMsockets,andprovidessupportupto512MBmain

memoryusingDIMMmodulesfrom8MBto256MB.

Memory Configuration Table

Number of

Memory Modules DIMM 1 DIMM 2 DIMM 3

1Double-sided/

Single-sided Double-sided/

Single-sided

2Double-sided/

Single-sided Single-sided Single-sided²

RAM Type SDRAM¹

Memory Module Size (MB) 8/16/32/64/256 Mbytes

Note: 1. PC100 Compliant DIMM module is required regardless of 66 or 100

MHz FSB speed.

2. If you want to use DIMM3, DIMM2 must be used as well to let the

system work properly. Just plugging a memory module into DIMM3

with DIMM2 left empty, will make the system unstable.

Step 4. FSB For 66MHz Jumper Setting (JP2,JP3)

IftheMotherboardfailstodetect66MHzFSBwhenusing CeleronFCPGA& CeleronPPGA

CPU.,PleasechecktheCPUFSBjumpersettingsontheMotherboard.

FSB Setting JP2 JP3

66MHz Short pin 1-2 Short pin 1-2

Automatic Open JP2 Open JP3

SY-7IWM-X Quick Start Guide

Hardware

Installation

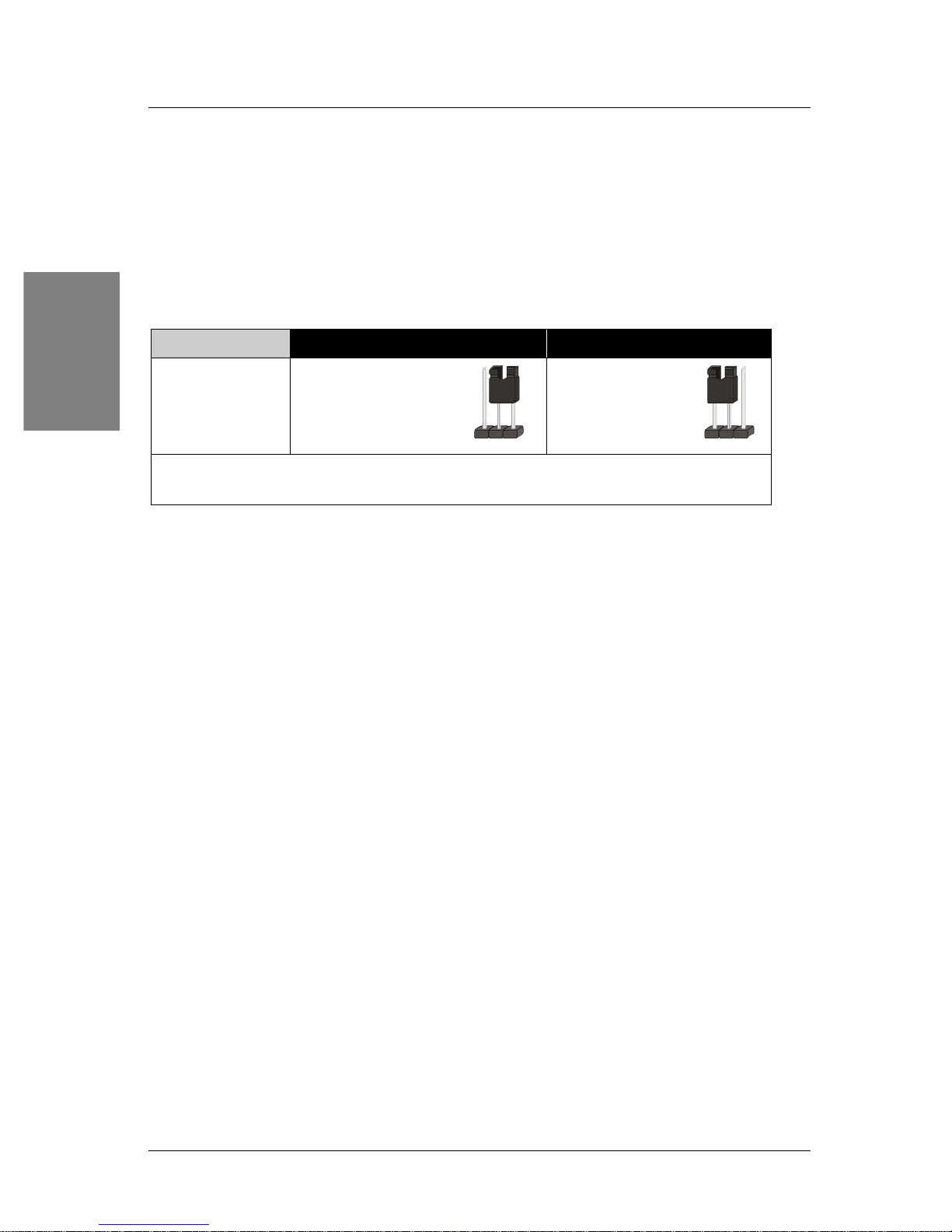

CMOS Clear (JP5)

InsomecasestheCMOSmemorymaycontainwrongdata,followthestepsbelowtoclear

CMOSmemory.

Clearthe CMOSmemory by momentarilyshorting pin2-3onjumper JP5. Thisjumper

canbeeasilyidentifiedbyitswhitecoloredcap.

Thenputthejumperbackto1-2toallowwritingnewofdataintotheCMOSmemory.

CMOS Clearing Clear CMOS Data Retain CMOS Data

JP5Setting Shortpin 2-3for

atleast 5 secondsto

clearthe CMOS

Shortpin 1-2to

retain new settings

Note: You must unplug the ATX power cable from the ATX power connector when

performing the CMOS Clear operation.

Altri manuali per SY-7IWM-X

Indice

Altri manuali SOYO Scheda madre

SOYO

SOYO SY-KT600 DRAGON Plus Manuale utente

SOYO

SOYO SY-6VBA 133 Manuale utente

SOYO

SOYO SY-7IWA-F Manuale utente

SOYO

SOYO SY-5EMA+ Manuale utente

SOYO

SOYO SY-K7V DRAGON Plus Manuale utente

SOYO

SOYO SY-5EMM Manuale per l'uso e la cura

SOYO

SOYO SY-K7VTA PRO Manuale utente

SOYO

SOYO SY-P4I845PEISA Manuale utente

SOYO

SOYO SY-6KE Manuale utente

SOYO

SOYO SY-P4I845GE Manuale utente

SOYO

SOYO SY-6VZA Manuale utente

SOYO

SOYO Mainboard SY-5S Manuale utente

SOYO

SOYO SY-5EMA Pro Super 7 Manuale per l'uso e la cura

SOYO

SOYO Super 7 SY-5EMA+ Manuale per l'uso e la cura

SOYO

SOYO SY-6BB V1.0 Manuale utente

SOYO

SOYO SY-6ILA Manuale utente

SOYO

SOYO SY-P4S DRAGON Ultra Manuale utente

SOYO

SOYO 6KF Manuale per l'uso e la cura

SOYO

SOYO SY-K7ADA Manuale utente

SOYO

SOYO 6KM Series Manuale per l'uso e la cura

SOYO

SOYO SY-5EH5 Manuale per l'uso e la cura

SOYO

SOYO SY-7ISA+ Manuale utente

SOYO

SOYO SY-6ZE+ Manuale per l'uso e la cura

SOYO

SOYO SY-D6IBA Manuale per l'uso e la cura

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
