SOYO SY-K7VIA Manuale utente

SY-K7VIA

Motherboard

****************************************************

AMD™Athlon

Processor supported

VIA VT8371(KX133) AGP/PCI/AMR Motherboard

200 MHz Front Side Bus supported

ATX Form Factor

****************************************************

User's Manual

SOYO™SY-K7VIA

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: May 2000

Version 1.0

K7VIA SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents SY-K7VIA

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION .............................1

1-1 INTRODUCTION...........................................................1

1-2 KEY FEATURES............................................................1

1-3 HANDLING THE MOTHERBOARD .............................4

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS ........4

1-5 SY-K7VIA MOTHERBOARD LAYOUT........................5

1-6 SY-K7VIA MOTHERBOARD COMPONENTS .............6

1-7 MICROPROCESSOR......................................................8

1-8 MEMORY.......................................................................9

1-9 CHIPSET ......................................................................10

1-10 I/O INTERFACE CONTROLLER.................................14

1-11 HARDWARE MONITOR..............................................17

1-12 WAKE ON LAN TECHNOLOGY.................................17

CHAPTER 2 HARDWARE INSTALLATION..................................18

2-1 PREPARATIONS ..........................................................18

2-2 UNPACKING THE MOTHERBOARD .........................19

2-3 INSTALLATION GUIDE..............................................20

2-3.1 CPU Fan Installation..................................................21

2-3.2 SDRAM Memory Module Installation..........................25

2-3.3 Motherboard Connector..............................................27

3-3.4 Quick BIOS Setup.......................................................43

2-3.5 Troubleshooting at First Start .....................................44

2-3.5 Power Off...................................................................47

CHAPTER 3 BIOS SETUP UTILITY ..............................................48

3-1 SOYO COMBO SETUP.................................................52

3-2 STANDARD CMOS SETUP..........................................55

3-3 ADVANCED BIOS FEATURES.....................................58

3-4 ADVANCED CHIPSET FEATURES..............................63

Table of Contents SY-K7VIA

3-5 INTEGRATED PERIPHERALS.....................................68

3-6 POWER MANAGEMENT SETUP ................................73

3-7 PNP/PCI CONFIGURATION SETUP.............................77

3-8 PC HEALTH STATUS....................................................80

3-9 LOAD FAIL-SAFE DEFAULTS.....................................82

3-10 LOAD OPTIMIZED DEFAULTS...................................83

3-11 SUPERVISOR PASSWORD...........................................84

3-12 USER PASSWORD........................................................85

3-13 IDE HDD AUTO DETECTION .....................................86

CHAPTER 4 DRIVERS INSTALLATION ........................................87

CHAPTER 5 VIA SOUNDCHIP DRIVER INSTALLATION...........91

Motherboard Description SY-K7VIA

Chapter 1

MOTHERBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-K7VIA AGP/PCI/AMR Motherboard is a high-performance Slot

A supported ATX form-factor system board. SY-K7VIA uses the VIA VT

8371 (KX 133) Chipset technology and supports Slot A class processors.

This Motherboard is fully compatible with industry standards and adds

many technical enhancements.

1-2 KEY FEATURES

ØCPU SUPPORT

The SY-K7VIA supports a wide range of AMD™ CPUs:

nAMD™(500~900) MHz

New released AMD™ Slot A CPUs will very likely be supported by the

SY-K7VIA as well.

ØCPU SETTINGS

The SY-K7VIA provides the user with a very complete and convenient

CPU setting environment. The CPU settings are auto detected and set

automatically, therefore rendering the use of jumpers obsolete.

nCPU FSB Frequency

The SY-K7VIA supports a wide range of CPU FSB frequency settings:

500,550,600,650,700,750,750,800,850,900

Motherboard Description SY-K7VIA

ØEXPANDABILITY

The SY-K7VIA provides all the standard expansion slots, and many more

additional expansion features:

uExpansion slots

n1 x 32-bit bus mastering AGP slot

n5 x 32-bit bus mastering PCI slots

n1 x 16-bit ISA slots

uEnhanced IO

nFloppy disk controller

n2x EIDE controllers with support for up to 4 Ultra DMA 33/66

devices

nStandard/EPP/ECP parallel port

n2x 16550 compatible serial ports

nIrDA compatible infrared port

n4x USB (Universal Serial Bus) connectors

nPS/2 mouse connector

nPS/2 keyboard connector

ØADVANCED FUNCTIONS

The SY-K7VIA supports advanced functions such as:

nATA 66 IDE Ports

In addition ATA33 (Ultra DMA/33)devices, the SY-K7VIA also

supports ATA66 (Ultra DMA/66) devices.

ØWake-On-LAN

Supports Wake-On-LAN (Some advanced network cards can

wake the system up over the network, the WOL connector are

provided by the SY-K7VIA to support this function).

nMultiple boot

The SY-K7VIA supports booting from devices such as CD-ROM.

nPower on by modem or alarm

If the SY-K7VIA system is in suspend mode, it can be switched back

on through the modem or RTC alarm through this function. This

opens a lot of possibilities, such as remote access that switches the

system on only after the modem receives a call.

Motherboard Description SY-K7VIA

ØFAIL SAFE

The SY-K7VIA comes with added functionality to make managing the

system easy and safe.

uHardware Monitor

The integrated Hardware doctor software enables the user the monitor

system voltages, temperatures and FAN speeds. This makes sure that the

user is in full control of the system

ØNORTON SOFTWARE PACK

nAntivirus

nGhost

nVirtual Drive

ØCOMPLIANCE

The SY-K7VIA complies with all important industry standards. The

following underlines the reliability of the SY-K7VIA, a motherboard to

trust.

nYear 2000 compliant

nPC99 compliant

nFCC/CE complaint

ØUSER FRIENDLY

nSOYO Combo Setup

nJumperless design

nYou can set up the following options trough the BIOS setting

CPU FSB frequency (auto detect)

CPU multiplier (auto detect)

SDRAM Clock

Motherboard Description SY-K7VIA

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while

unpacking:

ØBefore handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

ØRemove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

ØCheck the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your dealer

immediately.

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other

system components. Electrostatic discharge can easily damage the

components. Note that you must take special precautions when handling

the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following

precautions:

ØDo not remove the anti-static packaging until you are ready to install.

ØGround yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion

slot covers or other unpainted portions of the computer chassis.)

ØFrequently ground yourself while working or use a grounding strap.

ØHandle the Motherboard by its edges and avoid touching its

components.

Motherboard Description SY-K7VIA

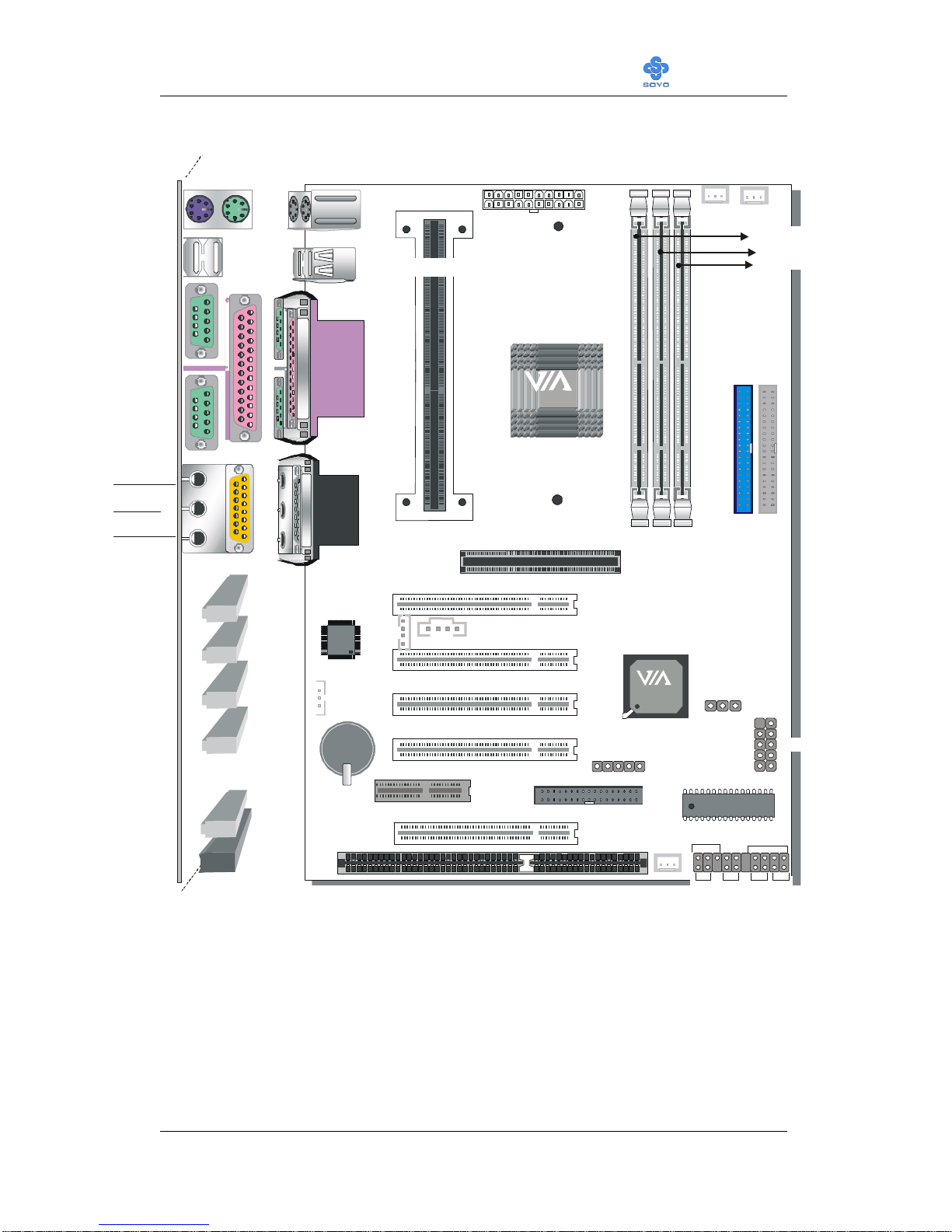

1-5 SY-K7VIA MOTHERBOARD LAYOUT

Back Panel SY-K7VIA Platform

PCI Slot #1

PCI Slot #2

PCI Slot #3

PCI Slot #4

PCI Slot #5

ISA Slot #1

Lithium

Battery

IR1

USB3

USB4

IDE 1

IDE 2

FDC

AGP Slot

Slot A

DIMM 1

DIMM 2

DIMM 3

VT8371

Speaker

Power

LED

STR HDD

LED

Reset

PWRBT

CHAFAN

CPUFAN

CPUFAN2

JP10

WOL

Header

JP5

Flash BIOS

VT82C68

AMR

CODEC

AC97 CDIN2

CDIN1

1 4

CMOS Clear

Jumper

USB 1

USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector

LINE-OUT

LINE-IN

MIC JACK

JOYSTICK

COMB

PRT

COM A

Motherboard Description SY-K7VIA

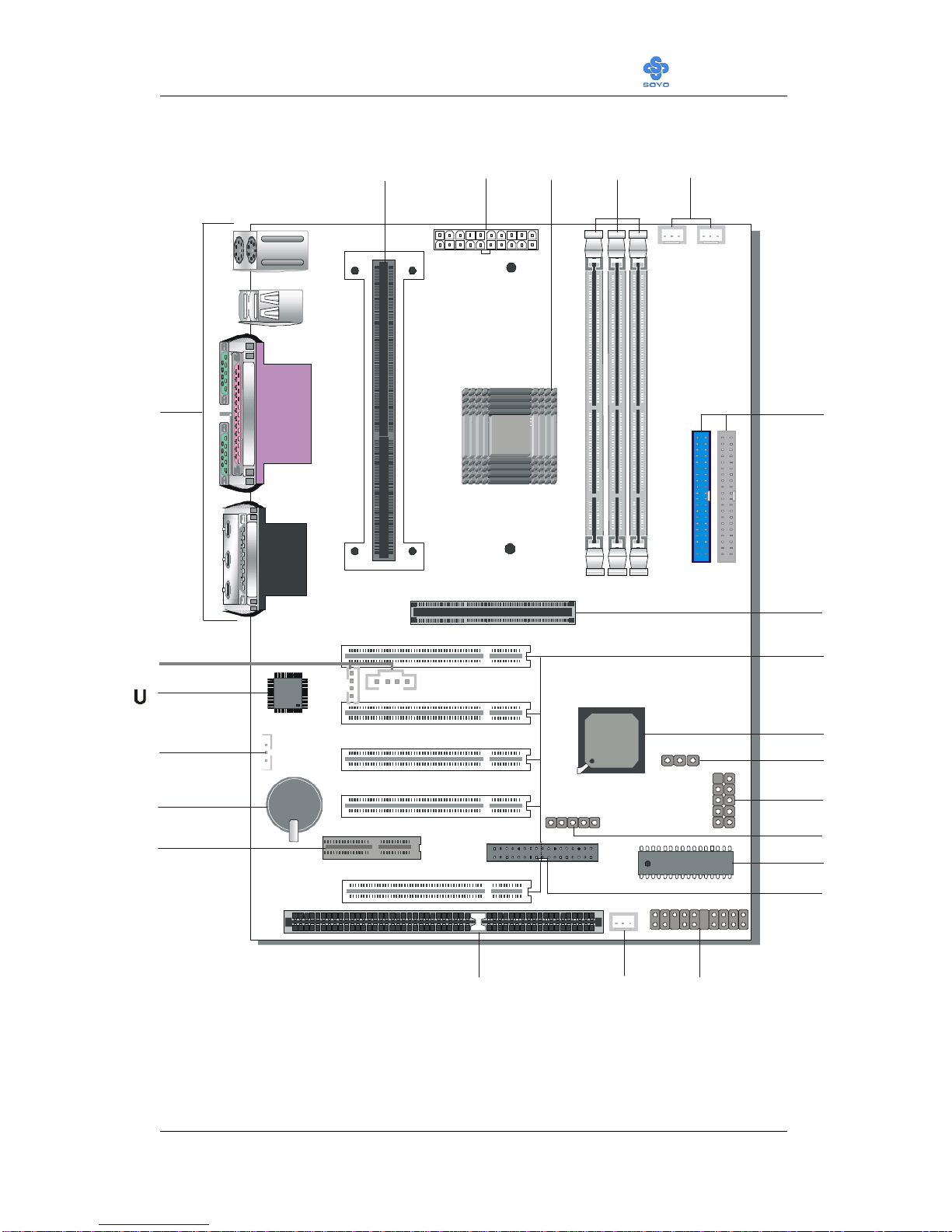

1-6 SY-K7VIA MOTHERBOARD COMPONENTS

Indice

Altri manuali SOYO Scheda madre

SOYO

SOYO SY-6IEB Manuale per l'uso e la cura

SOYO

SOYO SY-6IZM Manuale utente

SOYO

SOYO 82430 TX P54C Manuale per l'uso e la cura

SOYO

SOYO SY-6IWM Manuale utente

SOYO

SOYO SY-7VBA133U Manuale utente

SOYO

SOYO SY-7VCA Manuale utente

SOYO

SOYO SY-5EH5 Manuale per l'uso e la cura

SOYO

SOYO SY-5EMA+ Manuale utente

SOYO

SOYO Motherboard SY-6ZB Manuale utente

SOYO

SOYO SY-P4X400 DRAGON Lite Manuale utente

SOYO

SOYO SY-6VZA Manuale utente

SOYO

SOYO SY-7SBB Manuale utente

SOYO

SOYO SY-TISU Manuale utente

SOYO

SOYO 6KF Manuale per l'uso e la cura

SOYO

SOYO SY-K7ADA Manuale utente

SOYO

SOYO 82430 TX P54C Manuale per l'uso e la cura

SOYO

SOYO SY-K7VME Manuale utente

SOYO

SOYO SY-7VEM Manuale utente

SOYO

SOYO SY-6VBA 133 Manuale utente

SOYO

SOYO 5EA5 Manuale per l'uso e la cura

SOYO

SOYO SY-7VMA-B Manuale utente

SOYO

SOYO SY-6IEM Manuale utente

SOYO

SOYO SY-6VBA 133 Manuale utente

SOYO

SOYO SY-7IZB+N Manuale per l'uso e la cura

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
