SOYO SY-7VCA Manuale utente

SY-7VCA

Motherboard

****************************************************

Pentium®

III & Celeron

Processor supported

Via 694X AGP/PCI/AMR Motherboard

66/100/133 MHz Front Side Bus supported

ATX Form Factor

****************************************************

User's Manual

SOYO™SY-7VCA

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: March 2000

Version 1.0

7VCA SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER100%

Table of Contents SY-7VCA

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION...............................1

1-1 INTRODUCTION..............................................................1

1-2 KEY FEATURES...............................................................1

1-3 HANDLING THE MOTHERBOARD ..............................5

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS.........5

1-5 SY-7VCA MOTHERBOARD LAYOUT ..........................6

1-6 SY-7VCA MOTHERBOARD COMPONENTS ...............7

1-7 MICROPROCESSOR........................................................9

1-8 SY-7VCA MOTHERBOARD COMPONENTS .............10

1-9 MICROPROCESSOR......................................................12

1-10 I/O INTERFACE CONTROLLER...................................16

1-11 HARDWARE MONITOR................................................18

1-12 WAKE ON LAN TECHNOLOGY..................................19

CHAPTER 2 HARDWARE INSTALLATION...................................20

2-1 PREPARATIONS.............................................................20

2-2 UNPACKING THE MOTHERBOARD ..........................21

2-3 INSTALLATION GUIDE................................................22

2-3.1 CPU Fan Installation....................................................23

2-3.2 SDRAM Memory Module Installation..........................26

2-3.3 Motherboard Connector................................................28

3-3.4 CMOS Clearing (JP5)...................................................43

2-3.5 Power On ......................................................................43

2-3.6 Quick BIOS Setup..........................................................44

2-3.7 Troubleshooting at First Start.......................................46

2-3.8 Power Off......................................................................49

CHAPTER 3 BIOS SETUP UTILITY.................................................52

3-1 SOYO COMBO SETUP...................................................56

3-2 STANDARD CMOS SETUP............................................61

Table of Contents SY-7VCA

3-3 ADVANCED BIOS FEATURES......................................64

3-4 ADVANCED CHIPSET FEATURES...............................68

3-5 INTEGRATED PERIPHERALS.......................................73

3-6 POWER MANAGEMENT SETUP..................................78

3-7 PNP/PCI CONFIGURATION SETUP..............................82

3-8 PC HEALTH STATUS......................................................85

3-9 LOAD FAIL-SAFE DEFAULTS ......................................87

3-10 LOAD OPTIMIZED DEFAULTS.....................................88

3-11 SUPERVISOR PASSWORD ............................................89

3-12 USER PASSWORD..........................................................90

3-13 IDE HDD AUTO DETECTION.......................................91

CHAPTER 4 DRIVERS INSTALLATION ..........................................92

CHAPTER 5 VIA SOUNDCHIP DRIVERS INSTALLATION .........96

Motherboard Description SY-7VCA

Chapter 1

MOTHERBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-7VCA AGP/PCI/AMR Motherboard is a high-performance

Socket 370 supported ATX form-factor system board. The SY-7VCA uses

VIA Chipset technology and supports Socket 370 class processors. This

Motherboard is fully compatible with industry standards and adds many

technical enhancements.

1-2 KEY FEATURES

ØCPU SUPPORT

The SY-7VCA supports a wide range of INTEL CPUs:

nFSB 133MHz: Intel Pentium® III 533EB~866 MHz

nFSB 100MHz: Intel Pentium® III 500E~800 MHz

nFSB 66MHz: Intel Celeron® 400~533 MHz

New released Intel Socket 370 CPUs will very likely be supported by the

SY-7VCA as well.

ØCPU SETTINGS

The SY-7VCA provides the user with a very complete and convenient

CPU setting environment. The CPU settings are all adjusted through the

special SOYO COMBO page in the BIOS, therefore rendering the use of

jumpers obsolete.

nCPU FSB Frequency

The SY-7VCA supports an incredible wide range of CPU FSB frequency

settings:

66, 75, 81, 83, 90, 95, 100, 105, 110, 112, 113, 115, 117, 118, 120, 122,

124, 126, 133, 135, 137, 138, 140, 142, 144, 150 and 155 MHz.

This ensures that the SY-7VCA has an overwhelming overclocking

potential.

Motherboard Description SY-7VCA

nCPU Multiplier

The SY-7VCA supports a wide range of multipliers:

2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x, 5.5x, 6.0x, 6.5x, 7.0x, 7.5x and

8.0x

ØEXPANDABILITY

The SY-7VCA provides all the standard expansion slots, and many more

additional expansion features:

uExpansion slots

n1 x 32-bit bus master AGP slot

n5 x 32-bit bus master PCI slots

n1 x 16-bit ISA slots

uEnhanced IO

nFloppy disk controller

n2x EIDE controllers with support for up to 4 Ultra DMA 33/66

devices

nStandard/EPP/ECP parallel port

n2x 16550 compatible serial ports

nIrDA compatible infrared port

n4x USB (Universal Serial Bus) connectors

nPS/2 mouse connector

nPS/2 keyboard connector

Motherboard Description SY-7VCA

ØADVANCED FUNCTIONS

The SY-7VCA supports advanced functions such as:

nWake-On-LAN

Supports Wake-On-LAN (Some advanced network cards can

wake the system up over the network, the WOL connector is

provided by the SY-7VCA to support this function).

nMultiple boot

The SY-7VCA supports booting from devices such as CD-ROM.

nPower on by modem or alarm

If the SY-7VCA system is in suspend mode, it can be switched back

on through the modem or RTC alarm through this function. This

opens a lot of possibilities, such as remote access that switches the

system on only after the modem receives a call.

ØFAIL SAFE

The SY-7VCA comes with added functionality to make managing the

system easy and safe

uHardware Monitor

The integrated Hardware Monitor IC and Hardware doctor software

enables the user to monitor system voltages, temperatures and FAN speeds.

This makes sure that the user is full control of the system

uPower Failure Resume Function

This function can be set in the BIOS, and determines whether the system

will automatically turn on again after a power failure. This function is

indispensable for server systems that need to always be on line.

u5VSB Indicator

This green LED gives an indication of the presence of the 5V Standby

voltage. This voltage is always fed into the motherboard and is used for

functions such as WOL.

ØNORTON SOFTWARE PACK

nAntivirus

nGhost

Motherboard Description SY-7VCA

nVirtual Drive

ØCOMPLIANCE

The SY-7VCA complies with all important industry standards. The

following underlines the reliability of the SY-7VCA, a motherboard to

trust.

nPC99, ACPI compliant

ØUSER FRIENDLY

nSOYO Combo Setup

nJumperless design

nYou can set up the following options trough the BIOS setting

CPU FSB frequency

CPU multiplier

CPU Vcore voltage

PCI clock

AGP Clock

SDRAM Clock

Motherboard Description SY-7VCA

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while

unpacking:

ØBefore handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

ØRemove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

ØCheck the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your dealer

immediately.

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other

system components. Electrostatic discharge can easily damage the

components. Note that you must take special precautions when handling

the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following

precautions:

ØDo not remove the anti-static packaging until you are ready to install.

ØGround yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion

slot covers or other unpainted portions of the computer chassis.)

ØFrequently ground yourself while working or use a grounding strap.

ØHandle the Motherboard by its edges and avoid touching its

components.

Motherboard Description SY-7VCA

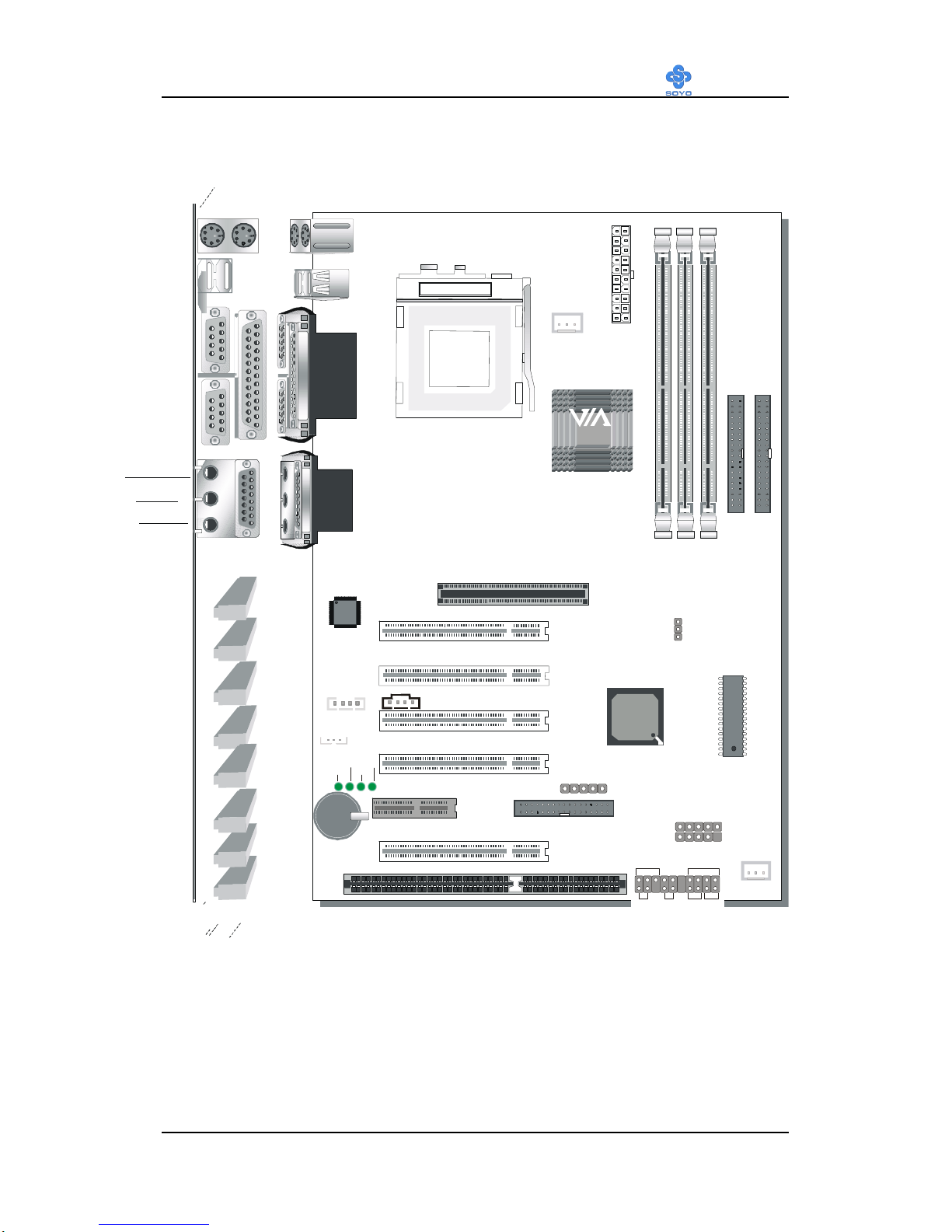

1-5 SY-7VCA MOTHERBOARD LAYOUT

Back Panel SY-7VCA Platform

Speaker

Power

LED

STR

LEDHDD

LED

ResetPWRBT

PRT

PS/2 KB

Connector

PS/2 Mouse

Connector

PCI Slot #1

PCI Slot #3

PCI Slot #4

PCI Slot #5

CPUFAN

1 3

IDE 1 IDE 2

FDC1

ATX Power

AUDIO-OUT

LINE-IN

MIC-IN

GAME

Socket 370

DIMM 2

DIMM 3

DIMM 1

COM1

COM2

PCI Slot #2

CHAFAN

USB 1

SDRAM

VT82C694X

AGP Slot

Lithium

Battery

USB2

SIRCON

JP5

JP10

CDIN1

CDIN2

1 4

ISA Slot

AMR

CODEC

AC97

Via

VT82C686A

Flash BIOS

Altri manuali per SY-7VCA

Indice

Altri manuali SOYO Scheda madre

SOYO

SOYO SY-P4I Fire DRAGON Manuale utente

SOYO

SOYO SY-P4X400 DRAGON Lite Manuale utente

SOYO

SOYO SY-K7V DRAGON Plus Manuale utente

SOYO

SOYO SY-7VEM Manuale utente

SOYO

SOYO SY-6IWM/L Manuale utente

SOYO

SOYO SY-6VBA 133 Manuale utente

SOYO

SOYO SY-6BA+100 Manuale utente

SOYO

SOYO 5XBE5 Manuale per l'uso e la cura

SOYO

SOYO SY-6IZA Manuale per l'uso e la cura

SOYO

SOYO SY-6ICA Manuale utente

SOYO

SOYO SY-P4IS2 Manuale utente

SOYO

SOYO SY-D6IBA Manuale per l'uso e la cura

SOYO

SOYO SY-7VBA133U Manuale utente

SOYO

SOYO SY-P4ISR Manuale utente

SOYO

SOYO 5EAS5 Manuale per l'uso e la cura

SOYO

SOYO SY-K7VIA Manuale utente

SOYO

SOYO SY-7IWM Manuale utente

SOYO

SOYO SY-P4I845PE Manuale utente

SOYO

SOYO SY-7IZB Manuale utente

SOYO

SOYO SY-6ILA Manuale utente

SOYO

SOYO SY-K7VTA PRO Manuale utente

SOYO

SOYO SY-7VCM Manuale utente

SOYO

SOYO SY-6VBA 133 Manuale utente

SOYO

SOYO Motherboard SY-6ZB Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
