SOYO SY-K7VMP2 Manuale utente

SY-K7VMP2

Motherboard

Quick Start Guide

Hardware

Installation

Quick BIOS

Setup

IntroductionThe SOYO CD

USB 2.0 Driver

Installation

Audio Driver

Installation

SOYO™

1. AGP cards running at 3.3V are not supported, only AGP cards running at

1.5V can be used in this mainboard.

2. Please read the user guide before proceeding with your installations. Serious

damage may occur if the procedure is not followed properly.

3. If you have any problem getting your system to work, please follow the

troubleshooting tips in your user guide.

4. For immediate Technical questions, please visit

http://www.soyousa.com/support and http://www.soyousa.com/kb.

SOYO™

SY-K7VMP2 Motherboard

AMD

K7 Athlon & Duron

processors

VIA KM400 AGP/PCI Motherboard

100/133/166 MHz Front Side Bus supported

ATX Form Factor

Trademarks:

SOYO is a registered trademark of SOYO Computer Inc. All trademarks are properties of

their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to their

respective companies.

this manual may be reproduced, transmitted, transcribed, translated into any other language,

or stored in a retrieval system, in any form or by any means, such as by electronic,

mechanical, magnetic, optical, chemical, manual or otherwise, without permission in

writing from SOYO Computer Inc.

Disclaimer:

SOYO Computer Inc. makes no representations or warranties regarding the contents of this

manual. We reserve the right to amend the manual or revise the specifications of the product

described in it from time to time without obligation to notify any person of such revision or

amend. The information contained in this manual is provided to our customers for general

use. Customers should be aware that the personal computer field is subject to many patents.

All of our customers should ensure that their use of our products does not infringe upon any

patents. It is the policy of SOYO Computer Inc. to respect the valid patent rights of third

parties and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up and

installing the motherboard. Information in this guide has been carefully checked for

reliability; however, to the correctness of the contents there is no guarantee given. The

information in this document is subject to amend without notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

K7VMP2 Series - Version P1.0- Edition: April 2004

* These specifications are subject to amend without notice

SY-K7VMP2 Quick Start Guide

Introduction

Congratulations on your purchase of the

SY-K7VMP2

motherboard. This Quick Start

Guide illustrates the steps for installing and setting up your new motherboard.

This guide provides all users with the basic steps of motherboard setting and operation.

For further information, please refer to the SY-K7VMP2 motherboard User’s Manual that

came with your motherboard.

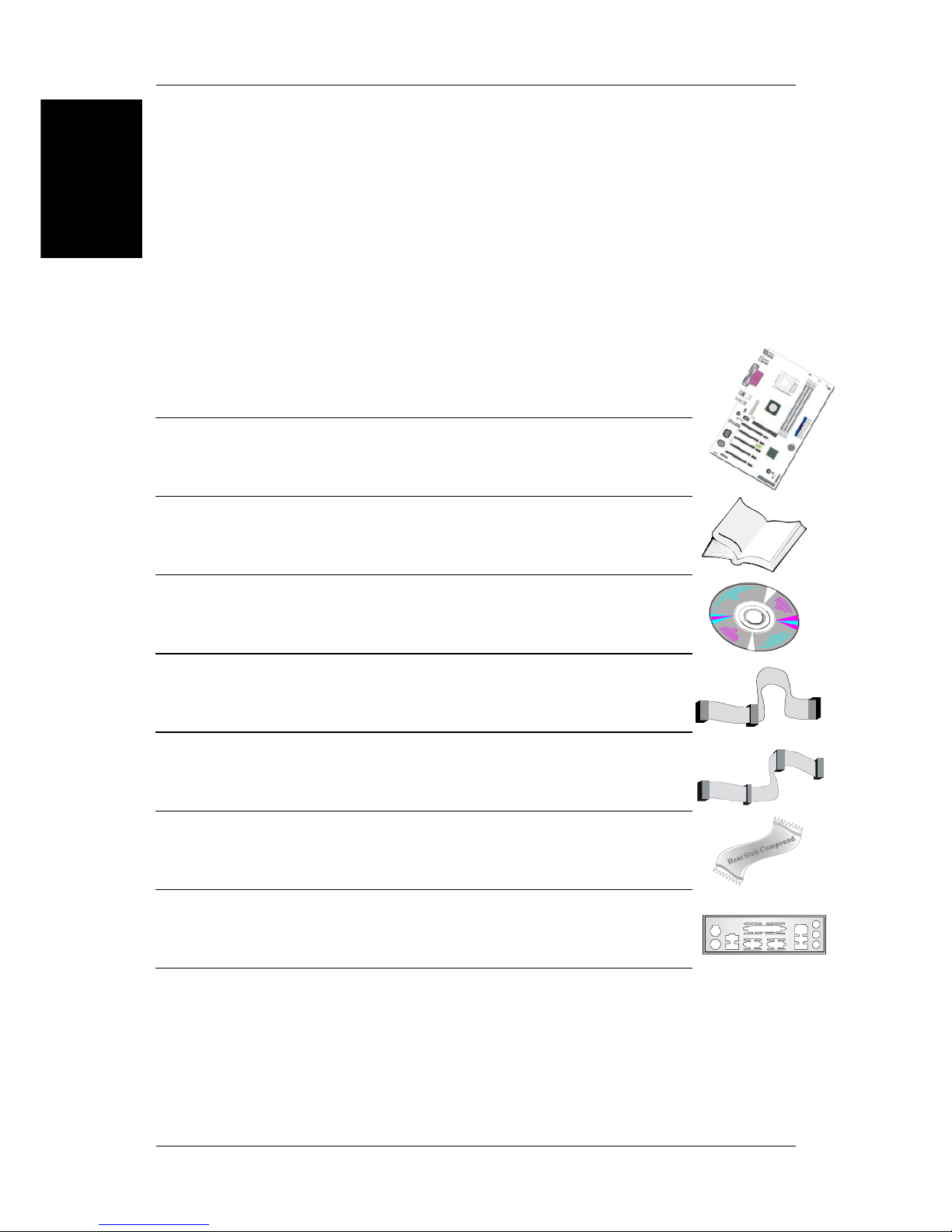

Unpacking

When unpacking the motherboard, check for the following items:



The SY-K7VMP2 AGP/PCI Motherboard



The User Quick Start Guide



The Installation CD-ROM



One IDE Device ATA 133 Flat Cable



One Floppy Disk Drive Flat Cable



One Heat Sink Compound



One Back Panel

SY-K7VMP2

Quick Start Guide

Introduction

SY-K7VMP2 Motherboard Layout

PS/2 KB

Connector

PS/2 MousePS/2 Mouse

Connector

Lithium

Battery

ATX Power

PRT

COM A

VGA out

I/O

CHIP

115

GAME1

JP5

Audio out / Front out

Audio in / Rear out

MIC IN / Center & Bass out

SIRCON

PCI Slot #5

PCI Slot #1

PCI Slot #4

PCI Slot #3

PCI Slot #2

USB20_1

COM2

CDIN1

AUXIN1

USBLAN

USB 1/USB 2

LAN Connector

J30

CDSPDO

AC97

codec

LAN Chip

FLP

IDE 1 IDE 2

ABR

SY-K7VMP2 Quick Start Guide

Introduction

Key Features

CPU

Supports AMD 462 pins Socket A processors :



Athlon XP (Palomino/Thoroughbred/Barton)

(200/266/333 MHz FSB)



Duron/Morgan



SOYO COMBO Setup CMOS setup menu for

complete and easy changing of your CPU settings

in CMOS setup, making jumpers obsolete.

Chipset

VIA® KM400/ 8235 Chipset

VGA

UniChrome™ 2D/3D Graphics with motion

compensation

Memory



Supports PC2100 and PC2700 DDR

(non-registered and non-ECC) memory modules.



SOYO COMBO Setup menu, to fully configure your

memory settings.

AGP

1x AGP master 4x/8x slot (1.5v only)

PCI

5x 32-bit bus master PCI slots

Super I/O

ITE IT8705F Super I/O controller supporting :



Floppy disk controller



Parallel port (SPP, EPP and ECP compliant)



2x 16550A compatible RS232 serial ports ( 1x rear,

1x motherboard connector)



IrDA compatible infrared port



Gameport header



PS/2 Keyboard and mouse



Hardware monitor for monitoring temperatures,

voltages and fan speeds in the system.

Storage

8235 Integrated Parallel ATA controller supporting up to

4x UDMA 33/66/100/133 Parallel ATA devices.

USB 2.0

6x USB 2.0 compliant ports (4x on rear IO panel, 2x

motherboard connectors.)

SY-K7VMP2

Quick Start Guide

Introduction

Sound

Onboard VIA VT1616 6 channel Audio Codec

Network

10/100 MBps/100Base-T Ethernet controller, supporting

Wake-On-Lan (WOL)

BIOS



Power Failure resume function to allow the system

to turn on or off after a power failure, which is

indispensable for server systems.



Wake On Ring and Power On by Alarm to allow

your system to wake up from suspend or power on

through the modem or RTC alarm.



Multiple boot, allowing your system to boot from

different devices (example: CD-ROM)

Software



SOYO Hardware Monitor allowing you to fully

monitor and control your system

Industry standards

This motherboard is compliant with the following industry

standards :



Microsoft PC99



FCC



ACPI

SY-K7VMP2 Quick Start Guide

Installation

To avoid damage to your motherboard, please follow these simple rules

while handling this equipment:



Before handling the motherboard, make sure you are “grounded” before touching

on to an unpainted portion of the system's metal chassis to prevent electrical

discharge.



Remove the motherboard from its anti-static packaging. Hold the motherboard by

the edges and avoid touching its components.



Check the motherboard for damage. If CPU appears to be loose, gently push the

CPU into the socket.

Follow the directions in this section, which is designed to guide you through a quick and

correct method to install your new

SY-K7VMP2

motherboard. For detailed information,

please refer to the SY-K7VMP2 motherboard User's Manual and Technical Reference

online manual on the CD-ROM package that came with your motherboard.

Gather and prepare all necessary components to complete the installation successfully:



Socket 462 processor with CPU cooling fan (boxed type)



DDR SDRAM module(s)



Computer case with adequate power supply unit



Monitor



PS/2 or USB Keyboard



Pointing Device (PS/2 or USB Mouse)



Speaker(s) (optional)



Disk Drives: HDD, CD-ROM, Floppy drive…



External Peripherals: Printer and Modem (optional)



Internal Peripherals: Modem and LAN cards (optional)

Note:

If you want to use an external speaker connected to "Line-out" port, please make

sure to use an "amplified speaker" that can generate proper output sound volume.

SY-K7VMP2

Quick Start Guide

Installation

Install the Motherboard

We will now begin the installation process. Please follow the

step-by-step procedure designed to lead you to a complete and correct

installation.

Step 1

- Install the Central Processing Unit (CPU)

Step 2

- Install memory modules

Step 3

- Install expansion cards

Step 4

- Connect cables, case wires, and power supply

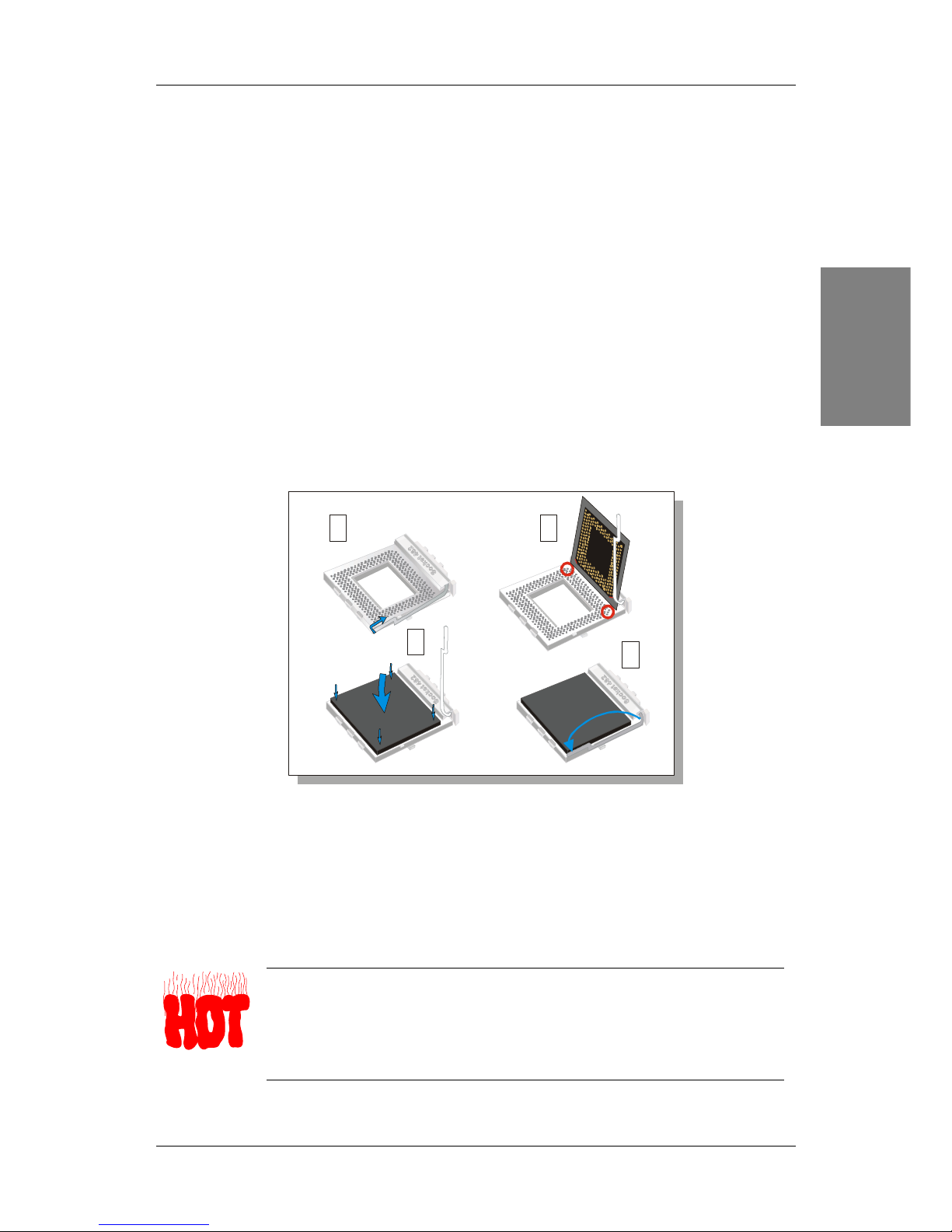

Step 1. Install the CPU

CPU Mount Procedure:

To mount the AMD

K7 Athlon

, Athlon

XP & Duron

processor that you have purchased separately, follow these instructions.

1. Lift the socket handle up to a vertical position.

2. Align the blunt edge of the CPU with the matching pinhole edge on the socket.

3. Seat the processor in the socket completely and without forcing.

4. Then close the socket handle to secure the CPU in place.

Remember to connect the CPU Cooling Fan to the appropriate power

connector on the motherboard. The fan is a key component that

stabilizes the system. It prevents the equipment from overheating and

prolongs the life of your CPU. If your FAN is not connected or

connected improperly your CPU can be permanently damaged.

SY-K7VMP2 Quick Start Guide

Installation

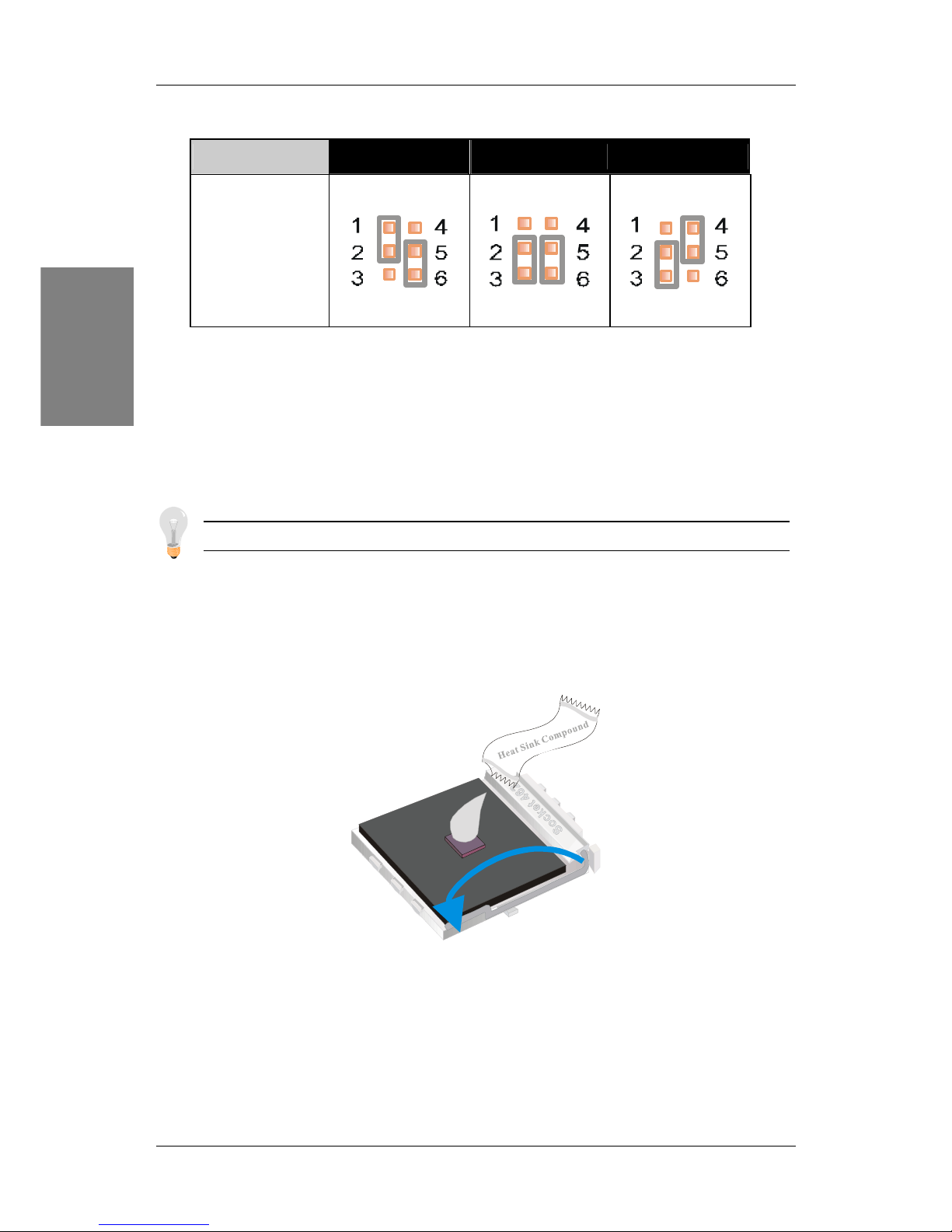

5. Set the jumpers on the FJ1 jumper block to the correct FSB for your CPU.

FJ1 100 MHz 133 MHz 166 MHz

FSB Clock Select

CPU Fan Installation

Your Socket 462 processor kit comes with a cooling fan. Mount the fan on the processor according to

the instructions provided by the manufacturer. The fan is a key component that will ensure system

stability. The fan prevents overheating, therefore prolonging the life of your CPU.

Note: Remember to connect the fan to the appropriate power source.

CPU Fan Mount Procedure:

To prevent scratch or damage on the motherboard,

please follow the instructions on how to mount the CPU fan properly.

1. Apply thermal paste to the die of the CPU.
