SOYO SY-P4VDA Manuale utente

SY-P4VDA

Motherboard

Quick Start Guide

Hardware

Installation

Quick BIOS

Setup

Introduction

The SOYO CD

Realtek LAN

Driver

Installation

SOYO™

SY-P4VDA Motherboard

mPGA Socket 478 processors

VIA P4X266AAGP/PCI Motherboard

400 MHz Front Side Bus supported

ATX Form Factor

Trademarks:

SOYO is the registered trademark of SOYO Computer Inc. All trademarks are the properties of their

owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for identification purposes only.

The registered trademarks and copyrights belong to their respective companies.

be reproduced, transmitted, transcribed, translated into any other language, or stored in a retrieval system, in

any form or by any means, such as by electronic, mechanical, magnetic, optical, chemical, manual or

otherwise, without permission in writing from SOYO Computer Inc.

Disclaimer:

SOYO Computer Inc. makes no representations or warranties regarding the contents of this manual. We

reserve the right to amend the manual or revise the specifications of the product described in it from time to

time without obligation to notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware that the personal computer

field is subject to many patents. All of our customers should ensure that their use of our products does not

infringe upon any patents. It is the policy of SOYO Computer Inc. to respect the valid patent rights of third

parties and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in subparagraph (c)(1)(ii)

of the Rights in Technical Data and Computer Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up and installing the

Motherboard. Information in this guide has been carefully checked for reliability; however, to the correctness

of the contents there is no guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

P4VDA Serial - Version 1.0 - Edition: February 2002

* These specifications are subject to amend without notice

SY-P4VDA

Quick Start Guide

Introduction

Congratulations on your purchase of the

SY-P4VDA

Motherboard. This Quick Start Guide illustrates the

steps for installing and setting up your new Motherboard.

This guide provides all users with the basic steps of Motherboard setting and operation. For further

information, please refer to the SY-P4VDAMotherboard User's Manual that came with your

Motherboard.

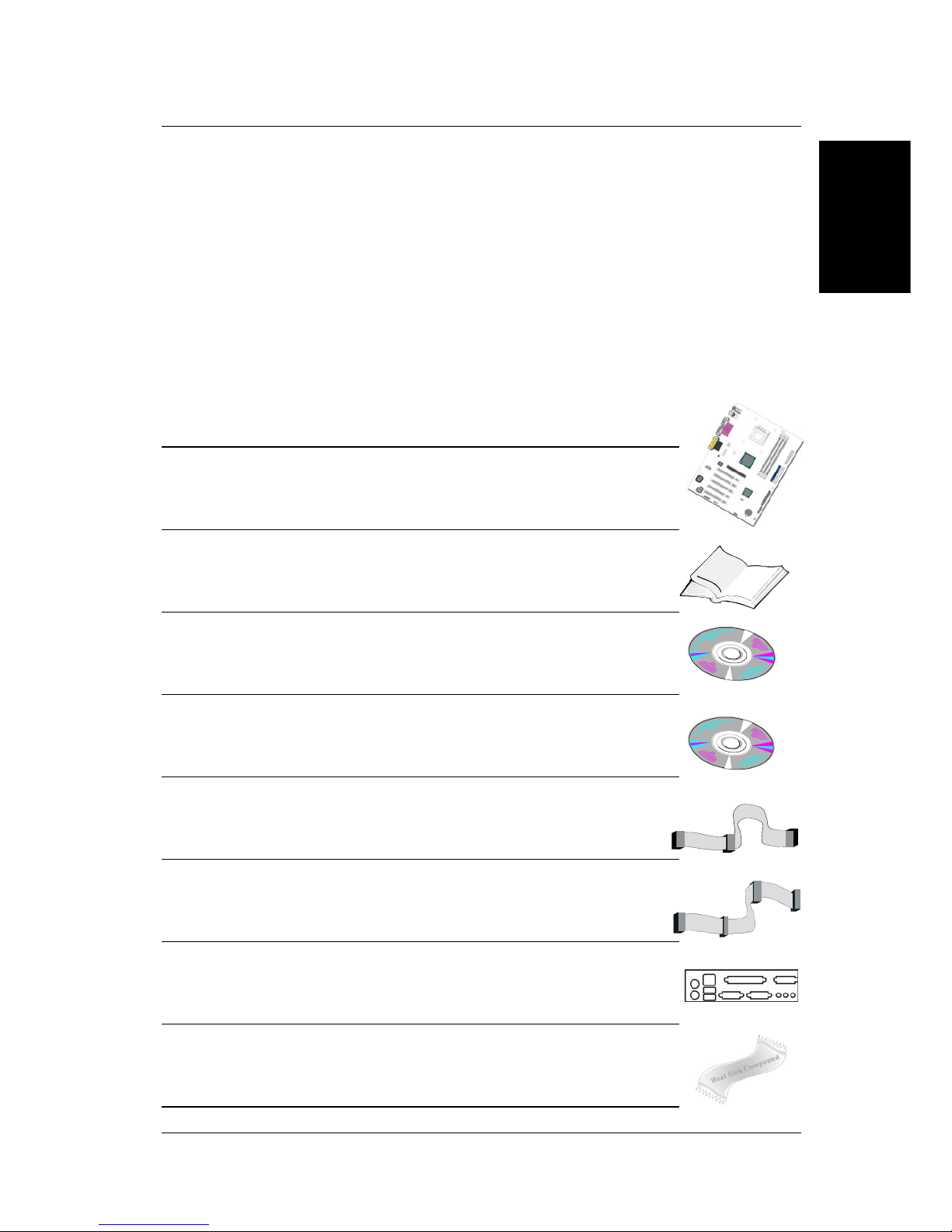

Unpacking

When unpacking the Motherboard, check for the following items:



The SY-P4VDA VIA P4X266AAGP/PCI Motherboard



This Quick Start Guide



The Installation CD-ROM



SOYO Bonus Pack CD-ROM



One IDE DeviceATA 100 Flat Cable



One Floppy Disk Drive Flat Cable



Bracket



One Heat Sink Compound

SY-P4VDA Quick Start Guide

Introduction

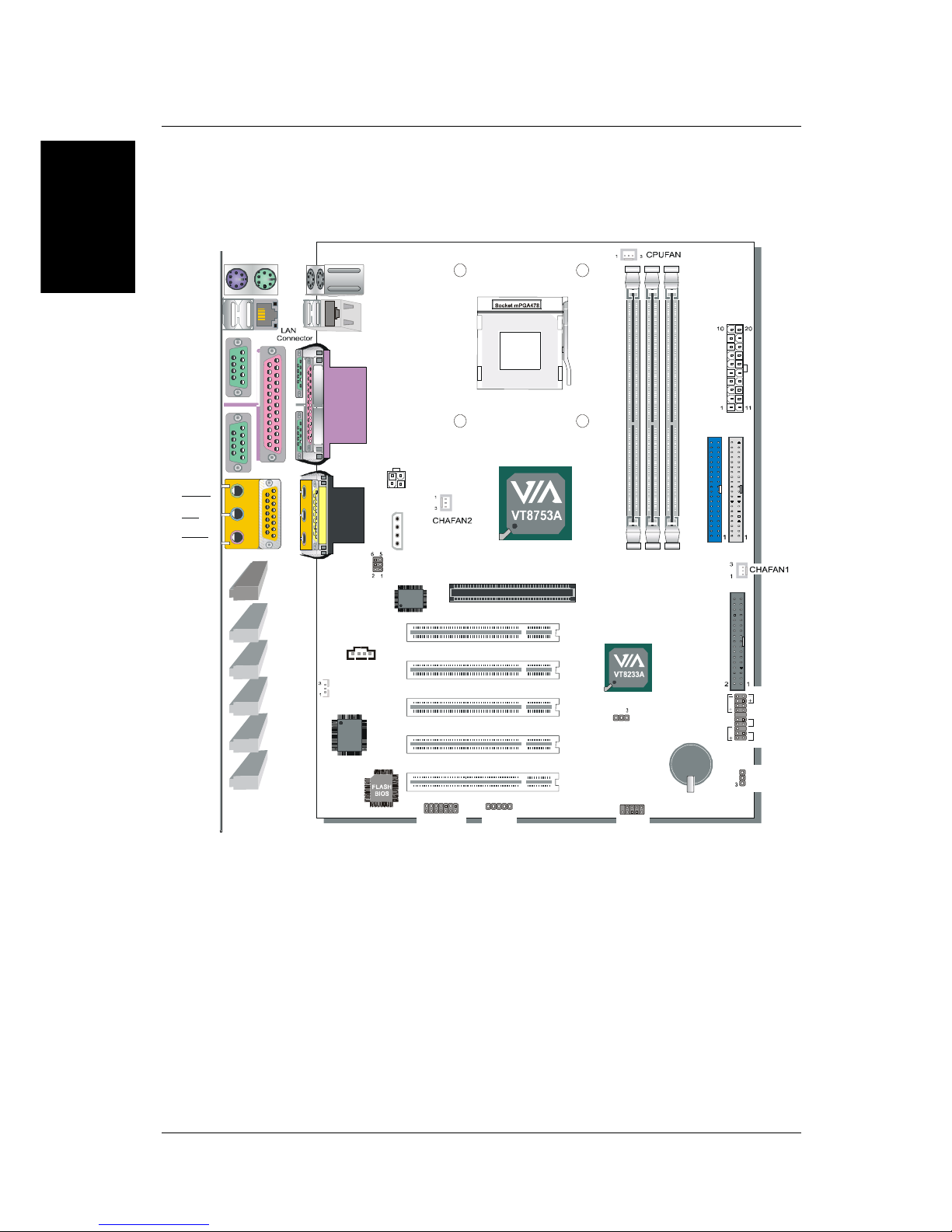

SY-P4VDA Motherboard Layout

(Optional)

PS/2 KB

Connector

PS/2 Mouse

Connector

Lithium

Battery

IDE 2IDE 1

ATX Po wer

PCI#5

PCI#4

PCI#3

PCI#1

PCI#2

PRT

COM A

COM B

ITE

IT8705F

DIMM1

DIMM2

DIMM3

SMCARDCN

SIRCON USB3_4

FDC

WOL

Header

JP10

CMOS Clear

Jumper

111

JP5

JP11

CDIN2

AOUT

AIN

AMIC

AGAME

LAN

CHIP

Power

LED

Speaker

HDD

LED

PWRBT

Reset

J25

J30

AGP Slot

USB 1_2

SY-P4VDA

Quick Start Guide

Introduction

Key Features



Supports Intel

mPGASocket 478

processors

- Pentium



Supports 400 MHz Front Side Bus Frequency



Support PC1600 and PC2100 DDR module



PC99, ACPI



Ultra 33/66/100/133 (ATA33/66/100/133)



Supports Wake-On-LAN (WOL)



SupportsACPI Suspend Indicator



Power-on by modem, alarm and PS/2

Keyboard



Power failure resume



Supports Suspend to RAM



Supports onboard hardware monitoring and

includes Hardware Doctor™ utility



SupportsAC97 Codec



Easy CPU settings in BIOS with the “SOYO

COMBO Setup”

- CPU voltage adjust

- CPU ratio adjust

- CPU FSB adjust



Supports multiple-boot function



AGP 2.0 Compliant;

AGP Connector supports:

- 1X/2X/4X data transfer



Smart Card Reader

- Compliant with Personal Computer Smart

Card (PC/SC) Working Group standard

- Compliant with smart card (ISO 7816)

protocols

- Supports card present detect

- Supports Smart Card insertion power-on

feature



3 x DIMM slots for DDR SDRAM memory



1 x 32-bitAGP slot



4 x 32-bit bus master PCI slots (slot2~slot5)



1 x 32-bit bus slave PCI slot (slot1)



4 x USB ports onboard



1 x IrDAport



ATX 12V power connector

SY-P4VDA Quick Start Guide

Hardware

Installation

To avoid damage to your Motherboard, please follow these simple rules while handling

this equipment:



Before handling the Motherboard, ground yourself by touching on to an unpainted portion of the

system's metal chassis.



Remove the Motherboard from its anti-static packaging. Hold the motherboard by the edges

and avoid touching its components.



Check the Motherboard for damage. If any chip appears to be loose, press carefully to seat it

firmly in its socket.

Follow the directions in this section which is designed to guide you through a quick and correct method

to install your new

SY-P4VDA

Motherboard. For detailed information, please refer to the SY-P4VDA

Motherboard User's Manual and Technical Reference online manual on the CD-ROM that came with

your Motherboard.

Gather and prepare all necessary components to complete the installation successfully:



Socket mPGA478 processor with built-in CPU cooling fan (boxed type)



DDR SDRAM module (s)



Computer case with adequate power supply unit



Monitor



PS/2 Keyboard



Pointing Device (PS/2 Mouse)



Speaker(s) (optional)



Disk Drives: HDD, CD-ROM, Floppy drive…



External Peripherals: Printer, Plotter, and Modem (optional)



Internal Peripherals: Modem and LAN cards (optional)



VGACard (AGP, PCI)

SY-P4VDA

Quick Start Guide

Hardware

Installation

Install the Motherboard

Follow the steps below in order to perform the installation of your new

SY-P4VDA

Motherboard.

Step 1. Install the CPU

Mark your CPU Frequency:

Record the working frequency of your mPGACPU that

should be clearly marked on the CPU cover.

FSB 400MHz

1.5GHz(100x15.0) 1.6GHz(100x16.0) 1.7GHz(100x17.0) 1.8GHz(100x18.0)

1.9GHz(100x19.0) 2.0GHz(100x20.0) 2.2GHz(100x22.0)

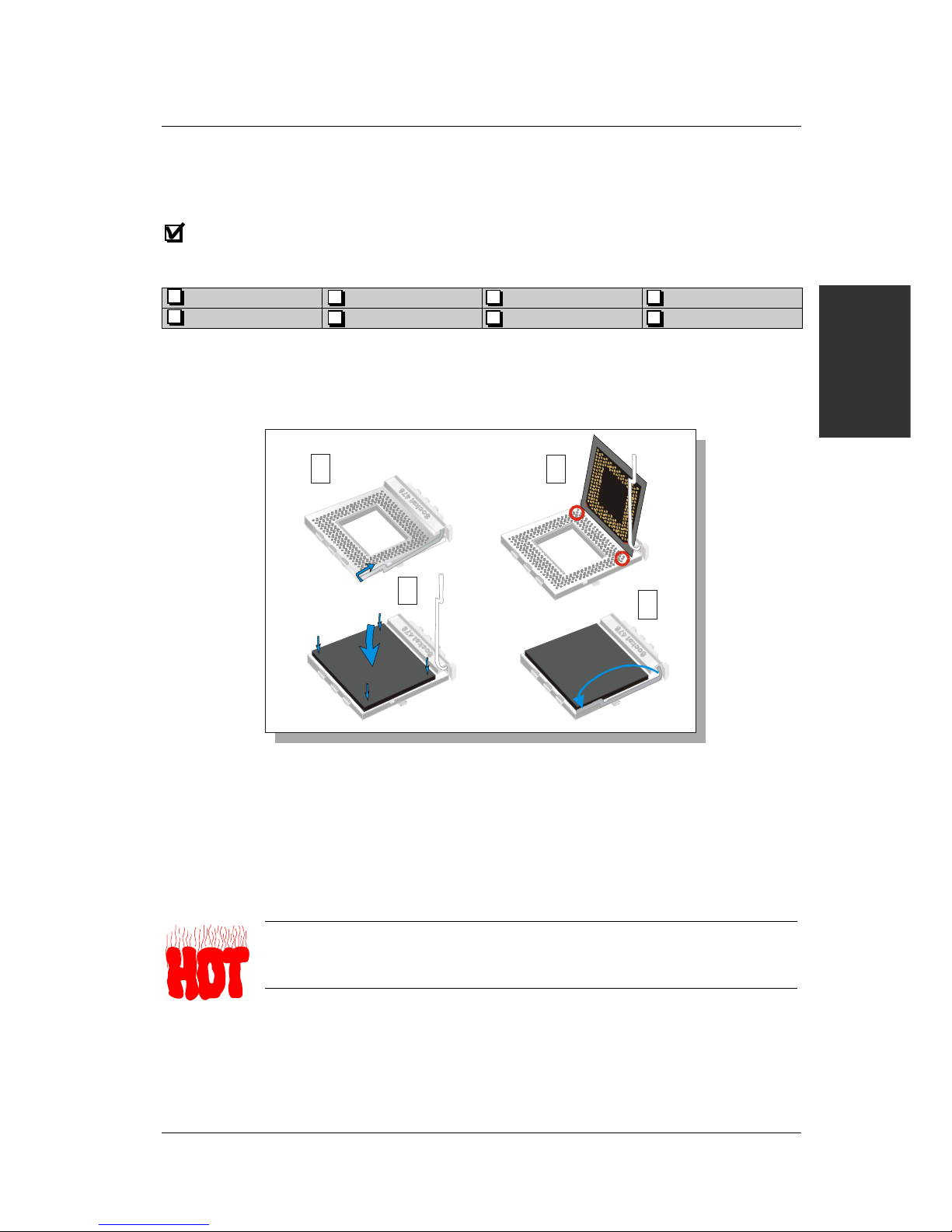

CPU Mount Procedure:

To mount the Pentium

4 Socket mPGA478 processor that you

have purchased separately, follow these instructions.

1. Lift the socket handle up to a vertical position.

2. Align the blunt edge of the CPU with the matching pinhole edge on the socket.

3. Seat the processor in the socket completely and without forcing.

4. Then close the socket handle to secure the CPU in place.

Remember to connect the CPU Cooling Fan to the appropriate power connector on

the Motherboard. The fan is a key component that stabilizes the system. It prevents the

equipment from overheating and prolongs the life of your CPU.

SY-P4VDA Quick Start Guide

Hardware

Installation

CPU Fan Installation

Your Socket 478 processor kit comes with a cooling fan. Mount the fan on the processor according to the

instructions provided by the manufacturer. The fan is a key component that will ensure system stability. The

fan prevents overheating, therefore prolonging the life of your CPU.

Note: Remember to connect the fan to the appropriate power source.

Step 2. Install Memory Module

Your board comes with three DIMM sockets, Directly supports one DDR SDRAM channel, 64b wide,

providing support max of 3 Double-Sided DIMMs with unbuffered (non-registered) and Non-ECC DDR

266.

The largest memory capacity possible is 3GB.

On this motherboard, DRAM speed can be set

independent from the CPU front side bus speed. Depending on the DRAM clock speed setting in the

BIOS setup.

Memory Configuration Table

Number of Memory Modules DIMM 1 DIMM 2 DIMM 3

RAM Type DDR SDRAM

Memory Module Size (MB) 64 /128 /256 /512 MB /1 GB

Step 3. Install Expansion Card

The motherboard has 1AGP slot and 5 PCI slot.

1. Read the related expansion card’s instruction document before inserting the expansion card into

the computer.

2. Press the expansion card firmly into expansion slot in motherboard.

3. Be sure the metal contacts on the card are indeed seated in the slot.

4. Replace the screw to secure the slot bracket of the expansion card.

5. Install related driver from the operating system.

SY-P4VDA

Quick Start Guide

Hardware

Installation

Step 4. Connect cables, case wires, and power supply

This section tells how to connect internal peripherals and the power supply to the Motherboard.

The internal peripherals consist of IDE devices (HDD, CD-ROM), Floppy Disk Drive, Chassis Fan, Front

Panel Devices (Internal Speaker, Reset Button, and IDE LED Switch.), Wake-On-LAN card, VGAcard,

Sound Card, and other devices.

For more details on connecting internal and external peripherals to your new SY-P4VDA Motherboard,

please refer to SY-P4VDAMotherboard User's Manual and Technical Reference online manual on the

CD-ROM.

A. Connectors and Plug-ins

CPU Cooling Fan: CPUFAN Chassis Fan: CHAFAN1 Chassis Fan: CHAFAN2

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3 Pin1 Pin2 Pin3

GND 12V SENSOR GND 12V SENSOR GND 12V None

MIC & LED Connector (J30)

Pin1 Pin2 Pin3 Pin4 Pin5 Pin6

AUDIO_L AUDIO_R MIC_OUT GND LAN_Active_LED_Cathode LAN_Active_LED_Anode

Standard IrDA (Infrared Device Header): SIRCON Wake-On-LAN Header: JP10

Pin1 Pin2 Pin3 Pin4 Pin5 Pin1 Pin2 Pin3

VCC NC IRRX GND IRTX 5VSB GND MP-Wakeup

USB 3 USB 4

Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8 Pin9 Pin10

5VSB Data(-) Data(+) GND NC 5VSB Data(-) Data(+) GND GND

SMCARDCN

Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8 Pin9 Pin10 Pin11 Pin12 Pin13 Pin14

VCC NC NC NC Scrfet RST CLK NC NC Scrio GND Scrpres NC NC

CD -IN: CDIN2 Pin1 Pin2 Pin3 Pin4

Connect the CD Line-in cord from the CR-ROM device to the

matching connector CDIN2.

L G G R

Power LED

Pin1 Pin2 Pin3

VCC NC GND

Speaker

Pin1 Pin2 Pin3 Pin4

VCC NC NC Speaker out

HDD LED PWRBT RESET

Pin1 Pin2 Pin1 Pin2 Pin1 Pin2

LEDAnode LED Cathode Power On/Off GND Power Good GND

Power On/Off: PWRBT

Connect your power switch to this header (momentary switch type).

To turn off the system, press this switch and hold down for longer than 4 seconds.

Power LED Key Lock Speaker

Reset PWRBT

CPI LED HDD LED

SY-P4VDA Quick Start Guide

Hardware

Installation

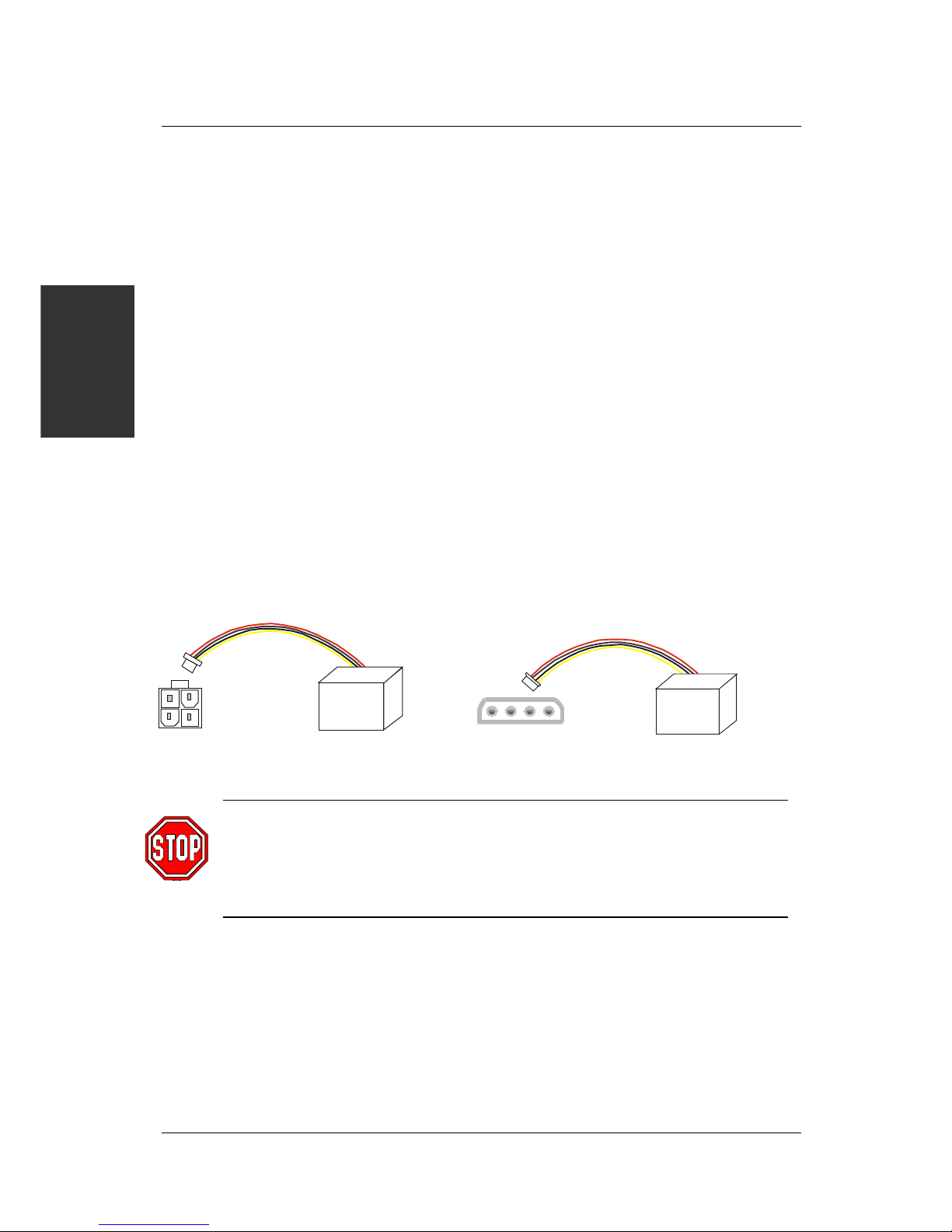

B. ATX Power Supply

This M/B can support ATX Power supply version 2.03 (with 12V power connector) and olderATX power

supply.

The ATX12V power supply includes a 20-pin ATX connector that complies with the ATX specification,

Version 2.03 for M/B specification, a new 4-pin receptacle/header combination--the +12V power

connector--has been defined. The presence of the +12V power connector indicates that a power supply is

ATX12V; the absence of the +12V power connector indicates that a supply is ATX. To allow for greater than

+3.3V current, the Aux power connector is recommended for ATX and ATX12V power supplies with

+3.3V current >18A.

If the user uses an old ATX power supply, please connect the main power connector and the peripherals

connector to the M/B.

If the user uses an ATX power supply version 2.03, please connect the main power connector and

12Vconnector to the M/B.

Warning: Follow these precautions to preserve your Motherboard from any remnant currents

when connecting toATX power supply:

Turn off the power supply and unplug the power cord of the ATX power supply before

connecting to ATX PW connector.

The Motherboard requires a power supply with at least 250 Watts and a "power good" signal. Make sure the

ATX power supply can take at 1.5Amax current * load on the 5V Standby lead (5VSB) to meet the

standardATX specification.

Note:

 ATX 12V power supply is different from the normal ATX power supply.

 If you use the Wake-On-LAN (WOL) function, make sure theATX power supply can support at

least 720 mAon the 5V Standby lead (5VSB).

Standard

ATX Power Supply

ATX 12V Power Supply

Altri manuali per SY-P4VDA

Indice

Altri manuali SOYO Scheda madre

SOYO

SOYO SY-6IWM Manuale utente

SOYO

SOYO ATX 12V Manuale utente

SOYO

SOYO SC-5EH5 Manuale per l'uso e la cura

SOYO

SOYO Super 7 SY-5SSM Manuale per l'uso e la cura

SOYO

SOYO SY-5EH5/5EHM V1.2 Super 7 Manuale utente

SOYO

SOYO Motherboard SY-6BA+ IV Manuale utente

SOYO

SOYO SY-6BA+100 Manuale utente

SOYO

SOYO 82430 TX P54C Manuale per l'uso e la cura

SOYO

SOYO SY-6IEB Manuale utente

SOYO

SOYO SY-6BE Manuale utente

SOYO

SOYO SY-7VBA133U Manuale utente

SOYO

SOYO SY-P4I845PE Manuale utente

SOYO

SOYO SY-P4X400 DRAGON Lite Manuale utente

SOYO

SOYO SY-P4I845PE Manuale utente

SOYO

SOYO SY-K8USA DRAGON Ultra Manuale utente

SOYO

SOYO 6KB 82440 LX Manuale per l'uso e la cura

SOYO

SOYO SY-6ZE+ Manuale per l'uso e la cura

SOYO

SOYO SY-KT880 DRAGON 2 Manuale utente

SOYO

SOYO SY-P4VGA Manuale utente

SOYO

SOYO SY-5EMM Manuale per l'uso e la cura

SOYO

SOYO SY-7IWB Manuale utente

SOYO

SOYO SY-P4I875P DRAGON 2 V1.0 Manuale utente

SOYO

SOYO SY-P4VGM V1.0 Manuale utente

SOYO

SOYO Motherboard SY-6BA+ IV Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
