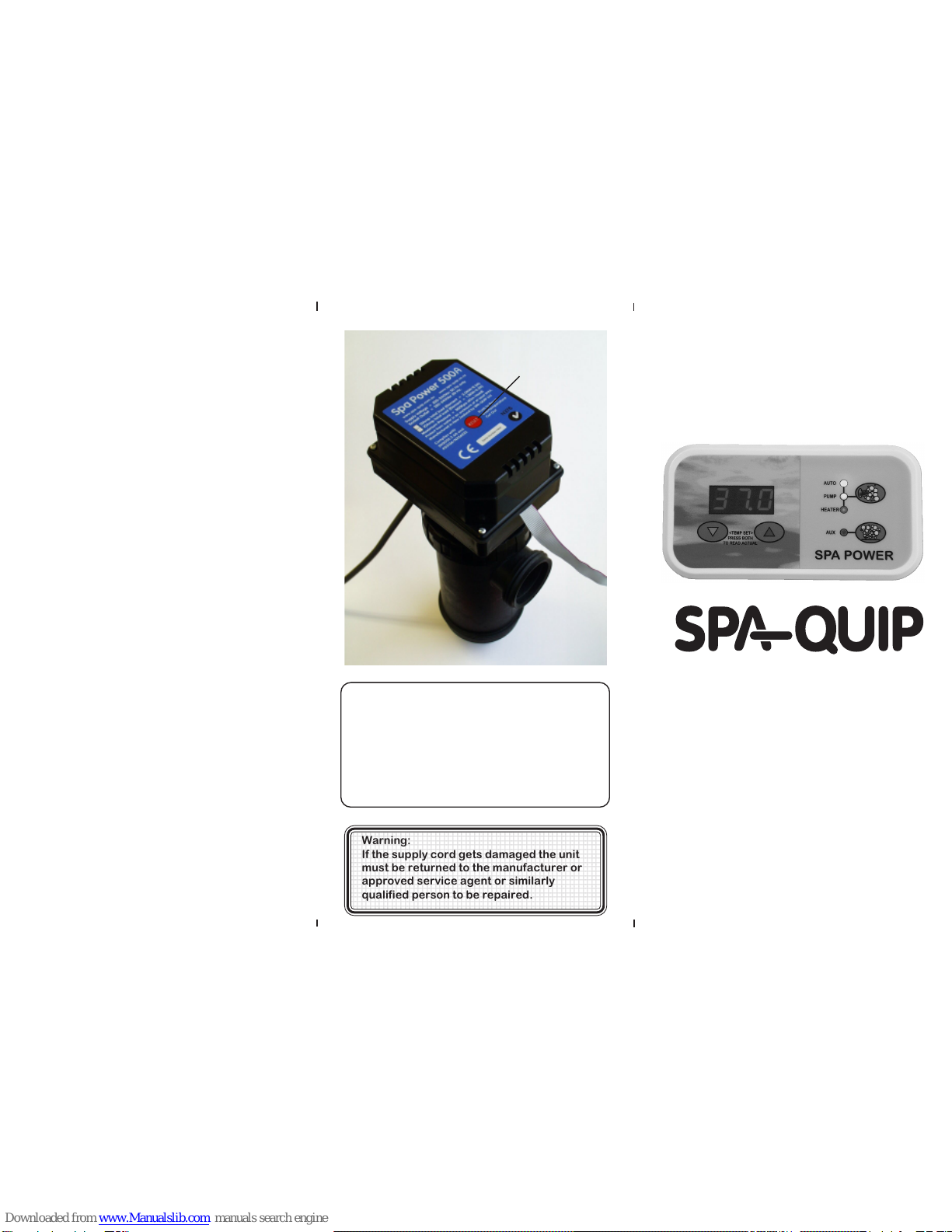

Introduction:
ThankyouforpurchasingaSpaPower500spa
control system. This controller has been designed to
offermorepowerfulaccessories,superiorcontroland
better ease of use than other controllers in its class.
Itmakesuseofanoptimal combination of proven,
reliabletechnologyandinnovativenewsensordesign.
Quick operating instructions:

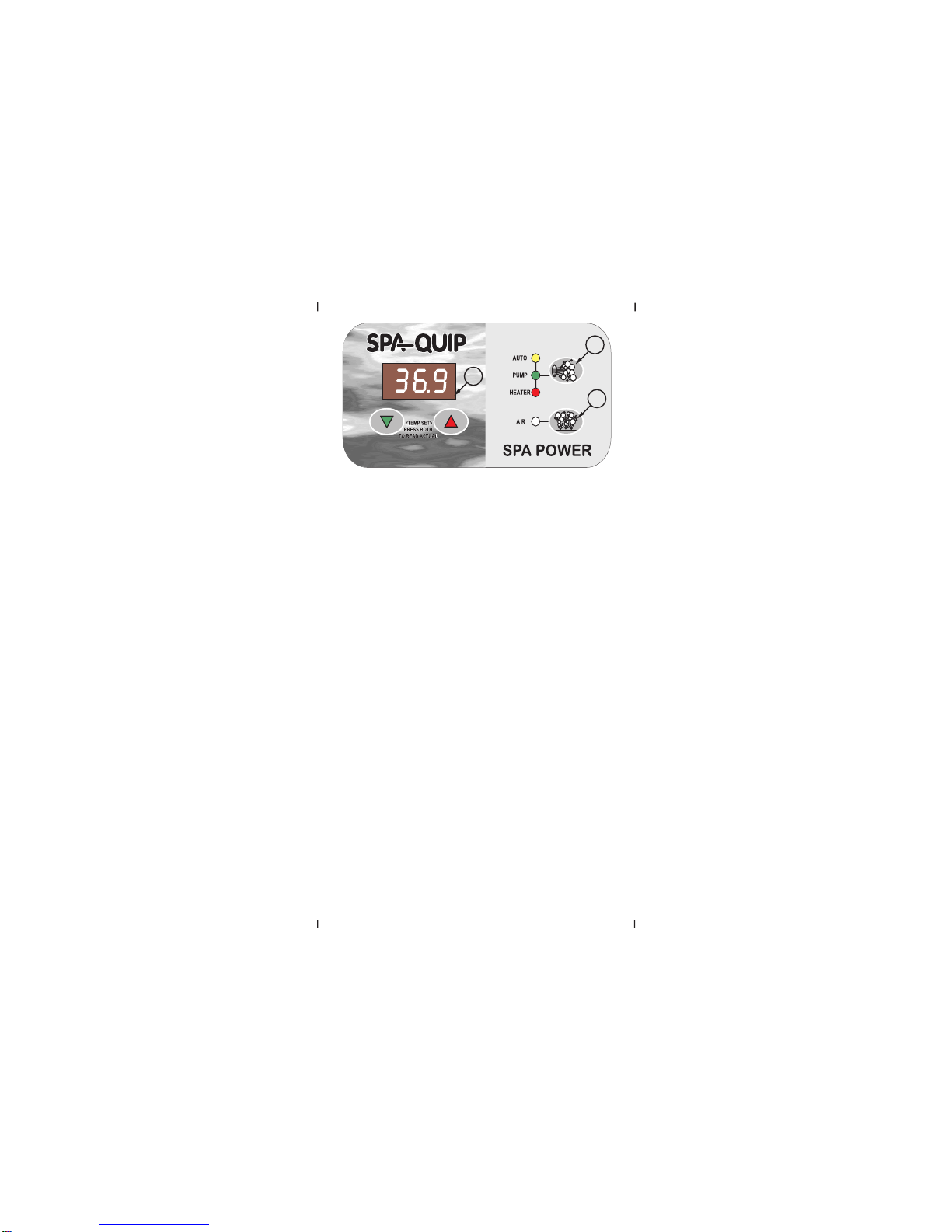

(1) Pump Mode button
The default state is Auto mode in which the pump and
heaterarecontrolledautomaticallytomaintain the
pooltemperature.Three pushes on this button cycle
the system as follows.
Push 1 = Auto off, Pump on, Heater automatic.
Push 2 = Auto off, Pump off, Heater off.
Push 3 = Auto on, Pump and Heater controlled
automatically (back to default state).
(2) Auxiliary Air, Jets or Light button
Thedefaultstate is off.
Two pushes of this button cycle the output as follows.
Push 1 = Output on.
Push 2 = Output off.
(3) Temperaturesetting - Digital display
Thedefaultsetting is 37.0°C.
HoldingdowntheUporDownbuttonwill
automatically adjust the spa temperature setting
shownonthedigitalreadout.
Up: increases the setting 0.5°C per beep.
Down:decreasesthesetting0.5°Cper beep.
The minimum setting is 20.0°C.
The maximum setting is 40.5°C.
Detailed operating description:
(1) Pump Mode button:
TheSpaPower500controlsthewaterpumpand
heater automatically to maintain the water at the
desiredtemperature.The user can leave the system
to look after the pool and know it will be at the correct
temperaturewheneverheorshewishes to use it.
(2) Auxiliary Air, Jets or Light button:
Thisbutton gives the user on/off control over an
additionalpoolaccessorywhichmayvaryindifferent
pool designs. In some cases this accessory may not
be fitted. Operation is clearly indicated by a coloured
light on the panel. If left on, this accessory will
automatically switch off after a fixed time (30
minutes). Usually switching on this accessory will
causethe heater to switch off (loadshedding). This is
in order to keep the total power load to a safe level.
(3) UpandDownTemperatureControl buttons:
TheSpaPower500givesthe user direct control of
thepooltemperaturefromthepoolside control panel.
There is no need to look under the pool for the
temperatureadjustment. Toadjust the temperature
simply press the Up or Down button on the panel until
thedisplaycorrespondswiththedesiredtemperature.
There is a slight delay before the buttons operate to
reduce the risk of accidental adjustment.
PushingtheUp and Down buttons together produces
aflashingtemperaturedisplaywhichindicates the
currentsensedtemperatureofthewaterintheheater
housing.Thisis not the pool temperature but when
the pump is running it should approximate the pool
temperature.The pool temperature will be maintained
very close to the set temperature.
IMPORTANT:
Before using, check that the spa pool has been
connectedtoasuitableweatherprotected outlet
socket,equippedwithadoublepolled isolating
switch, which is of the correct rating and complies
withthelocalwiringregulations.
When installing refer to your local wiring code.
In particular refer to ECP 2 and ECP 25 (AS / NZ).
andEN 60364-4-1 andEN60364-7-1 (EU). The
system must be installed in such a way that live parts
are not accessible by a person in the pool.
This appliance is not intended for use by young
childrenor infirm persons without supervision. Young
childrenshouldbesupervisedtoensure that they do
not play with the appliance.
The Pump Mode button allows the user to switch the
pump on or off as desired when using the pool. For
safety the heater is always automatically controlled.
Automatic operation is the default and the system
returns to automatic mode by itself at a fixed time (90
minutes) after the user last pushed the pump mode
button. Pushing the pump mode button then switches
the pump on and terminates automatic mode. If the
pump was already on in auto mode then it will stay on.
Pushing the pump mode button again will switch the
heaterandpumpoff. Thepumpwillrunforafew
seconds to cool the heater before switching off. One
morepush of the pump mode button willreturn the
system to automatic mode. These operations are
clearly indicated on the panel by coloured lights.
Cleanupcycle:
If desired, a clean up cycle can be initiated to filter the
water after the pool has been used. This is done by
simplypushing the pump mode button to leave auto
mode and switch on the pump. This will run the pump
for a fixed period of time (90 minutes) circulating the
water through the filter. The system will then return to
automodeand maintain the temperature ready for the
next time the pool is used.
AutoSanitising (filtration):
The Spa Power 500 monitors the total time the pump
isrunninginnormalpooloperation. If the pump has run
for only a short time it will automatically run the pump
foranadditionalperiodtomaintainthefiltration/
sanitisationofthepoolwater.
