Quick Start Guide

O4P25X

Welcome

Thank you for purchasing this PTZ camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 24VDC/AC power supply only.

Please note: Do not connect two power supplying sources to the device at the same time;

it may result in device damage! The product must be grounded to reduce the risk of

electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Heavy stress, violent vibration or exposure to water is not allowed during transportation,

storage and installation.

This product should be installed in a cool, dry place away from direct sunlight and heat

sources.

Do not install the product in extreme temperature conditions.

Do not expose the camera to electromagnetic radiation. Otherwise it may result in CMOS

sensor failure.

Do not block any ventilation openings.

Do not allow water and liquid intrusion into the camera.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Overview

3 Overview

1

①LAN

②3.5mm Audio Out

③3.5mm MIC In

④Alarm I n /Alarm Out

⑤Power

1

2

3

4

5

Note: DC24V and AC24V power supply

are optional.

Installation

2

◆Install SD Card

Please make sure the wall is strong enough to bear the dome

camera’s weight. Please make sure the camera is powered off

during installation.

① Loosen the two screws of the dome. ② Open the cover and insert SD card.

Insert SD card

◆Install the Speed Dome

③ Drill the screw holes on the wall according

to the drill template. Then insert the plastic

plugs into the holes.

④ Drive the two screws to the holes indicated

by the arrows (left) and leave 12mm

clearance.

① Pull the cables through the bracket. Mount the

speed dome to the bracket.

② Secure the speed dome to the bracket with

the screws.

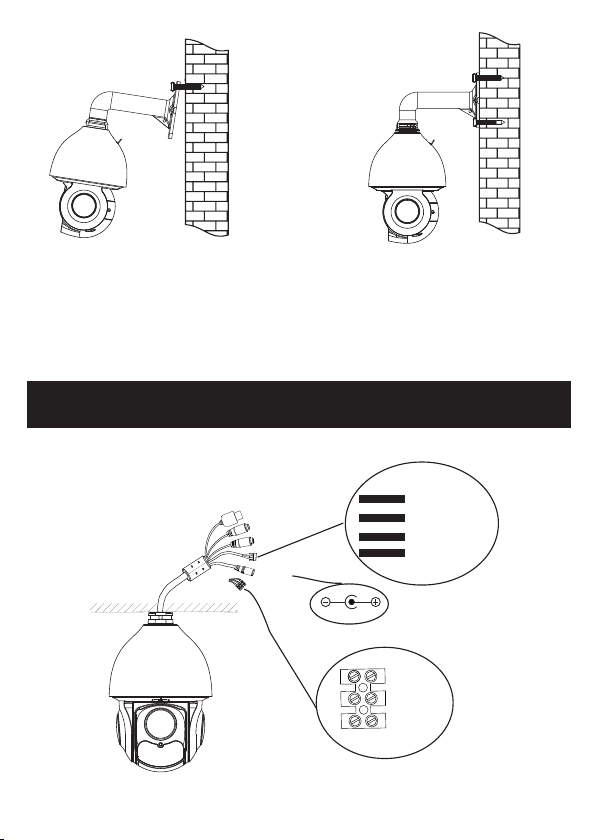

⑤ Connect the cables and then hang the

bracket on the wall .

⑥ Fasten the bracket to the wall with

four screws.

Cable Connection

3

HP Audio Out

Network Port

MIC IN

Power

ALM-OPEN

ALM-COM

ALM-GND

ALM-IN1

24V A

24V B

Earth

DC24V

AC24V

Alarm Connection:

1. Alarm Input

a) There is one independent alarm input port (ALM-IN1) and

one grounding port (ALM-GND).

b)Alarm input(NO type): Connect DC5V~DC12V voltage

between the alarm input port( ALM-IN1) and the grounding port

(ALM-GND).

c) Alarm input(NC type): Disconnect the voltage between the

alarm input port(ALM-IN1) and the grounding port (ALM-GND).

2. Alarm Output

a) Support 1CH alarm output including OPEN, COM

connections.

b) Alarm output: One passive switch for user to connect alarm

devices; the alarm output state will be auto on/off according to

your setting.

Web Operation and Login

4

●Operation

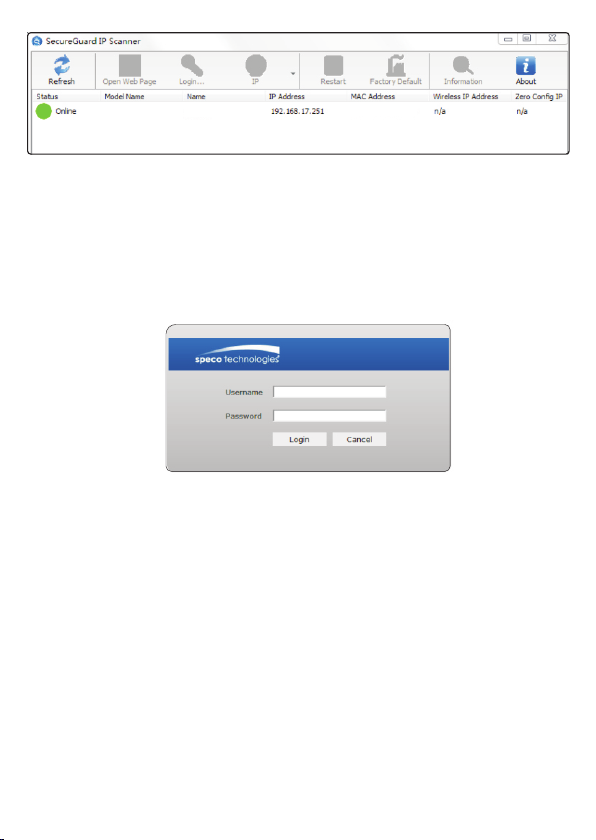

IP Scanner can search for the device on the local network.

①Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

②Install IP Scanner from the CD and run it after installation.

③In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser (Internet Explorer 8 and up).

5C :F2:0 7: 24:68 :B9

O4 P25X

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins.
