Sper scientific 850023 Manuale utente

Anemometer SD Card

Datalogger

850023

Instruction Manual

2 3

The contents of this manual may not be

reproduced or transmitted in any form or by any

means electronic, mechanical, or other means

that do not yet exist or may be developed,

including photocopying, recording, or any

information storage and retrieval system without

the express permission from Sper Scientic.

Anemometer SD Card Datalogger 850023

Printed in the USA

TABLE OF CONTENTS

INTRODUCTION ..................................................................4

FEATURES ...........................................................................5

MATERIALS SUPPLIED .......................................................6

POWER SUPPLY .................................................................7

METER COMPONENTS ......................................................8

KEYPAD .............................................................................10

SETUP MODE .................................................................... 11

MEASUREMENT PROCEDURES .....................................15

DATALOGGER ...................................................................19

BATTERY REPLACEMENT ...............................................22

TROUBLESHOOTING .......................................................23

PC CONNECTION ............................................................27

OPTIONAL ACCESSORIES ..............................................27

SPECIFICATIONS .............................................................28

WARRANTY ......................................................................32

4 5

INTRODUCTION

The Sper Scientic Anemometer SD Card Datalogger

(Model 850023) is an extremely accurate meter with fast

response times that reads air temperature and velocity, and

functions as a Type K/J thermocouple thermometer.

This meter features a real time SD memory card

datalogger. Standard, portable SD memory cards provide

unlimited data storage and upload pre-formatted data

directly to Excel, eliminating the need for cables or

software. Alternatively, manually record 99 readings for on-

screen review or stream data directly to a computer using

the optional software and cables. Each data set includes

temperature, RH, time and date.

FEATURES

● Reads air velocity and temperature and functions as a

Type K/J thermometer

● Low-friction ball vane wheels provide high accuracy in

high and low velocities

● SD memory card datalogger

● Manual datalogger option

● Fast response time for air temperature

● Highly accurate microcomputer circuit

● RS232 or USB PC connection

● Direct upload of data to Excel

● Detachable probe for measuring exibility

● Internal clock and calendar

● Touch-tone

● Tripod mounting screw

● Built-in tabletop stand

● Maximum and minimum

● Hold function

● Auto-power-o󰀨

● Low battery indicator

● Backlight

6 7

MATERIALS SUPPLIED

● Meter

● Probe

● SD Card

● 6 AA Batteries

● Instruction Manual

● Soft Carrying Case

POWER SUPPLY

This meter can be powered by six AA (1.5 V, UM3) batteries

or an optional 9 Volt DC adapter. See page 22 for battery

replacement instructions.

Plug the adaptor into the power port labeled ″DC 9V,″located

on the side of the meter.

Note…

When using the adapter to run the meter, the meter will remain

permanently on and the POWER button will be disabled.

8 9

METER COMPONENTS

Top of Meter

Bottom of Meter

Side of Meter

Anemometer Probe

Input Socket

Type K/J

Thermometer

Socket

SD Card

Socket

RESET

RS232 Output

DC 9V Adapter

Input Socket

METER COMPONENTS

Back of Meter

Probe

Tripod

Mounting

Screw

Battery Cover

Screws

Battery

Compartment/

Cover

Stand

Probe Head

Probe

Handle

Probe

Plug

10 11

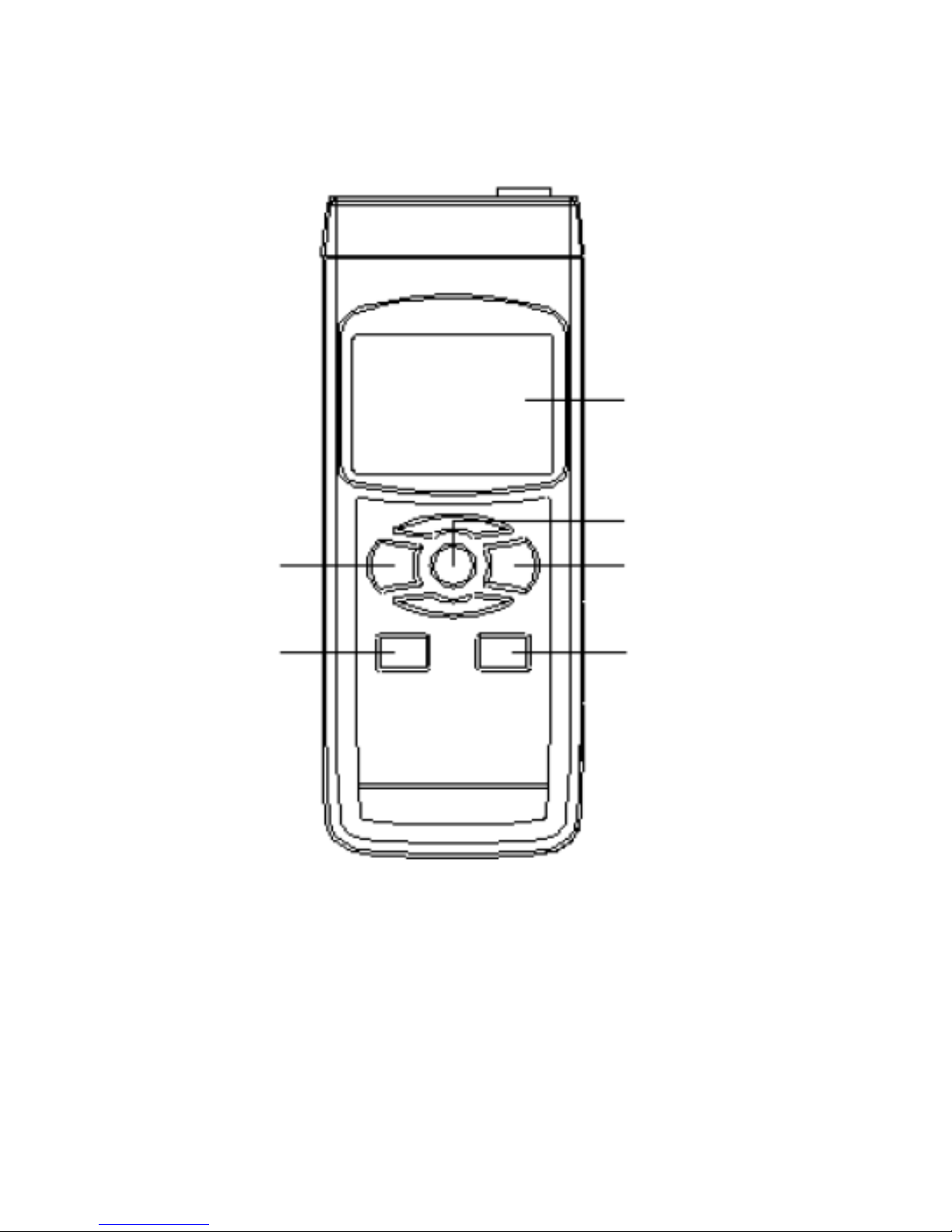

KEYPAD

LCD

Display

POWER

(ESC,

Backlight)

SET (▼,

TIME

CHECK)

LOGGER (▲,

SAMPLING

TIME

CHECK)

HOLD/NEX T/

FUNCTION

REC/ENTER/

UNIT
