INSTRUCTION MANUAL
A3 PRO Red Rotary Laser
SPECIAL EDITION
2
Please read this instruction manual before operating this product.
Please store this instruction manual in the carry case for future reference.
CAUTION: Class 2 Laser Product
Do not stare directly into the laser beam from apertures.
Do not disassemble the instrument or attempt to perform any internal servicing
as this will void your warranty. No user serviceable parts included.
Only approved and authorised service technicians can carry out warranty repairs.
SAFETY
3
Please ensure the following items are included with your laser.
If anything is missing please contact your retailer.

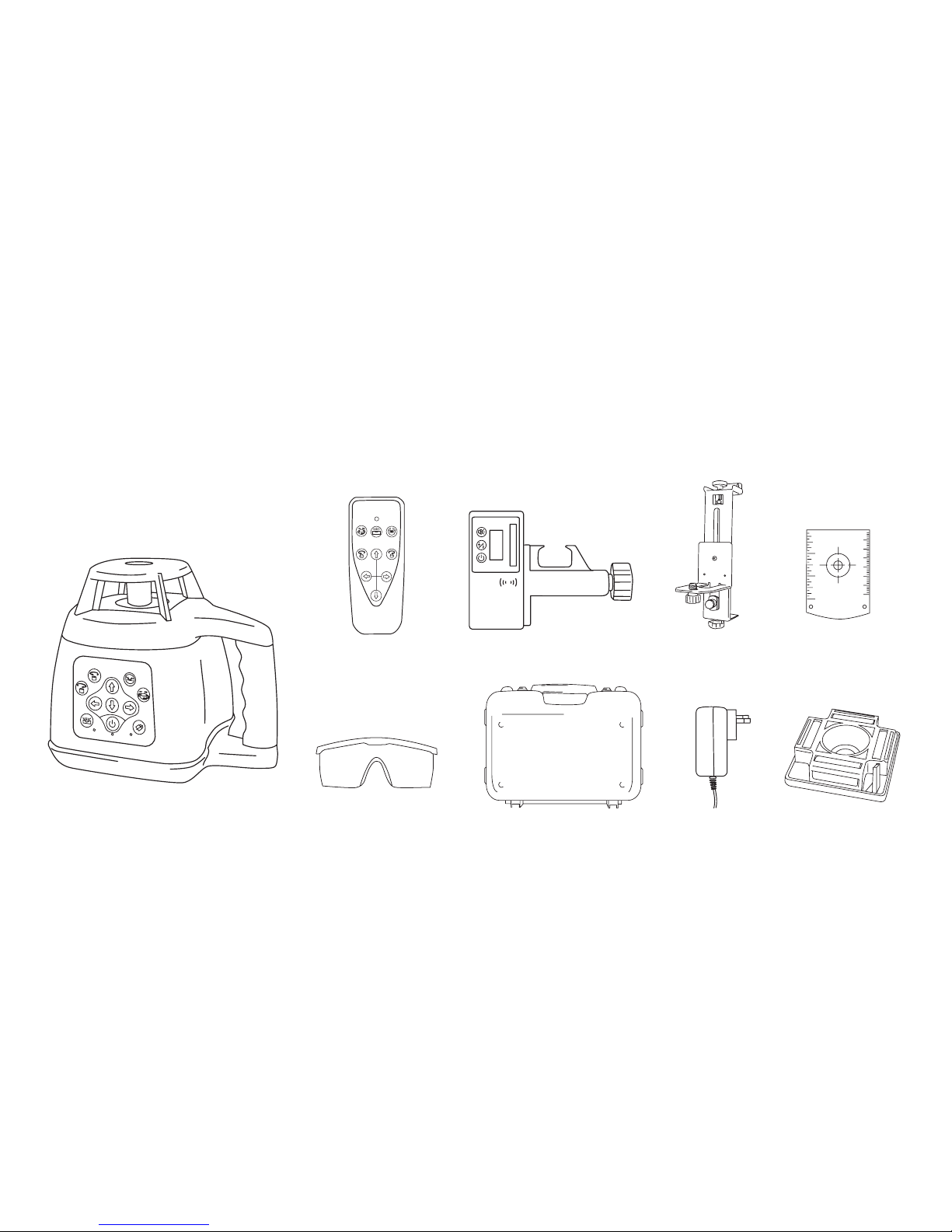

ITEM CHECKLIST
Laser glasses Carry case Rechargeable
battery pack
Charger
Laser targetDetector and clampRemote control Wall mount
General A3 PRO
INCHES CM
1
1
2
3
4
5
6
7
2
3
90°
45°
10°
180°
4
Rotating laser port
Protective lighthouse

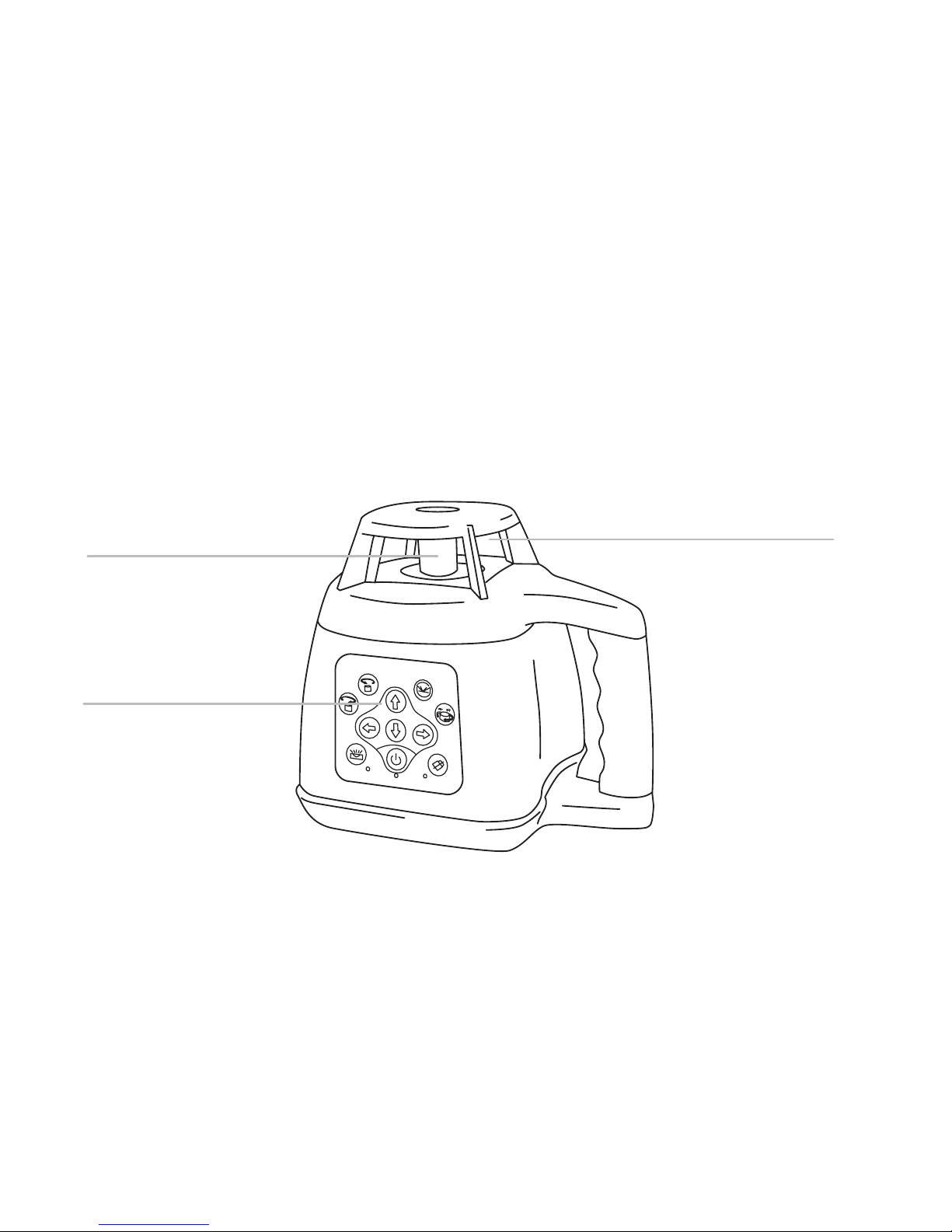

PRODUCT OVERVIEW
Control panel
5

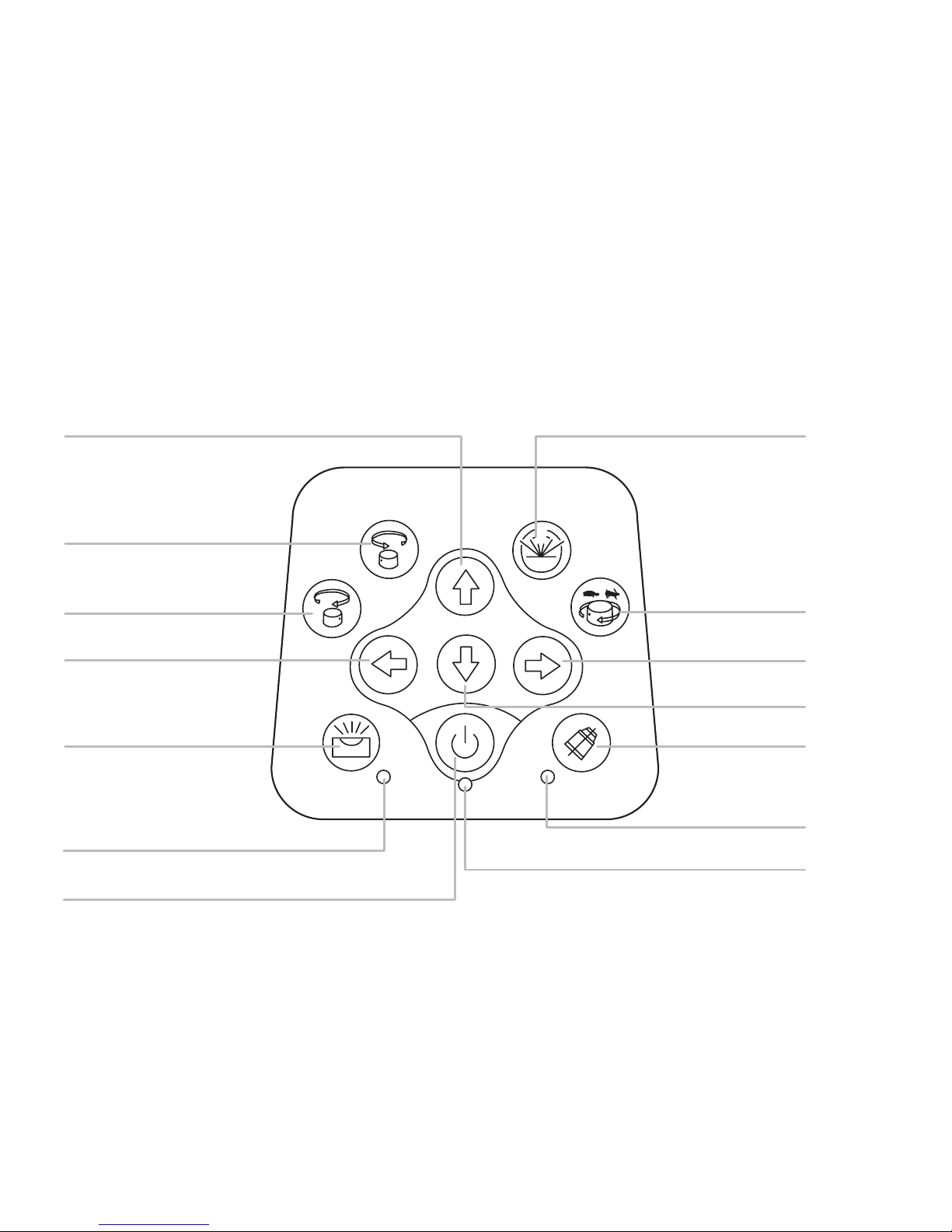

CONTROL PANEL
90°
45°
10°
180°
Power
Tilt alarm indicator
Power indicator
Speed control
Counter clockwise rotation
Y-axis up / down
Y-axis up / down
X-axis up / downX-axis up / down
Tilt alarm
Clockwise rotation
Manual / automatic mode
Scanning mode
Manual / automatic mode indicator
6

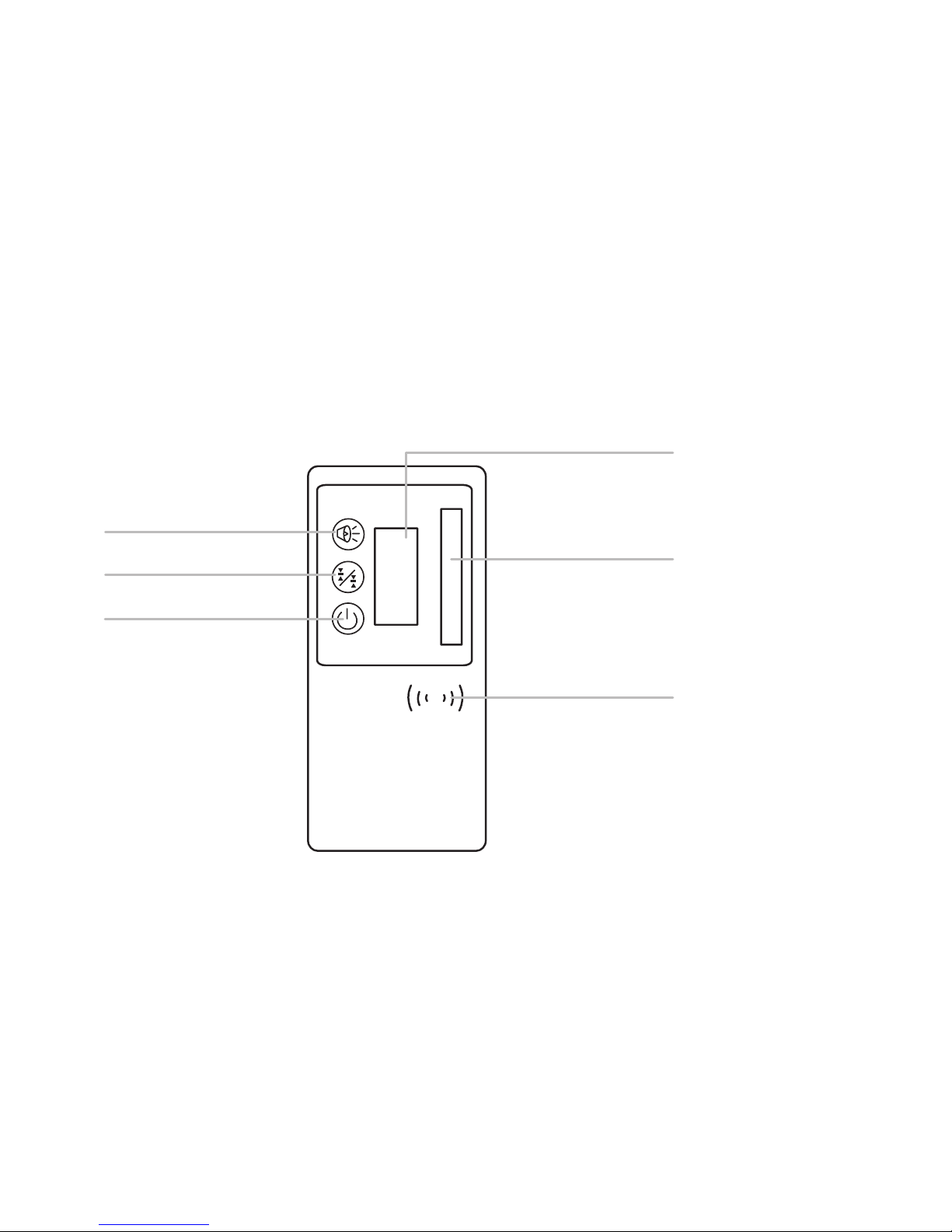

DETECTOR CONTROL PANEL
Sound on / off
Coarse / fine mode
LCD display screen
Laser sensor
Speaker
Power
7

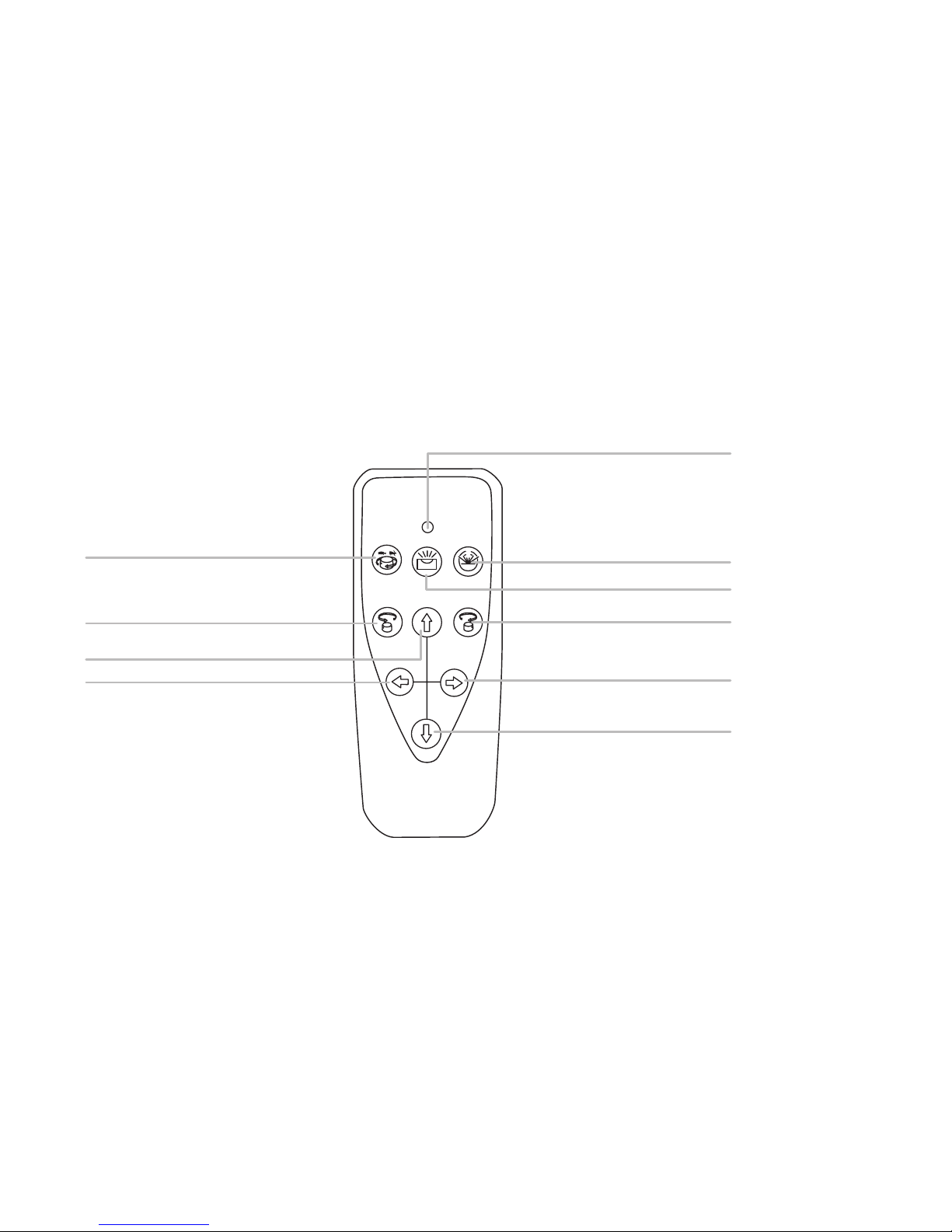

REMOTE CONTROL PANEL
90°
45°
10°
180°
Manual / automatic mode
Button indicator
Counter clockwise rotation
Scanning mode
Clockwise rotation
Speed control
Y-axis up / down
X-axis up / down
Y-axis up / down
X-axis up / down
8
USING YOUR LASER
Power Supply
‣The General A3 PRO is supplied with a rechargeable Ni-MH battery pack that is
located in the base of the unit.
‣It is recommended that the battery pack be completely charged before use.
‣Charging time is approximately 5 hours.
‣Use of the unit over time and changes in temperature may cause increases
or decreases in charging and operation time.
‣The power indicator light will flash when the battery is low. The unit should
be re-charged as soon as possible.
‣To charge the unit insert the charger into the port on the battery pack.
Progress will be shown by the power indicator display on the charger as below:
Red (flashing) = Charger and battery are not connected.
Red (constant) = Battery is charging.
Green (constant) = Battery is charged.
9
Horizontal Set Up
Vertical Set Up
‣Select a place as close as practical to the work site.
Ensure the location is clear of traffic.
‣Attach the laser to a tripod and place on a level surface.
Ensure the unit is secured correctly and tightened in position.
‣Select a place as close as practical to the work site.
Ensure the location is clear of traffic.
‣Place the laser onto a level surface with the control panel facing upwards.
10
Operation
‣To turn the unit on press the power button. Self
levelling will commence and the laser will begin to rotate.
‣If the unit is outside the self levelling range the unit will not
level causing the laser beam to flash continuously.
Speed control
‣Press the speed control button to cycle through various rotational speeds.
‣The speed control indicator will flash slowly when speed is slow and fast
when speed is increased.
Scanning mode
‣To focus the laser beam between two points press the scanning mode
button. Pressing the button multiple times will adjust the angle of the beam.
‣To cancel scan mode press the scanning mode button several times
to cycle through to full rotation.
Rotation
‣Whilst the unit is in scanning mode press the clockwise or counter
clockwise button to change the rotation of the laser head.
