StarTech.com SDOCK4U33E Manuale utente

Manual Revision: 08/31/2016

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SDOCK4U33

USB 3.0 4-Bay 2.5/3.5” SATA SSD/HDD Dock

with UASP

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Diagram ....................................................................................1

Front View .................................................................................................................................................... 1

Rear View...................................................................................................................................................... 2

Introduction............................................................................................3

Packaging Contents ................................................................................................................................. 3

System Requirements.............................................................................................................................. 3

Installation ..............................................................................................3

Docking Station Installation.................................................................................................................. 3

Drive Installation ....................................................................................................................................... 4

Drive Removal.........................................................................................4

Docking Station Operation...................................................................5

Drive Initialization .................................................................................................................................... 5

LED Indicators............................................................................................................................................. 6

Adjust Cooling Fan Speed...................................................................................................................... 7

Disconnecting the Hard Drive.............................................................................................................. 7

Specications..........................................................................................8

Technical Support ..................................................................................9

Warranty Information............................................................................9

Instruction Manual

Product Diagram

Front View

1. HDD #1 Power button/Activity LED

2. HDD #2 Power button/Activity LED

3. HDD #3 Power button/Activity LED

4. HDD #4 Power button/Activity LED

5. HDD #1 slot

6. HDD #2 slot

7. HDD #3 slot

8. HDD #4 slot

9. HDD #1 eject button

10. HDD #2 eject button

11. HDD #3 eject button

12. HDD #4 eject button

Instruction Manual

Rear View

1. Cooling Fan #2 speed control

2. USB 3.0 port

3. Power adapter port

4. Cooling Fan #1 speed control

Instruction Manual

Introduction

Packaging Contents

• 1 x USB 3.0 4-bay 2.5/3.5” SATA SSD/HDD dock

• 1 x USB 3.0 cable

• 1 x universal power adapter (NA/JP, EU, UK, ANZ)

• 1 x instruction manual

System Requirements

• Computer system with available USB 3.0 (5 Gbit/s) port or USB 2.0 port (480Mbps)

• Up to two 2.5” or 3.5” SATA Hard Drives (HDD) or Solid State Drives (SSD)

• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7/8/8.1 (32/64-bit),

Apple® Mac® OS 9.x/10, Google Chrome OS, or Linux®

Installation

WARNING! Hard drives and docking stations require careful handling. If you are not

careful with your hard disk, lost data may result. Always handle your hard drive and

docking station with caution. Be sure that you are properly grounded by wearing an

anti-static strap when handling computer components or discharge yourself of any

static electricity build-up by touching a large grounded metal surface (such as the

computer case) for several seconds.

Docking Station Installation

1. Connect the Dock to an available power outlet, using the provided power adapter.

2. Connect the Dock to your computer system, using the provided USB 3.0 cable.

Instruction Manual

Drive Installation

1. Carefully align and insert the 2.5” or 3.5” SATA drive(s) you wish to dock in the

desired hard drive slot on the docking station, such that the SATA power and data

connectors on the drive are properly aligned with the corresponding connectors

inside the hard drive slot.

2. Press the power button that corresponds with the drive you would like to access.

3. Once the drives have been installed and the docking station has been powered on,

the computer Operating System will automatically recognize the drive(s) and it will

be accessible as though it were installed in the system internally.

Note: If your computer fails to automatically recognize your drive it is likely your

drive has not been initialized or formatted correctly. (See Drive Initialization in

Software operation for further instructions.)

Drive Removal

WARNING! Ensure your hard drive(s) has been disconnected/ejected from your

computer operating system prior to attempting drive removal. Failure to properly

disconnect your drive may result in lost data or drive damage. (See Disconnecting the

Hard Drive in Docking Station Operation for further instructions.)

1. Turn o the drive by pressing the HDD Power/Activity button on the docking station

that corresponds with the drive you wish to remove.

2. Press the eject button that corresponds with the drive you wish to remove.

3. Carefully grasp the ejected drive and lift it upwards until the bottom of the drive has

completely risen above the hard drive slot.

Instruction Manual

4. Safely and carefully store your drive in a secure location. (See your hard drive

manual for proper storage instructions.)

Docking Station Operation

Drive Initialization

Prior to using your installed drive, it will need to be initialized and formatted to the

operating system requirements in order for your computer system to recognize it.

1. From the main Windows desktop, right-click on “My Computer”(“Computer” in Vista/

7 / 8/ 8.1), then select Manage. In the new Computer Management window, select

Disk Management from the left window panel.

Instruction Manual

2. A dialog window will automatically appear, asking you to initialize the drive.

Depending on the version of Windows, it will give you the option of either creating

an “MBR” or “GPT” disk.

Note: GPT (GUID partition) is required for drives larger that 2TB but is not

compatible with some older operating systems, while MBR is supported by newer

and older operating systems.

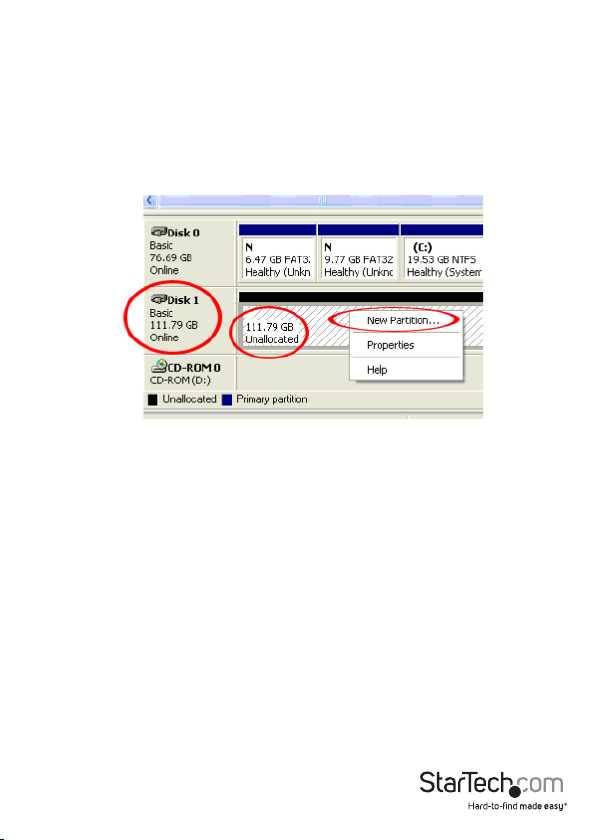

3. Once initialized, locate the Disk that says it is “Unallocated” (check the listed hard

drive capacity to conrm it’s the correct hard drive) and then right-click in the

section that says “Unallocated” and select“New Partition”.

4. Follow the on screen prompts to initialize the drive in the format of your choice.

LED Indicators

The docking station oers a power LED indicator (blue) and an activity LED indicator

(red) for each drive. When the drive is powered on, the Blue LED Power indicator

will illuminate. While the hard drive is being accessed, the Red LED will ash. Do not

remove your drive from the docking station while the Red LED is ashing, as it could

damage to your drive, resulting in data loss.

Instruction Manual

Adjust Cooling Fan Speed

The docking station oers two hard drive cooling fans with adjustable speed control.

To increase fan speed turn your desired Cooling fan control counter clock wise.

To decrease fan speed turn your desired Cooling fan control clockwise.

Disconnecting the Hard Drive

Windows

1. Select the “Safely remove Hardware and Eject Media”icon, located in the task bar.

2. Select the storage device from the list that appears.

3. Wait for the message indicating that it is now safe to remove the device.

Note: Removing the connected drive prior to receiving notication that it is safe to

do so, could result in losing or corrupting data stored on the drive. Once the Safe

to Remove Hardware message appears, please remove the drive from the docking

station. (See Drive Removal.)

Mac OS X

To safely disconnect the attached drive from the host computer, close any windows

listing the contents of the removable drive. Once all windows are closed, click on the

USB storage icon on the desktop, and drag it to the Trash Can icon on the desktop.

Allow 5 seconds before physically removing the drive from the docking station.
