StarTech.com IPUSB2VGA Manuale utente

Manual Revision: 05/15/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IPUSB2VGA

IPUSB2VGAUE

Ethernet to VGA over IP Converter

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Side 1 View................................................................................................................................................... 2

Side 2 View................................................................................................................................................... 2

Installation Diagram................................................................................................................................. 3

Installation ..............................................................................................4

Software Installation for Windows 2000/XP/Vista/7..................................................................... 4

Hardware Installation for USB............................................................................................................... 5

Hardware Installation for Ethernet ..................................................................................................... 5

Installation for Mac OS X ........................................................................................................................ 7

Conguration..........................................................................................8

Windows 2000/XP/Vista/7 ..................................................................................................................... 8

Mac OS X ...................................................................................................................................................... 11

Specications..........................................................................................13

Technical Support ..................................................................................14

Warranty Information............................................................................14

Instruction Manual

Introduction

The StarTech.com IPUSB2VGA Video Adapter oers versatile performance by providing

either a USB-to-VGA connection or an IP/Ethernet-to-VGA connection between a PC

and VGA-capable display device. The ideal solution for computers lacking a VGA video

output or PCs that require an additional display at long distances/remote locations.

Packaging Contents

• 1 x IPUSB2VGA video adapter

• 1 x Driver/Software Installation CD

• 1 x Universal Power Adapter

• 1 x Instruction Manual

System Requirements

• VGA enabled display device

• USB and/or 10/100/1000 Ethernet enable computer system with available port

• 10/100/1000base-T Ethernet network

• Microsoft® Windows® 2000/XP (32-bit), Vista/7 (32/64-bit),

or Apple® Mac OS® 10.4.11/10.5/10.6*

NOTE: only USB mode is supported in Mac OS

Instruction Manual

Power Connector

RJ45 LAN

connector

3.5mm mini-jack

MIC input

3.5mm mini-jack

Speaker output

DE-15 VGA

connector

(output)

USB Hub connectors

USB mini-B

connector (Host)

Power LED

Power Button

Side 1 View

Side 2 View

*actual product may vary from photos

Instruction Manual

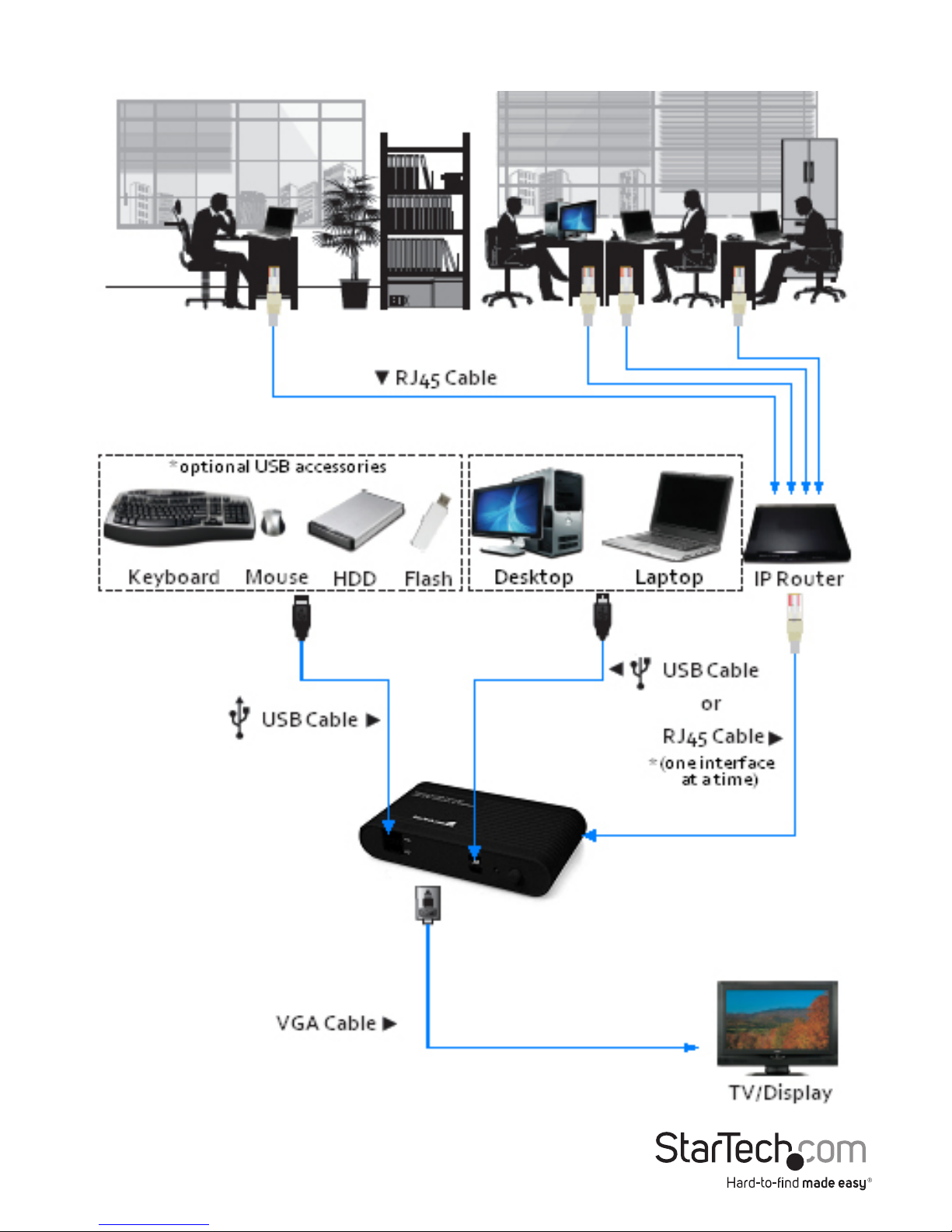

Installation Diagram

Instruction Manual

Installation

NOTE: The following installation steps must be completed prior to connecting USB

adapter to the host computer, to ensure proper functionality.

Software Installation for Windows 2000/XP/Vista/7

1. Insert the Driver CD (included) into the CD/DVD-ROM drive.

2. AutoPlay should automatically launch the installer screen, or simply select the

option to run “Autorun.exe”. If AutoPlay is not enabled on the computer, browse

through the CD and locate the “Autorun.exe” le.

3. Select the “IPUSB2VGA”from the product menu, then

select the option to install the Device Drivers, then the

operating system. This will begin the device driver

and software installation process.

4. When the End User

License Agreement

appears, please read

and accept it, then

click Next.

Please wait while the

installation package

copies the necessary les.

5. When the end of the installation is reached,

click “Finish” and restart the computer, if not

done automatically.

6. After Windows has fully loaded, the Video

Adapter will be ready to use.

Instruction Manual

Hardware Installation for USB

1. Connect the VGA display device to the Video Adapter and power on the Display

Device. If using the audio features, connect external speakers and/or a microphone

to the 3.5mm mini-jack connectors on the adapter.

2. Plug the power adapter into the VGA Video Adapter. The Power LED will light up steady.

3. Plug in the USB Video Adapter adapter to the computer with a standard mini USB to

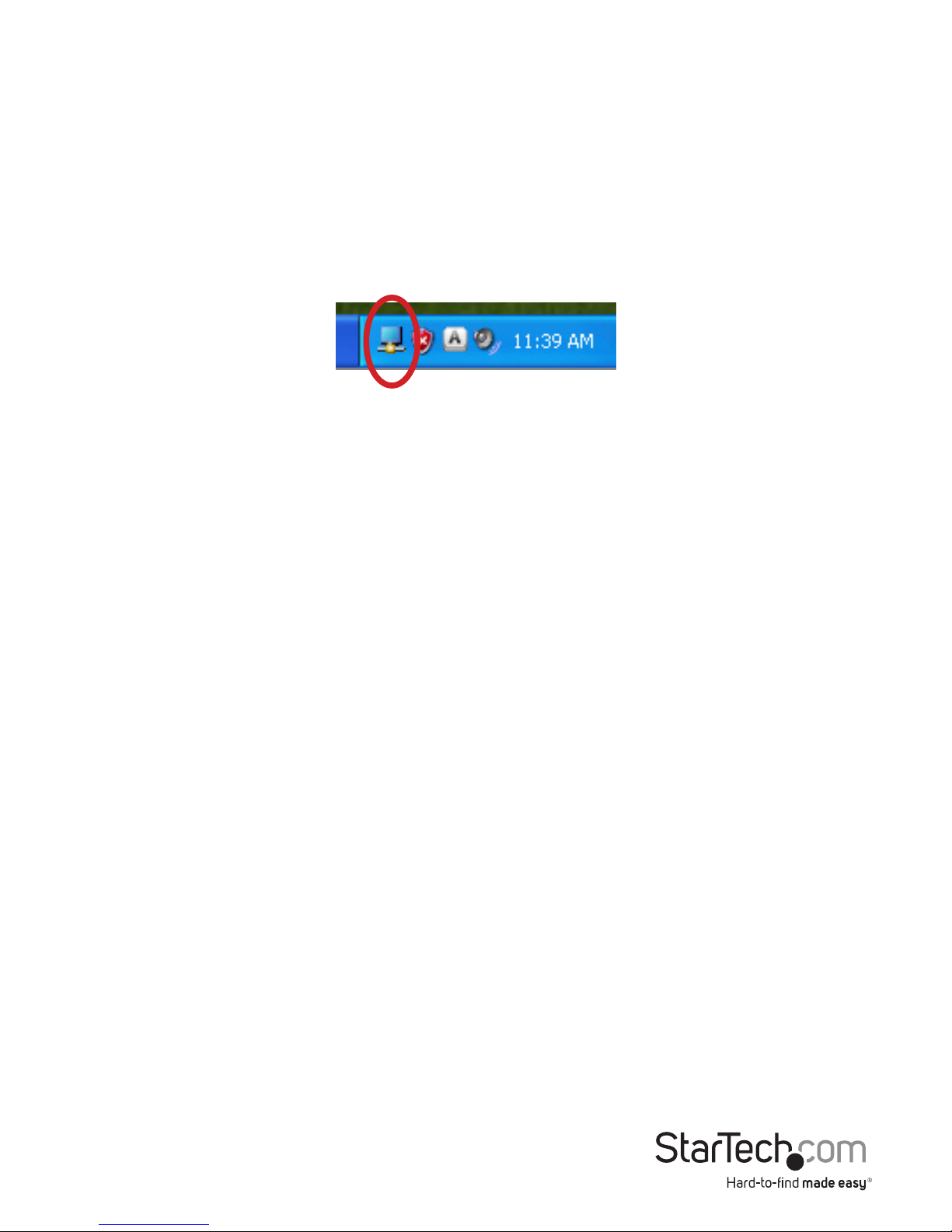

USB cable. Windows should automatically start to load the drivers. Once complete,

you should see this icon in your System Tray:

4. To verify the installation, right-click on “My Computer” and select Manage to open

the Computer Management window.

5. In the left pane of the Computer Management window, click on Device Manager.

6. In the right pane of the Computer Management window, click on Universal Serial

Bus Controllers, and ensure that the USB Video Adapter is listed underneath. Under

the Sound category, will be a USB Sound device.

7. Additional (up to 4) VGA Video Adapters can now be connected to the computer

system. Each device will add additional entries to the Device Manager. Note that

only one audio device can be used by Windows at a time. So audio will only be

output to one of the VGA Video Adapters.

OPTIONAL: Connect any USB peripherals to be shared along with the VGA Video

Adapter, into the available USB hub ports on the unit. They will appear as directly

connected to the computer system.

Hardware Installation for Ethernet

8. Connect the VGA display device to the Video Adapter and power on the Display

Device. If using the audio features, connect external speakers and/or a microphone

to the 3.5mm mini-jack connectors on the adapter.

Connect the power adapter to the VGA Video Adapter. The Power LED will light up steady.

10. Connect the RJ45 connector on the VGA Video Adapter to an available Ethernet

port on the network router/switch/hub, or directly to the computer system’s

Ethernet port.

Instruction Manual

If a DHCP server is available, theVGAVideo Adapter will automatically obtain the IP address

and network settings to be able to communicate with other devices on the network.

If a DHCP server is not available, such as connecting directly to a computer system,

the VGA Video Adapter will assume an IP of 192.168.1.50. The computer system

must use an IP address of 192.168.1.x (x being a number not used by another device,

i.e. the VGA Video adapter) to be able to communicate with the VGA Video Adapter.

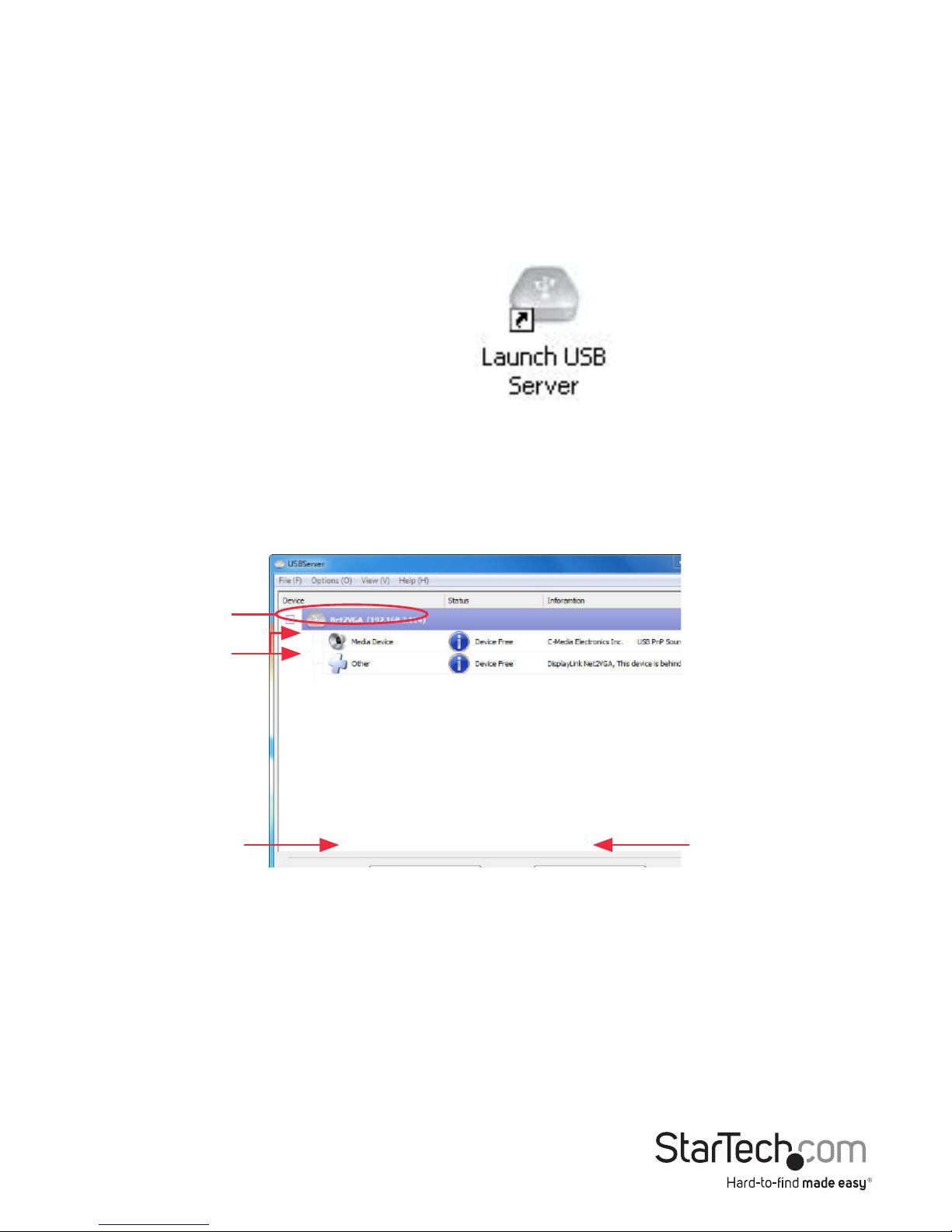

2. Launch the USB Server software from the desktop Icon.

3. The USB Server software will list the VGA Video Adapter, with it’s currently assigned

IP address. Under it will be listed all components of the VGA Video Adapter that can

be accessed by the computer system (i.e. video and audio components).

4. Double-click on the component device that needs to be connected or highlight the

device and click the “Connect” button. The Device’s “Status” will change to indicate

it’s “Locally Connected” and cannot be used by other computers.

5. The connected component will then be detected by the operating system and be

made accessible as if directly connected to the computer system.

6. To disconnect the component, double-click on it or click the “Disconnect” button.

OPTIONAL: Connect any USB peripherals to be shared along with the VGA Video

Adapter, into the available USB hub ports on the unit. They will appear as additional

connectable components in the USB Server software.

IP VideoAdapter

with IP Address

Connectable

Devices

Launch web

conguration interface

(Video adapter selected)

Connect/Disconnect

device

(USB device selected)

Scan network for

IP Video Adapters

Instruction Manual

Installation for Mac OS X

1. Insert the Driver CD (included) into the CD/DVD-ROM drive.

2. Browse through the Driver CD and locate the“DisplayLink-OSX” .dmg le. Double-

click on this le to begin the installation process:

3. Double Click the “DisplayLink Software

Installer.pkg” to install the software.

4. Once the installation is complete, click

the “Restart” button. The computer will

automatically reboot, so make sure to

close/save any les you have opened,

before pressing this button.

5. After the computer has

restarted, plug in the VGA Video

Adapter to an available USB 2.0 port. The

adapter should now be ready to use.

6. If you wish to add additional VGA Video Adapters, simply plug them into available

USB 2.0 ports. A maximum total of 4 VGA Video Adapters can be used on a

computer. Note that only one audio device can be used by Mac OS at a time. So

audio will only be output to one of the VGA Video Adapters.

OPTIONAL: Connect any USB peripherals to be shared along with the VGA Video

Adapter, into the available USB hub ports on the unit. They will appear as directly

connected to the computer system.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali StarTech.com Convertitore multimediale

StarTech.com

StarTech.com VGA2DVII Manuale utente

StarTech.com

StarTech.com ET90110WDM Manuale del sistema

StarTech.com

StarTech.com ET91000LC Manuale del sistema

StarTech.com

StarTech.com IMC100MSFP Manuale utente

StarTech.com

StarTech.com VGA2VID Manuale utente

StarTech.com

StarTech.com ET9003SM Manuale del sistema

StarTech.com

StarTech.com VS440HDMI Manuale utente

StarTech.com

StarTech.com VID2VGATV Manuale utente

StarTech.com

StarTech.com ET90110SM302 Manuale utente

StarTech.com

StarTech.com MCM110ST Manuale utente

StarTech.com

StarTech.com HDMI2HDMI Manuale utente

StarTech.com

StarTech.com ST124HD4K Manuale utente

StarTech.com

StarTech.com DVI2HDMIA Manuale utente

StarTech.com

StarTech.com 8STET91000LCOAM Manuale utente

StarTech.com

StarTech.com MCHD2VGA Manuale utente

StarTech.com

StarTech.com ET91000SM40 Manuale utente

StarTech.com

StarTech.com ET1000SM40LC Manuale del sistema

StarTech.com

StarTech.com ET91000SFP2 Manuale utente

StarTech.com

StarTech.com CONVERGEAV CPNTA2HDMI Manuale utente

StarTech.com

StarTech.com VGA2HDMIPRO Manuale utente

StarTech.com

StarTech.com IDE2SAT25 Manuale utente

StarTech.com

StarTech.com COMP2VGA Manuale utente

StarTech.com

StarTech.com ET91000SM20 Manuale utente

StarTech.com

StarTech.com AA2SPDIF Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
