PCI FireWire Card

PCI1394_2 (2 Port)

PCI1394_4 (4 Port)

Instruction Manual

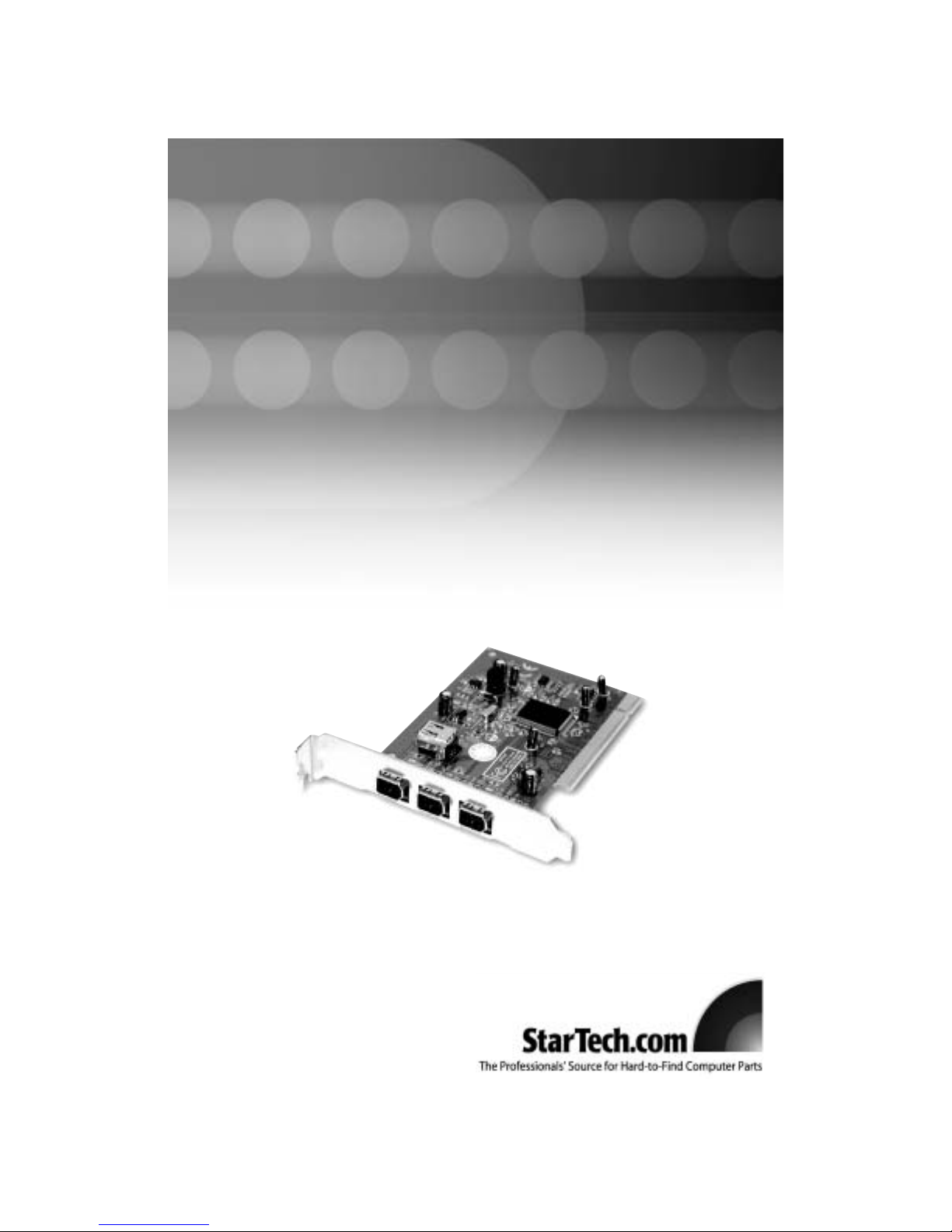

Actual product may vary from photo

2 Port PCI IEEE-1394 FireWire PCI Card with Digital Video Editing Kit

4 Port PCI IEEE-1394 FireWire PCI Card with Digital Video Editing Kit

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installing the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installing the Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Verifying Your Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installing and Using Your VideoStudio Software . . . . . . . . . . . . . . . . . . . . . .4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com PCI FireWire card and digital video editing kit.

This card allows you to instantly connect your video camera, image scanner, digital still

camera, or any other IEEE-1394 FireWire device to your PC. With the included Ulead

VideoStudio digital editing software, you can easily edit video sequences.

Features

•Compatible with most digital video camcorders including Sony, Canon, Panasonic,

JVC, Samsung, and others

•Supports hard disk drives, DVD drives, CD-R/RW drives, printers, and more

•Data transfer rates up to 400 Mbits/sec.

•Allows the connection of internal FireWire peripherals

•Backed by StarTech.com’s lifetime warranty

Before You Begin

To ensure a quick and easy PCI FireWire card installation, please read through this

section carefully before attempting to install the card.

System Requirements

•An IBM-PC compatible computer

•One available PCI slot

•One of the following operating systems: Windows 98SE/ME/2000/XP

•ACD-ROM or other optical drive (for software installation)

WARNING! PCI cards, like all computer equipment, can be severely damaged by static

electricity. Be sure that you are properly grounded before opening your computer case or

touching your PCI card. StarTech.com recommends that you wear an anti-static strap

when installing any computer component. If an anti-static strap is unavailable, discharge

yourself of any static electricity build-up by touching a large grounded metal surface

(such as the computer case) for several seconds. Also be careful to handle the PCI card

by its edges and not the gold connectors.

Contents

This package should contain:

•1x PCI FireWire card (PCI1394_2 or PCI1394_4)

•1x 4-6 pin male-to-male IEEE-1394 FireWire cable

•1x Ulead VideoStudio software CD

• 1 x Instruction Manual

Instruction Manual

Installation

This section will guide you through the installation of your PCI FireWire card. Please

read through the instructions carefully and complete each step in the order listed.

Installing the Card

1. Make sure that your system is unplugged and you are grounded.

2. Remove the cover of your system (see your computer’s user manual for details, if

necessary) and gently turn your computer onto its side.

3. Locate an empty PCI slot (usually white in color) and remove the metal plate that

covers the rear bracket. You may need a Phillips screwdriver to perform this step.

Retain this screw! You will need it to secure the card later.

4. Gently insert the PCI card into the empty slot, making sure it is firmly seated.

5. Secure the card in place using the screw you removed in Step 3.

6. Put the computer case back on.

Installing the Drivers

Once you have connected your FireWire card, the next time you turn on your computer

Windows will automatically detect that you have installed new hardware. Follow the

instructions below to install the required software drivers.

Windows 98SE

1. Windows should automatically detect the new hardware. At the Add New Hardware

Wizard window, click Next.

Instruction Manual

PCI

Slots

2. Select Search for the best driver for your devices (Recommended) and click

Next.

3. Insert the Windows 98SE CD-ROM into your computer’s optical drive and check the

CD-ROM option. Click Next.

4. Choose The Updated Driver (Recommended) and click Next.

5. Click Next again. If prompted for the Windows CD again, type x:\win98 and click

OK (where “x:” is letter assigned to your CD-ROM or other optical drive).

6. Click Next, then Finish to complete the driver installation. Select Yes to restart your

computer (if prompted).

Windows ME

1. Windows should automatically detect the new hardware. At the Add New Hardware

Wizard window, click Next.

2. Select Search for the best driver for your devices (Recommended) and click

Next.

3. Insert your Windows ME CD into your computer’s optical drive. Select CD-ROM

drivers and click Next.

4. Click Finish.

5. Remove the CD and select Yes to restart your computer (if prompted).

Windows 2000

Windows 2000 will automatically locate and install the required drivers.

Windows XP

Windows XP will automatically locate and install the required drivers.

Verifying Your Installation

Windows 98SE/ME

1. Go to Start >Settings >Control Panel.

2. Double click System.

3. Click the Hardware tab.

4. If the card does not appear with a red xor yellow exclamation point (!) next to it,

Windows has not detected a problem with the installation and the card should

function normally.

Windows 2000/XP

1. Go to Start >Settings >Control Panel.

2. Double click System.

3. Click the Hardware tab and choose Device Manager.

Instruction Manual

4. If the card does not appear with a red xor yellow exclamation point (!) next to it,

Windows has not detected a problem with the installation and the card should

function normally.

Installing and Using Your VideoStudio Software

For detailed instructions on the installation and use of the digital editing software, consult

the Ulead VideoStudio manual available on the CD. From My Computer right click the

icon for your CD-ROM or other optical drive and select Explore. Open the Manual

folder and select your language. (Note: To view the manual, you will need Adobe Acrobat

Reader, which is available as a free download from the Adobe Web site,

www.adobe.com.) StarTech.com recommends carefully reading the instructions supplied

by Ulead before attempting to install or use the software.

Specifications

Accessory Products from StarTech.com

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

6 ft. IEEE-1394 FireWire Cable 4-6 pin M/M

1394_46_6

10 ft. IEEE-1394 Firewire Cable 4-6 pin M/M

1394_46_10

15 ft. IEEE-1394 Firewire Cable 4-6 pin M/M

1394_46_15

6 ft. IEEE-1394 FireWire Cable 6-pin to 6-pin

1394_6

Instruction Manual

Form Factor/Interface Full-sized PCI

Standards Supported IEEE-1394/IEEE-1394A (FireWire 400)

Maximum Data Transfer Rate 400 Mbits/sec.

Connectors PCI1394_2

2 x 6-pin FireWire female (1 internal, 2 external)

PCI1394_4

4 x 6-pin FireWire female (1 internal, 3 external)

Cables Included 1 x 6-pin to 4-pin FireWire cable

OS Support Windows 98SE/ME/2000/XP

Fully plug and play compliant

Software Included Ulead VideoStudio

Regulatory & Other Certifications FCC Class B, CE, UL, Microsoft WHQL

10 ft. IEEE-1394 Firewire Cable 6-6 pin M/M

1394_10

15 ft. IEEE-1394 Firewire Cable 6-6 pin M/M

1394_15

IEEE-1394 Firewire 4-6 pin Adapter M/F

FIRE46MF

Mutant Mods 6 ft. Blue - Green Lava Lamp LED IEEE-1394 FireWire Cable, 6-6 pin

1394_6FLBG

Mutant Mods 6 ft. Red - Yellow Lava Lamp LED IEEE-1394 FireWire Cable, 6-6 pin

1394_6FLRY

Mutant Mods 6 ft. Blue LED IEEE-1394 FireWire Cable, 6-6 pin

1394_6LEDBL

Mutant Mods 6 ft. Red LED IEEE-1394 FireWire Cable, 6-6 pin

1394_6LEDRD

Instruction Manual

Technical Support

The following technical resources are available for this StarTech.com product:

On-line help:

We are constantly adding new information to the Tech Support section of our web site.

To access this page, click the Tech Support link on our homepage, www.startech.com.

In the tech support section there are a number of options that can provide assistance

with this product.

Knowledge Base - This tool allows you to search for answers to common issues using

key words that describe the product and your issue.

FAQ - This tool provides quick answers to the top questions asked by our customers.

Downloads - This selection takes you to our driver download page where you can

find the latest drivers for this product.

Call StarTech.com tech support for help:

USA/Canada: 1-800-265-1844

UK/Ireland/Europe: 00-800-7827-8324

Support hours: Monday to Friday 8:30AM to 6:00PM EST (except holidays)

Warranty Information

This product is backed by a lifetime warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Instruction Manual

Revised: 18 August 2004 (Rev. B)

Altri manuali per PCI1394_2

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali StarTech.com Scheda PCI

StarTech.com

StarTech.com PR22GI-NETWORK-CARD Manuale utente

StarTech.com

StarTech.com USB32HDCAPRO Manuale utente

StarTech.com

StarTech.com SVID2USB232 Manuale utente

StarTech.com

StarTech.com QUAD-M2-PCIE-CARD-B Manuale utente

StarTech.com

StarTech.com PEXUS313AC2V Manuale utente

StarTech.com

StarTech.com ST1000BT32 Manuale utente

StarTech.com

StarTech.com PEXUSB7LP Manuale utente

StarTech.com

StarTech.com PEX2S952 Manuale utente

StarTech.com

StarTech.com PEXUSB312C3 Manuale utente

StarTech.com

StarTech.com PEX2S1050 Manuale utente

StarTech.com

StarTech.com PCI2S232485I Manuale utente

StarTech.com

StarTech.com PEXSATA22I Manuale del sistema

StarTech.com

StarTech.com PEXSATA24E Manuale utente

StarTech.com

StarTech.com 21050-PC-SERIAL-CARD Manuale utente

StarTech.com

StarTech.com PEXESATA1 Manuale utente

StarTech.com

StarTech.com PCIPOST Manuale utente

StarTech.com

StarTech.com PEX400USB2 Manuale utente

StarTech.com

StarTech.com PEX8M2E2 Manuale utente

StarTech.com

StarTech.com MPEX300WN2X2 Manuale del sistema

StarTech.com

StarTech.com ST100SLP Manuale

StarTech.com

StarTech.com ISA2S550 Manuale

StarTech.com

StarTech.com PEX1394A2DV Manuale utente

StarTech.com

StarTech.com PCISATA2A133 Manuale utente

StarTech.com

StarTech.com PR42GI-NETWORK-CARD Manuale utente

Manuali Scheda PCI popolari di altre marche

ERMA

ERMA SSI 1417 Manuale utente

SIIG

SIIG CyberSerial Dual PCI Istruzioni per il montaggio

Moxa Technologies

Moxa Technologies CP-102E Manuale utente

I-Bus

I-Bus IBC2602 Manuale utente

Exsys

Exsys EX-60102 Manuale utente

Chelsio Communications

Chelsio Communications T5 Series Manuale utente

Conrad Electronic

Conrad Electronic 97 46 71 Manuale utente

Micro Innovations

Micro Innovations USB650A Manuale utente

KTI Networks

KTI Networks KF-310 Manuale utente

Asus

Asus SpaceLink WL230 Manuale utente

SIIG

SIIG SC2475 Manuale utente

TRENDnet

TRENDnet TEW-703PI Manuale utente

Belkin

Belkin F5D7000F Manuale utente

Pericom

Pericom PI7C7100 Manuale utente

ADLINK Technology

ADLINK Technology cPCI-3548 Manuale utente

Digium

Digium TE200 Series Manuale utente

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manuale utente

Western Digital

Western Digital FireWire PCI Adapter Manuale utente
