StarTech.com NETRS2321POE Manuale utente

Ethernet Device Server

1-Port Industrial RS-232

Ethernet Device Server - Power

over Ethernet

NETRS2321POE

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Table of Contents

Hardware Guide............................................................... 2

Package Contents .......................................................................2

Front Panel ..................................................................................2

Rear Panel...................................................................................3

LED Indicators.............................................................................3

Hardware installation...................................................... 4

Conﬁguring the Adapter................................................. 4

Setting the IP Address.................................................................4

Setting the IP Address from a DHCP Server...........................5

Setting the IP Address using a Web Browser..........................5

Setting the IP Address using the Em.exe Utility ......................6

Managing the Adapter Settings ...................................................6

Controller Setup Menu Items.......................................................7

Software Installation....................................................... 9

VSP Virtual COM Port Driver.......................................................9

Installing the VSP Virtual COM Port Driver..................................10

Speciﬁcations.................................................................. 13

Technical Support........................................................... 15

Warranty Information...................................................... 15

Hardware Guide

Package Contents

1 x Driver CD•

1 x Industrial Switch•

1 x Instruction Manual•

1 x Power Adapter•

Front Panel

Switch to Restore Default Settings -1. This switch can be used to

reset the product to its factory default settings. Pressing the switch

using either a pen or similar tool will immediately restore the unit

to its default settings.

RJ45 LAN Connector -2. 10/100Mbps Ethernet port. It supports the

auto cross-over feature, and allows use of the same cable to

connect to either a Hub/Switch or a host computer.

Heartbeat LED3.

+7~12VDC Power Input DC Jack4.

1 2 3 4

Rear Panel

RS-232 Connector1.

LED Indicators

10/100 Mbps LED (amber color)1.

Link/Activity LED (green color)2.

Heartbeat LED (green color)3.

LED Name Colour Function

10/100 Mbps Green On: 100Mbps. Off: 10Mbps.

Link/Activity Green On: Linked. Blinking: Transfering Data.

Heartbeat Amber Blinking: Normal Operation. Not Blinking:

Malfunction.

1 2 3

Hardware installation

Use static electricity discharge precautions. Remove possible static1.

discharge potential from any objects that the adapter may come in

contact with prior to installation. This can be accomplished by

touching a bare metal chassis rail after you have turned off the

power.

If you will be externally powering the device, connect the DC power2.

adapter. If connecting to a PoE switch, hub, or other device, then

a power adapter is not required, as the product will draw its power

from the host device it is connected to. In this case, ensure that

your switching hub is the PoE type that can act as PSE (Power

Source Equipment).

Connecting LAN cable: Use a standard straight-through Ethernet3.

cable to connect to a Hub or Switch. If you connect the adapter to

your computer’s Ethernet port instead, you don’t need to change to

a cross-over type cable since the adapter provides the auto cross-

over feature.

Connect the Adapter’s serial port to your serial device.4.

Use the DIN RAIL mounting Kit if you want to place the product on5.

the industrial DIN RAIL. (optional)

Conguring the Adapter

Setting the IP Address

Please consult your Network Administrator to determine the appropri-

ate IP address. The adapter comes with the factory installed IP address

192.168.1.254. It is ready to accept a new IP address from a DHCP

Server. If your network has a DHCP server, it will automatically assign

an IP address to the Adapter the ﬁrst time it is connected and powered

up.

Setting the IP Address from a DHCP Server1.

A DHCP server will automatically assign an IP address (dynamic

address) as well as Subnet Mask and Gateway to this adapter. If you

power up the Adapter without a ﬁxed (static) IP address, the DHCP

server will be able to assign an IP address (Note: By default, DHCP

is disabled. If you wish to support DHCP, Enable it in the Adapter

Setup Menu).

Note: If you will set the IP address using another method, you will need

to use a static IP address. To do this, Disable DHCP (this is the default

setting) in the Adapter Setup Menu.

Setting the IP Address using a Web Browser2.

Please ensure that your PC’s IP address is set to the same subnet

as the adapter. If not, you will need to change your PC’s IP address

from the Local Area Connection Properties menu, shown below:

Run your browser and access the product by entering the default

(192.168.1.254) or current IP address into your browser’s address

window. Enter the password (default has no password), then go to

Change your IP Address, and make the necessary changes.

Setting the IP Address using the Em.exe Utility3.

The Em.exe is a Microsoft Windows based utility used to identify the

adapters connected on the same subnet and network segment. To

run the Em.exe utility, please insert the driver CD supplied with the

Adapter. Open the program at the following location (assume the

CD-ROM drive is at E):

E:\IO_over_IP\Utilities\Em\Em.exe

Managing the Adapter Settings

When you enter the Adapter Setup Menu, the following page will be

available for your access. By default there is no password for entry.

Once you have entered the Controller Setup Menu and made the

necessary changes, click the Update button. Also ensure that you

make note of your password as you will need it to enter the setup menu

again.

Controller Setup Menu Items

Menu Item Description

IP Address 4 numbers separated by dots. If enabled, these

can be assigned by the DHCP server.

Subnet Mask 4 numbers separated by dots. If enabled, these

can be assigned by the DHCP server.

Gateway Address 4 numbers separated by dots. If enabled, these

can be assigned by the DHCP server.

DHCP Client If disabled, the IP address, Subnet mask and

Gateway address must be assigned manually.

Menu Item Description

Socket Port of HTTP

Setup

If disabled, the IP address, Subnet mask and

Gateway address must be assigned manually.

Socket Port of Serial

I/O

Port Number:

Any number between 1 and 65536,except 80

and 8080 (these have been designated as the

web pages).

Socket Type:

TCP Server - Uses TCP protocol, passively

waits for Client.

TCP Client - Uses TCP protocol, actively

connects to Server.

UDP Client - Uses UDP protocol, exchanges

packets with Server without connection.

Socket Port of Digital

I/O

Spared function for the future expansion.

Currently has no function.

Destination IP

Address/Socket Port

(TCP client and UDP)

The Server IP address under TCP client or

UDP client mode.

Serial I/O Settings

(baud rate, parity,

data bits, stop bits)

Baud Rate: 300 – 115200 bps

Parity Bits: No Parity, Even, Odd

Data Bits: 5, 6, 7, 8

Stop Bit: 1 or 2

Interface of serial I/O RS-232

Packet mode of serial

input

If packet mode is disabled, the data received

from the serial port will be transmitted

immediately with minimal delay. If packet mode

is enabled, the data will be saved in the buffer

memory ﬁrst, and transmitted when the entire

packet is received or when the buffer memory

is full.

Altri manuali per NETRS2321POE

Indice

Altri manuali StarTech.com Server

StarTech.com

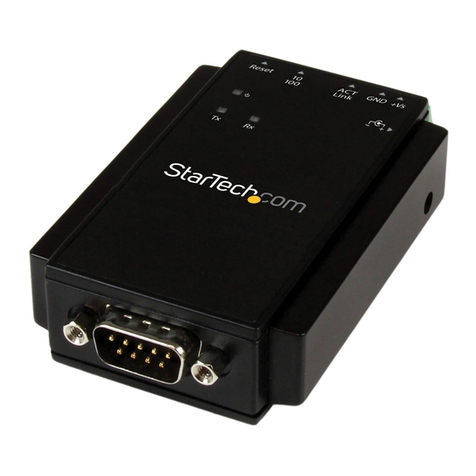

StarTech.com NETRS232_1 Manuale utente
