Stealth Cam STC-IR1 Manuale utente

Stealth Cam

STC-IR1

User manual

Tool Free Customer Support 1-877-269-8490

www.stealthcam.net

Version1.0 June/05

STC-IR1

www.stealthcam.net Toll Free 877-269-8490 2

For Customer Service or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 211662

Bedford, Texas 76095

www.steatlhcam.net

Stealth Cam Limited Warranty

Your Stealth Cam is covered by a One Year Limited Warranty on parts &

labor from the date of purchase. The warranty covers defects in

workmanship & materials. The warranty does not apply to units, which

have been damaged or abused intentionally or unintentionally.

Tampering with or altering the unit will void the warranty. Any

unauthorized service will void warranty. Original sales receipt must be

produced for any warranty service. Questions call 877-269-8490 any

warranty service. For warranty service please call 1-877-269-8490.

STC-IR1

www.stealthcam.net Toll Free 877-269-8490 3

Manual Contents

Camera overview 4

Memory Capacity 8

Camera kit contents 9

Battery and memory Installation 10

Set up and programming 13

Camera use 19

Manual Shooting Mode 25

Viewing & Deleting images 26

Technical Specs 39

General Information 41

STC-IR1

www.stealthcam.net Toll Free 877-269-8490 4

Camera Overview

Stealth Cam [Front Housing]

Passive Infrared

Sensor (PIR)

Viewfinder

Shutter Button

Light Sensor

Test Indicator

Front LCD Display Camera Lens

IR Light

Low Battery

Indicator Lock Hole

STC-IR1

www.stealthcam.net Toll Free 877-269-8490 5

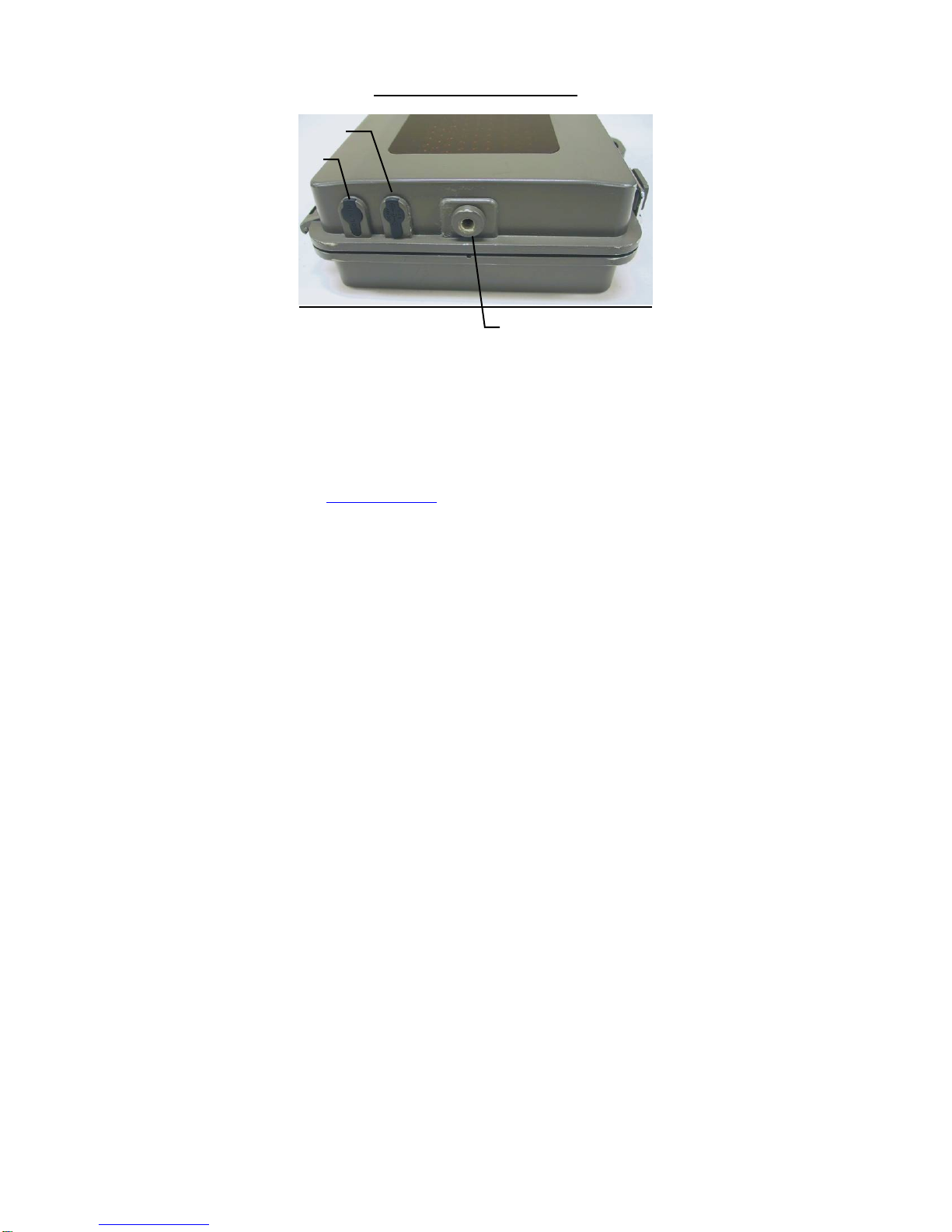

Stealth Cam [Bottom View]

DC Jack Port

Solar Port

Tree Screw Mount

STC-IR1

www.stealthcam.net Toll Free 877-269-8490 6

Stealth Cam [Open View]

Status LCD Display TFT-LCD Display

ON/OFF Switch

UP Button

Test Button Delete Button

Distance Adjust

Menu Button Select Button

DOWN Button

Battery Compartment

Cover

STC-IR1

www.stealthcam.net Toll Free 877-269-8490 7

Stealth Cam [Side View]

CF Card Slot

Video-out Jack

USB Port

Stealth Cam [Back View]

Mounting

Strap Slots

STC-IR1

www.stealthcam.net Toll Free 877-269-8490 8

Memory Capacity

When "FULL"("F") is displayed on the front LCD screen this indicates

that the memory is full.

High resolution - 5M 2560 X 1920

Medium resolution - 3.1M 2048 X 1536

Low resolution - 1.3M 1280 X 960

AVI motion clip file - 320 x 240 (10 sec per motion clip)

32MB 64MB 128MB 256MB 512MB 1G

High 21 42 85 170 341 682

Med 29 59 118 237 474 948

Low 59 119 23 476 953 1906

AVI 17 35 70 140c 281 562

Note: The Memory Capacity chart is for user's reference only. Actual

number of image capacity is subject to the hues and color saturation of

the picture shooting environment and the subject details.

STC-IR1

www.stealthcam.net Toll Free 877-269-8490 9

Camera kit contents

•Model STC-IR1 Infrared Digital Scouting Camera

•CDROM (Contains ArcSoft Photo Impression and camera driver)

•User Manual.

•1.5 USB cable.

•1.5 TV out cable for TV (RCAJack).

•1.5 TV out cable for handheld TV (Mini Jack).

•Strap.

•Tree screw with nut.

•Washer x 2.

•Lock plate

STC-IR1

www.stealthcam.net Toll Free 877-269-8490 10

Using Internal D Size Battery Power Option

1. Open the housing

2. Remove the battery cover.

3. Make sure camera power switch is in the OFF position.

4. Install 8 "D Size" batteries. "Premium quality alkaline batteries

designed for digital cameras are recommended for optimum

performance"

5. Replace battery cover.

12V Lead Acid external (Sold separately)

Power source spec recommended: 12V / 8AH Lead-Acid Battery

oMake sure camera is turned to OFF.

oMake sure the power cable to the lead acid battery is connected

to the correct polarity.

oFirmly insert barrel plug in the 12V jack on bottom of camera.

oOnly Stealth Cam accessory Lead-Acid Battery is

recommended for this unit.

oLead-Acid Battery performance is subject to weather conditions,

Invisible Infrared Illuminator activity and user settings.
