Stealth Cam QV Series Manuale utente

Page 1

QV Series

Instruction Manual

Page 2

To ensure the product is being utilized to its full potential, we recommend checking

our website for new product updates. If your camera is having an issue, please check

our website to determine you are using the latest rmware or software version.

Notice

TECHNICAL SUPPORT

EMAIL:

[email protected]

Please allow 48 hours for email

response.

GSM, LLC

P.O. Box 535189

Grand Prairie, TX 75053-9504

CUSTOMER SERVICE

CONTACT & HOURS

Toll Free: 877-269-8490

CALL CENTER HOURS

Mon – Fri / 8 AM – 5 PM (CST)

WEBSITE

www.stealthcam.com

QS20NGK

Page 3

Table of Contents

About Your Camera 4

Quick Setup Guide 5

Camera Overview 6

Camera Setup 8

Camera Conguration 9

Viewing and Deleting Images 12

Frequently Asked Questions 13

Camera Care 14

FCC COMPLIANCE 15

Limited Warranty Information 16

Page 4

About Your Camera

Water Resistant Design

Your camera is safe against the elements with a sturdy waterproof housing.

Quick Set Options

Set up in seconds with pre-programmed options.

Burst Rapid-Fire Mode

Rapid-re Burst Mode, multiple exposures per triggering.

No Glow IR LEDs

Perfectly illuminate your nighttime photos with 24 IR LED lights.

Expandable Storage Space

Expand your storage space with an SC memory card up to 32 GB.

Energy E󰀩cient Design

Completely re-energized to optimize energy e󰀩ciency.

Page 5

Quick Setup Guide

Insert Batteries and SD Card

Install 8 AA batteries and a class 10 SD card into camera.

Mount Camera

Mount the camera at the desired location using the strap

mount, Python Lock cable, Articulating Ball Joint Mount, or

other desired mounting mechanism. Position the camera so

that it does not face East or West directly as the rising and

setting of the sun can cause false positive triggers.

Activate Camera

Set camera to “On” position and place in desired vantage

point to start capturing photos of game.

Page 6

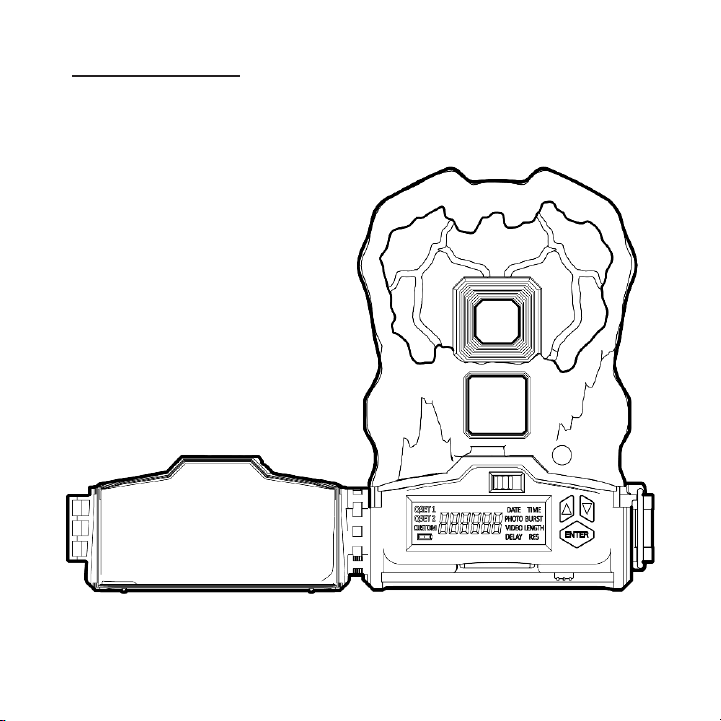

Camera Overview

Page 7

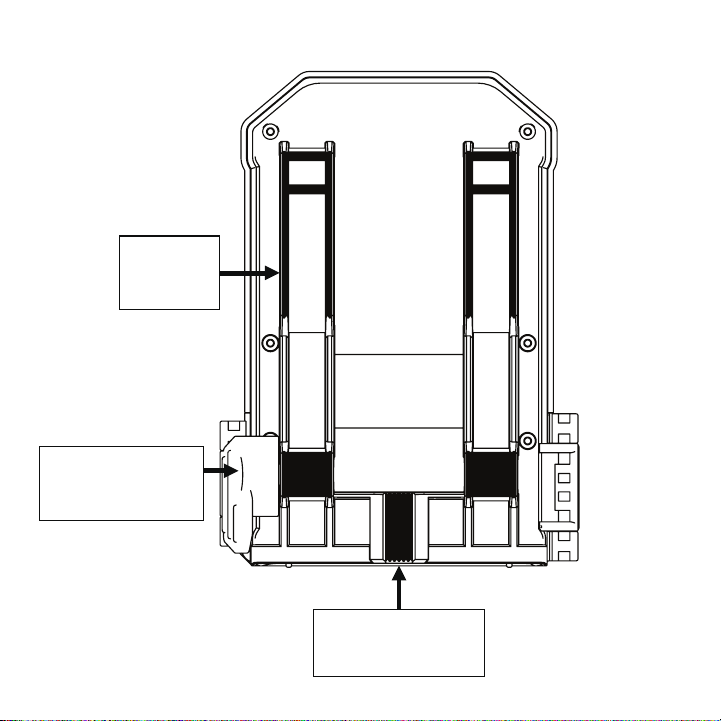

Python Cable

Lock Hole

Strap

Mounts

Universal

¼ - 20 thread

Page 8

Camera Setup

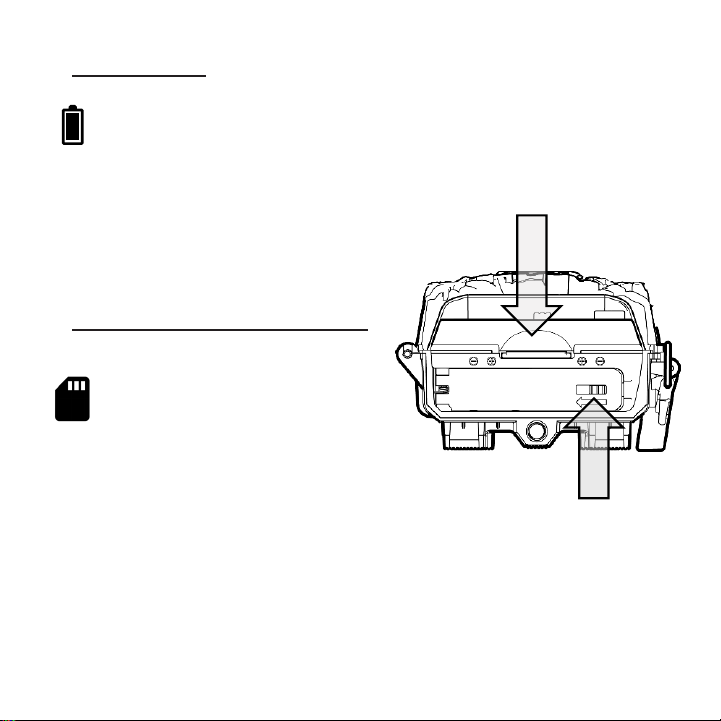

Battery Installation

To remove batteries from unit, simply open the

camera and slide the battery release switch to the

left. Once the battery compartment is open, insert

batteries into camera, being careful to match the

orientation marked on your camera. After batteries

are inserted, close the battery compartment and

secure the battery release switch.

SD Card Installation

SD card slot is located on the bottom of the

camera, above the battery compartment.

Insert SD card with the label facing back of

camera. Only minimal resistance should be

felt as card is inserted and a click when the

card is fully inserted. Battery Release Switch

SD Card Slot

Page 9

Camera Conguration

Name Type Quality Timeout

Delay Detail

QSET 1 Photo Medium 30 sec 1 Photos

QSET 2 Video Medium 30 sec 10 sec Video

Cycle between camera modes by pressing the UP and DOWN arrows. The

camera mode will be displayed on the left side of the LCD Screen. This camera

comes equipped with two Quick Sets (QSET) containing some of our most

popular congurations. QSET 1 and 2 are dened in the table below. For alternate

congurations, press the UP or DOWN arrows until CUSTOM is displayed on the

left of the LCD screen and press ENTER.

Continue to next page for more information regarding each setting.

Page 10

OPERATION MODE: The operation mode setting is accessible immediately after the Time setting.

The screen will be blank with either Video or Photo displayed on the right side of screen.

Press Enter to change between Photo and Video mode.

DATE: This setting is used by the camera to display the correct date on the Info Bar of the image.

PHOTO BURST: This setting determines how many

photos are taken each time the camera is activated.

OPTIONS: 1 photo – 3 photos

PIR DELAY: This setting is used to determine how long

the camera will wait before restarting the PIR sensor

after taking a photo.

OPTIONS:

5 sec | 10 sec | 15 sec | 30 sec | 60 sec| 120 sec

RESOLUTION: This setting will determine the quality

of each image. A higher quality will result in better

photos and take more memory space.

OPTIONS: High | Med | Low

Note: This setting is only applicable in photo mode.

VIDEO LENGTH: This setting is used to determine

the length of time, in seconds, of a video recording

OPTIONS: 5 sec | 10 sec | 15 sec | 30 sec

Camera Conguration cont.

TIME: This setting is used by the camera to display the correct time of day on the Info Bar of the image.

PHOTO: In this mode the camera will

take a photo when trigger is activated. VIDEO: In this mode the camera will

take a VIDEO when trigger is activated.

PIR DELAY: This setting is used to determine how long

the camera will wait before restarting the PIR sensor

after taking a video.

OPTIONS:

5 sec | 10 sec | 15 sec | 30 sec | 60 sec| 120 sec
