Stealth Cam STC-I450 Manuale utente

Stealth Cam

STC-I450

User’s Manual

Toll Free Customer Support 1-877-269-8490

.stealthcam.net

Version 1.1 07/07

STC-I450

www.stealthcam.net Toll Free 877-26 -84 0 2

For Customer Service or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 53 504

Grand Prairie, TX 75053- 504

www.steatlhcam.net

Stealth Cam Limited Warranty

Your Stealth Cam scouting camera is covered by a 0 days Limited Warranty on

parts and labor from the date of original purchase, and purchases must be made

through an authorized dealer. The warranty covers defects in workmanship and

materials. The warranty does not apply to units, which have been damaged or

abused intentionally or unintentionally. A purchase from individuals or

unauthorized internet sites voids the warranty.

Tampering with or altering the unit will void the warranty. Any unauthorized

service will void warranty. Original sales receipt must be produced for any

warranty service and a Return Authorization (RA) number must be obtained from

customer service at 877-26 -84 0 prior to returning product

STC-I450

www.stealthcam.net Toll Free 877-26 -84 0 3

Manual Contents

Camera overview 4

Camera kit contents 8

Battery and memory Installation

Set up and programming 12

Camera use 1

Mounting the camera 20

Viewing & Deleting images 26

Memory compatibility chart 35

Technical Specs 36

General Information 3

STC-I450

www.stealthcam.net Toll Free 877-26 -84 0 4

Camera overvie

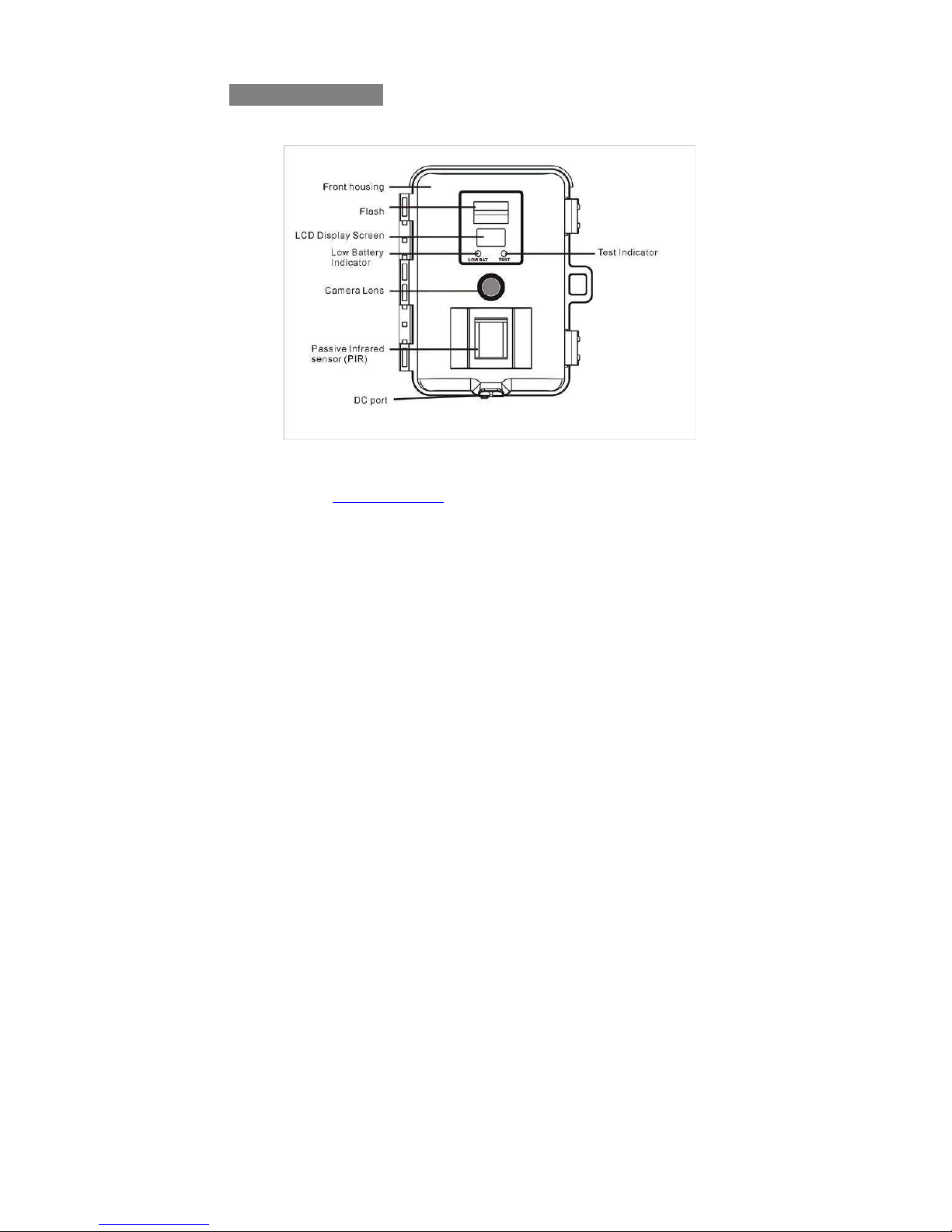

Front housing image with major parts indication.

STC-I450

www.stealthcam.net Toll Free 877-26 -84 0 5

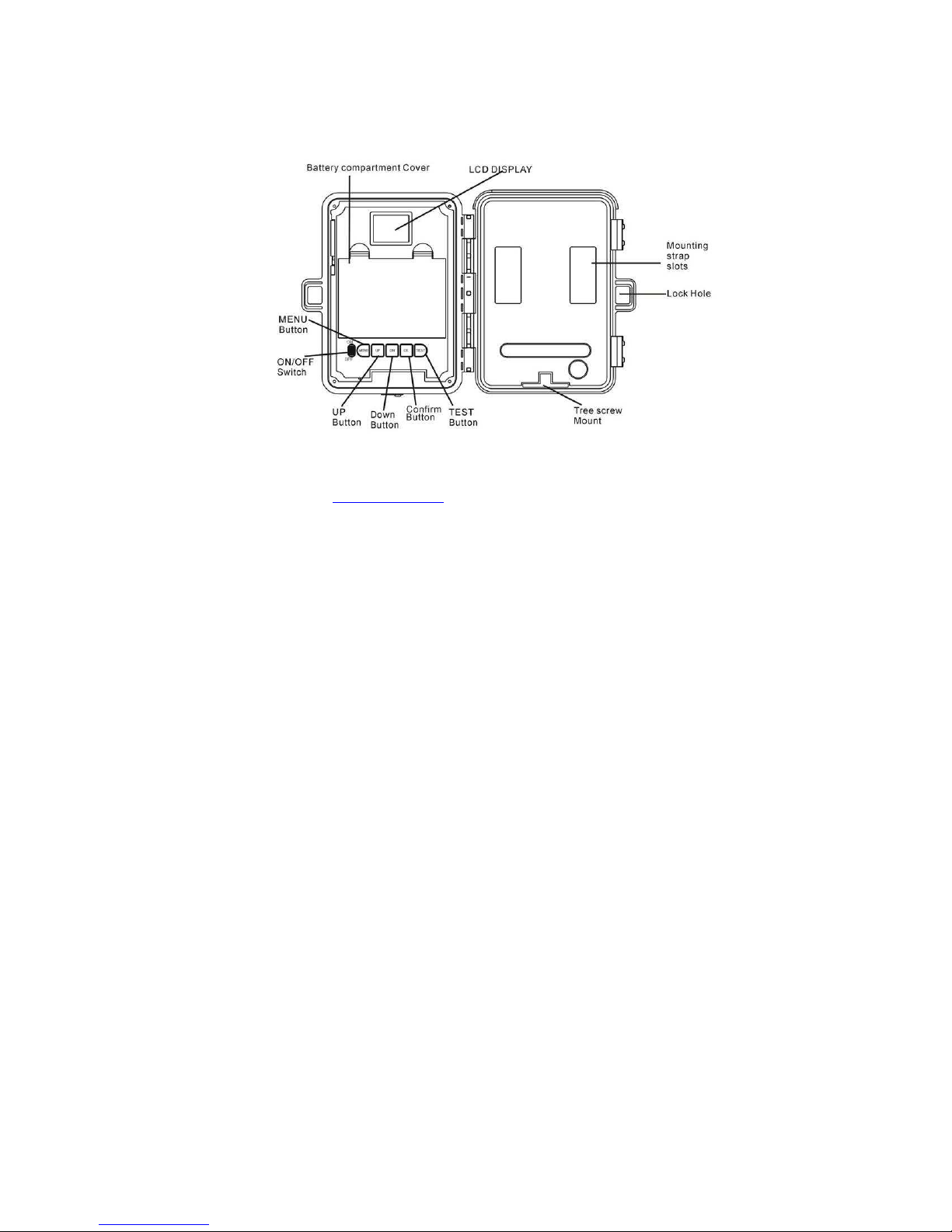

Open view image with major parts indication

For use with Stealth Cam cable

only. (sold separately)

STC-I450

www.stealthcam.net Toll Free 877-26 -84 0 6

Side view with major parts indication

STC-I450

www.stealthcam.net Toll Free 877-26 -84 0 7

Picture / Image Capacity

SD card High Low Base AVI

16MB 11 33 130 8

32MB 22 66 260 16

64MB 44 132 520 32

128MB 88 264 1040 64

256MB 176 528 2080 128

512MB 352 1056 4160 256

1 GB 704 2112 8320 512

2 GB 1408 4224 16640 1024

NOTE: Picture / Image Capacity Chart provides approximate number of

images or AVI movies based on resolution setting and the size of

memory card. These figures may vary depending on the amount of

detail in the image.

STC-I450

www.stealthcam.net Toll Free 877-26 -84 0 8

Camera kit contents

• Model STC-I450 Digital Scouting Camera

• CDROM (Contains Ulead Photo Explorer 8.0 and camera

driver)

• User Manual.

• 1.5M USB cable.

• 1.5M TV out cable for TV (RCA Jack).

• 1.5M TV out cable for handheld TV (Mini Jack).

• Strap.

STC-I450

www.stealthcam.net Toll Free 877-26 -84 0 9

Battery & memory installation

The Stealth Cam STC-I450 Advanced Digital Scouting Camera is

designed to operate using two different types of battery power

options.

NOTE: Always have camera in the OFF position when installing or

removing batteries.

Batteries “C” cell

The internal battery compartment accepts 6 “C” cell batteries. Be

sure to use high quality brand name alkaline batteries. Install

batteries with correct polarity (+/-) as noted inside the battery

compartment.

Warning:

Do not use different Voltage lead

acid battery other than the one specified in

this section. Doing so will damage the camera

and will void the warranty.

STC-I450

www.stealthcam.net Toll Free 877-26 -84 0 10

12V Lead Acid external battery

The STC-I450 is equipped with an external power jack designed to

accept a barrel plug cable to attach to a sealed lead acid battery.

(sold separately). Battery cable and complete 12V Lead Acid

battery kits are available wherever Stealth Cam scouting cameras

are sold or call toll free 877-26 -84 0. Only Stealth Cam external

battery accessories are recommended.

• Insert the external battery barrel plug into the DC 12V jack on

the bottom of camera housing

• Turn the camera power on.

 Please make sure the voltage and polarity (+/-) are correct

before connection. Incorrect voltage or polarity (+/-) will

damage the camera.

Memory Options

Your STC-I450 camera is equipped with 32MB built in flash

memory. The camera is also equipped with an expandable

media card slot capable of accepting up to 2GB SD card (sold

separately). With no memory card inserted into the slot, the
