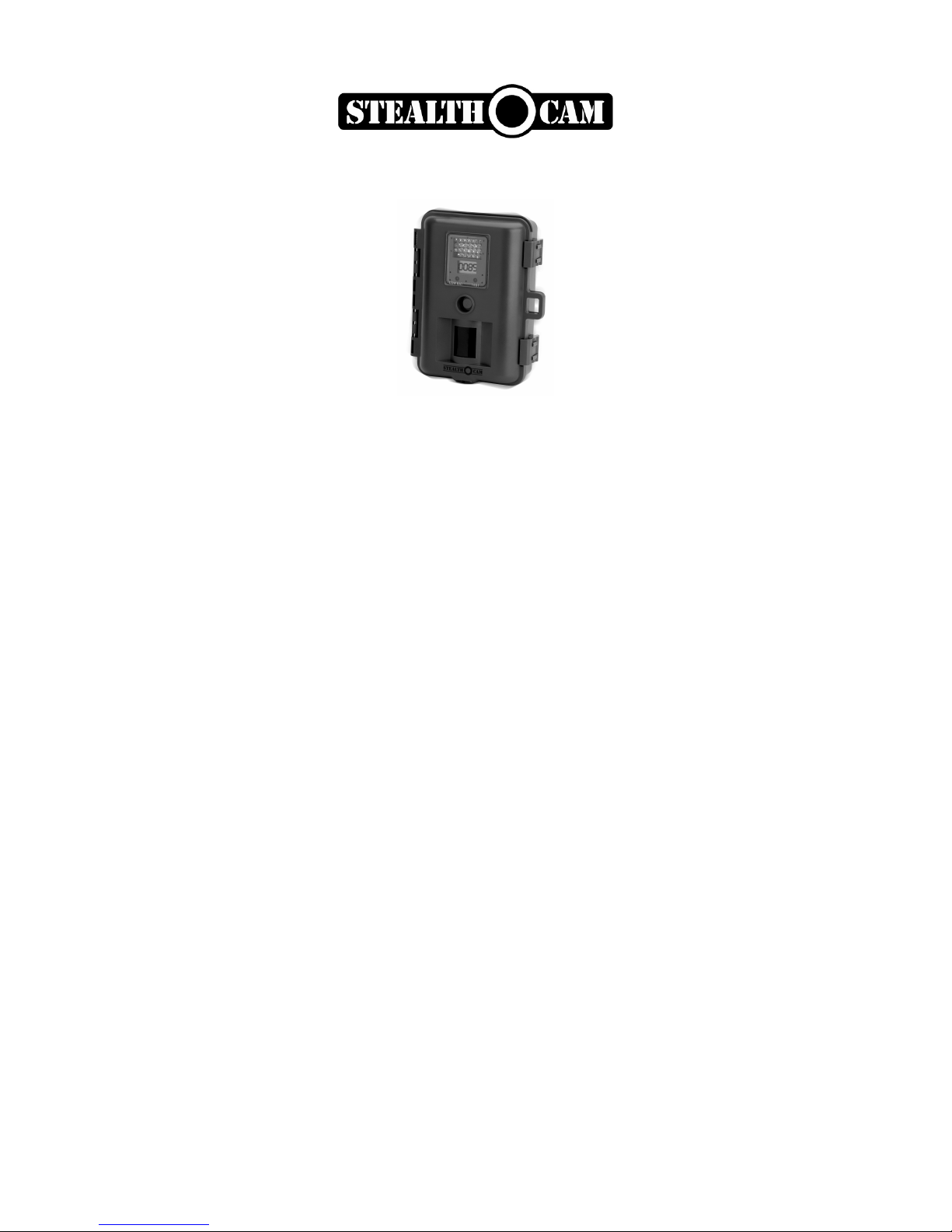

Stealth Cam WD2IR Manuale utente

STC-WD2-IR

User’s Manual

Toll Free Customer Support 1-877-269-8490

www.stealthcam.net

Version 1.0 5/06

STC-WD2-IR

www.stealthcam.net Toll Free 877-269-8490

For Customer Service or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 535189

Grand Prairie, Texas 75053-5189

www.stealthcam.net

Stealth Cam Limited Warranty

Your Stealth Cam is covered by a One Year Limited Warranty on parts

& labor from the date of purchase. The warranty covers defects in

workmanship & materials. The warranty does not apply to units, which

have been damaged or abused intentionally or unintentionally.

Tampering with or altering the unit will void the warranty. Any

unauthorized service will void warranty. Original sales receipt must be

produced for any warranty service. Questions call 877-269-8490

STC-WD2-IR

www.stealthcam.net Toll Free 877-269-8490

Manual Contents

Camera overview 4

Camera kit contents 8

Battery and memory Installation 9

Set up and programming 12

Camera use 20

Mounting the camera 21

Viewing & Deleting images 27

Memory compatibility chart 36

Technical Specs 37

General Information 40

STC-WD2-IR

www.stealthcam.net Toll Free 877-269-8490

Camera overview

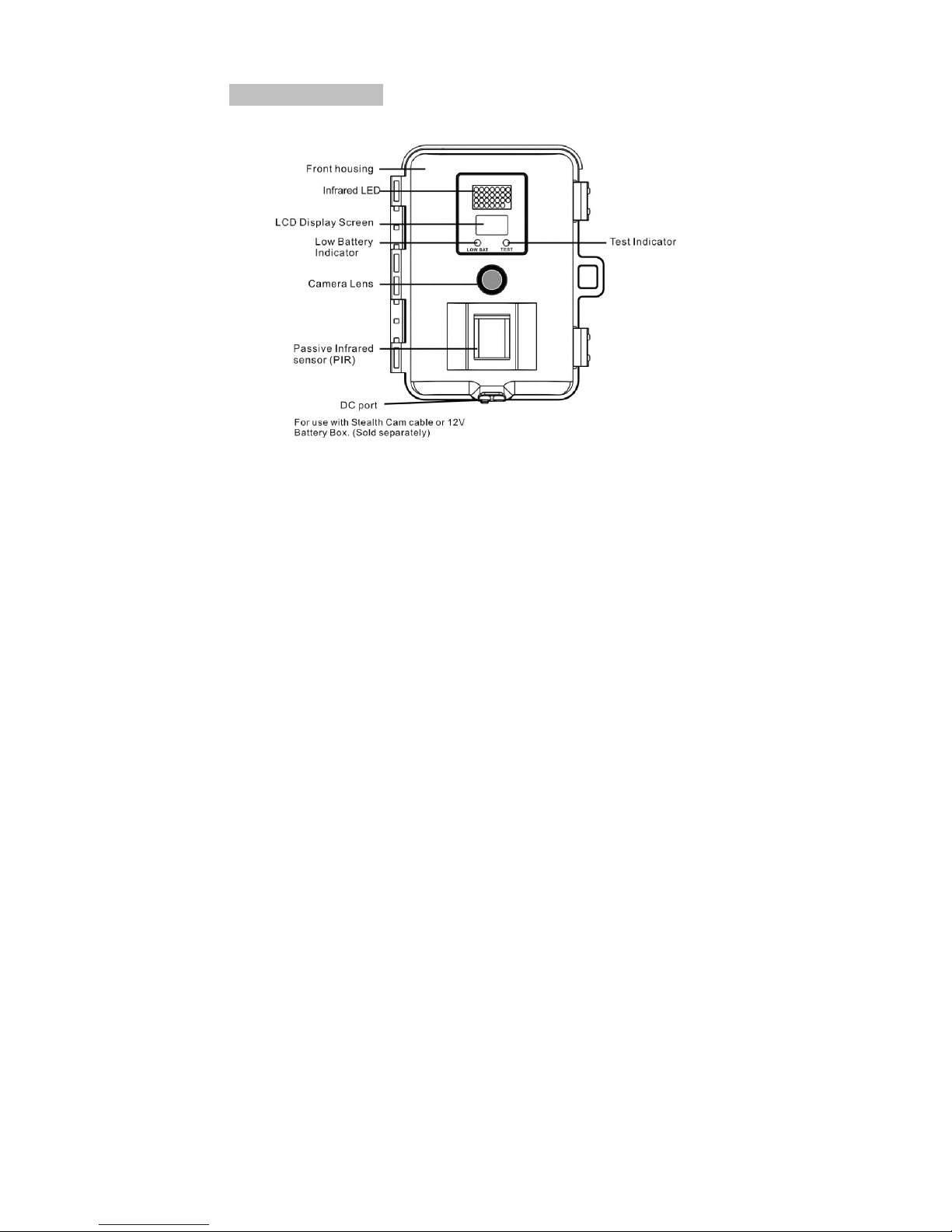

Front housing image with major parts indication.

STC-WD2-IR

www.stealthcam.net Toll Free 877-269-8490

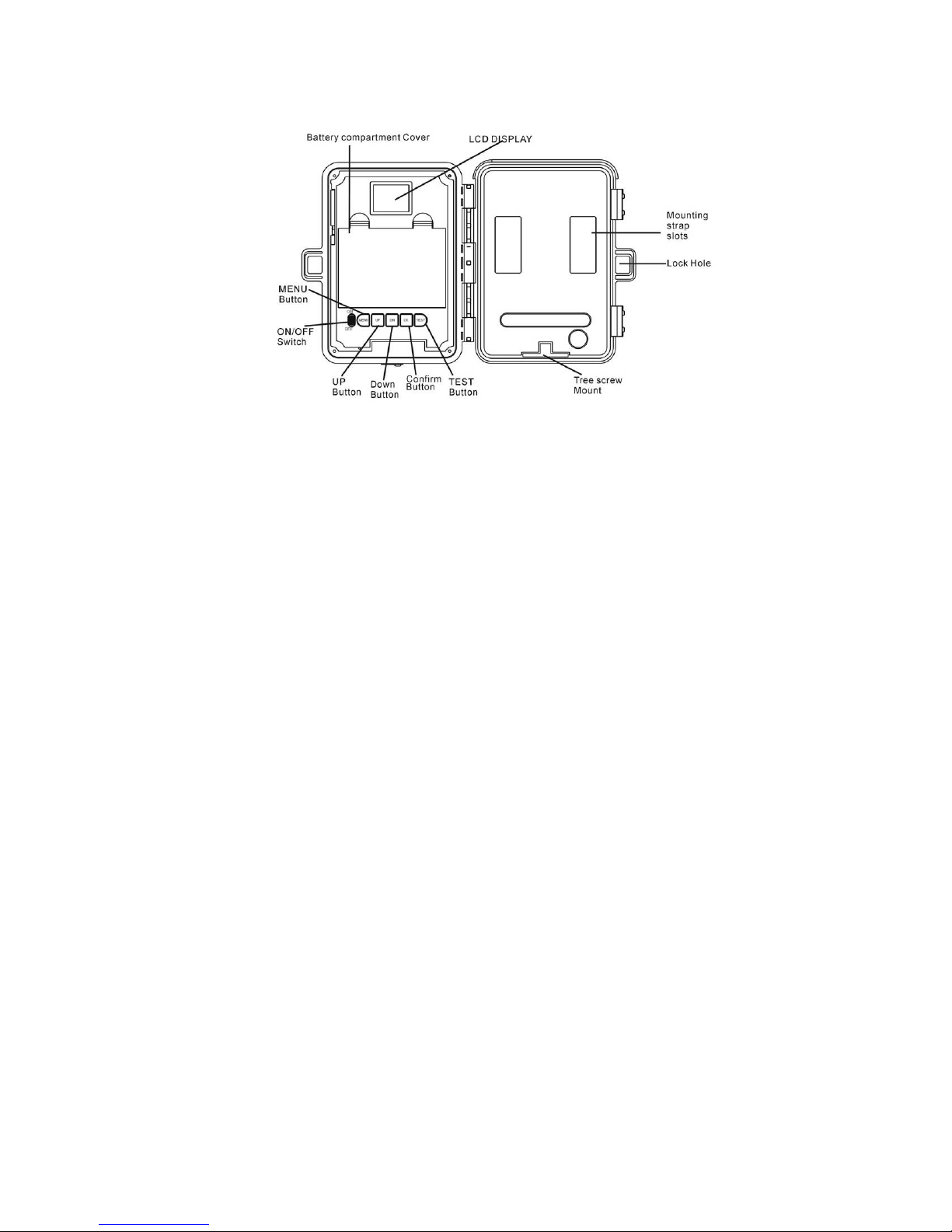

Open view image with major parts indication

STC-WD2-IR

www.stealthcam.net Toll Free 877-269-8490

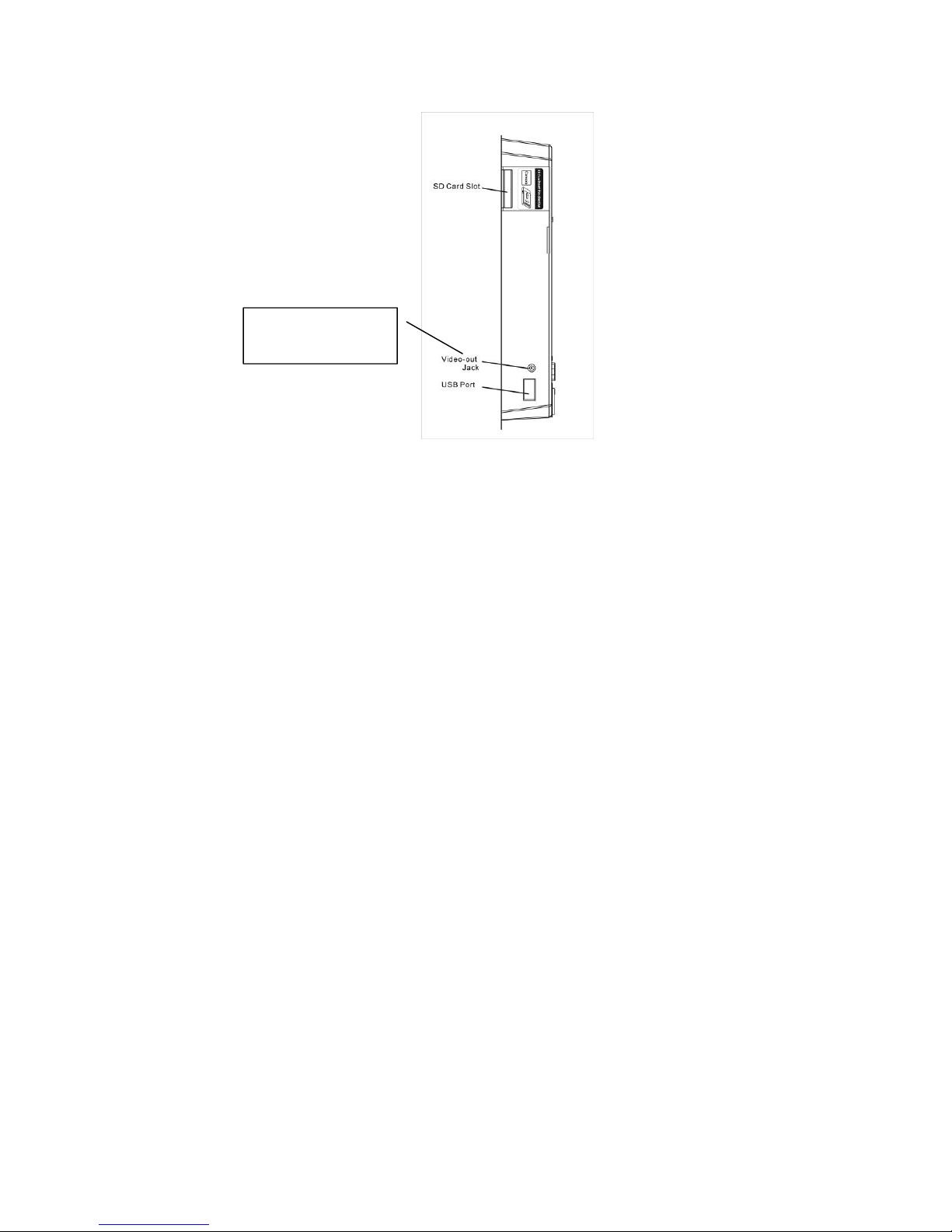

Side view with major parts indication

For use with Stealth Cam

exclusive Monitor/TV (sold

separately)

STC-WD2-IR

www.stealthcam.net Toll Free 877-269-8490

Image Capacity Chart

SD card High Low Base AVI

16MB 52 80 160 16

32MB 104 160 320 32

64MB 208 320 640 64

128MB 416 640 1280 128

256MB 832 1280 2560 256

512MB 1664 2560 5120 512

1GB* 3328 5120 10240 1024

2GB* 6656 10240 20480 2048

* Subject to card compatibility under different brand

NOTE: Picture / Image Capacity Chart provides approximate

number of images or AVI movies based on resolution setting and

the size of memory card. These figures may vary depending on

the amount of detail in the image.

STC-WD2-IR

www.stealthcam.net Toll Free 877-269-8490

Camera kit contents

• Model STC-WD2-IR Digital Security/Scouting Camera

• CDROM (Contains Ulead Photo Express 8 and camera driver)

• User Manual.

• USB cable.

• TV out cable for TV (RCA Jack).

• TV out cable for handheld TV (Mini Jack).

• Strap.

STC-WD2-IR

www.stealthcam.net Toll Free 877-269-8490

Battery & memory installation

The Stealth Cam STC-WD2-IR Advanced Digital Security/Scouting

Camera is designed to operate using two different types of battery

power options.

NOTE: Always have camera in OFF position when installing or

removing batteries.

Batteries “C” cell

The internal battery compartment accepts 6 “C” cell batteries. Be

sure to use high quality brand name alkaline batteries. Install

batteries in correct polarity (+/-) as noted inside battery

compartment.

Warning: Do not use different Voltage lead

acid battery other than the one specified in

this section. Doing so will damage the camera

and will void the warranty.

STC-WD2-IR

www.stealthcam.net Toll Free 877-269-8490

12V Lead Acid external battery

The STC-WD2-IR is equipped with an external power jack

designed to accept a barrel plug cable to attach to a sealed lead

acid battery. (Sold separately). Battery cable and complete 12V

Lead Acid battery kits are available wherever Stealth Cam scouting

cameras are sold or call toll free 877-269-8490. Only Stealth Cam

external battery accessories are recommended.

• Make sure the camera power switch is OFF and power source

switch on BATTERY.

• Insert the battery pack plug into the DC 12V jack of the bottom

of camera housing

• Turn the camera power on.

 Please make sure the voltage and polarity (+/-) are correct

before connection. Incorrect voltage or polarity (+/-) will

damage the camera.
