STC-V450
www.stealthcam.net Toll Free 877-269-8490 2
For Customer Service or Warranty Information Call Toll Free
877-269-8490
Stealth Cam LLC
P.O. Box 539504
Grand Prairie Texas 75053-9504
www.steatlhcam.net
Stealth Cam Limited Warranty
Your Stealth Cam scouting camera is covered by a 90 days Limited Warranty on
parts and labor from the date of original purchase and purchases must be made
through an authorized dealer. The warranty covers defects in workmanship and
materials. The warranty does not apply to units which have been damaged or
abused intentionally or unintentionally. A purchase from individuals or
unauthorized internet sites voids the warranty.
Tampering with or altering the unit will void the warranty. Any unauthorized
service will void warranty. Original sales receipt must be produced for any
warranty service and a Return Authorization (RA) number must be obtained from
customer service at 877-269-8490 prior to returning product
STC-V450
www.stealthcam.net Toll Free 877-269-8490 3
Manual Contents
Camera overview 4
Camera kit contents 8
Battery and memory Installation 9
Set up and programming 12
Camera use 21
Mounting the camera 22
Viewing & Deleting images 28
Memory compatibility chart 37
Technical Specs 38
General Information 41
STC-V450
www.stealthcam.net Toll Free 877-269-8490 4
Camera overvie

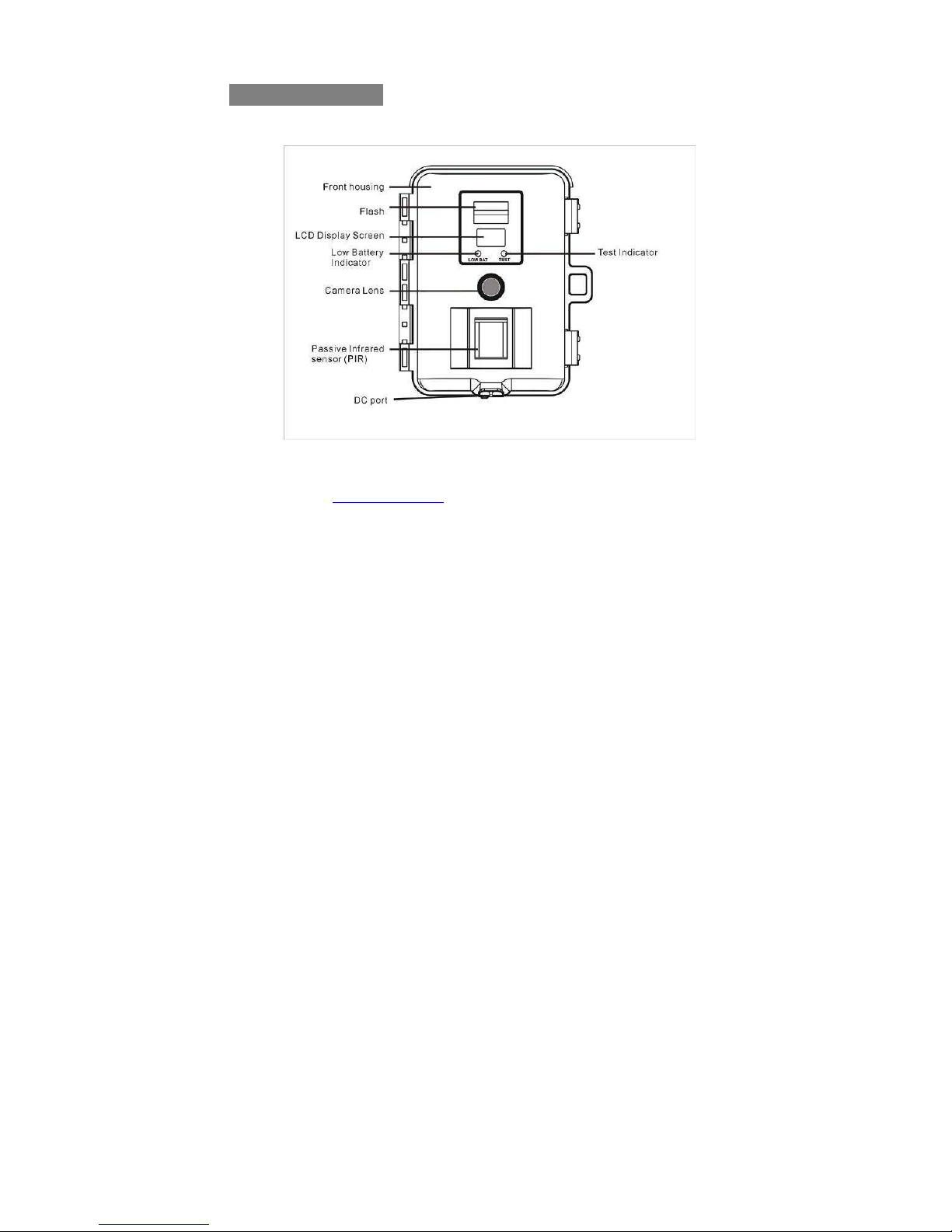

Front housing image with major parts indication.
STC-V450
www.stealthcam.net Toll Free 877-269-8490 5
Open view image with major parts indication
For use with Stealth Cam cable
only. (sold separately)
STC-V450
www.stealthcam.net Toll Free 877-269-8490 6
Side view with major parts indication
STC-V450
www.stealthcam.net Toll Free 877-269-8490 7
Picture / Image Capacity
SD card High Low Base AVI
16MB 11 33 130 8
32MB 22 66 260 16
64MB 44 132 520 32
128MB 88 264 1040 64
256MB 176 528 2080 128
512MB 352 1056 4160 256
1 GB 704 2112 8320 512
2 GB 1408 4224 16640 1024
NOTE: Picture / Image Capacity Chart provides approximate number of
images or AVI movies based on resolution setting and the size of
memory card. These figures may vary depending on the amount of
detail in the image.
STC-V450
www.stealthcam.net Toll Free 877-269-8490 8
Camera kit contents
• Model STC-V450 Digital Scouting Camera
• CDROM (Contains Ulead Photo Express 8 and camera driver)
• User Manual
• USB cable
• TV out cable for TV (RCA Jack)
• TV out cable for handheld TV (Mini Jack)
• Strap
STC-V450
www.stealthcam.net Toll Free 877-269-8490 9
Battery & memory installation
The Stealth Cam STC-V450 Advanced Digital Scouting Camera is
designed to operate using two different types of battery power
options.
NOTE: Always have camera in OFF position when installing or
removing batteries.
Batteries “C” cell
The internal battery compartment accepts 6 “C” cell batteries. Be
sure to use high quality brand name alkaline batteries. Install
batteries in correct polarity (+/-) as noted inside battery
compartment.
Warning:
Do not use different Voltage lead
acid battery other than the one specified in
this section. Doing so will damage the camera
and will void the warranty.
STC-V450
www.stealthcam.net Toll Free 877-269-8490 10
12V Lead Acid external battery
The STC-V450 is equipped with an external power jack designed to
accept a barrel plug cable to attach to a sealed lead acid battery.
(sold separately). Battery cable and complete 12V Lead Acid
battery kits are available wherever Stealth Cam scouting cameras
are sold or call toll free 877-269-8490. Only Stealth Cam external
battery accessories are recommended.
• Insert the external battery barrel plug into the DC 12V jack on
the bottom of camera housing
• Turn the camera power on.
Please make sure the voltage and polarity (+/-) are correct
before connection. Incorrect voltage or polarity (+/-) will
damage the camera.
Memory Options
Your STC-V450 camera is equipped with 32MB built in flash
memory. The camera is also equipped with an expandable
media card slot capable accepting up to 2GB SD card (sold
separately). With no memory card inserted into the slot the
