Stealth Cam STC-DVSIR5 Prowler DVS Manuale utente
STC-DVSIR5 Prowler DVS
User’s Manual
Toll Free Customer Support 1-877-269-8490
www.stealth am.net
Version 1.0 11/07
STC-DVSIR5 Prowler DVS
www.stealthcam.net Toll Free 877- 69-8490 2
For Customer Servi e or Warranty Information Call Toll Free
877-269-8490
Stealth Cam, LLC
P.O. Box 539504
Grand Prairie, TX 75053-9504
www.steatlhcam.net
Stealth Cam Limited Warranty
Your Stealth Cam scouting camera is covered by a 90 days Limited Warranty
on parts and labor from the date of original purchase, and purchases must be
made through an authorized dealer. The warranty covers defects in
workmanship and materials. The warranty does not apply to units, which have
been damaged or abused intentionally or unintentionally. A purchase from
individuals or unauthorized internet sites voids the warranty.
Tampering with or altering the unit will void the warranty. Any unauthorized
service will void warranty. Original sales receipt must be produced for any
warranty service and a Return Authorization (RA) number must be obtained
from customer service at 877- 69-8490 prior to returning product.
STC-DVSIR5 Prowler DVS
www.stealthcam.net Toll Free 877- 69-8490 3
Manual Contents
Camera overview 4
Camera kit contents 8
Battery and memory Installation 9
Set up and programming 1
Camera use 0
Mounting the camera 1
Viewing & Deleting images 7
Memory compatibility chart 36
Technical Specs 37
General Information 41
Moon phase chart 43
STC-DVSIR5 Prowler DVS
www.stealthcam.net Toll Free 877- 69-8490 4
Camera overview

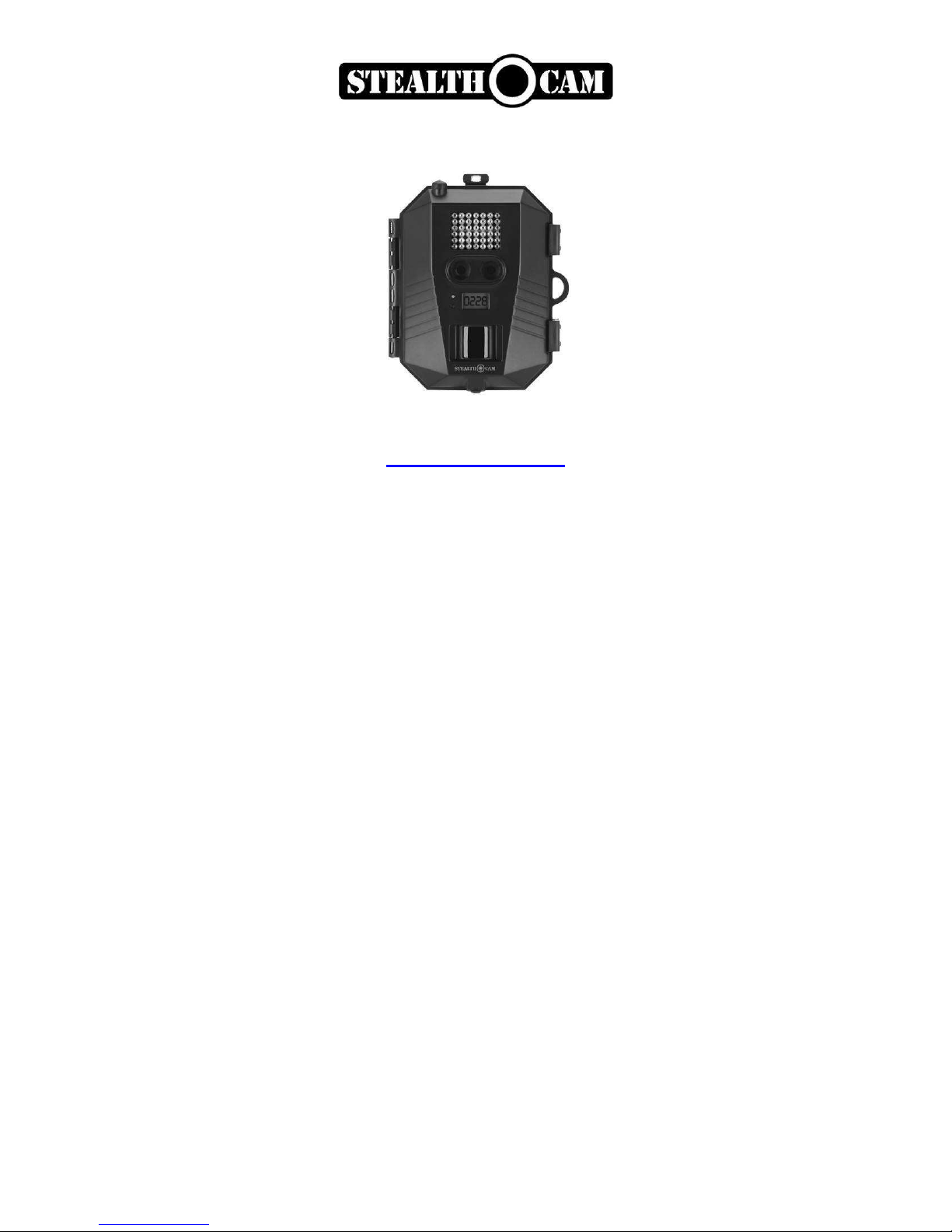

Front housing image with major parts indication.
STC-DVSIR5 Prowler DVS
www.stealthcam.net Toll Free 877- 69-8490 5

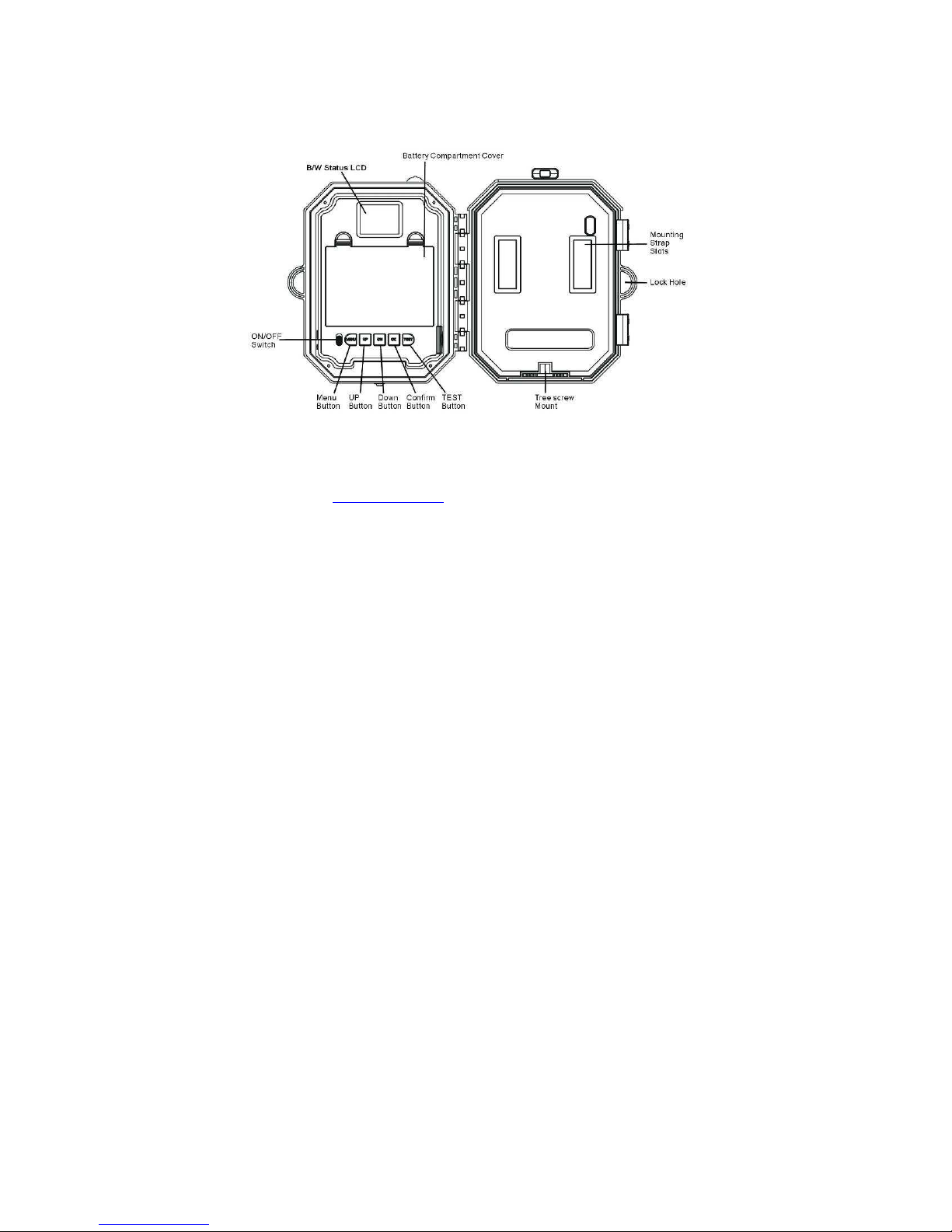

Open view image with major parts indication
STC-DVSIR5 Prowler DVS
www.stealthcam.net Toll Free 877- 69-8490 6

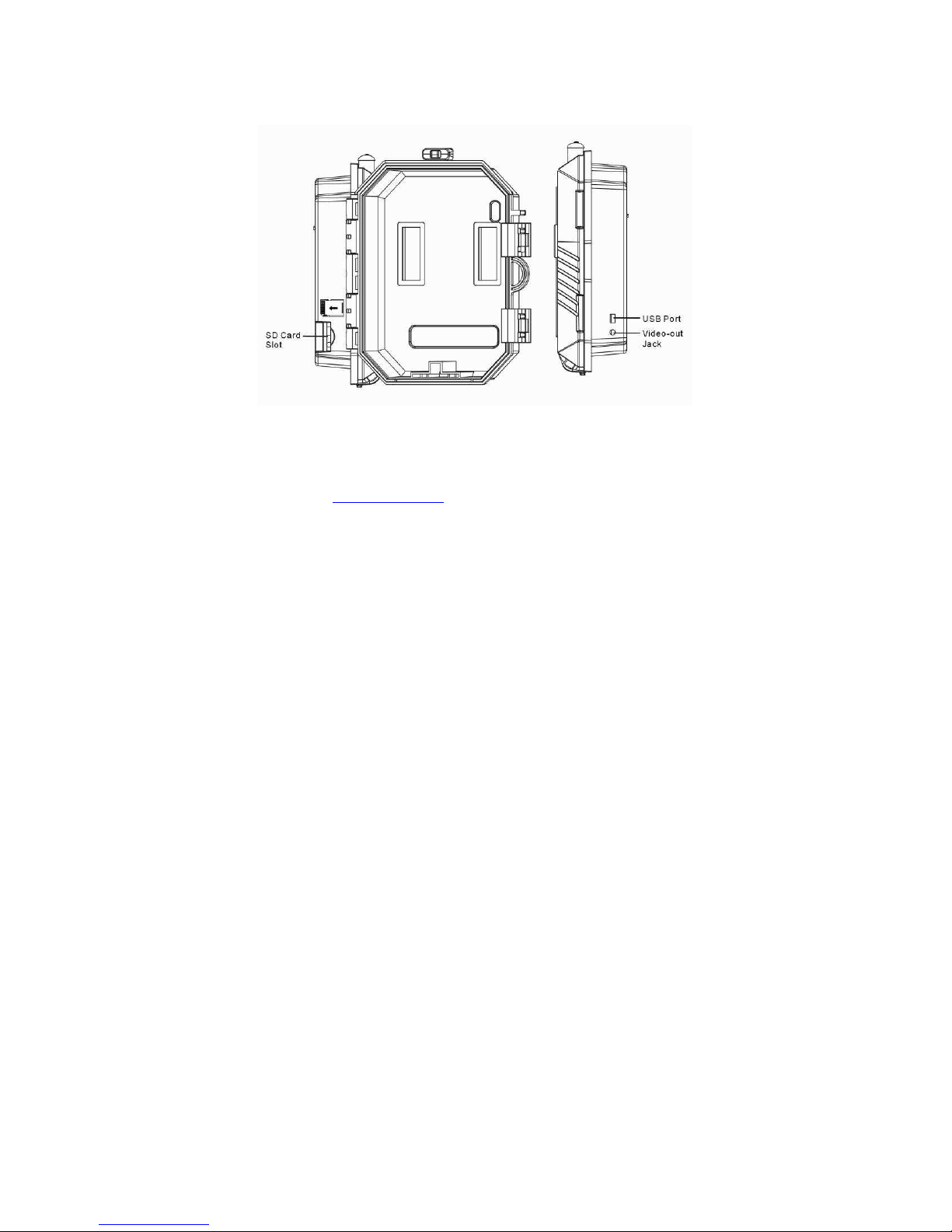

Side view with major parts indication
STC-DVSIR5 Prowler DVS
www.stealthcam.net Toll Free 877- 69-8490 7
Pi ture / Image Capa ity
High Low Base AVI
(in seconds)
SD card
Color B&W Color B&W Color B&W Color B&W
16MB
16 53 3 80 80 160 40s 45s
3 MB
3 106 64 160 160 3 0 80s 90s
64MB
64 1 1 8 3 0 3 0 640 160s 180s
1 8MB
1 8 4 4 56 640 640 1 80 3 0s 360s
56MB
56 848 51 1 80 1 80 560 640s 7 0s
51 MB
51 1696 10 4 560 560 51 0 10 4s 1440s
1 GB
10 4 339 048 51 0 51 0 10 40 048s 880s
GB
048 6784 4096 10 40 10 40 0480 4096s 5760s
NOTE: Picture / Image Capacity Chart provides approximate number of
images or AVI movies based on resolution setting and the size of
memory card. These figures may vary depending on the amount of
detail in the image.
STC-DVSIR5 Prowler DVS
www.stealthcam.net Toll Free 877- 69-8490 8
Camera kit ontents
• Model STC-DVSIR5 PROWLER DVS Digital Scouting Camera
• CDROM (Contains Ulead Photo Explorer 8.0 and camera
driver)
• User Manual.
• USB cable.
• TV out cable for TV (RCA Jack).
• TV out cable for handheld TV (Mini Jack).
• Strap.
STC-DVSIR5 Prowler DVS
www.stealthcam.net Toll Free 877- 69-8490 9
Battery & memory installation
The Stealth Cam STC-DVSIR5 PROWLER DVS Advanced Digital
Scouting Camera is designed to operate using two different types
of battery power options.
NOTE: Always have camera in the OFF position when installing or
removing batteries. Removing battery while the camera is in
operation may damage the camera.
Batteries “C” ell
The internal battery compartment accepts 6 “C” cell batteries. Be
sure to use high quality brand name alkaline batteries. Install
batteries with correct polarity (+/-) as noted inside the battery
compartment.
Warning:
Do not use different Voltage lead
acid battery other than the one specified in
this section. Doing so will damage the camera
and will void the warranty.
STC-DVSIR5 Prowler DVS
www.stealthcam.net Toll Free 877- 69-8490 10
12V Lead A id external battery
The STC-DVSIR5 PROWLER DVS is equipped with an external
power jack designed to accept a barrel plug cable to attach to a
sealed lead acid battery. (sold separately). Battery cable and
complete 1 V Lead Acid battery kits are available wherever Stealth
Cam scouting cameras are sold or call toll free 877- 69-8490. Only
Stealth Cam external battery accessories are recommended.
• Insert the external battery barrel plug into the DC 1 V jack on
the bottom of camera housing
• Turn the camera power on.
Please make sure the voltage and polarity ( /-) are correct
before connection. Incorrect voltage or polarity ( /-) will
damage the camera.
Memory Options
Your STC-DVSIR5 PROWLER DVS camera is equipped with
3 MB built in flash memory. The camera is also equipped with
an expandable media card slot capable of accepting up to GB
SD card (sold separately). With no memory card inserted into the
