Stealth Cam STC-WD2X Manuale utente

Stealth Cam

STC-WD2X

User’s Manual

Toll Free Customer Support 1-877-269-8490

www.stealthcam.net

Version 1.2 08/05

STC-WD2X

www.stealthcam.net Toll Free 877-269-8490

For Customer Service or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 211662

Bedford, Texas 76095

www.steatlhcam.net

Stealth Cam Limited Warranty

Your Stealth Cam is covered by a One Year Limited Warranty on parts

& labor from the date of purchase. The warranty covers defects in

workmanship & materials. The warranty does not apply to units, which

have been damaged or abused intentionally or unintentionally.

Tampering with or altering the unit will void the warranty. Any

unauthorized service will void warranty. Original sales receipt must be

produced for any warranty service. Questions call 877-269-8490

STC-WD2X

www.stealthcam.net Toll Free 877-269-8490

Manual Contents

Camera overview 4

Camera kit contents 8

Battery and memory Installation 9

Set up and programming 12

Camera use 21

Mounting the camera 22

Viewing & Deleting images 28

Memory compatibility chart 37

Technical Specs 38

General Information 41

STC-WD2X

www.stealthcam.net Toll Free 877-269-8490

Camera overview

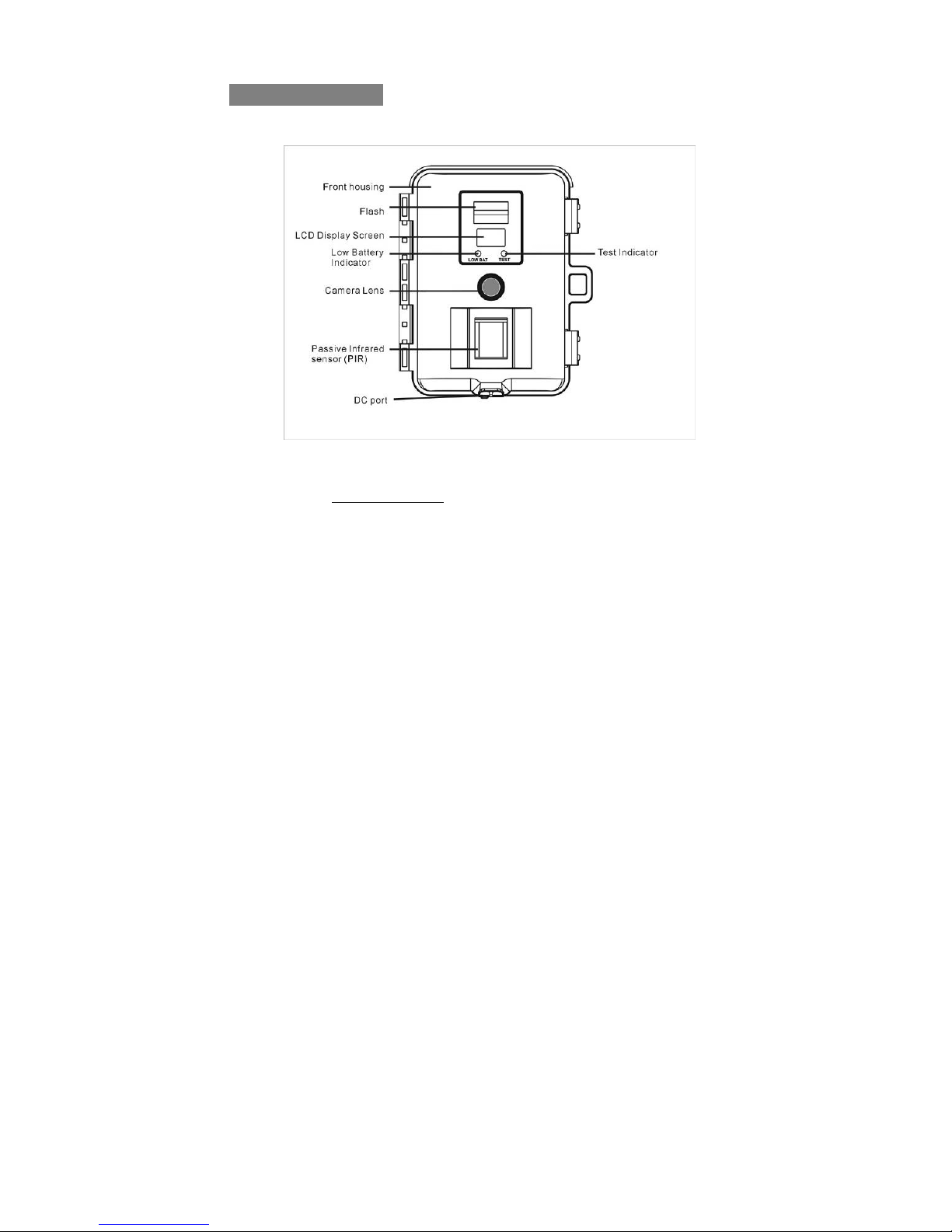

Front housing image with major parts indication.

STC-WD2X

www.stealthcam.net Toll Free 877-269-8490

Open view image with major parts indication

For use with Stealth Cam cable

only. (sold separately)

STC-WD2X

www.stealthcam.net Toll Free 877-269-8490

Side view with major parts indication

STC-WD2X

www.stealthcam.net Toll Free 877-269-8490

Picture / Image Capacity

SD card High Low Base AVI

16MB 26 40 80 8

32MB 52 80 160 16

64MB 104 160 320 32

128MB 208 320 640 64

256MB 416 640 1280 128

512MB 832 1280 2560 256

1 GB 1664 2560 5120 512

NOTE: Picture / Image Capacity Chart provides approximate number of

images or AVI movies based on resolution setting and the size of

memory card. These figures may vary depending on the amount of

detail in the image.

STC-WD2X

www.stealthcam.net Toll Free 877-269-8490

Camera kit contents

• Model STC-WD2X Digital Scouting Camera

• CDROM (Contains Ulead Photo Express 8 and camera driver)

• User Manual

• USB cable

• TV out cable for TV (RCA Jack)

• TV out cable for handheld TV (Mini Jack)

• Strap

STC-WD2X

www.stealthcam.net Toll Free 877-269-8490

Battery & memory installation

The Stealth Cam STC-WD2X Advanced Digital Scouting Camera is

designed to operate using two different types of battery power

options.

NOTE: Always have camera in OFF position when installing or

removing batteries.

Batteries “C” cell

The internal battery compartment accepts 6 “C” cell batteries. Be

sure to use high quality brand name alkaline batteries. Install

batteries in correct polarity (+/-) as noted inside battery

compartment.

12V Lead Acid external battery

The STC-WD2X is equipped with an external power jack designed

to accept a barrel plug cable to attach to a sealed lead acid battery.

(sold separately). Battery cable and complete 12V Lead Acid

battery kits are available wherever Stealth Cam scouting cameras

are sold or call toll free 877-269-8490. Only Stealth Cam external

battery accessories are recommended.

STC-WD2X

www.stealthcam.net Toll Free 877-269-8490

• Make sure the camera power switch is OFF and power source

switch on BATTERY.

• Insert the battery pack plug into the DC 12V jack of the bottom

of camera housing

• Turn the camera power on.

 Please make sure the voltage and polarity (+/-) are correct

before connection. Incorrect voltage or polarity (+/-) will

damage the camera.

Memory Options

Your STC-WD2X camera is equipped with 16MB built in flash

memory. The camera is also equipped with an expendable

media card slot capable accepting up to 1GB SD card (sold

separately). With no memory card inserted into the slot, the

camera will use the built in 16MB memory. If a SD card is

inserted into the slot then the camera will bypass the built in

memory and utilize the SD memory. The front counter display will
