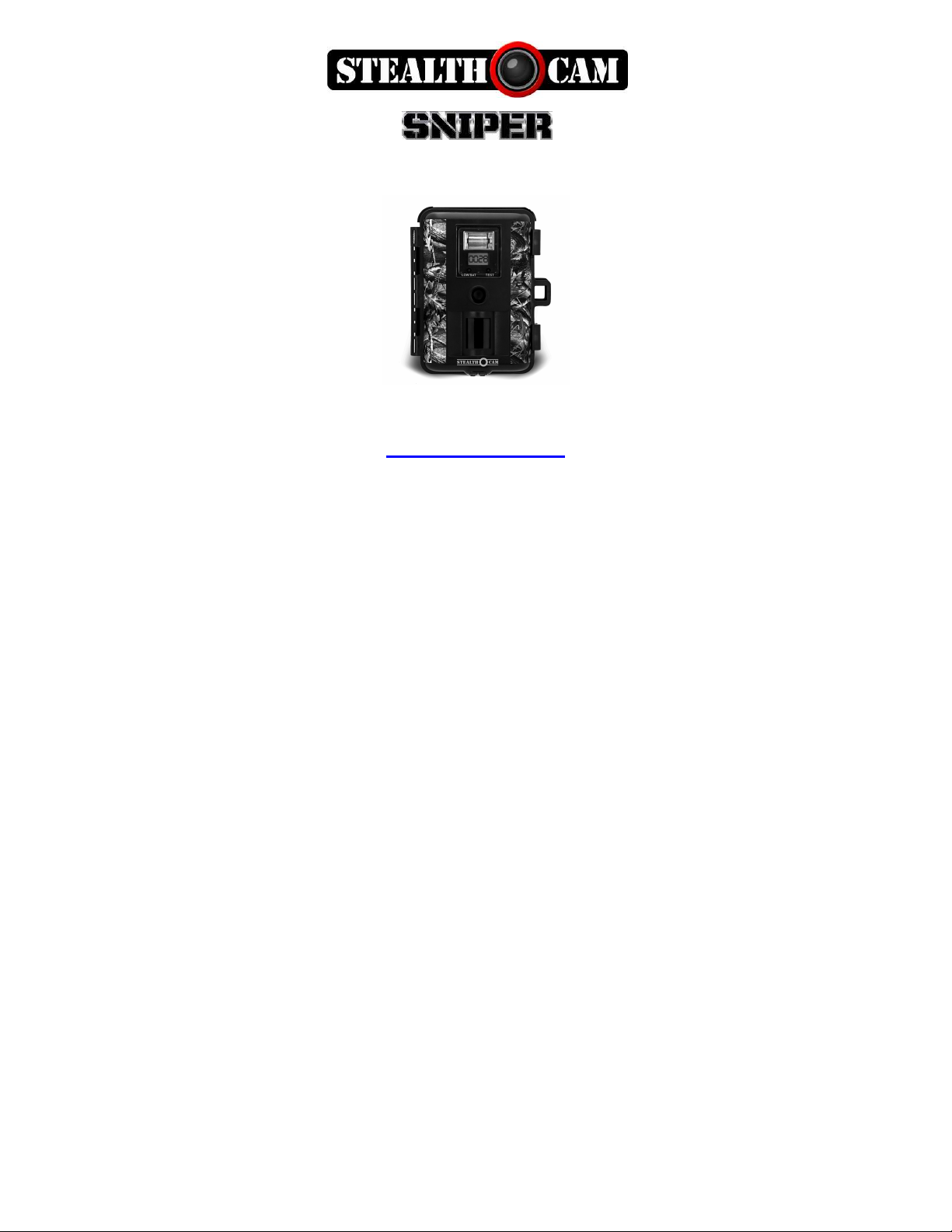

Stealth Cam STC-V650 Manuale utente

STC-V650 User’s Manual

Toll Free Customer Support 1-877-269-8490

www stealthcam net

Version 1.0 1/08

STC-V650

www.stealthcam.net Toll Free 877-269-8490 2

For Customer Service or Warranty Information Call Toll Free

877-269-8490

Stealth Cam LLC

P.O. Box 539504

Grand Prairie TX 75053-9504

www.stealthcam.net

Stealth Cam Limited Warranty

Your Stealth Cam scouting camera is covered by a 90 days Limited Warranty

on parts and labor from the date of original purchase and purchases must be

made through an authorized dealer. The warranty covers defects in

workmanship and materials. The warranty does not apply to units which have

been damaged or abused intentionally or unintentionally. A purchase from

individuals or unauthorized internet sites voids the warranty.

Tampering with or altering the unit will void the warranty. Any unauthorized

service will void warranty. Original sales receipt must be produced for any

warranty service and a Return Authorization (RA) number must be obtained

from customer service at 877-269-8490 prior to returning product.

STC-V650

www.stealthcam.net Toll Free 877-269-8490 3

Manual Contents

Camera overview 4

Picture capacity chart 7

Camera kit contents 8

Battery and memory Installation 9

Definition 13

Set up and programming 16

Using the camera 22

Mounting the camera 23

Viewing & Deleting images 28

Using external solar power 32

Memory compatibility chart 34

Technical Specs 35

General Information 38

Moon Phase symbol chart 40

STC-V650

www.stealthcam.net Toll Free 877-269-8490 4

Camera overview

Front housing image with major parts indication.

STC-V650

www.stealthcam.net Toll Free 877-269-8490 5

Open view image with major parts indication:

STC-V650

www.stealthcam.net Toll Free 877-269-8490 6

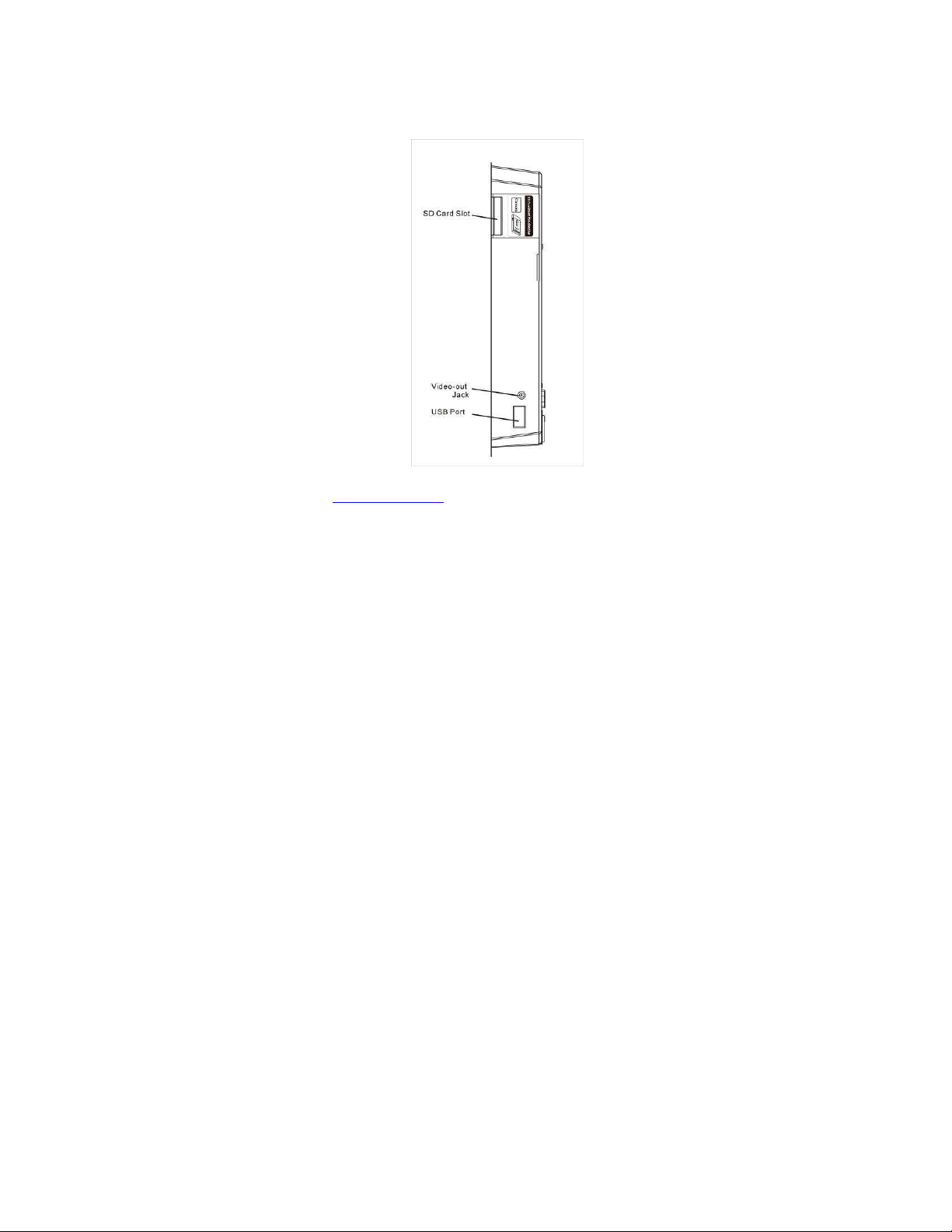

Side view with major parts indication:

STC-V650

www.stealthcam.net Toll Free 877-269-8490 7

Picture / Image Capacity

SD card High Mid Low Base AVI

16MB 8 17 40 160 1

32MB 16 34 80 320 2

64MB 32 68 160 640 4

128MB 64 136 320 1280 8

256MB 128 272 640 2560 16

512MB 256 544 1280 512 32

1 GB 512 1088 2560 10240 64

2 GB 1024 2176 5120 20480 128

NOTE: Picture / Image Capacity Chart provides approximate number of

images or AVI movies based on resolution setting and the size of

memory card. These figures may vary depending on the amount of

detail in the image.

STC-V650

www.stealthcam.net Toll Free 877-269-8490 8

Camera kit contents

• Model STC-V650 Sniper Digital Scouting Camera

• User Manual

• USB cable

• Mounting Strap

STC-V650

www.stealthcam.net Toll Free 877-269-8490 9

Battery & memory installation

The Stealth Cam STC-V650 Sniper Advanced Digital Scouting Camera

is designed to operate using two different types of battery power

options.

NOTE: Always have camera in the OFF position when installing or

removing batteries. Removing battery while the camera is in operation

may damage the camera.

Batteries “C” cell:

The internal battery compartment accepts 6 x “C” cell batteries. Be

sure to use high quality brand name alkaline batteries. Install batteries

with correct polarity (+/-) as noted inside the battery compartment.

Warning:

Do not use a different Voltage lead

acid battery other than the one specified in

this section. Doing so will damage the camera

and will void the warranty.

STC-V650

www.stealthcam.net Toll Free 877-269-8490 10

12V Lead Acid external battery

The STC-V650 is equipped with an external power jack designed to

accept a barrel plug cable to attach to a sealed lead acid battery. (sold

separately). This will enhance the camera’s field life. Battery cable and

complete 12V Lead Acid battery kits are available wherever Stealth

Cam scouting cameras are sold or call toll free 877-269-8490. Only

Stealth Cam external battery accessories are recommended.

• Insert the external battery barrel plug into the DC 12V jack on

the bottom of camera housing

• Turn the camera power on.

 Please make sure the voltage and polarity (+/-) are correct

before connection. Incorrect voltage or polarity (+/-) will

damage the camera.

Please note: When both internal and external batteries are connected

the camera will draw power from the higher voltage

source first.

Solar Power

See using external solar power section on page 32.
