Stealth Cam STC-DVIR5 PROWLER Manuale utente
STC-DVIR5 PROWLER
User’s Manual
Toll Free Customer Support 1-877-269-8490
www.stealth am.net
Version 1.0 07/07
STC-DVIR5 PROWLER
www.stealth am.net Toll Free 877-269-8490 2
For Customer Servi e or Warranty Information Call Toll Free
877-269-8490
Stealth Cam, LLC
P.O. Box 539504
Grand Prairie, TX 75053-9504
www.steatlh am.net
Stealth Cam Limited Warranty
Your Stealth Cam s outing amera is overed by a 90 days Limited Warranty
on parts and labor from the date of original pur hase, and pur hases must be
made through an authorized dealer. The warranty overs defe ts in
workmanship and materials. The warranty does not apply to units, whi h have
been damaged or abused intentionally or unintentionally. A pur hase from
individuals or unauthorized internet sites voids the warranty.
Tampering with or altering the unit will void the warranty. Any unauthorized
servi e will void warranty. Original sales re eipt must be produ ed for any
warranty servi e and a Return Authorization (RA) number must be obtained
from ustomer servi e at 877-269-8490 prior to returning produ t.
STC-DVIR5 PROWLER
www.stealth am.net Toll Free 877-269-8490 3
Manual Contents
Camera overview 4
Camera kit ontents 8
Battery and memory Installation 9
Set up and programming 12
Camera use 20
Mounting the amera 21
Viewing & Deleting images 27
Memory ompatibility hart 36
Te hni al Spe s 37
General Information 41
Moon phase hart 43
STC-DVIR5 PROWLER
www.stealth am.net Toll Free 877-269-8490 4
Camera overview
Front housing image with major parts indi ation.
STC-DVIR5 PROWLER
www.stealth am.net Toll Free 877-269-8490 5

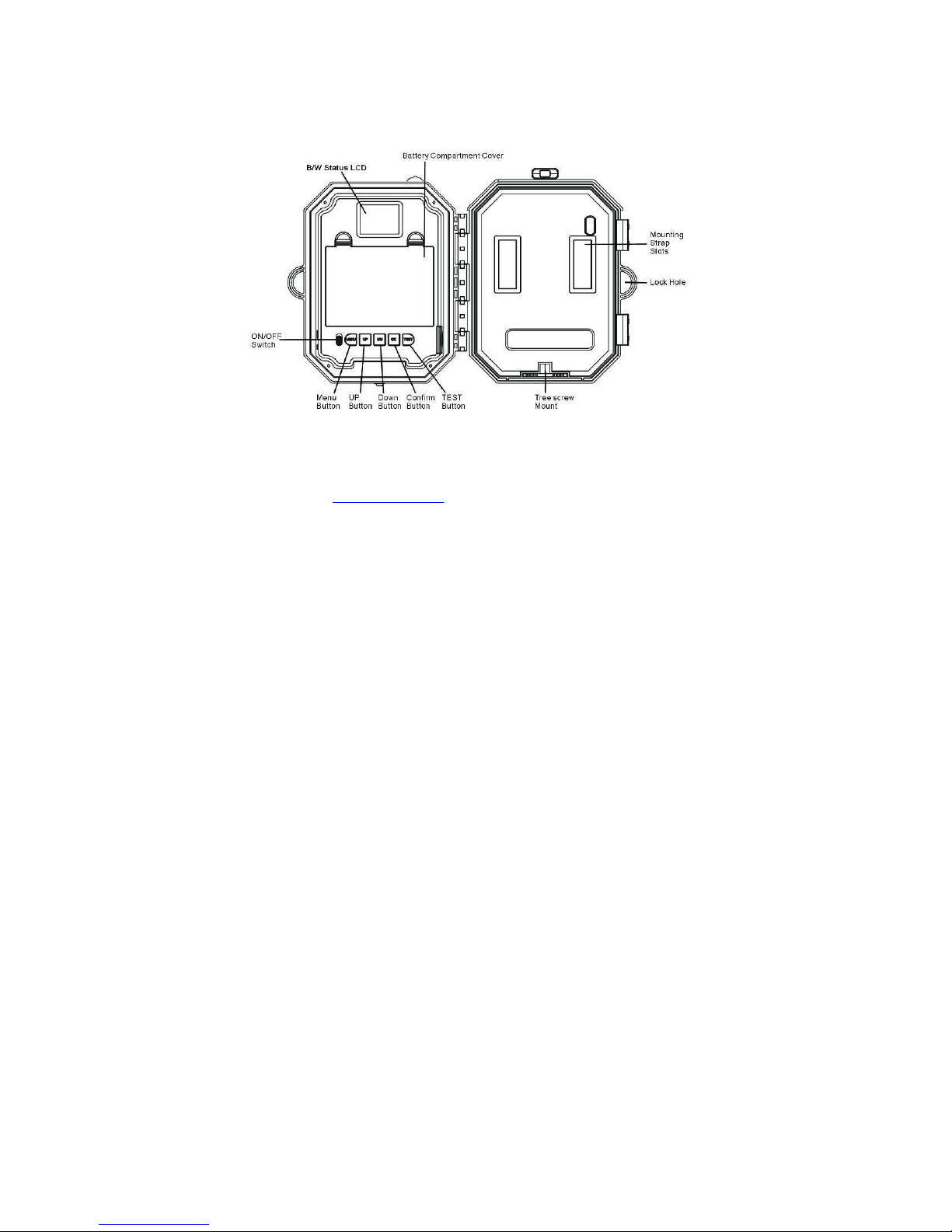

Open view image with major parts indi ation
STC-DVIR5 PROWLER
www.stealth am.net Toll Free 877-269-8490 6

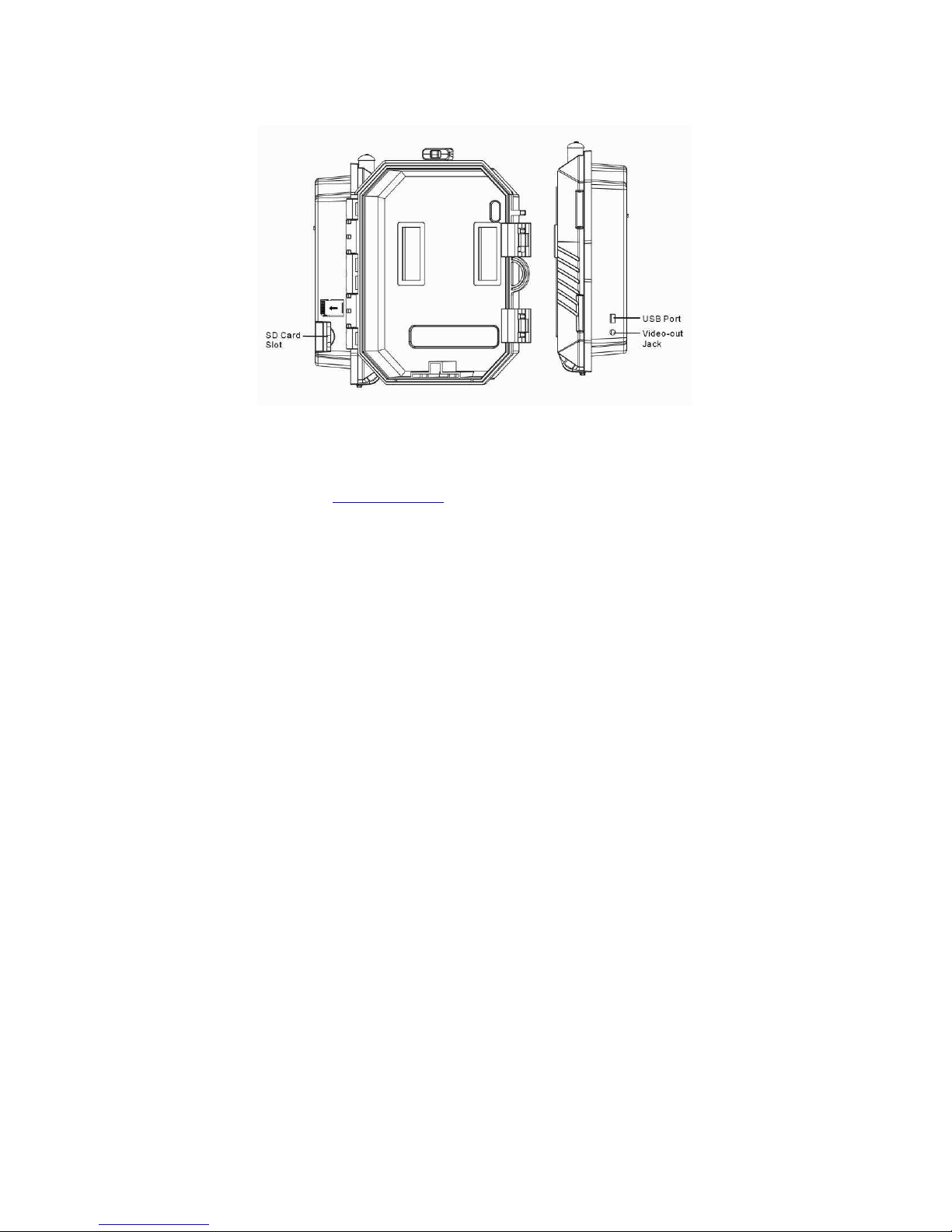

Side view with major parts indi ation
STC-DVIR5 PROWLER
www.stealth am.net Toll Free 877-269-8490 7
Pi ture / Image Capa ity
High Low Base AVI
(in se onds)
SD ard
Color B&W Color B&W Color B&W Color B&W
16MB
16 53 32 80 80 160 40s 45s
32MB
32 106 64 160 160 320 80s 90s
64MB
64 212 128 320 320 640 160s 180s
128MB
128 424 256 640 640 1280 320s 360s
256MB
256 848 512 1280 1280 2560 640s 720s
512MB
512 1696 1024 2560 2560 5120 1024s 1440s
1 GB
1024 3392 2048 5120 5120 10240 2048s 2880s
2 GB
2048 6784 4096 10240 10240 20480 4096s 5760s
NOTE: Pi ture / Image Capa ity Chart provides approximate number of
images or AVI movies based on resolution setting and the size of
memory ard. These figures may vary depending on the amount of
detail in the image.
STC-DVIR5 PROWLER
www.stealth am.net Toll Free 877-269-8490 8
Camera kit ontents
• Model STC-DVIR5 PROWLER Digital S outing Camera
• CDROM (Contains Ulead Photo Explorer 8.0 and amera
driver)
• User Manual.
• USB able.
• TV out able for TV (RCA Ja k).
• TV out able for handheld TV (Mini Ja k).
• Strap.
STC-DVIR5 PROWLER
www.stealth am.net Toll Free 877-269-8490 9
Battery & memory installation
The Stealth Cam STC-DVIR5 PROWLER Advan ed Digital
S outing Camera is designed to operate using two different types
of battery power options.
NOTE: Always have amera in the OFF position when installing or
removing batteries.
Batteries “C” ell
The internal battery ompartment a epts 6 “C” ell batteries. Be
sure to use high quality brand name alkaline batteries. Install
batteries with orre t polarity (+/-) as noted inside the battery
ompartment.
Warning:
Do not use different Voltage lead
a id battery other than the one spe ified in
this se tion. Doing so will damage the amera
and will void the warranty.
STC-DVIR5 PROWLER
www.stealth am.net Toll Free 877-269-8490 10
12V Lead A id external battery
The STC-DVIR5 PROWLER is equipped with an external power
ja k designed to a ept a barrel plug able to atta h to a sealed
lead a id battery. (sold separately). Battery able and omplete
12V Lead A id battery kits are available wherever Stealth Cam
s outing ameras are sold or all toll free 877-269-8490. Only
Stealth Cam external battery a essories are re ommended.
• Insert the external battery barrel plug into the DC 12V ja k on
the bottom of amera housing
• Turn the amera power on.
Please make sure the voltage and polar ty (+/-) are correct
before connect on. Incorrect voltage or polar ty (+/-) w ll
damage the camera.
Memory Options
Your STC-DVIR5 PROWLER amera is equipped with 32MB built
in flash memory. The amera is also equipped with an
expandable media ard slot apable of a epting up to 2GB SD
ard (sold separately). With no memory ard inserted into the slot,
