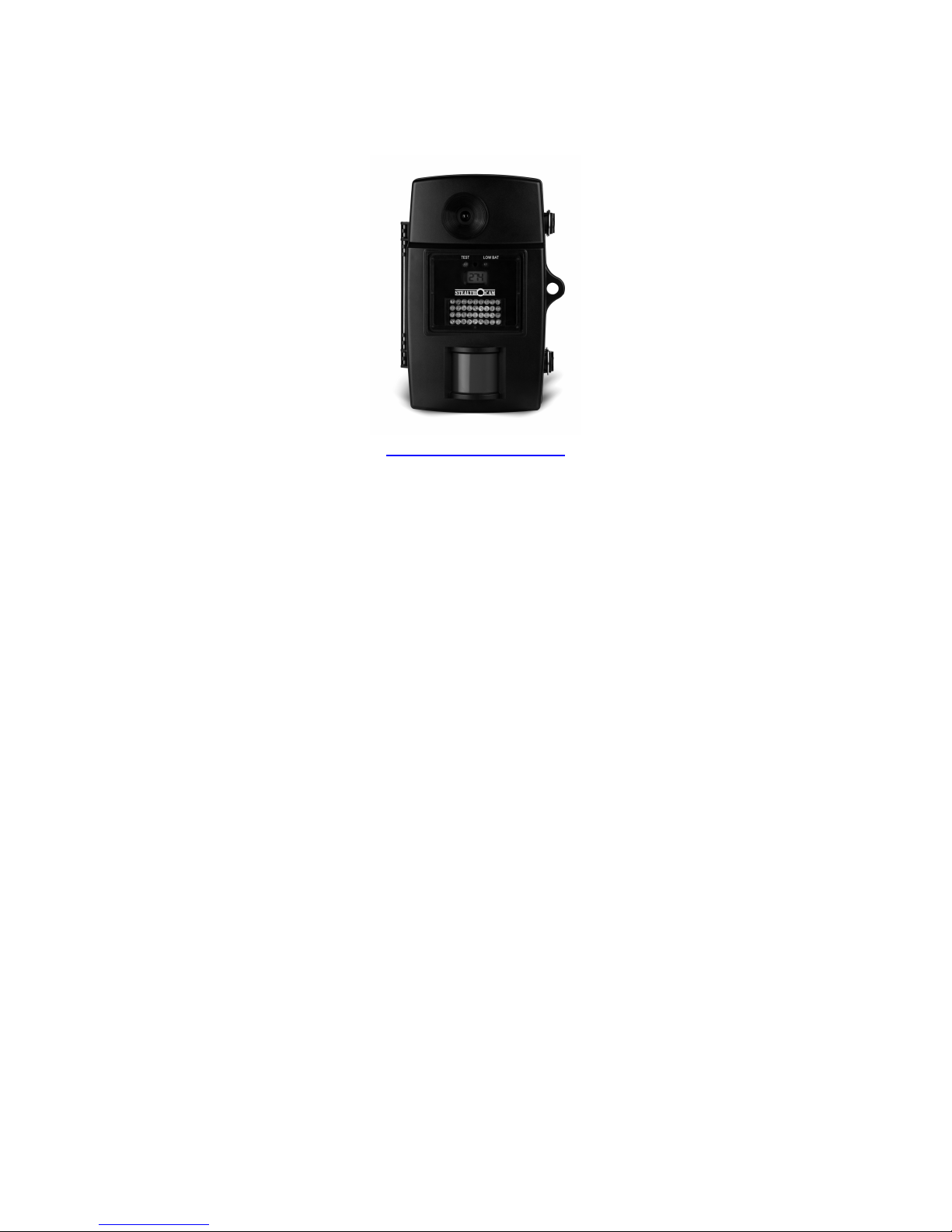

Stealth Cam STC-I540IR Manuale utente

Stealth Cam

STC-I540IR

User’s Manual

www.stealthcam.net

Version 1.0 04/08

STC-I540IR

www.stealthcam.net Toll Free 877-2 9-8490 2

For Customer Service or Warrant Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 539504

Grand Prairie, TX 75053-9504

www.stealthcam.net

Stealth Cam Limited Warrant

Your Stealth Cam scouting camera is covered by a 90 day Limited Warranty on

parts and labor from the date of original purchase, and purchases must be

made through an authorized dealer. The warranty covers defects in

workmanship and materials. The warranty does not apply to units, which have

been damaged or abused intentionally or unintentionally. A purchase from

individuals or unauthorized internet sites voids the warranty.

Tampering with or altering the unit will void the warranty. Any unauthorized

service will void warranty. Original sales receipt must be produced for any

warranty service and a Return Authorization (RA) number must be obtained

from customer service at 877-2 9-8490 prior to returning product.

STC-I540IR

www.stealthcam.net Toll Free 877-2 9-8490 3

Introduction

Thank you for purchasing the Stealth Cam STC-I540IR digital video

scout camera. Your Stealth Cam is designed to provide many years of

service. The STC-I540IR is an infrared based camera with an industry

leading Infrared emitter range of up to 40 feet. Special Burst Mode

technology allows multiple exposures of up to 9 sequential still pictures

or a programmable video segment between 10 to 180 seconds, when

the PIR sensor is triggered.

Your STC-I540IR infrared camera provides superb color day time

pictures or AVI video clips. When the infrared LED emitter is activated

during low lighting conditions, it will provide you with black and white

still pictures or AVI video clips.

STC-I540IR

www.stealthcam.net Toll Free 877-2 9-8490 4

Contents

• STC-I540IR Digital Video Scouting Camera

• User Manual

• USB cable

• Tree Mounting Strap

STC-I540IR

www.stealthcam.net Toll Free 877-2 9-8490 5

Table of Contents

Warranty 2

Introduction 3

Camera Kit Contents 4

Table of Contents 5

Overview -8

Battery Power Options 9-10

Built-in Memory & SD Card Installation 11-13

Description of Features 14-1

Programming Your Scout Camera 17-23

Using your Camera 24-29

Manual Shooting Mode 30-31

Viewing Images and Deleting Images 32-3

Formatting memory 37

Using External Power Source 38

Technical Specifications 39

Camera Features 40-41

General Information

42-43

Moon Phase Chart 44

STC-I540IR

www.stealthcam.net Toll Free 877-2 9-8490 6

Camera Overview - Front Cover Panel

STC-I540IR

www.stealthcam.net Toll Free 877-2 9-8490 7

Camera Overview - Inside Control Panel

STC-I540IR

www.stealthcam.net Toll Free 877-2 9-8490 8

Camera Overview - Inside Side Panel

STC-I540IR

www.stealthcam.net Toll Free 877-2 9-8490 9

Batter Power Options

The Stealth Cam STC-I540IR is designed to operate using two different

battery power options. The camera must be in the OFF position when

installing or removing batteries. Use of batteries other than those

specified in this section may damage the camera and void your

warranty.

Using “C” Cell Batteries

The internal battery compartment accepts 8 “C” cell batteries. Pull up

on the bottom clip of the battery cover to open. Use fresh, high quality

alkaline batteries. Install batteries in the correct polarity (+/-) referring

to the illustration inside the battery compartment. Secure battery cover.

Precaution: When replacing batteries, replace all the batteries within

10 minutes. Otherwise, this will result in the loss of date / time setting

12V Lead Acid Batter (Recommended for extended field life)

To avoid replacing batteries when out in the field, the STC-I540IR is

equipped with an external power jack designed to accept a barrel plug

cable that attaches to an optional lead acid battery (Stealth Cam STC-

STC-I540IR

www.stealthcam.net Toll Free 877-2 9-8490 10

12VBB). Complete 12V Lead Acid battery kits offer significantly more

usage than standard alkaline batteries. They are available at your

Stealth Cam dealer, or call toll free (877) 2 9-8490. Only Stealth Cam

external battery accessories are recommended.
